Southbend Platinum 32" Heavy-Duty Gas Range
2 Open Burners • 16" Charbroiler • Standard Oven BaseBuilt to outperform in the most demanding commercial kitchens, the Southbend Platinum Series 32" combo range delivers blistering heat, precise control, and rugged durability—all in a space-saving footprint that integrates seamlessly into any battery line-up.
Performance Highlights

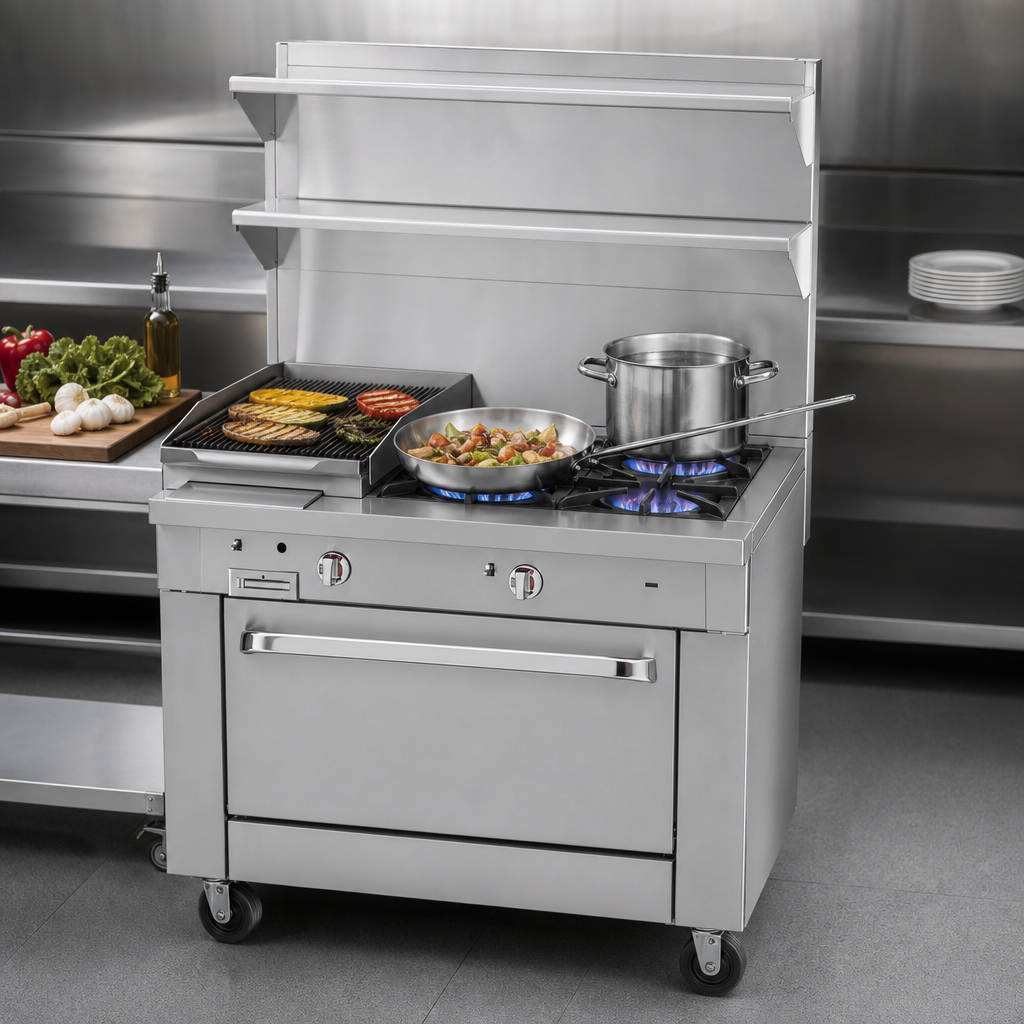

- (2) Signature Pyromax™ open burners, 45,000 BTU each (clog-free, removable cast-iron grates).

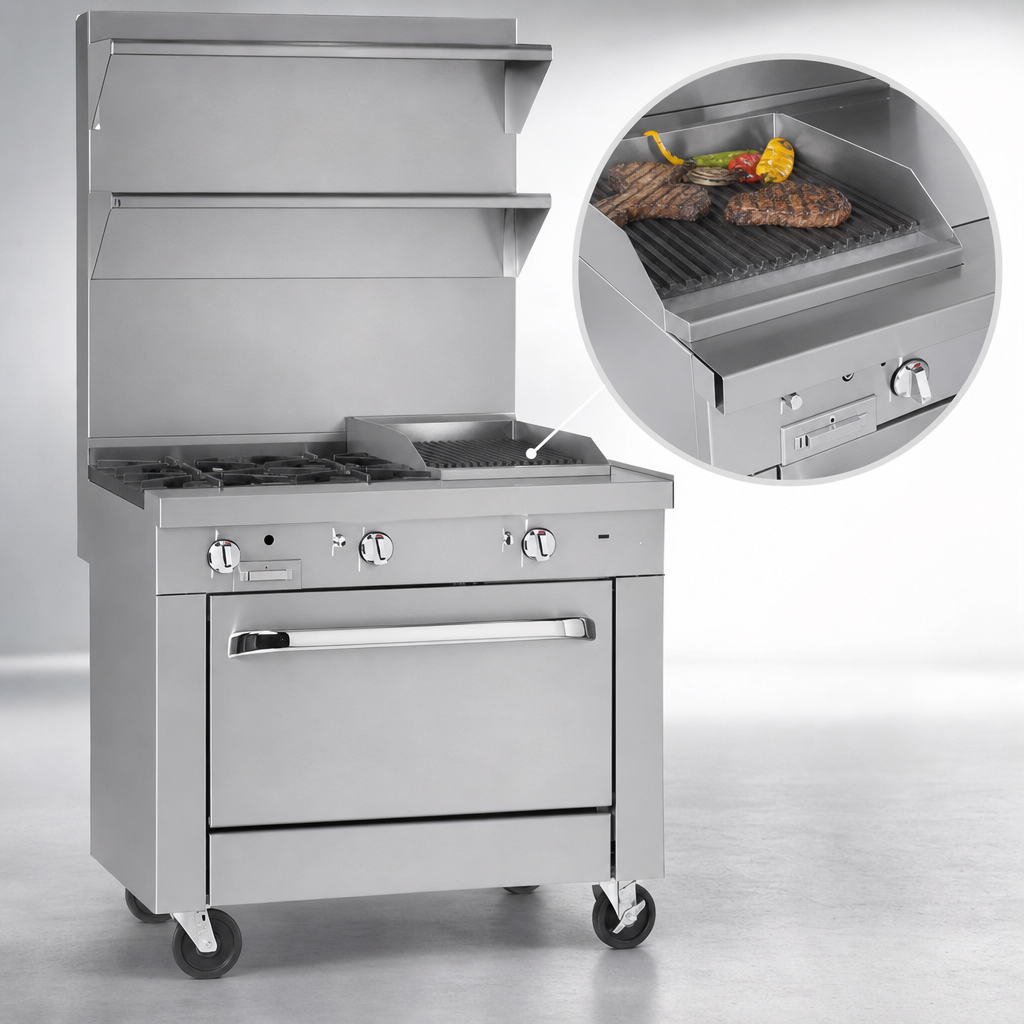

- 16" charbroiler section with (2) 20,000 BTU burners, stainless-steel radiants & reversible cast-iron grates (⅛" or ¼" grid, adjustable slope).
- 45,000 BTU standard oven (175 – 550 °F) with porcelain interior & two removable racks (5 rack positions).
- Total input: 125,000 BTU/hr (natural or propane, field convertible).
Built for the Long Haul
- All-stainless front, sides and 9 ¼" deep rail resist dents, corrosion & daily heavy use.
- Fully insulated burner box and oven cavity improve efficiency & keep your kitchen cooler.
- 5" stainless flue riser channels exhaust into your ventilation hood.
- 6" stainless adjustable legs—level it quickly on uneven floors or upgrade to optional casters.
Smart, Simple Operation
- Manual gas valves for infinite flame modulation on both open burners and charbroiler.
- Standing pilots—no electrical hookup required.
- 1 ¼" front gas manifold couples with adjoining Platinum sectional units; 1" rear NPT connection simplifies single installations.
Technical Specifications
| Model | Platinum P32-XC-D (Open Burners / Charbroiler / Standard Oven) |
|---|---|
| Overall Width | 32" (813 mm) |
| Overall Depth | 37 ½" (953 mm) |
| Work-surface Height | 36" (914 mm) to top of grates |
| Flue Height | 5" (127 mm) |
| Total BTU Input | 125,000 BTU/hr |
| Gas Connection | 1 ¼" front manifold, 1" rear male NPT; 7" W.C. NAT / 11" W.C. LP minimum |
| Oven Cavity | 14"H × 26"W × 26.5"D; 2 racks, 5 positions |
| Controls | Manual gas valves, standing pilots (no electrical power required) |
| Certifications | CSA, NSF |
| Warranty | 1-year parts & labor (Heavy-Duty Sectional) |
Popular Options & Accessories (sold separately)
- External gas pressure regulator
- 24" or 36" flue riser with optional shelves
- Casters with front locks & restraining cable kit
- Chrome or grooved charbroiler grates
- Open-frame base, salamander, or cheesemelter mounting
Important:
1) Limit cookware larger than 12" to rear burners to protect front components.
2) Never place sheet pans over charbroiler grates while burners are on—excessive reflected heat will damage the unit and is not covered under warranty.
2) Never place sheet pans over charbroiler grates while burners are on—excessive reflected heat will damage the unit and is not covered under warranty.
Need financing? Ask us about flexible Middleby equipment financing plans.
Features & Specs
Features & Specs
Manufacturer
Southbend (Middleby)
Brand_name
Platinum
Certifications
NSF, CSA
Height
41.0in
Width
32.0in
Depth
37.5in
Shipping Weight
570.0lbs
Exterior Finish
stainless steel front & sides
Vent
backriser
Top
(2) open burners, (1) 16" charbroiler
Base
(1) standard oven
Specifications
Platinum Heavy Duty Range, gas, 32", (2) 45,000 BTU open burners, (1) 16" charbroiler, cast iron grates, manual controls, (1) standard oven, includes (2) racks, stainless steel radiants, front, sides & 6" adjustable legs, 125,000 BTU, CSA, NSF
