Southbend (Middleby) P32D-TT Platinum Gas Ranges

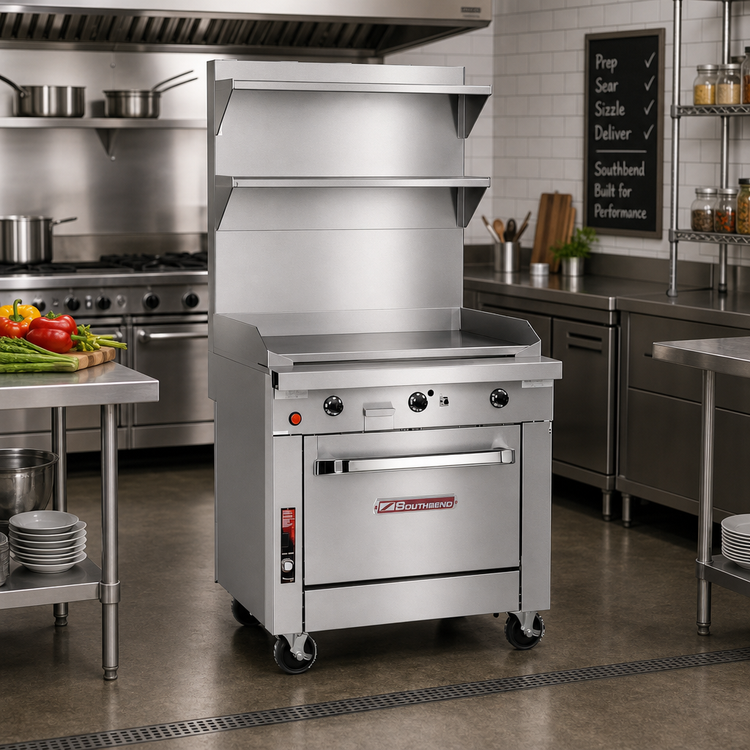

Southbend Platinum 32" Heavy-Duty Gas Range
with Thermostatic Griddle & Standard Oven

Engineered for 24/7 production lines, the Platinum Series by Southbend delivers the rugged power chefs demand and the precision they expect. This 32 inch sectional range combines an 80,000 BTU full-width thermostatic griddle with a 45,000 BTU standard oven – all wrapped in easy-to-clean stainless steel that’s built for decades of dependable service.

Performance & Convenience

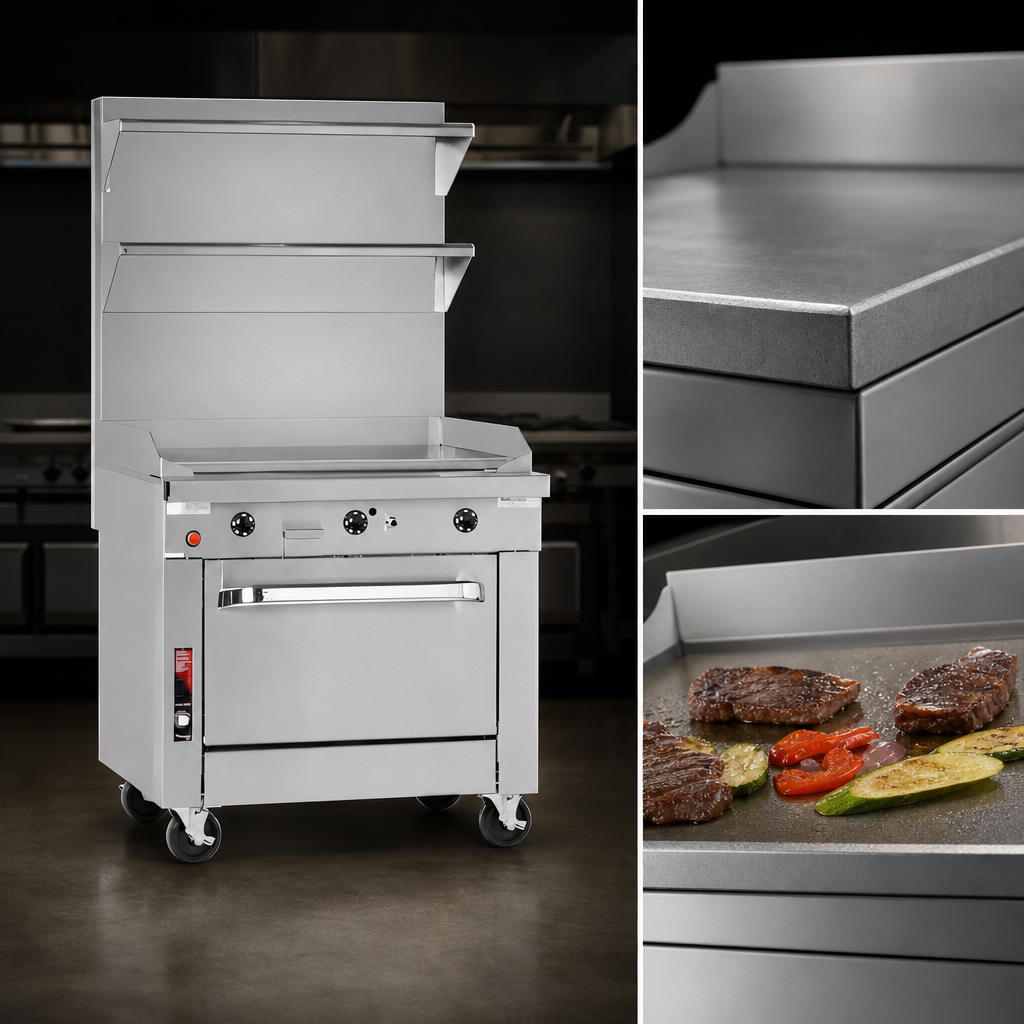

• 1" thick stainless steel griddle plate retains heat for perfect sears and fast recovery.

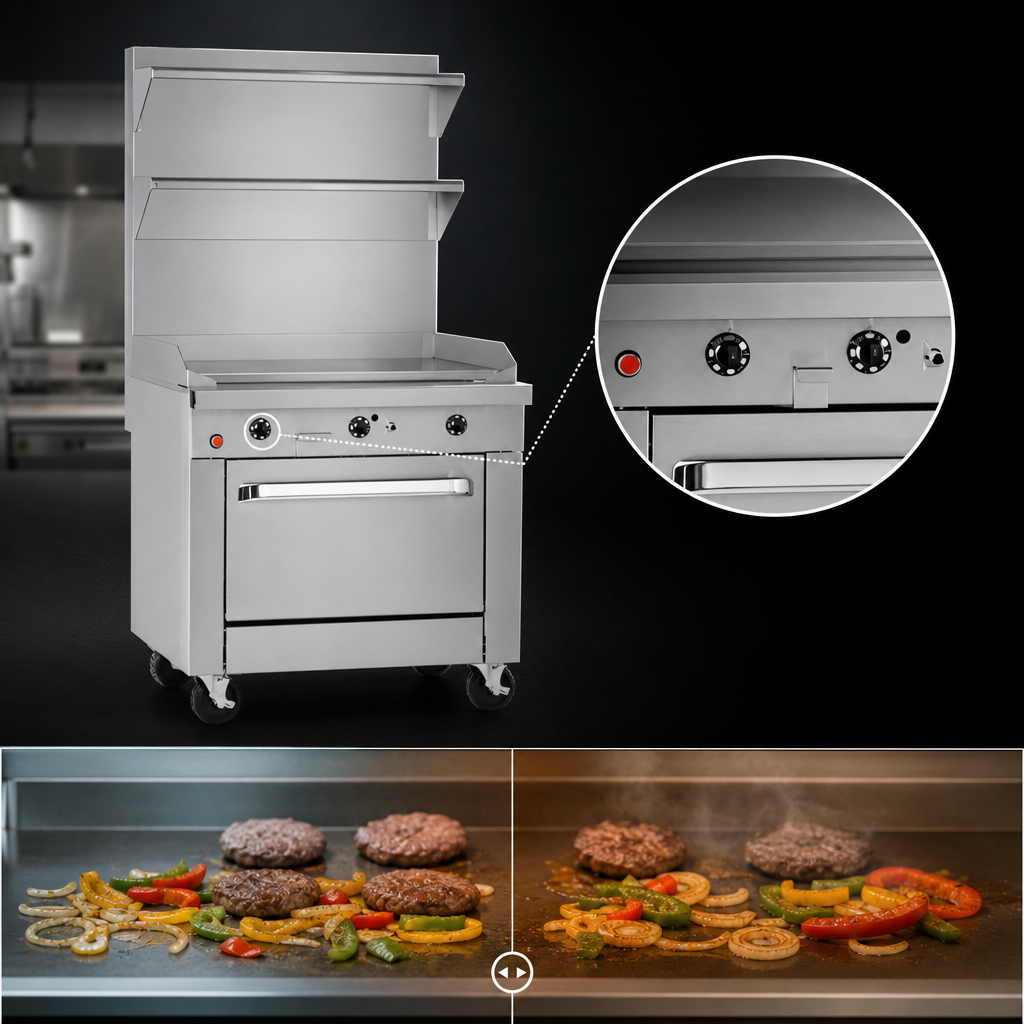

• “Insta-On” thermostatic controls maintain 180 °F – 400 °F surface temperatures.
• Battery spark ignition means quick, reliable start-ups without a standing pilot on the griddle.
• 9 ¼" deep front rail and oversized, removable grease drawer simplify daily clean-up.
• Fully insulated burner box maximizes heat in the cooking zone – not your kitchen.

Heavy-Duty Oven Power

• 45,000 BTU burner with standing pilot and thermostat range of 175 °F – 550 °F.
• 14"H × 26"W × 26 ½"D porcelain-enameled cavity fits full-size sheet pans either way.
• Supplied with two heavy-gauge racks on five-position side rails.

Built for the Line

• Stainless steel front, sides, rear and exterior bottom resist corrosion and daily wear.
• 5" stainless steel flue riser channels heat safely to the hood.
• 6" adjustable stainless steel legs level the unit on uneven floors.
• 1 ¼" front manifold couples seamlessly into battery lines; 1" rear NPT gas connection.
• cCSAus, CSA Flame, CSA Star & NSF certifications for worry-free code compliance.
• Backed by a 1-year parts & labor warranty and nationwide service network.

Technical Specifications

Minimum supply pressure: 7" W.C. NAT or 11" W.C. LP. A properly sized external pressure regulator (sold separately) is required. Installation under a vented hood and in accordance with local codes is mandatory.

For commercial use only — not for household installation.
