Southbend (Middleby)  |  Platinum  |  SKU: P32D-TC

Southbend (Middleby) P32D-TC Platinum Gas Ranges

$15,488.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Installation & operation Owner's manual Middleby financial flyer Warranty sheet
Related Searches
Butane Stove Cooking Equipment Cooking Equipment Countertop Cooking Equipment Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

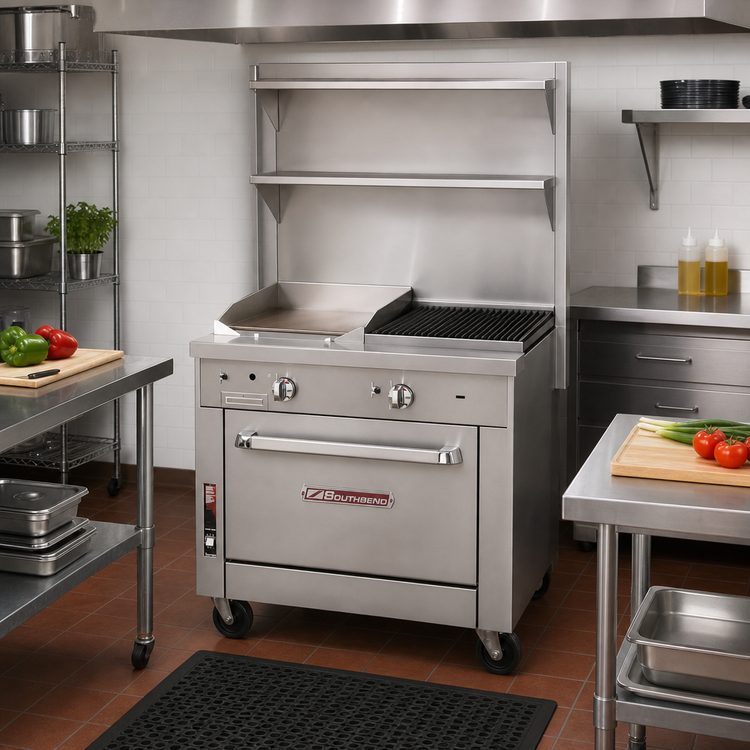

Southbend Platinum 32" Heavy-Duty Gas Range

16" Thermostatic Griddle • 16" Radiant Charbroiler • Standard Oven Base

Built for the most demanding commercial kitchens, the Southbend Platinum P32-G/TC combines three powerhouse cooking zones in a compact 32" footprint. From breakfast service to dinner rush, this all-in-one workhorse delivers the versatility, durability and precision your operation needs every day.

Top-Side Performance

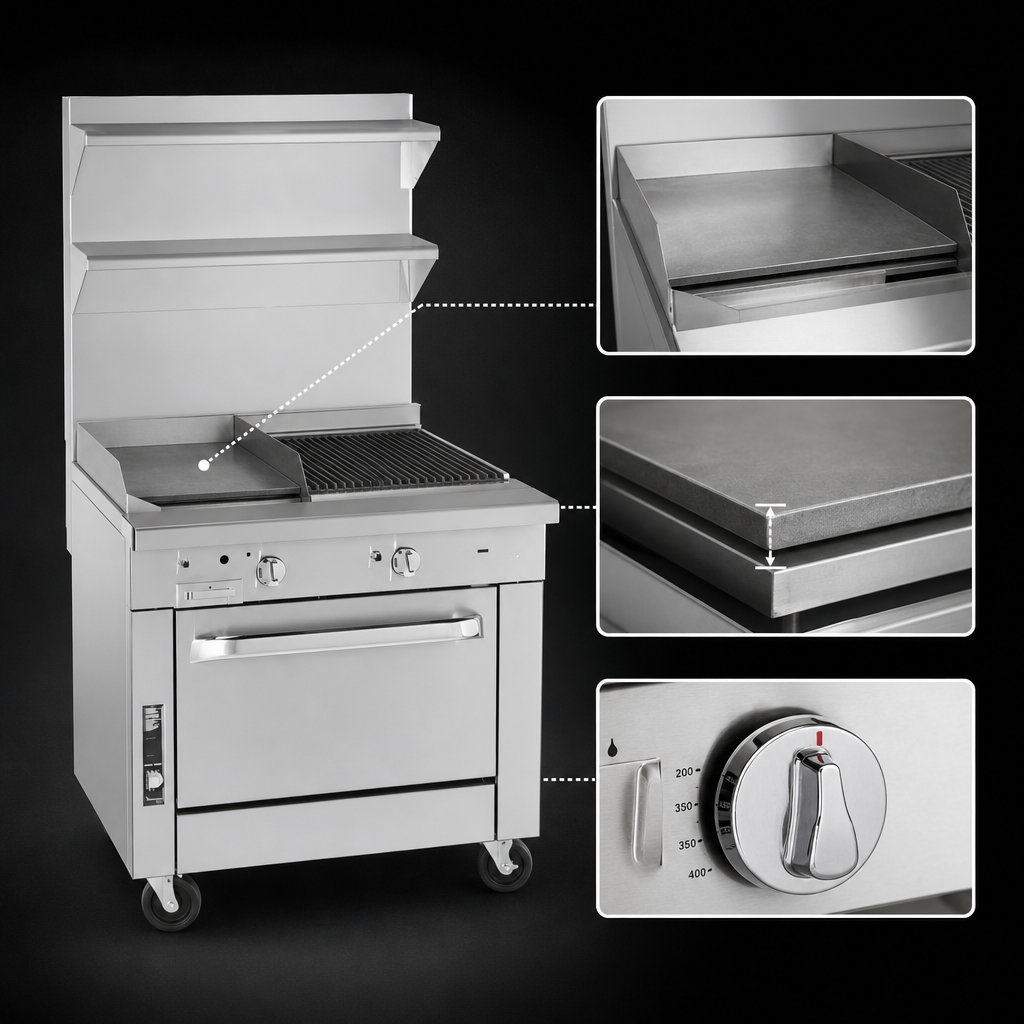

  • 16" Thermostatic Griddle – 1" thick steel plate with “Insta-On” controls (180 °F–400 °F) and two 20,000 BTU burners for fast recovery.

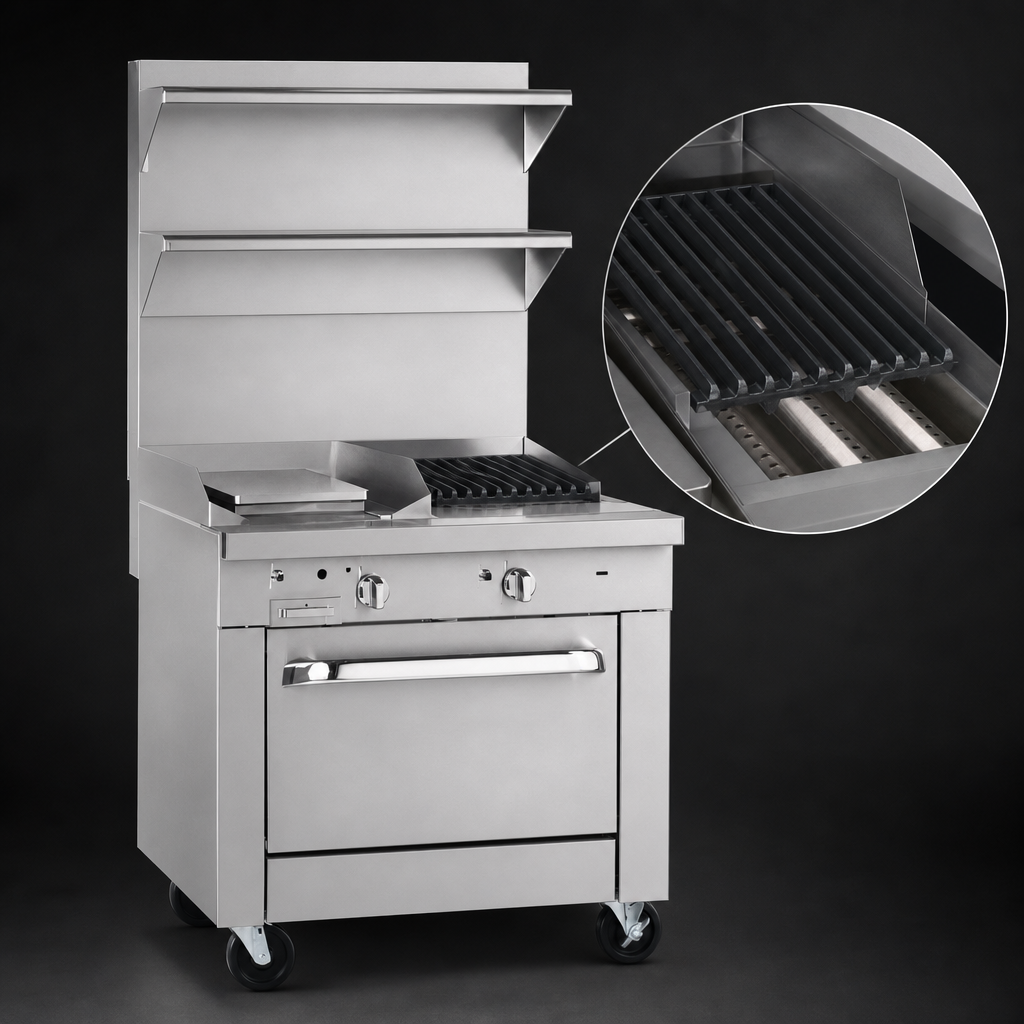

  • 16" Radiant Charbroiler – Two 20,000 BTU burners, stainless steel radiants and reversible cast-iron grates that adjust front-to-back for ⅛" or ¼" branding.
  • Battery spark ignition for reliable flame starts without a standing pilot on the top sections.
  • Removable grease drawer & drip trays speed up end-of-shift clean-up.

High-Capacity Standard Oven

  • 45,000 BTU cast-iron burner with snap-action thermostat (175 °F–550 °F).
  • 14" H × 26" W × 26.5" D porcelain-enameled cavity retains heat and wipes clean.
  • (2) nickel-plated racks with 5 rack positions included.

Construction Highlights

  • Fully welded & insulated cabinet with stainless steel front, sides and 5" flue riser.
  • 9-¼" deep front rail keeps pans secure; 6" adjustable stainless steel legs level on uneven floors.
  • 1-¼" front gas manifold couples to adjacent Platinum units for easy battery installation.

Technical Specifications

Model Platinum P32-G/TC-D
Cooking Surface 16" thermostatic griddle  |  16" radiant charbroiler
Total Input 125,000 BTU/hr (NG or LP)
Griddle BTU 40,000 BTU/hr
Charbroiler BTU 40,000 BTU/hr
Oven BTU 45,000 BTU/hr
Griddle Plate 1" thick steel  |  16" × 24" cooking area
Oven Interior (HxWxD) 14" × 26" × 26.5"
Overall Dimensions (WxDxH) 32" × 37.5" × 45.5"* *height includes 6" legs & 5" flue riser
Gas Connection 1-¼" front manifold  |  1" rear NPT
Certifications cCSAus, CSA Star, CSA Flame, NSF
Warranty 1-year parts & labor (factory authorized service)

Popular Factory Options (Sold Separately)

  • 24" or 36" flue riser with single or double storage shelves
  • Chrome or grooved griddle plate
  • Plated fish grids for charbroiler
  • Locking caster kit & restraining cable
  • External pressure regulator
Attention: Oversized cookware (12" Ø or larger) should not overlap the front rail. Doing so can trap excessive heat and may damage components—damage of this type is not covered under warranty.

Ready to upgrade? Ask us about affordable equipment financing with fixed monthly payments.

Features & Specs

Manufacturer

Southbend (Middleby)

Brand_name

Platinum

Certifications

NSF, cCSAus, CSA Star, CSA Flame

Height

41.0in

Width

32.0in

Depth

37.5in

Shipping Weight

660.0lbs

Plate Thickness

1.000" = 1"

Top

(1) 16" griddle with thermostat, (1) 16" charbroiler

Vent

backriser

Exterior Finish

stainless steel front & sides

Base

(1) standard oven

Specifications

Platinum Heavy Duty Range, gas, 32", (1) 16" griddle, 1" thick plate, (1) 16" charbroiler, cast iron grates, thermostatic controls, battery spark ignition, (1) standard oven, includes (2) racks, stainless steel radiants, front, sides & 6" adjustable legs, 125,000 BTU, cCSAus, CSA Flame, CSA Star, NSF
