Southbend (Middleby) P32D-HT Platinum Gas Ranges
Description

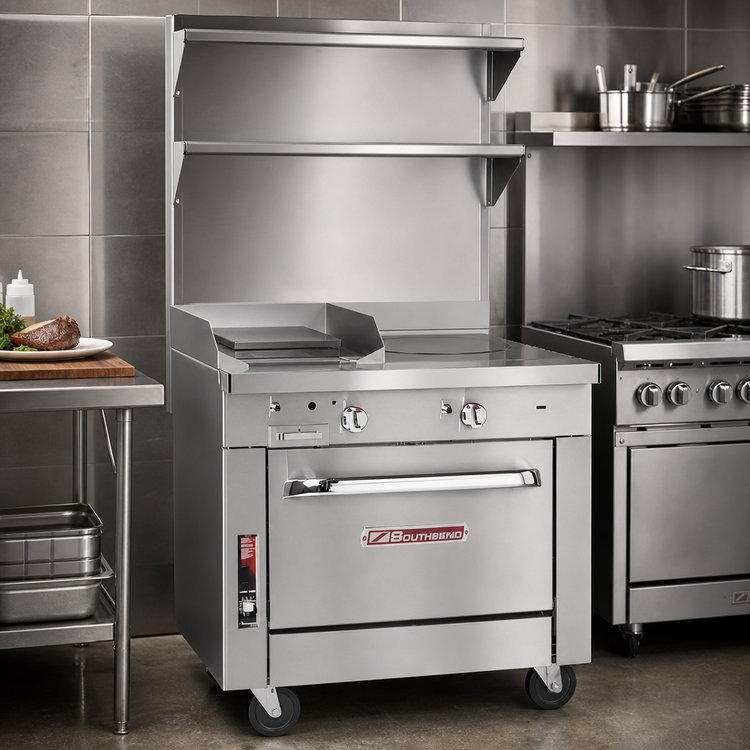

Southbend Platinum 32" Heavy-Duty Gas Range
16" Hot Top • 16" Thermostatic Griddle • Standard Oven Base • 125,000 BTUBuilt for high-volume, round-the-clock service, the Platinum Series packs chef-driven performance into a compact 32-inch footprint. The combination of an ultra-hot finishing plate, a precision thermostatic griddle, and a full-size oven lets you sauté, sear, simmer, grill and bake without breaking your line—and without adding another piece of equipment.
Why you’ll love it
- True heavy duty: 1-piece welded frame and fully insulated burner box built to withstand 24/7 use.

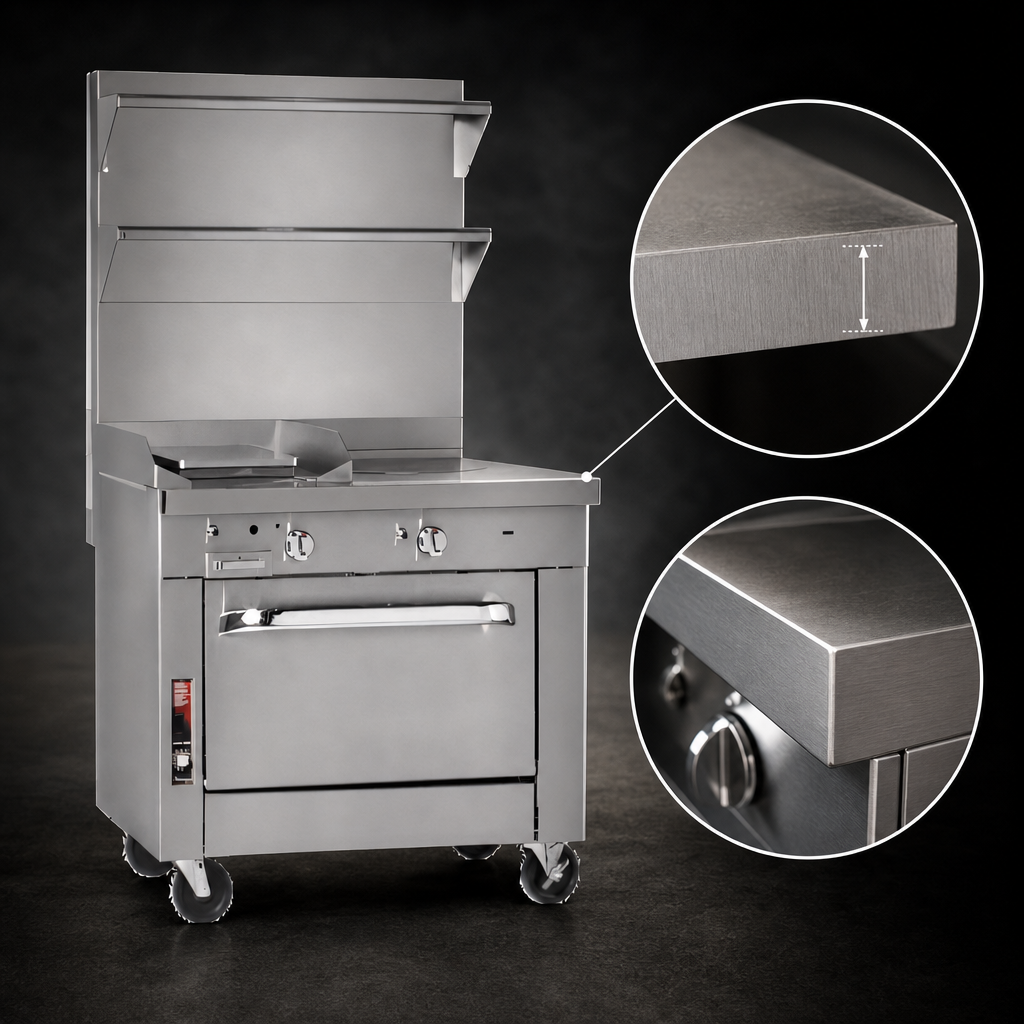

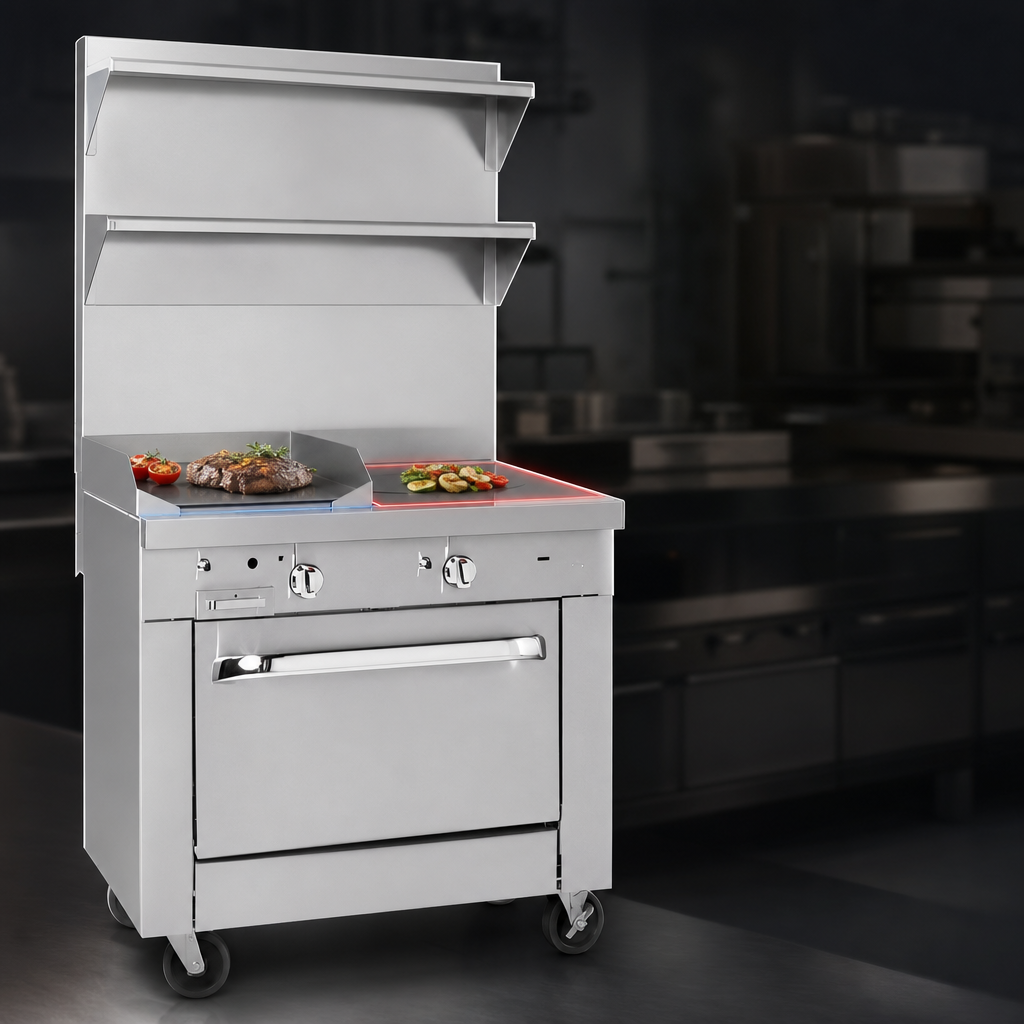

- Two cooking zones, endless versatility: 700 °F hot-top surface for high-heat searing plus a 1" thick thermostatic griddle that holds 180 – 400 °F with “Insta-On” accuracy.
- Battery spark ignition: No standing pilots on the top sections means lower energy use and a cooler kitchen.
- High-performance oven: 45 kBTU standard oven reaches 550 °F with even, consistent heat—ideal for roasting, finishing or holding.
- All-stainless exterior: 430 & 304 stainless steel front, sides, and bottom plus a 5" flue riser for easy wipe-down and long life.
- Field-ready: Ships with 6" adjustable stainless legs, two oven racks, and front/rear gas manifolds for easy line-up in a battery.
Performance at a glance
| Cooking surface | 16" Hot Top (2 × 20 kBTU) + 16" Griddle (2 × 20 kBTU) |
|---|---|
| Hot-top temperature | Up to 700 °F (high setting) |
| Griddle control | Thermostatic 180 – 400 °F, “Insta-On” solid-state |
| Oven type | Standard, porcelain interior |
| Oven capacity | 14" H × 26" W × 26.5" D – 2 full-size sheet pans front-to-back |
| Total input (NAT) | 125,000 BTU/h (80 kBTU top + 45 kBTU oven) |
| Total input (LP) | 117,000 BTU/h |
Standard oven details
| BTU rating | 45,000 BTU/h |
|---|---|
| Temperature range | 175 – 550 °F |
| Racks supplied | 2 (5 rack positions) |
| Interior finish | Porcelain enamel for quick cleanup |
| Door | Spring-balanced, stay-cool handle |
Construction & utility connections
- 9-1/4" deep front rail with integrated drip trough
- 1-1/4" front gas manifold couples to adjoining Southbend sections
- 1" rear gas inlet (male NPT)
- 6" stainless steel adjustable legs (casters optional)
- Minimum gas supply pressure: 7" WC (NAT) / 11" WC (LP)
Certifications & warranty
- cCSAus, CSA Flame & CSA Star certified for gas safety
- NSF listed for sanitation
- One-year parts & labor warranty, backed by Southbend’s nationwide service network
Need a different top configuration, convection oven base or casters? Contact us for expert configuration assistance.
