Southbend (Middleby)  |  Platinum  |  SKU: P32D-HH

Southbend (Middleby) P32D-HH Platinum Gas Ranges

$11,987.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Installation & operation Owner's manual Middleby financial flyer Warranty sheet
Related Searches
Butane Stove Cooking Equipment Cooking Equipment Countertop Cooking Equipment Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

Southbend Platinum Series 32" Uniform Hot Top Range w/ Standard Oven – 125,000 BTU

Model P32D-HH  |  CSA & NSF Listed

Built for high-volume, high-heat production, the Southbend Platinum P32D-HH packs an 80,000 BTU full-width uniform hot top and a 45,000 BTU porcelain-lined standard oven into a rugged 32-inch footprint. All-stainless construction, battery spark ignition and simple manual controls make it the reliable workhorse your cookline demands.

Performance Highlights

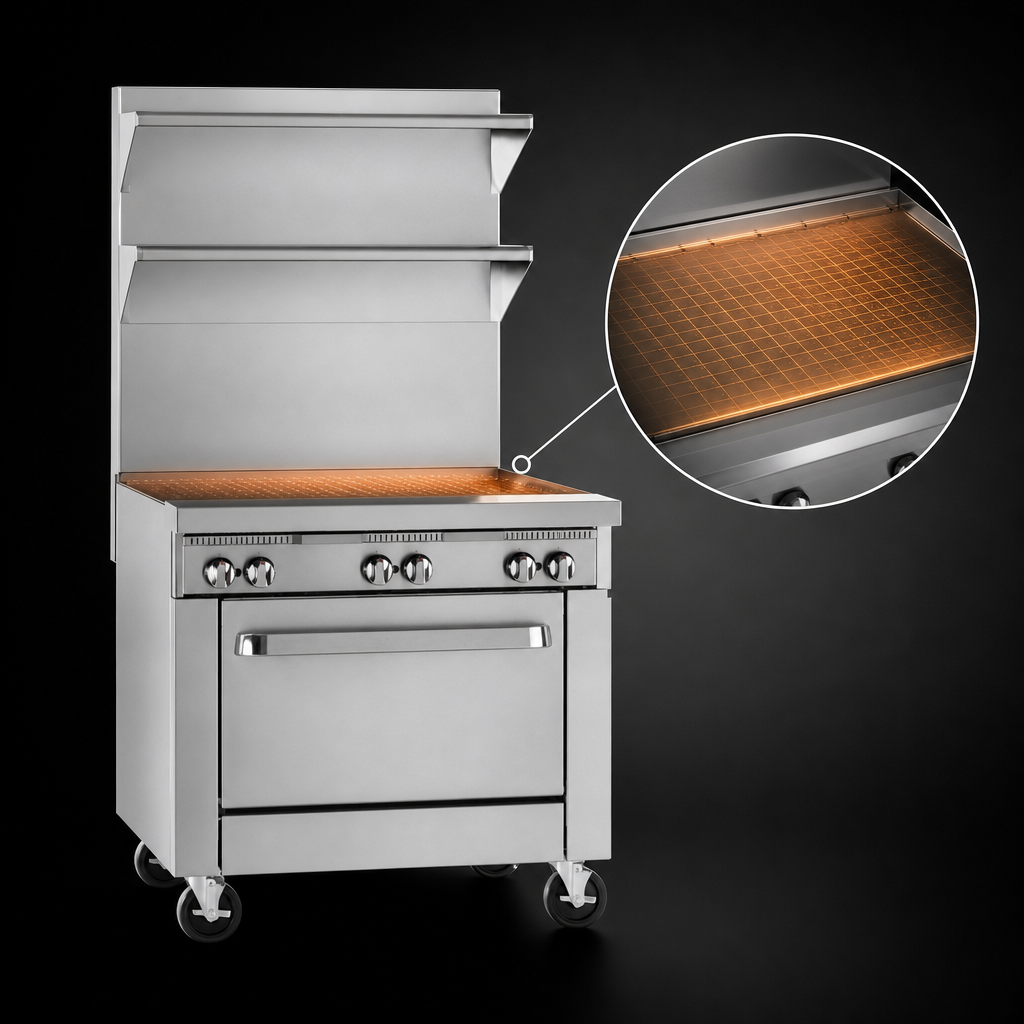

  • Full-width uniform hot top reaches ≈700 °F for consistent heat anywhere on the steel plate.
  • Four 20,000 BTU burners with independent high/low manual valves for zone cooking.
  • Battery spark ignition – no electrical hook-up required for the range top.
  • 45,000 BTU standard oven accepts full-size sheet pans either direction; two chrome racks included.
  • “Insta-On” thermostat adjusts from 175 °F – 550 °F for precise baking or roasting.
  • 9-¼" deep front rail and fully insulated burner box keep chefs comfortable and controls cool.
  • Stainless steel front, sides, rear & exterior bottom resist corrosion and wipe clean fast.
  • 6" stainless adjustable legs level the unit on uneven floors.
Specifications
Overall Width 32" / 813 mm
Overall Depth 37 ½" / 953 mm
Height (to cook surface / to top of flue) 34" / 39" (approx.)
Total Input 125,000 BTU/h (Natural)  |  117,000 BTU/h (LP)
Hot-Top Input 80,000 BTU/h – four 20,000 BTU burners
Oven Input 45,000 BTU/h, standing pilot
Oven Interior (H × W × D) 14" × 26" × 26 ½"
Temperature Range 175 °F – 550 °F
Racks Supplied 2 adjustable chrome racks
Gas Connections 1-¼" NPT front manifold & 1" NPT rear male
Construction Stainless steel front, sides, rear & exterior bottom
Certifications CSA, NSF
Shipping Weight ≈630 lb / 286 kg
Warranty 1-year limited parts & labor
Popular Options & Accessories (sold separately)
  • Gas pressure regulator
  • Locking front casters or open-frame caster base
  • 24", 36" or extra-deep flue risers with optional shelving, salamander or cheesemelter
  • Front rail cut-outs, 7-¼" rail or square belly bar
  • Cable restraint kit for flexible gas hose installations
  • Stainless steel oven interior upgrade
  • Electronic oven pilot ignition (no charge)
Installation Note: Provide a regulated 7" W.C. (Natural) or 11" W.C. (LP) gas supply and locate under a compliant vent hood. Maintain 10" clearance from combustibles on sides and 12" at rear. Use oversized cookware only on the rear portion of the hot top to avoid heat damage to the front rail.

Intended for commercial use only. Using this equipment outside of a commercial environment or in violation of installation guidelines will void warranty.

Features & Specs

Manufacturer

Southbend (Middleby)

Brand_name

Platinum

Certifications

NSF, CSA

Height

41.0in

Width

32.0in

Depth

37.5in

Shipping Weight

630.0lbs

Exterior Finish

stainless steel front & sides

Vent

backriser

Base

(1) standard oven

Top

(2) hot tops

Specifications

Platinum Heavy Duty Range, gas, 32", uniform hot top, manual controls, battery spark ignition, (1) standard oven, includes (2) racks, stainless steel front, sides, exterior bottom & 6" adjustable legs, 125,000 BTU, CSA, NSF
