Southbend (Middleby) P32D-HG Platinum Gas Ranges
Description

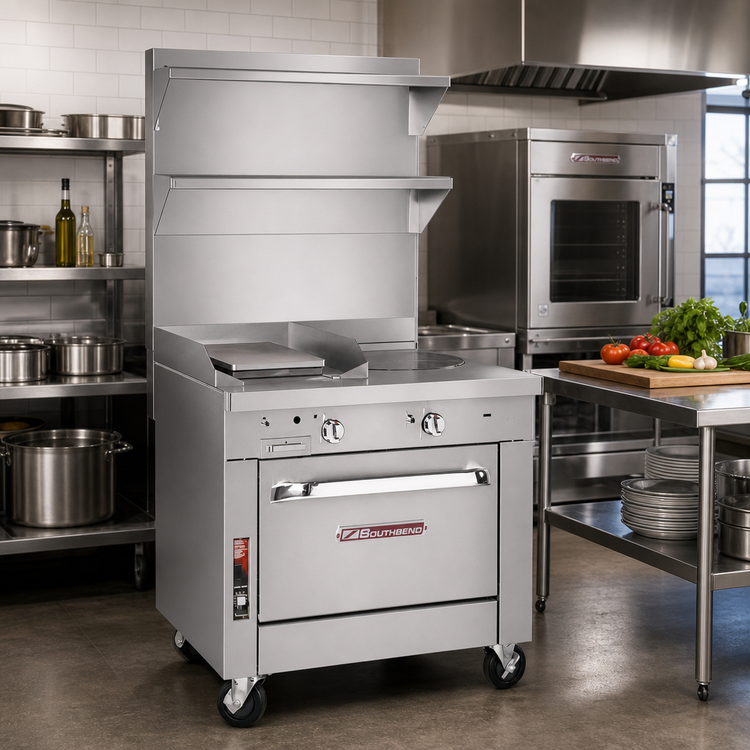

Southbend Platinum Series 32" Heavy-Duty Gas Range
16" Hot Top • 16" Manual Griddle • Standard Oven Base • 125,000 BTUBuilt for demanding, volume-driven kitchens, the Platinum 32" Heavy-Duty Range combines two powerful work surfaces with a high-performance oven—all in one, battery-ready section that drops seamlessly into a cook-line or stands alone as a productivity powerhouse.
Why You’ll Love It

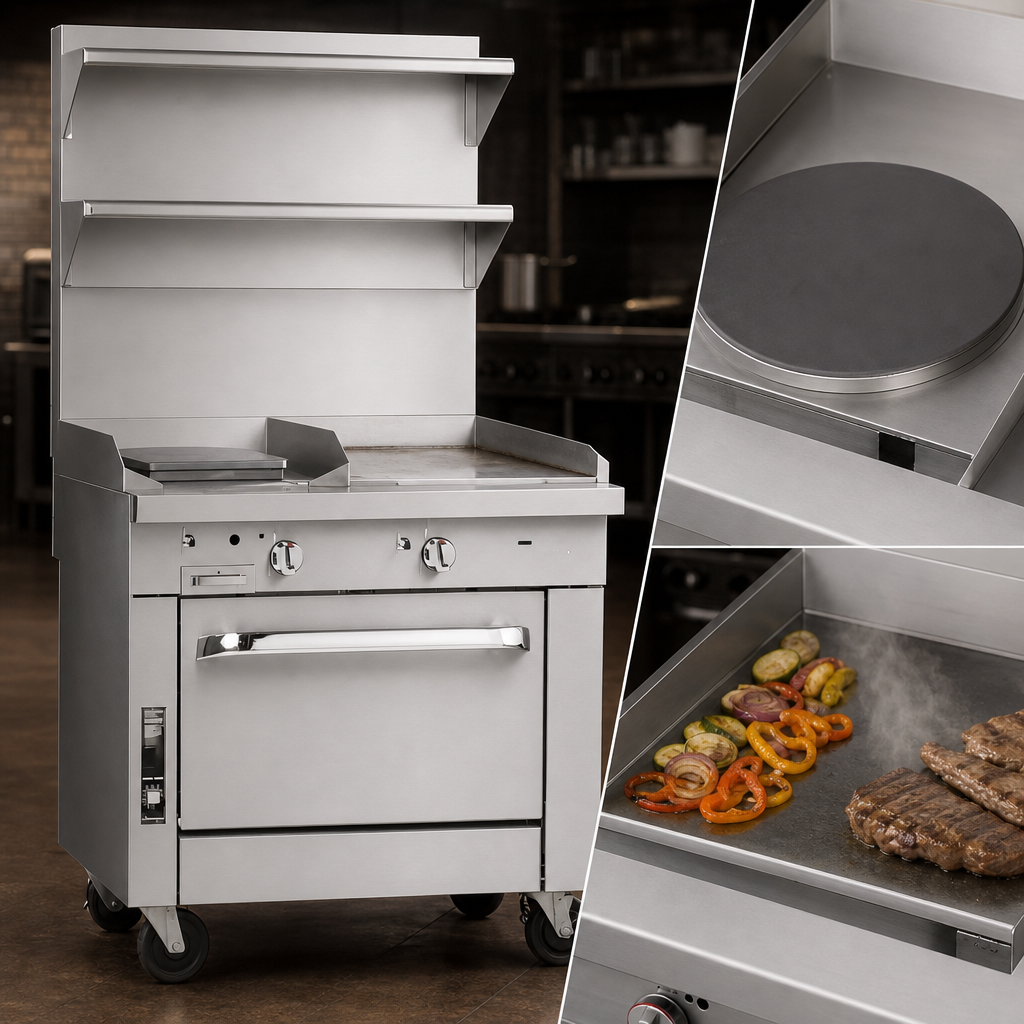

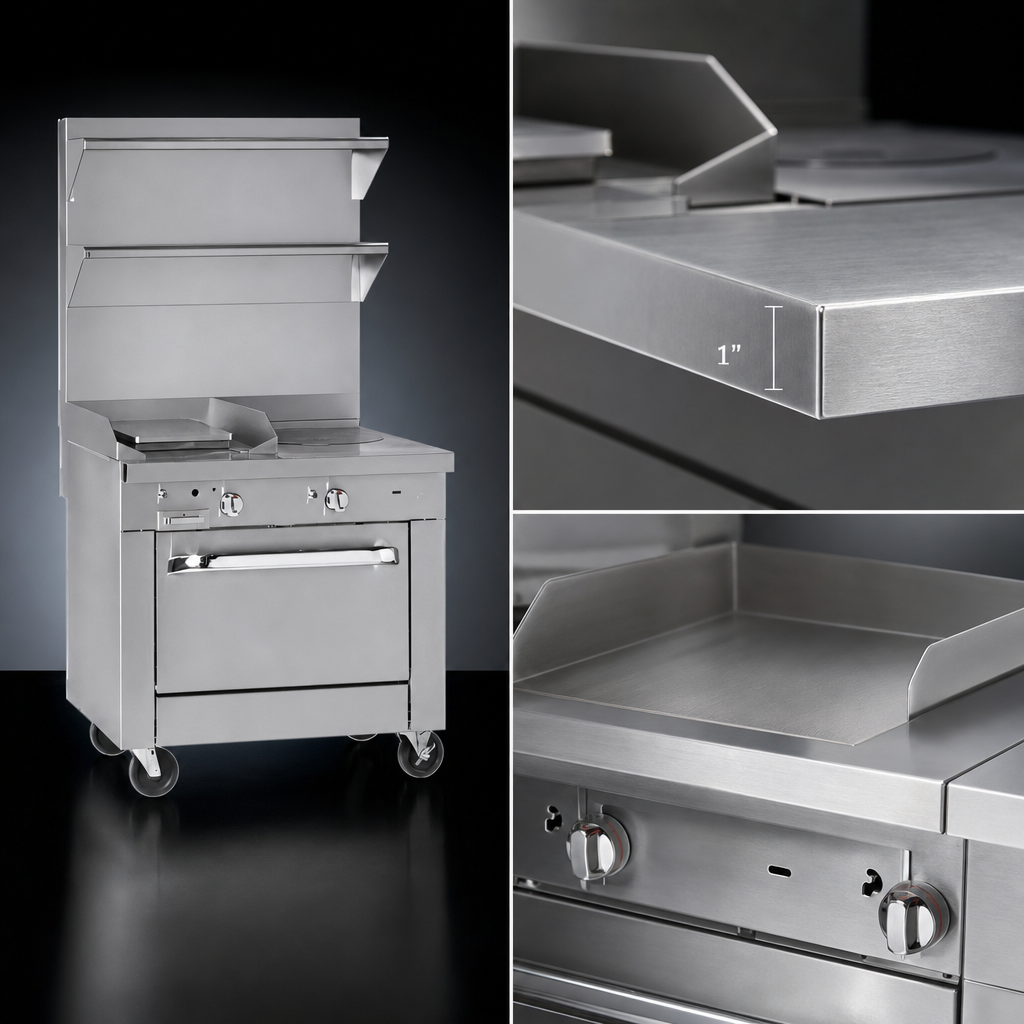

- Dual work surfaces. 16" hot top (700 °F surface on high) plus a 16" manual griddle with a 1" thick plate—ideal for searing, sautéing or finishing.
- Serious firepower. Two 20,000 BTU burners beneath each section (80,000 BTU total on top) + a 45,000 BTU standard oven for a combined 125,000 BTU output.
- Rugged construction. Stainless steel front & sides, fully-insulated burner box, 9 ¼" deep rail and 6" adjustable stainless legs.
- Easy-clean oven. Porcelain-enamel cavity (26"W × 26.5"D × 14"H) with two removable racks and 5-position side rails.
- Battery ready. 1 ¼" front gas manifold & 1" rear NPT connection allow fast line-up with other Platinum sectional units.
- Operator-friendly. Battery spark ignition, simple manual controls and a 5" stainless flue riser keep start-up quick and the cookline comfortable.
- Certified & backed. cCSAus, CSA Flame, CSA Star and NSF listed; includes Southbend’s 1-year parts & labor warranty.
Specifications
| Model | Platinum P32-HG (Hot Top / Manual Griddle / Standard Oven) |
|---|---|
| Cooktop Configuration | 16" hot top (2 × 20 k BTU) + 16" manual griddle (1" plate, 2 × 20 k BTU) |
| Oven Type / Capacity | Standard oven, 45 k BTU; 26"W × 26.5"D × 14"H cavity, 2 racks (5 positions) |
| Total Input | 125,000 BTU (Natural gas) | 120,000 BTU (Propane) |
| Dimensions (W × D × H) | 32" × 37.5" × 41" (to top of 5" flue riser) |
| Work-height | 36" with 6" legs (adjustable) |
| Gas Connection | 1" rear male NPT (regulator required, ordered separately) |
| Clearances | Combustible: 10" sides, 12" rear (griddle & hot top) |
| Certifications | cCSAus, CSA Flame, CSA Star, NSF |
| Included | 2 oven racks, removable drip tray & grease drawer, battery spark ignition |
| Warranty | 1-year limited parts & labor (Heavy-Duty Sectional Range) |
Popular Factory Options (sold separately)
- 24" or 36" flue riser with single or double shelves
- Casters with front locks & restraining cable kit
- Grooved or chrome griddle surface
- Stainless steel oven interior
- External pressure regulator & electronic oven ignition
For commercial use only. Installation under a vented hood and a regulated gas supply is required. Specifications are subject to change without notice.
