Southbend (Middleby) P32D-HC Platinum Gas Ranges
Southbend (Middleby) P32D-HC Platinum Gas Ranges is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Southbend (Middleby) P32D-HC Platinum Gas Ranges
Description

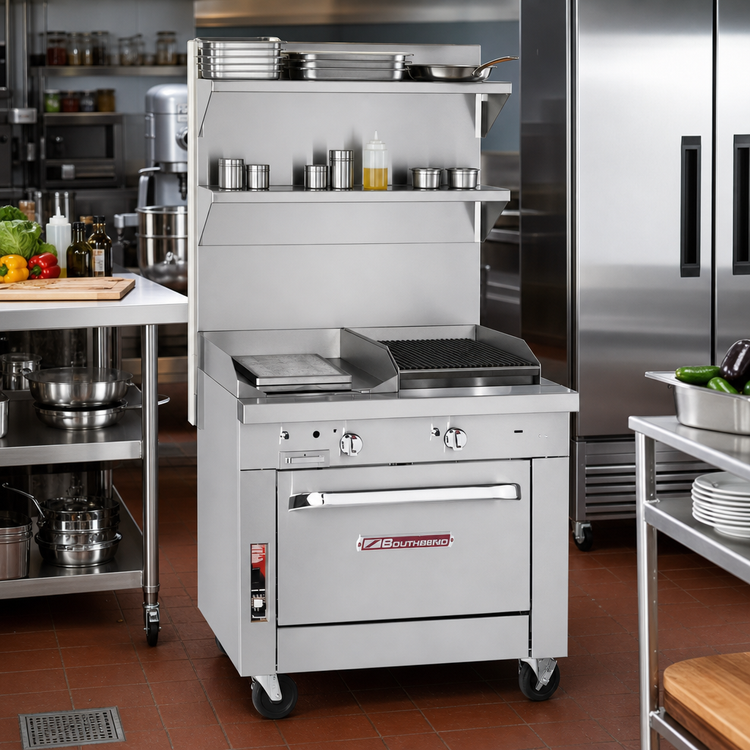

Southbend Platinum 32" Heavy-Duty Gas Range
Model P32D-HC • 16" Hot Top / 16" Charbroiler • Standard Oven • 125,000 BTUMaximize fire-power in a minimal footprint. Southbend’s Platinum Series sectional range pairs a blistering-hot charbroiler, a versatile hot top and a full-size oven inside a rugged 32-inch chassis that batteries perfectly with the rest of the Platinum line.
Key Features
-
Dual cooktop stations:

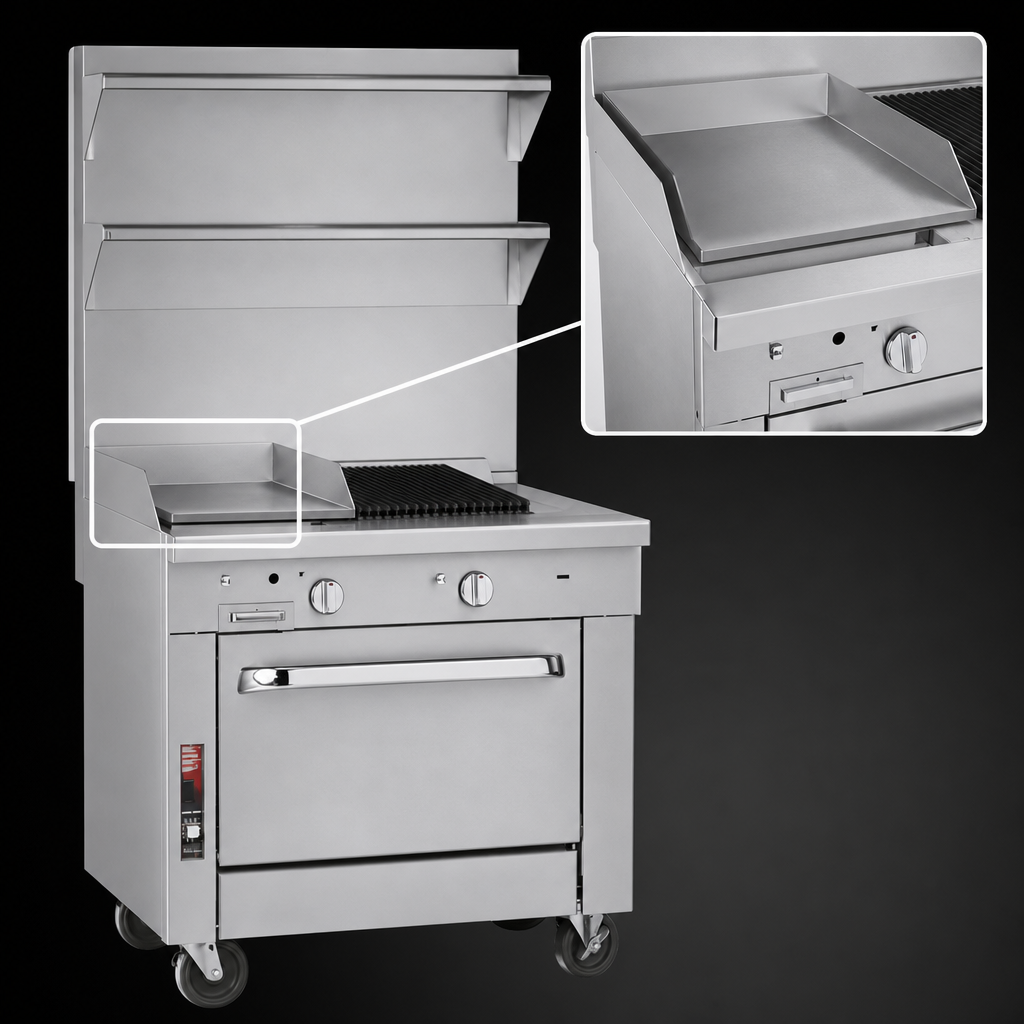

- 16" Hot Top – 2 × 20,000 BTU burners with high/low manual valve; removable steel plates reach 700 °F for stockpots, sauté pans or holding.

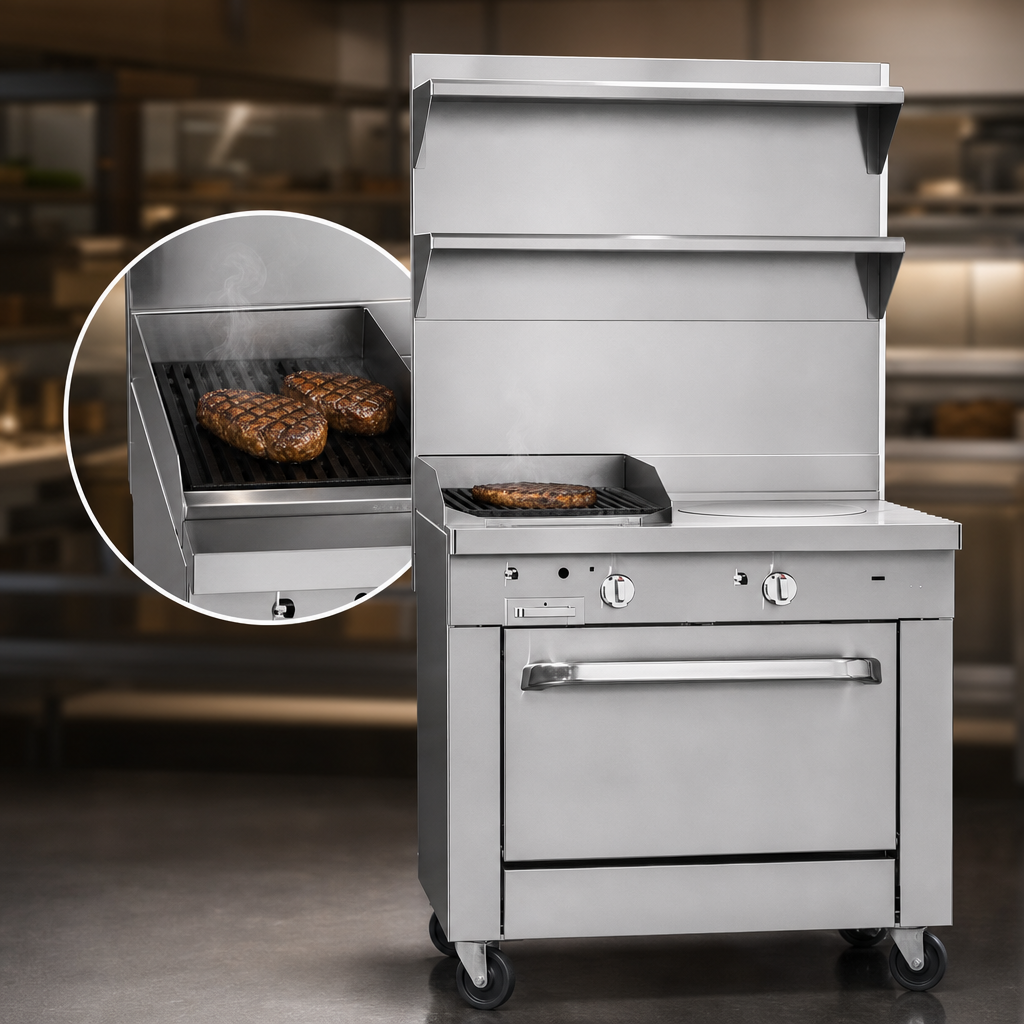

- 16" Infra-Charbroiler – 2 × 20,000 BTU burners, stainless-steel radiants and reversible cast-iron grates (1/8" or 1/4" grid) that adjust front-to-back for perfect branding at an even 600 °F.
- Standard oven base – 45,000 BTU burner, 175–550 °F thermostat, porcelain-enameled interior with two chrome racks and five position side rails.
- 9-1/4" deep front rail and clog-free cast-iron top grates built for oversized cookware.
- All-stainless exterior (front, sides, bottom) plus fully insulated liner and burner box.
- 5" stainless flue riser keeps heat and grease moving toward the hood.
- 1-1/4" front gas manifold couples to adjacent Platinum sections; 1" rear male NPT inlet.
- 6" stainless-steel adjustable legs included (casters available).
- Battery-spark ignition (cooktop) and standing oven pilot for reliable starts.
- CSA & NSF listed, made in the USA, and backed by Southbend’s 1-year parts & labor warranty.
Performance & Specifications
| Total input | 125,000 BTU/hr (Natural gas – field convertible to LP) |
|---|---|
| Cooktop | 16" hot top (40,000 BTU) + 16" charbroiler (40,000 BTU) |
| Oven | Standard (non-convection) – 45,000 BTU, 26" W × 26½" D × 14" H cavity |
| Temperature range | Hot top up to 700 °F | Charbroiler 600 °F | Oven 175–550 °F |
| Exterior dimensions | 32" W × 37½" D × 45¾" H (to top of 5" flue riser) |
| Cooking surface height | 36" |
| Gas connection | 1-1/4" front manifold & 1" rear male NPT; 7" WC (NG) / 11" WC (LP) min. supply pressure |
| Shipping weight | ≈ 570 lb / 259 kg |
| Warranty | 1-year parts & labor (Heavy-Duty Sectional Series) |
| Certifications | CSA, NSF |
Perfect For
- Steakhouses, bistros and hotel kitchens that crave charcoal-style grilling without sacrificing range space.
- Catering operations that need a compact, battery-ready workhorse with true heavy-duty construction.
- Chefs who prefer the simplicity and immediate feedback of manual high/low controls.
Intended for commercial use only. Installation under a vented hood, a properly sized gas pressure regulator and adherence to local codes are required.
