Southbend (Middleby) P32D-GRAD Platinum Gas Ranges
Description

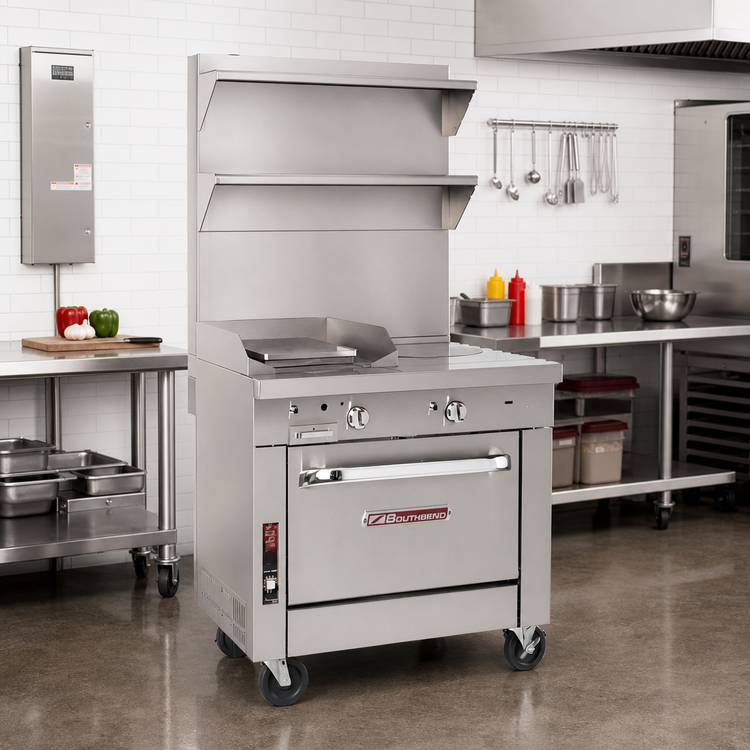

Southbend Platinum Series 32" Heavy-Duty Graduated Hot Top Range
Model P32D-GRAD | 107,000 BTU Natural GasBuilt for the most demanding commercial kitchens, the Southbend Platinum P32D-GRAD combines a full-width graduated hot top with a high-performance standard oven in one rugged, 32-inch footprint. From rapid searing in the 900 °F center zone to gentle simmering at the edges, you’ll gain precise heat control, uncompromising durability, and the throughput you need for high-volume service.
Top-of-the-Line Performance

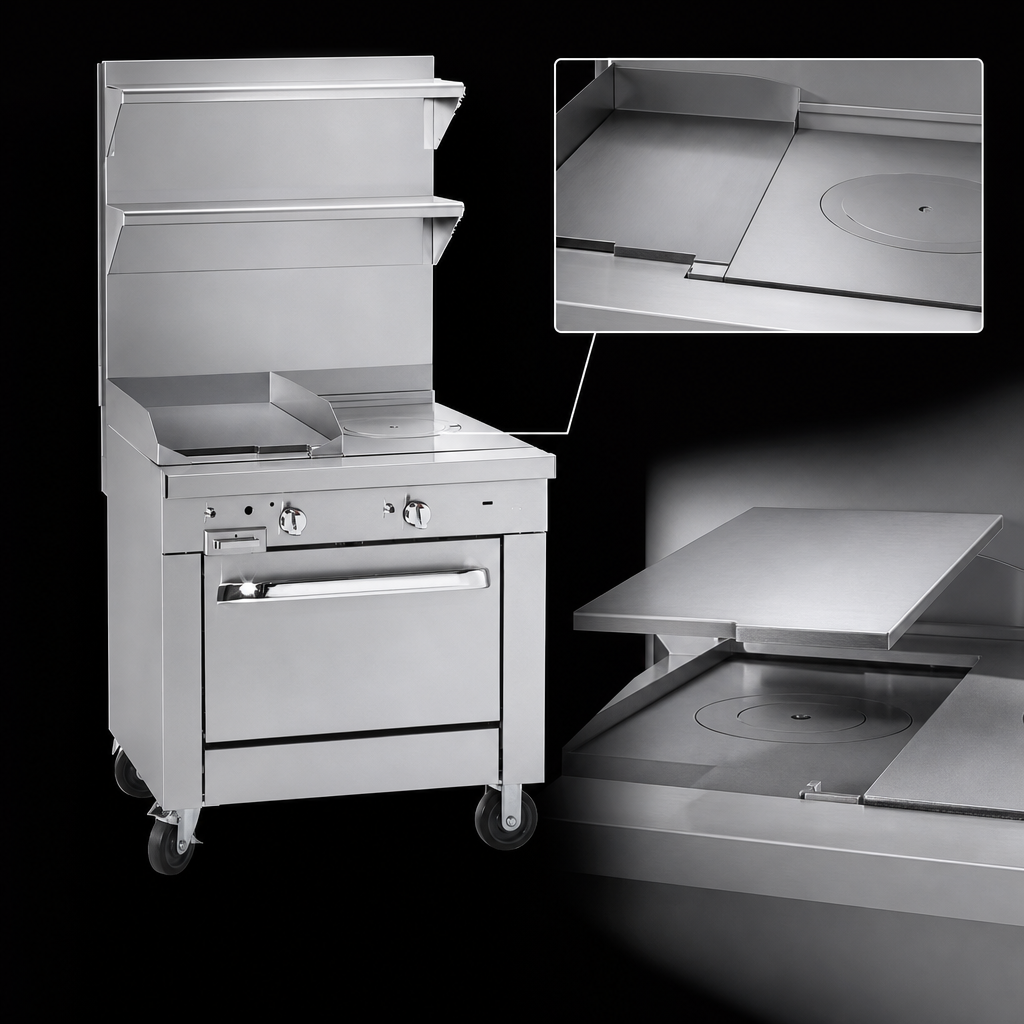

- 62,000 BTU graduated hot top burner with removable steel plates
- Center surface reaches up to 900 °F; outer zones run cooler for unrivaled versatility

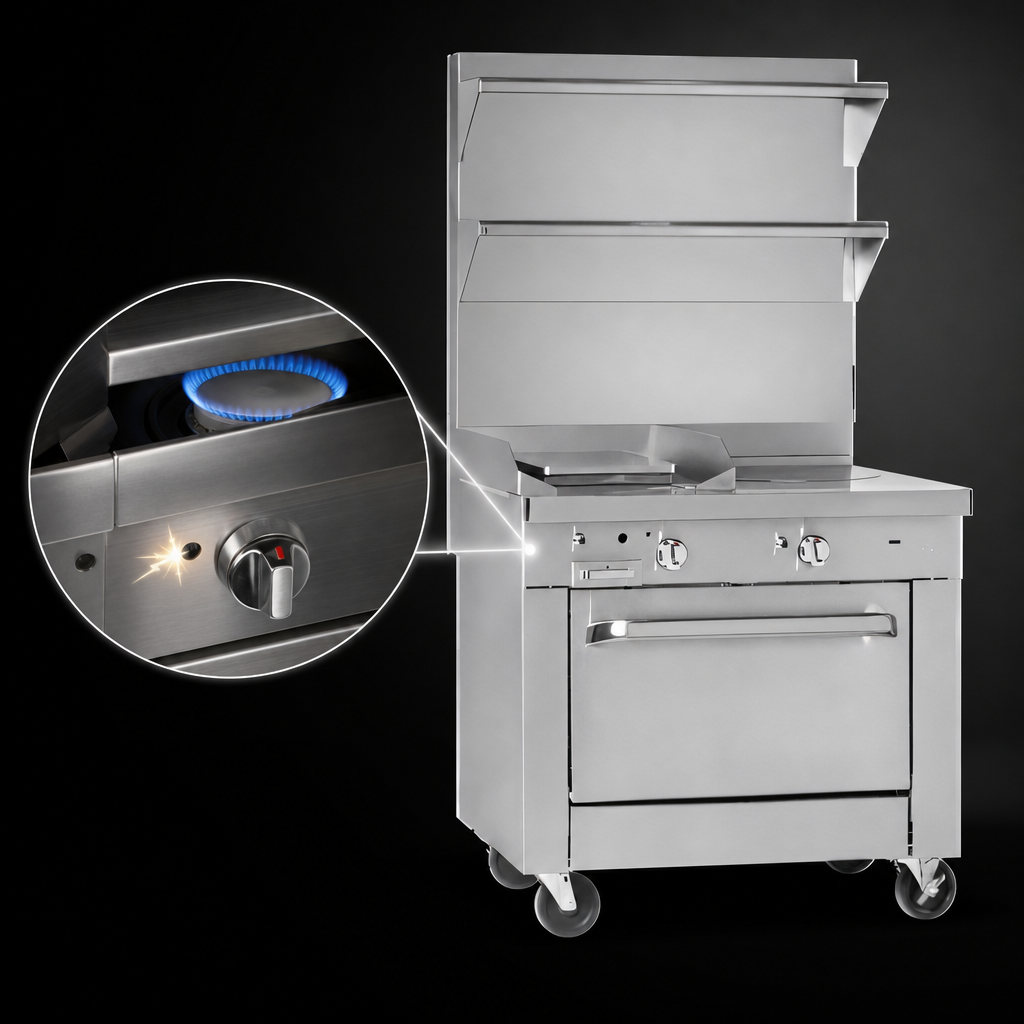

- Manual Hi/Lo controls and reliable battery spark ignition—no electrical hookup required
- 9-1/4" deep front rail protects controls and offers convenient staging
High-Capacity Standard Oven
- 45,000 BTU burner with standing pilot
- “Insta-On” thermostat, 175 °F – 550 °F (79 °C – 288 °C)
- Porcelain-enameled cavity fits 18" × 26" sheet pans either direction
- Includes two heavy-duty racks with five position side rails
Construction & Certifications
- All-stainless front, sides, rear, and exterior bottom
- Fully insulated burner box and oven lining for cooler kitchen air
- 5" stainless steel flue riser and 6" adjustable stainless legs
- cCSAus, CSA Flame, CSA Star, and NSF listed for commercial use
Technical Specifications
| Model | P32D-GRAD |
|---|---|
| Gas Type | Natural (LP conversion kit optional) |
| Total BTU Input | 107,000 BTU/hr (62,000 BTU hot top + 45,000 BTU oven) |
| Cooking Surface | Full-width graduated hot top, removable plates |
| Oven Interior (H × W × D) | 14" × 26" × 26.5" |
| Exterior Dimensions (W × D × H) | 32" × 37.5" × 34" (to cook surface) + 5" flue riser |
| Gas Connections | 1-1/4" front manifold; 1" rear NPT |
| Electrical | None required (battery spark ignition) |
| Included Items | (2) oven racks, (6) stainless steel adjustable legs |
| Warranty | 1-year limited parts & labor |
What’s Included
- Factory-installed battery ignition system
- Two heavy-duty oven racks
- 6" adjustable stainless steel legs
- 1-year parts & labor warranty backed by Southbend’s nationwide service network
Popular options—casters, flue shelves, salamander or cheesemelter, and electronic oven ignition—are available. Contact us for a custom quote.
