Southbend (Middleby) P32D-GG Platinum Gas Ranges
$12,236.00
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Southbend (Middleby) P32D-GG Platinum Gas Ranges is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Southbend (Middleby) P32D-GG Platinum Gas Ranges
$12,236.00
Unit price
/
Unavailable
Description

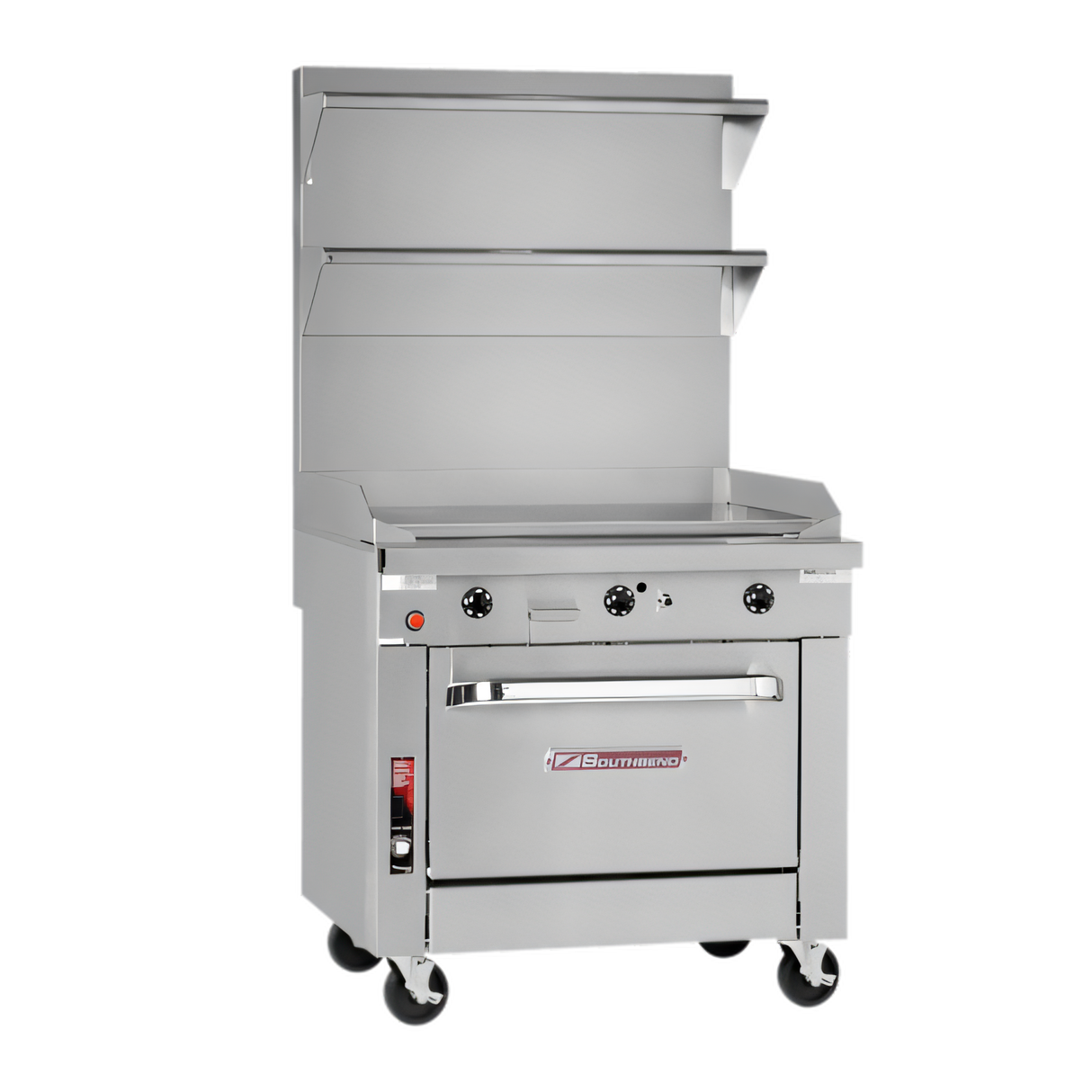

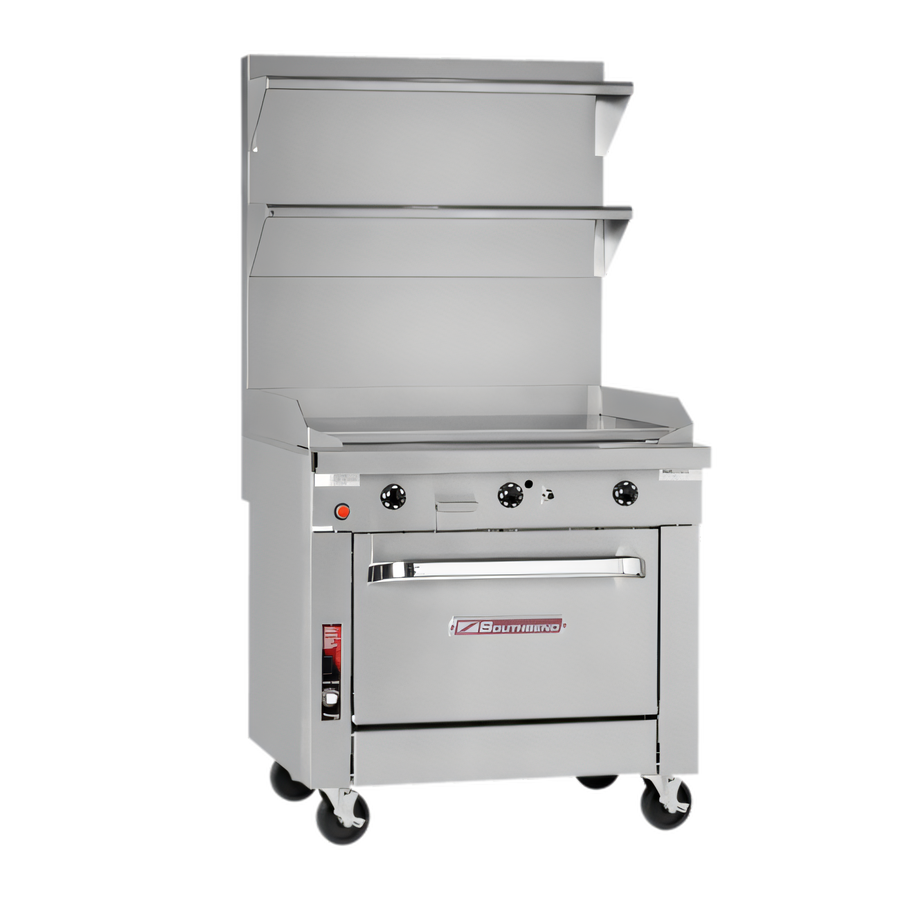

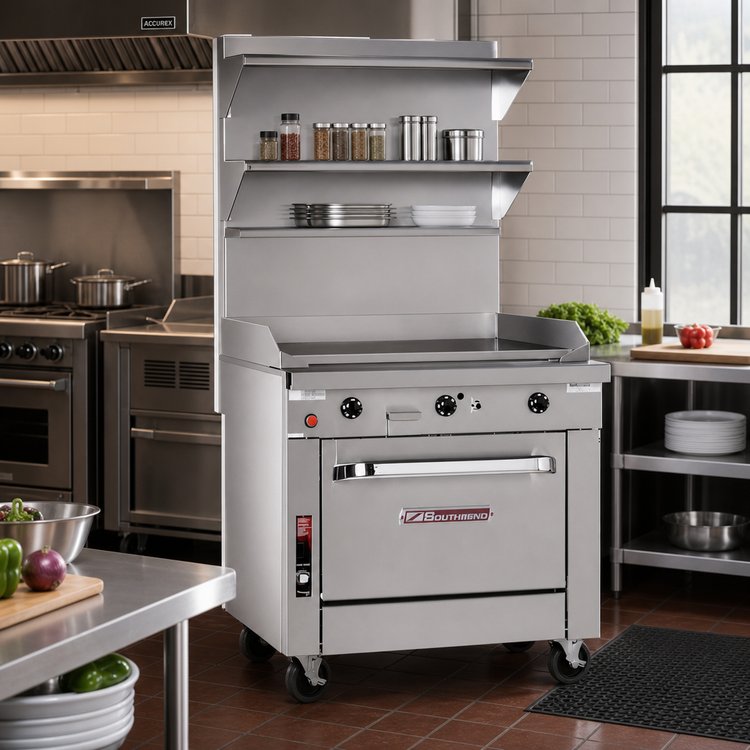

Southbend Platinum 32" Heavy-Duty Gas Range w/ Full-Width Griddle & Standard Oven
Model P32D-GG | 125,000 BTU | CSA & NSF CertifiedBuilt for demanding commercial kitchens, the Southbend Platinum P32D-GG combines an 80,000 BTU full-width griddle with a 45,000 BTU standard oven—delivering 32 inches of heavy-duty cooking power in a compact footprint.
Why You’ll Love It

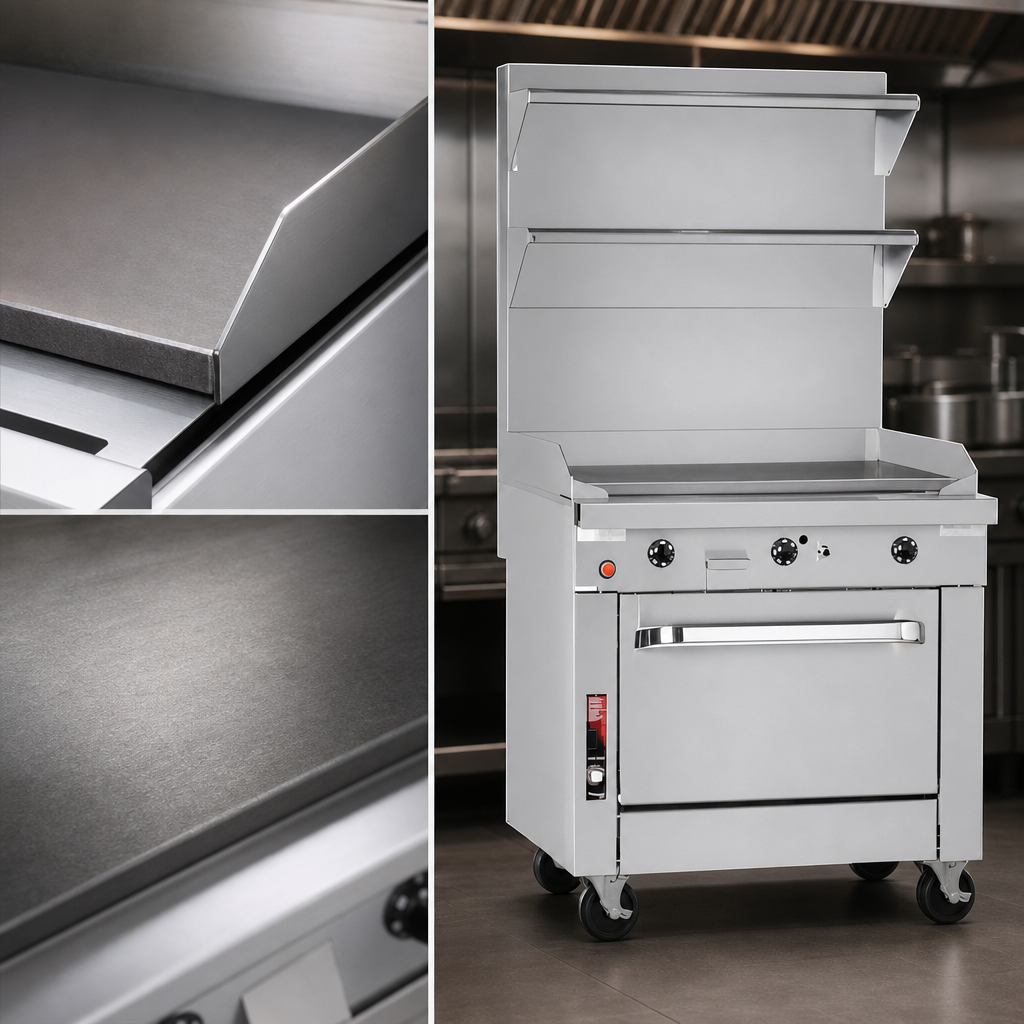

- One-piece, 1" thick steel griddle plate heats evenly and retains heat for lightning-fast recovery.
- Manual burner controls with reliable battery-spark ignition—no electrical hook-up required for the range.
- Heavy-gauge stainless steel front, sides, rear & 5" flue riser stand up to years of high-volume service.
- 9 ¼" deep front rail and removable stainless grease drawer keep the cooking line clean and organized.

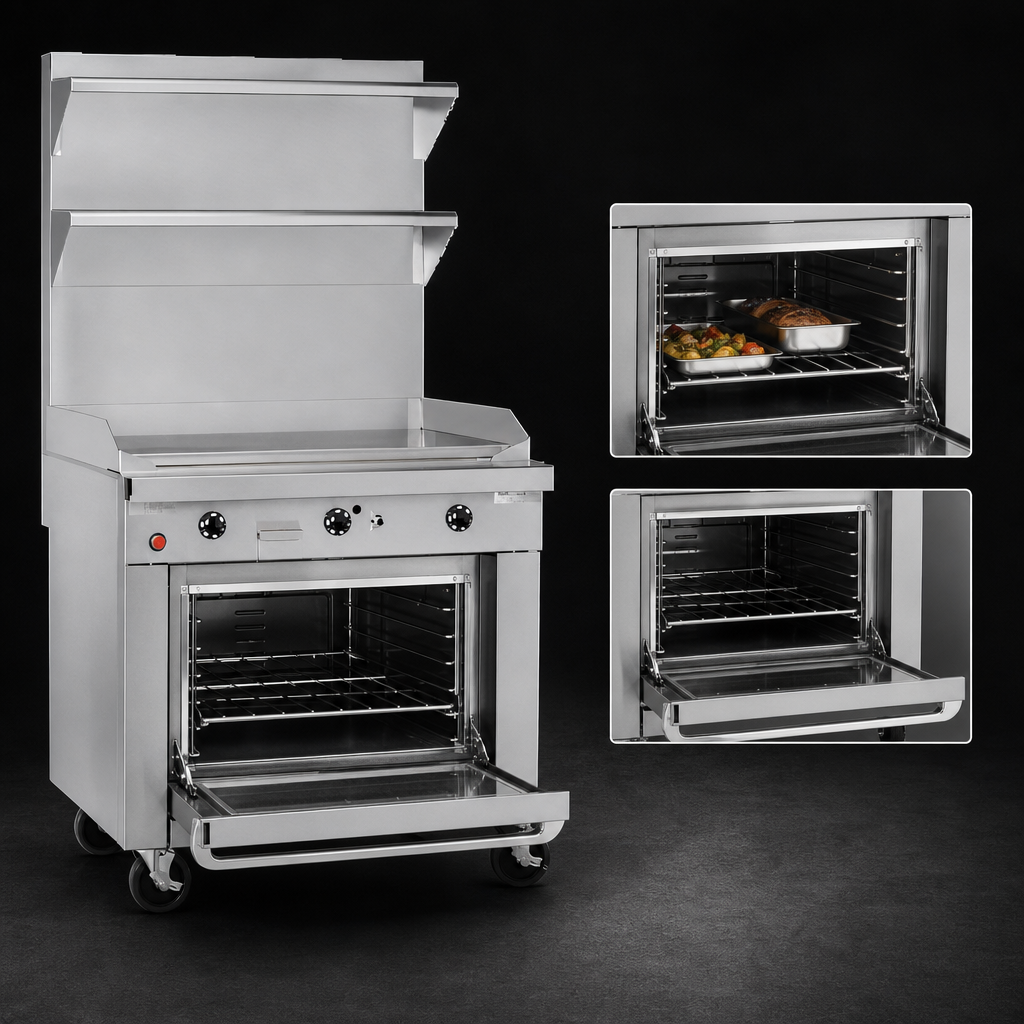

- 45,000 BTU oven with 175 °F – 550 °F thermostat; porcelain-enameled cavity fits full-size sheet pans either way.
- Ships with two oven racks and five-position side rails for flexible pan spacing.
- 6" stainless, adjustable legs make leveling and under-range cleaning effortless.
Technical Specifications
| Overall width | 32" (813 mm) |
|---|---|
| Overall depth | 37 ½" (953 mm) |
| Cook surface height | 36" working height, 5" flue riser |
| Total input | 125,000 BTU/hr (Natural) | 117,000 BTU/hr (LP) |
| Griddle | 32" W, 1" thick plate, 80,000 BTU |
| Oven capacity | 26" W × 26 ½" D × 14" H (fits full-size sheet pans) |
| Oven input | 45,000 BTU, standing pilot, snap-action thermostat 175 °F – 550 °F |
| Gas connections | 1 ¼" front manifold coupling & 1" rear NPT |
| Clearances (combustible) | 10" sides | 12" rear |
| Shipping weight | ≈ 700 lb (318 kg) |
| Certifications | cCSAus, CSA Flame, CSA Star, NSF |
| Warranty | 1-year parts & labor (commercial use) |
Popular Factory Options (additional cost)
- Grooved or chrome-finish griddle surface
- Casters with front-locking brakes & gas-hose restraint kit
- 24" or 36" flue riser with shelves for easy plate staging
- Integrated salamander or cheesemelter
- Open-frame or refrigerated base configurations
Heads-up: Manual griddle models do not allow set-point temperature operation—surface heat is controlled by burner valves.
Intended for commercial use only. Installation must comply with all local codes and the supplied Southbend manual.
Features & Specs
Features & Specs
Manufacturer
Southbend (Middleby)
Brand_name
Platinum
Certifications
NSF, cCSAus, CSA Star, CSA Flame
Height
41.0in
Width
32.0in
Depth
37.5in
Shipping Weight
700.0lbs
Plate Thickness
1.000" = 1"
Top
(1) griddle
Vent
backriser
Exterior Finish
stainless steel front & sides
Base
(1) standard oven
Specifications
Platinum Heavy Duty Range, gas, 32", griddle, 1" thick plate, manual controls, battery spark ignition, (1) standard oven, includes (2) racks, stainless steel front, sides & 6" adjustable legs, 125,000 BTU, cCSAus, CSA Flame, CSA Star, NSF
