Southbend (Middleby) P32D-CC Platinum Gas Ranges
Description

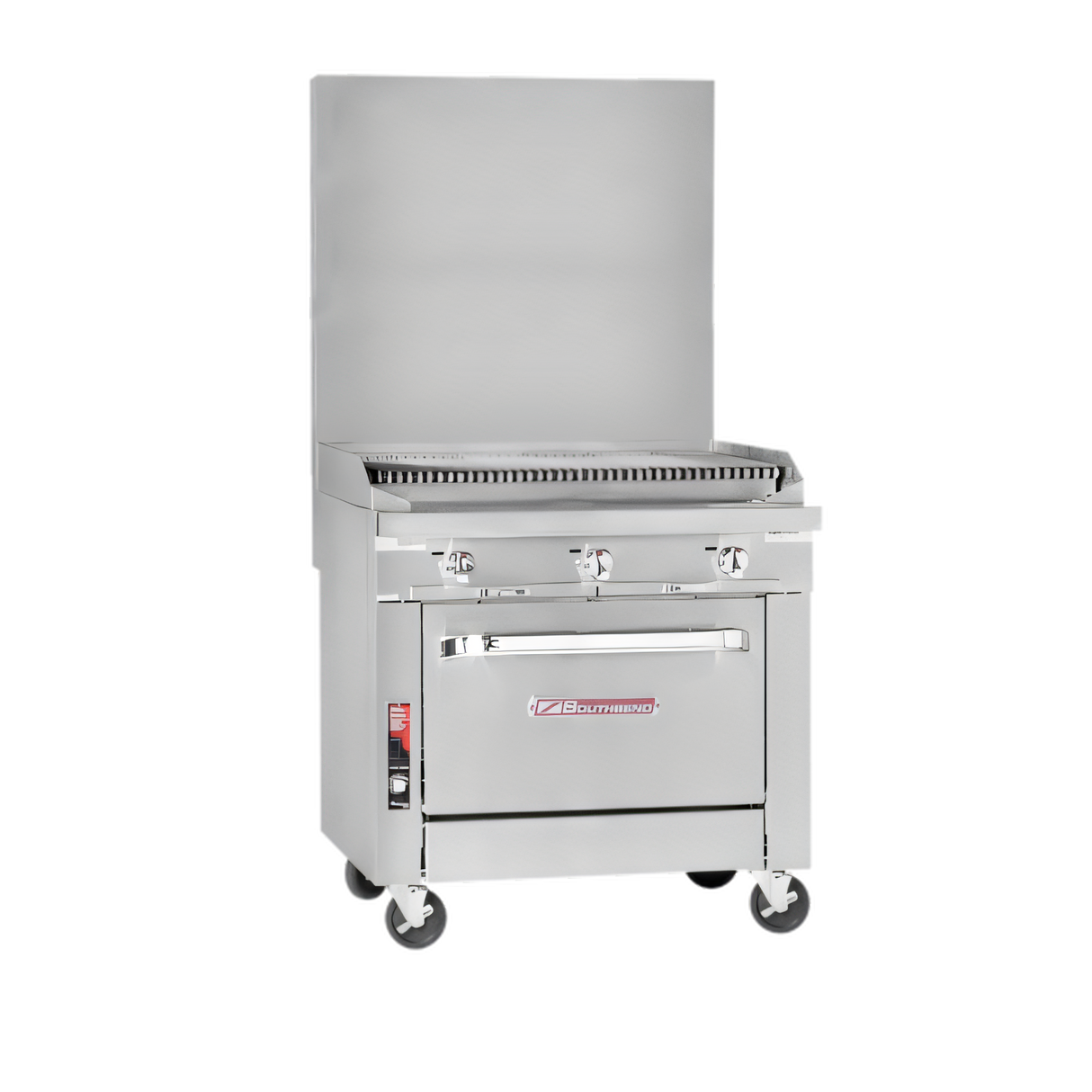

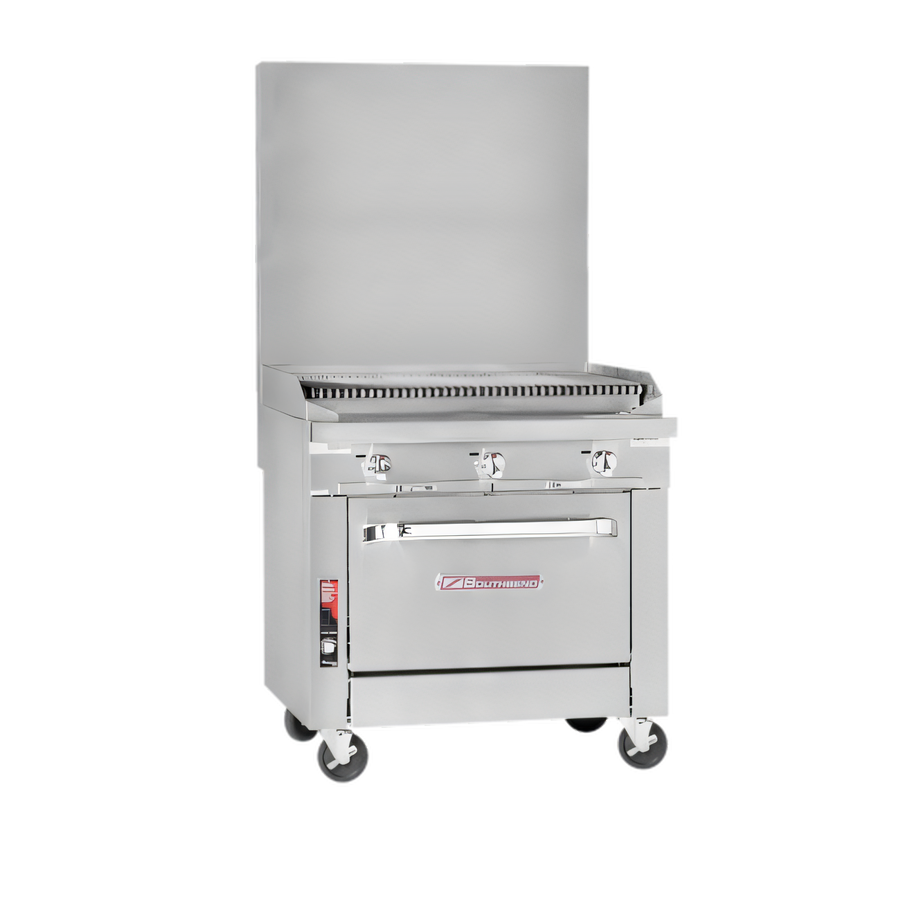

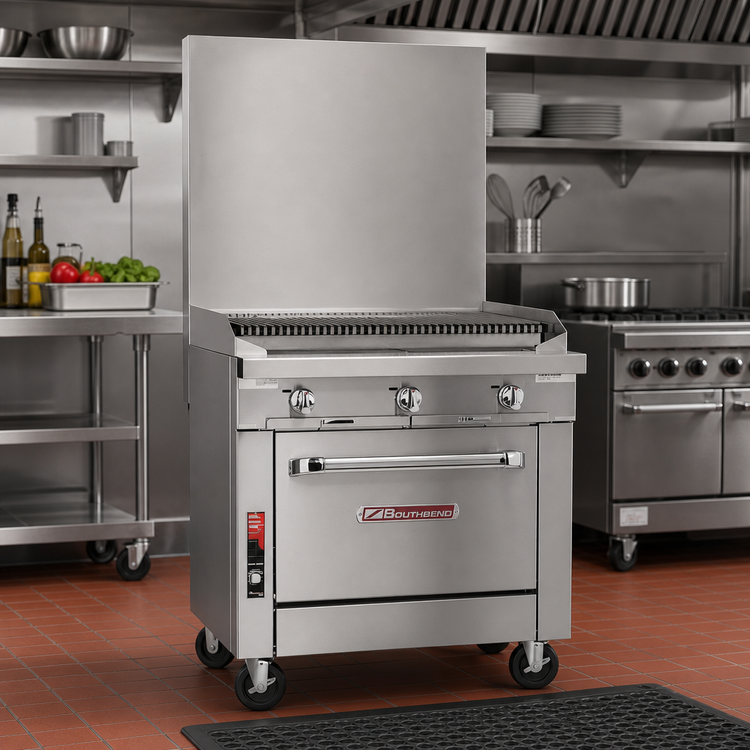

Southbend Platinum Series 32″ Heavy-Duty Gas Charbroiler Range with Standard Oven – 125,000 BTU
Model P32D-CCBuilt for high-volume, high-heat cooking, the Platinum Series 32-inch range combines Southbend’s legendary full-width charbroiler with a sheet-pan-ready standard oven. From perfect grill marks to all-purpose baking and roasting, this single 32″ section delivers the versatility and rugged build quality demanded by today’s busiest kitchens.
Performance Highlights

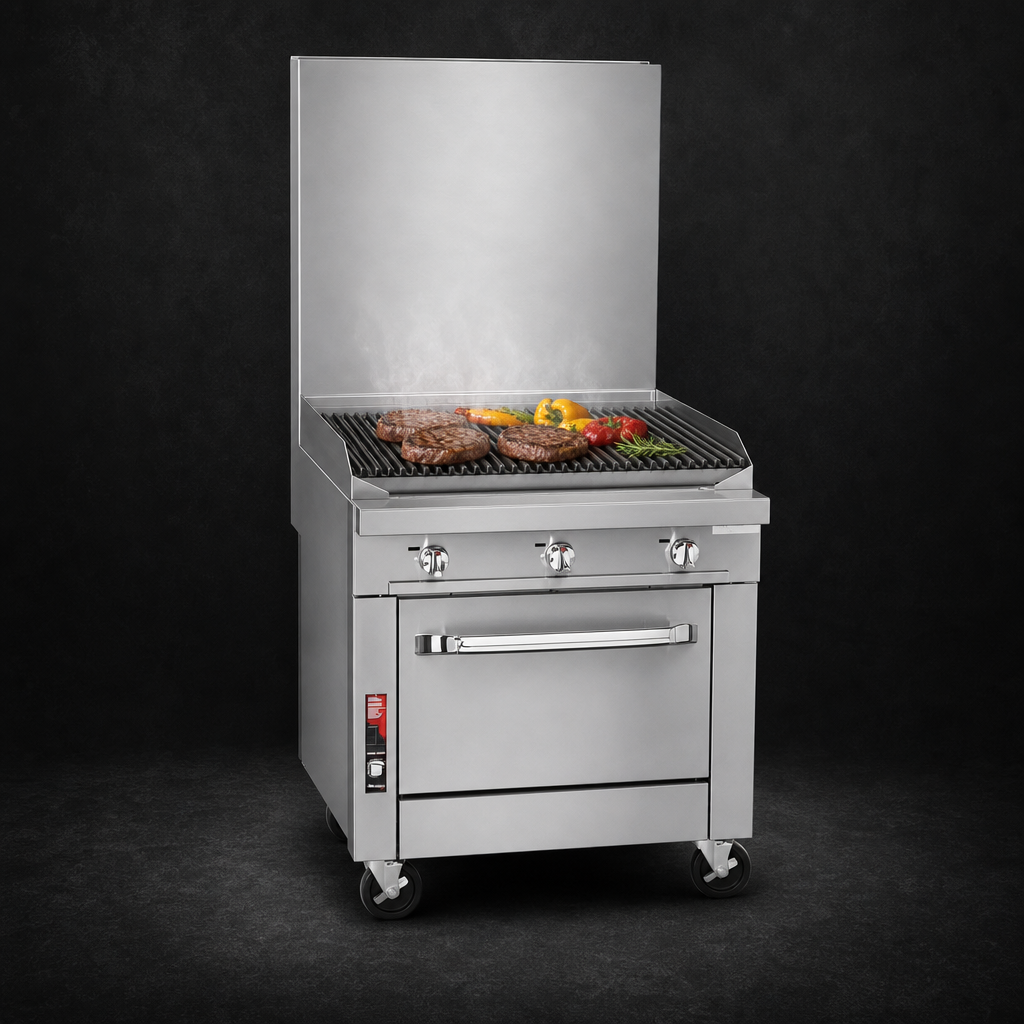

- Four 20,000 BTU cast-iron charbroiler burners (80,000 BTU total) reach 600 °F across the cooking surface.
- Reversible, removable grates offer 1/8″ or 1/4″ grid and adjustable slope for optimal fat run-off.
- Manual high/low controls for instant flame adjustment.
- Stainless steel radiants withstand continuous thermal shock and simplify clean-up.

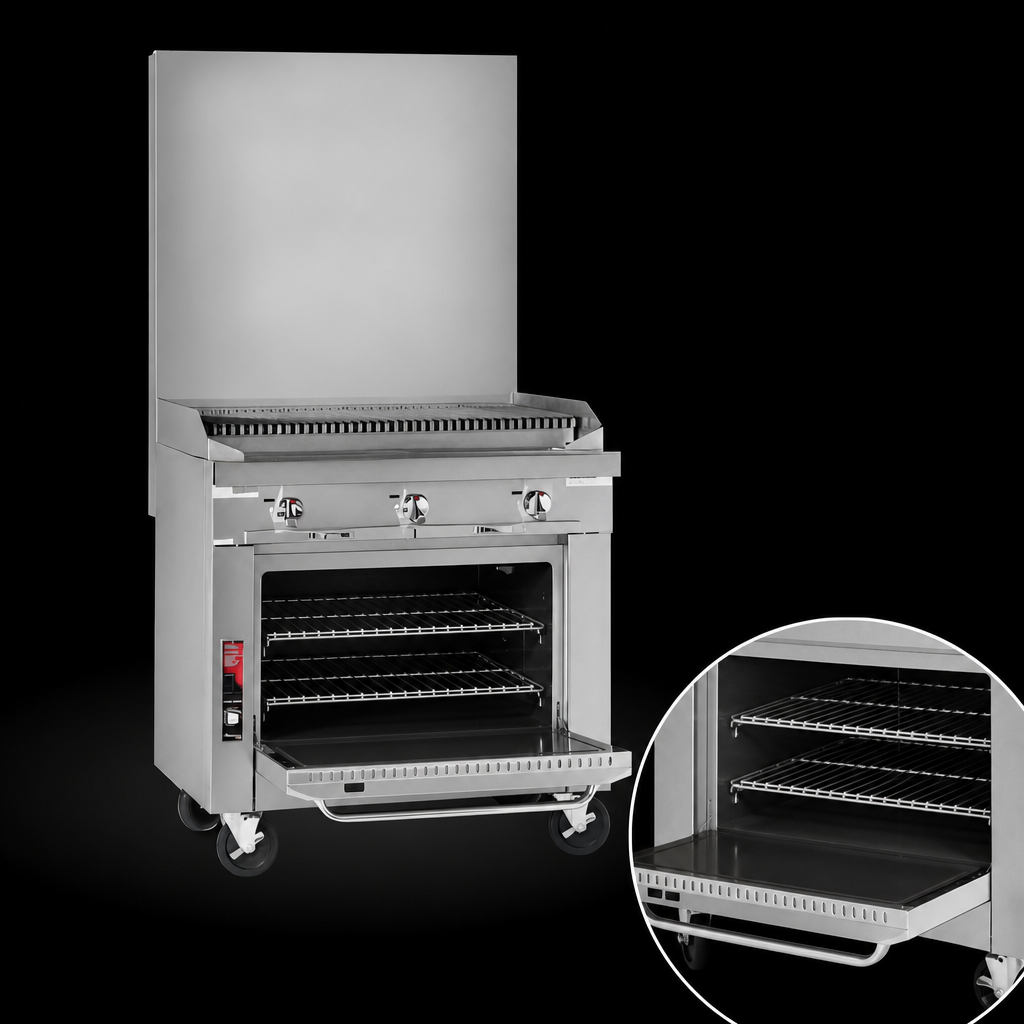

- 45,000 BTU porcelain-lined standard oven with “Insta-On” thermostat from 175 °F to 550 °F.
- Oven fits full-size sheet pans either direction; includes 2 heavy-duty racks on 5 position rails.
- 9¼″ deep front rail keeps plating space cool and convenient.
- All-stainless exterior (front, sides, rear & bottom) plus fully insulated burner box for cooler kitchen temps.
- 6″ stainless steel adjustable legs and 5″ flue riser included.
- Certified CSA, NSF & cCSAus for gas safety and sanitation.
Specification Table
| Overall width | 32″ / 813 mm |
|---|---|
| Overall depth | 37.5″ / 953 mm |
| Height (to top of 5″ flue) | ≈ 40″ / 1 016 mm |
| Total gas input | 125,000 BTU/hr (Natural) • 117,000 BTU/hr (LP) |
| Charbroiler section | 4 × 20,000 BTU burners • cast-iron grates • stainless radiants |
| Oven section | 45,000 BTU standing-pilot oven, 175–550 °F |
| Oven interior (H × W × D) | 14″ × 26″ × 26.5″ (356 × 660 × 673 mm) |
| Racks supplied | 2 adjustable racks (5 positions) |
| Gas connection | 1¼″ front manifold • 1″ rear NPT |
| Electrical | Not required (standing pilot ignition) |
| Shipping weight | ≈ 530 lb / 240 kg |
| Warranty | 1-year parts & labor |
What’s Included
- Platinum Series 32″ charbroiler range on standard oven base
- 2 heavy-duty oven racks
- Removable charbroiler drip tray
- Factory-installed 6″ adjustable legs
- Installation & operation manuals
- Limit oversized (12″+) cookware to the rear grate area to avoid heat damage to front components.
- Do not block charbroiler grates with sheet pans while burners are on; excessive heat can cause irreparable damage and void the warranty.
Need casters, an extended flue riser, or a custom battery configuration? Ask our team about factory-approved options that keep your Platinum Range compliant with Southbend’s warranty requirements.
Financing available through Middleby Equipment Financing—preserve working capital and put Southbend power on your line today.
