Southbend (Middleby) P32D-BBB-SU Platinum Gas Ranges
Description
Platinum Series 32" Heavy-Duty Gas Range with Step-Up Burners & Standard Oven
Southbend Model P32D-BBB-SU | 255,000 BTU | CSA, NSF, cCSAusBuilt for high-volume kitchens that refuse to compromise on speed or durability, the Southbend Platinum 32" range delivers six powerful open burners, a full-size oven, and the rugged construction you expect from a true heavy-duty performer.
Why You’ll Love It

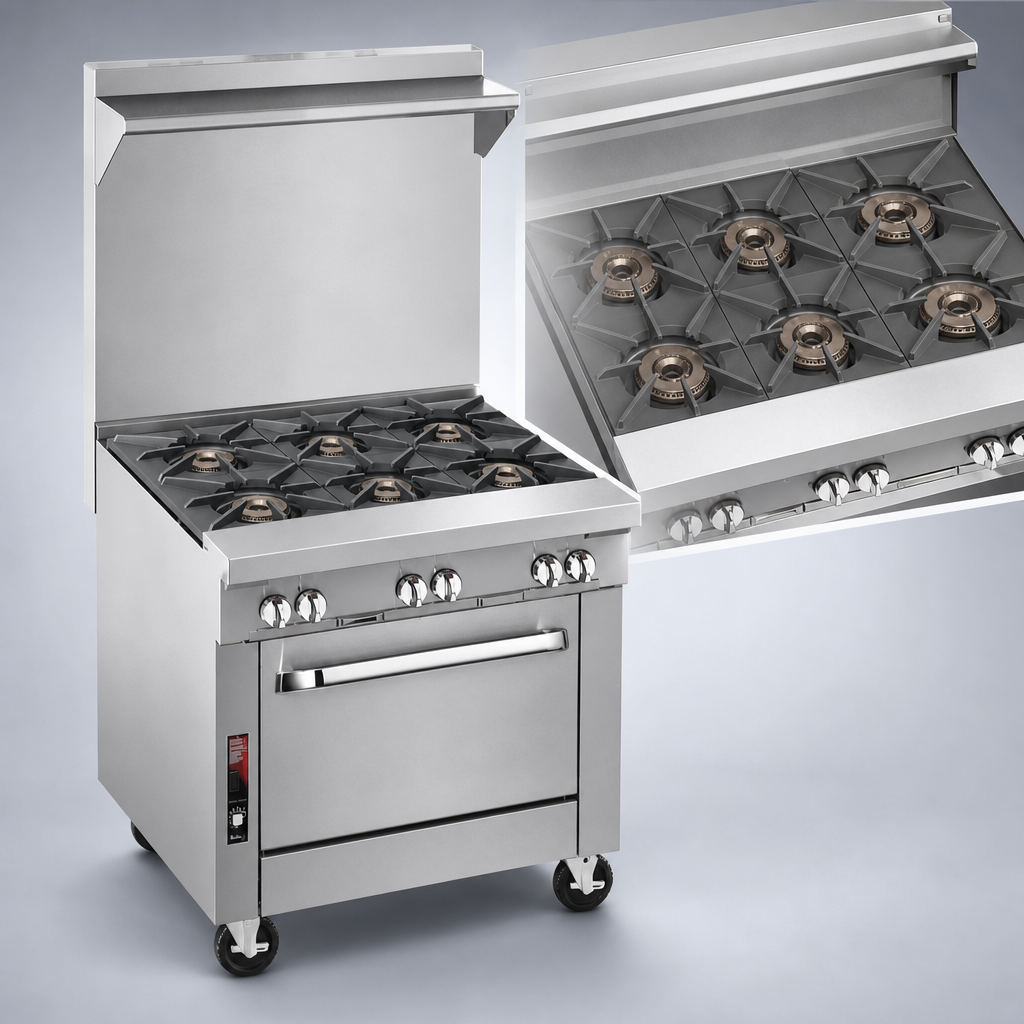

- Six clog-free open burners – 35,000 BTU each for a blistering 210,000 BTU at the cooktop.
- Step-Up rear burners sit 4" higher, giving you a second tier of heat and extra visibility while keeping the front rail cool.

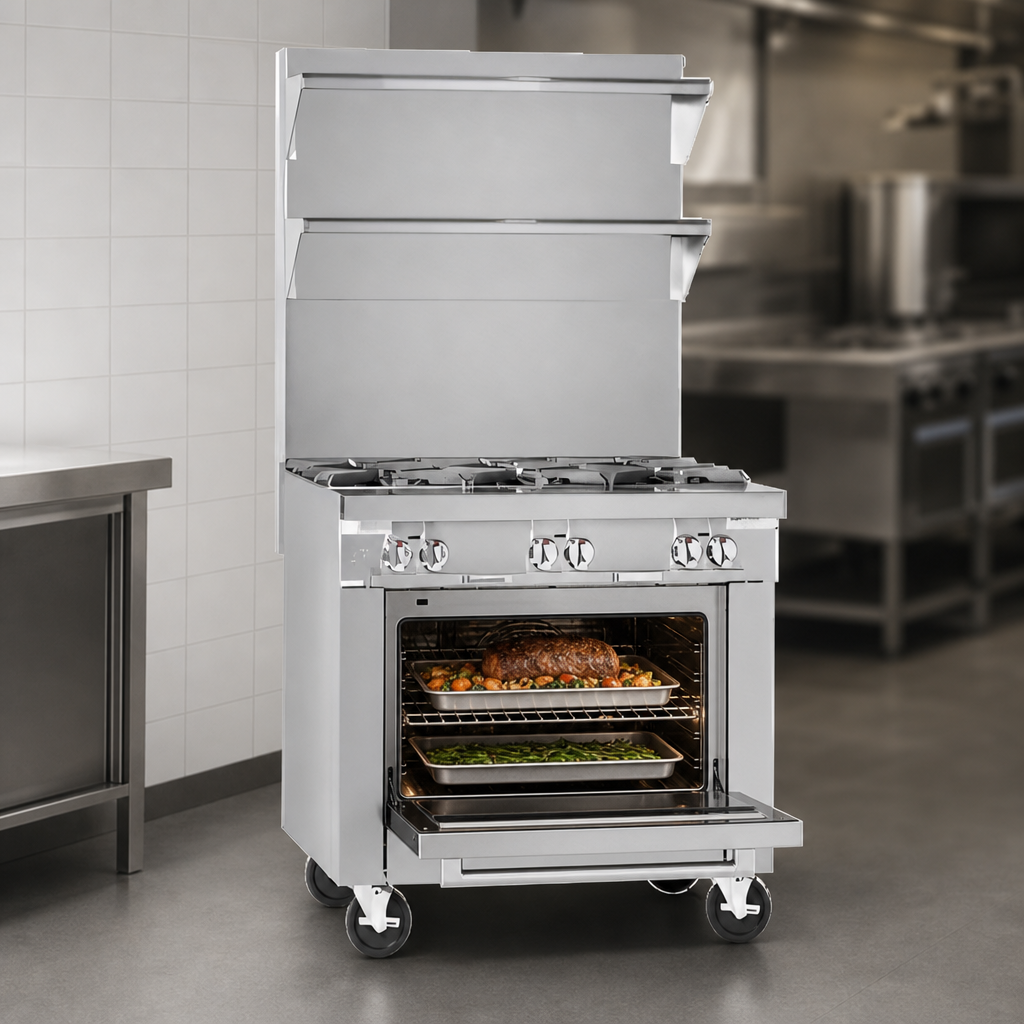

- Standard oven power – 45,000 BTU burner and Insta-On thermostat (175-550 °F) bake, roast, or finish with precision.
- Sheet-pan friendly cavity – 14"H × 26"W × 26.5"D porcelain interior fits 18 × 26" pans either direction; two racks included, five positions.
- All-stainless exterior – front, sides, rear & bottom for easy wipe-downs and long-term corrosion resistance.
- Fully insulated burner box keeps heat where it belongs while lowering kitchen ambient temps.
- Field-adjustable 6" stainless legs level the unit on uneven floors and ease under-range cleaning.
- Flue choices – supplied 5" stainless riser vents combustion gases safely into your hood system.
Technical Specifications
| Cooktop | (3) 35,000 BTU open burners + (3) 35,000 BTU step-up open burners, manual valves |
|---|---|
| Oven Base | Standard – 45,000 BTU; 175-550 °F thermostat; two nickel-plated racks |
| Total Input | 255,000 BTU/hr (Natural or Propane)* |
| Gas Connections | 1¼" front manifold (battery-ready) | 1" rear male NPT |
| Exterior Dimensions | 32"W × 37½"D × 45"H (to top of flue) |
| Construction | 430 & 304 stainless steel front/sides/rear/bottom; reinforced welded frame |
| Certifications | CSA, NSF, cCSAus – approved for commercial food-service |
| Warranty | 1-year parts & labor, performed by Southbend Authorized Service |
What’s in the Box
- Platinum 32" range with factory-installed 5" flue riser
- (2) Oven racks
- 6" adjustable stainless legs
- Owner’s manual & warranty registration card
*Regulated gas supply required: 7" W.C. Natural, 11" W.C. LP.
Power, versatility, and legendary Southbend durability—all in a compact 32" footprint. Add the Platinum Series to your cookline and keep the tickets moving shift after shift.
