Southbend (Middleby) P32D-BBB Platinum Gas Ranges
Description

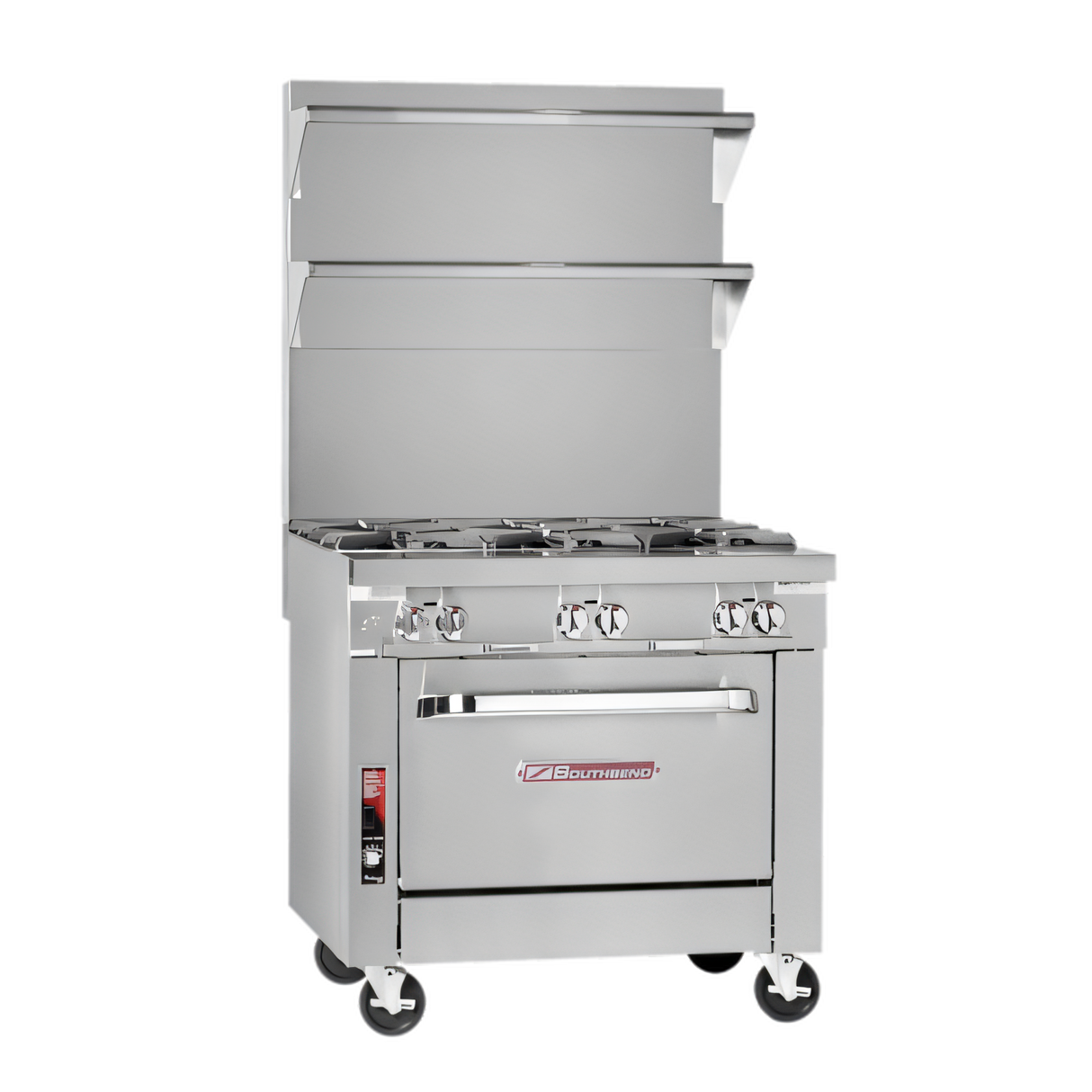

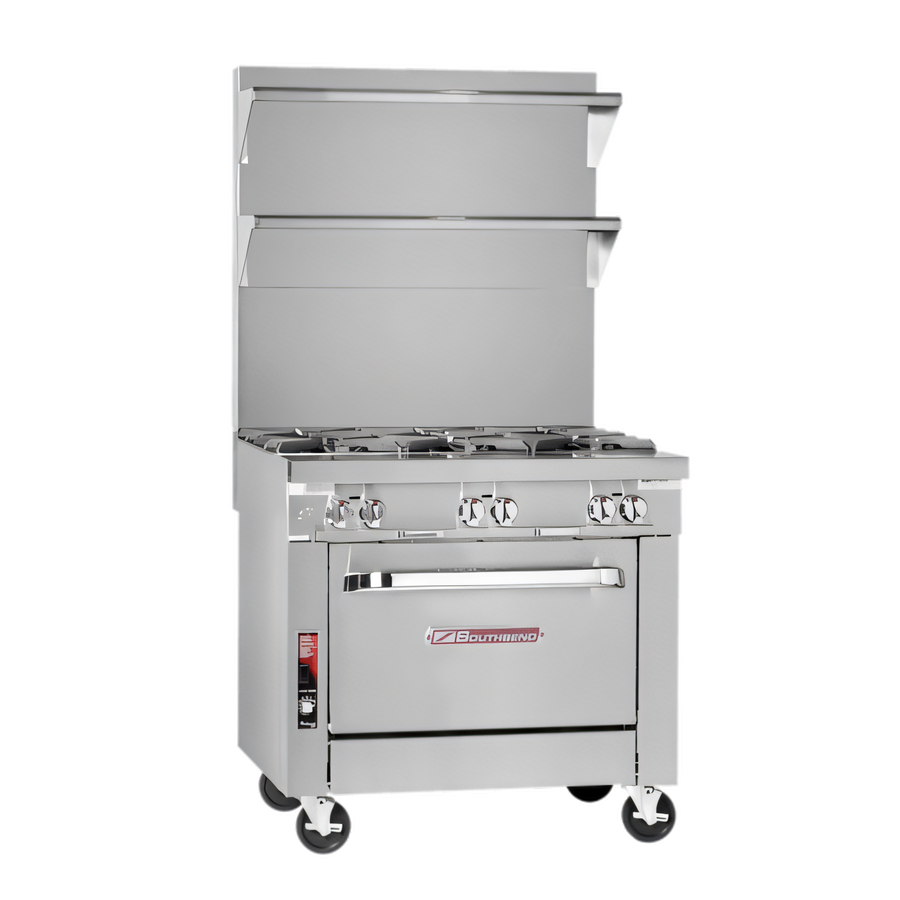

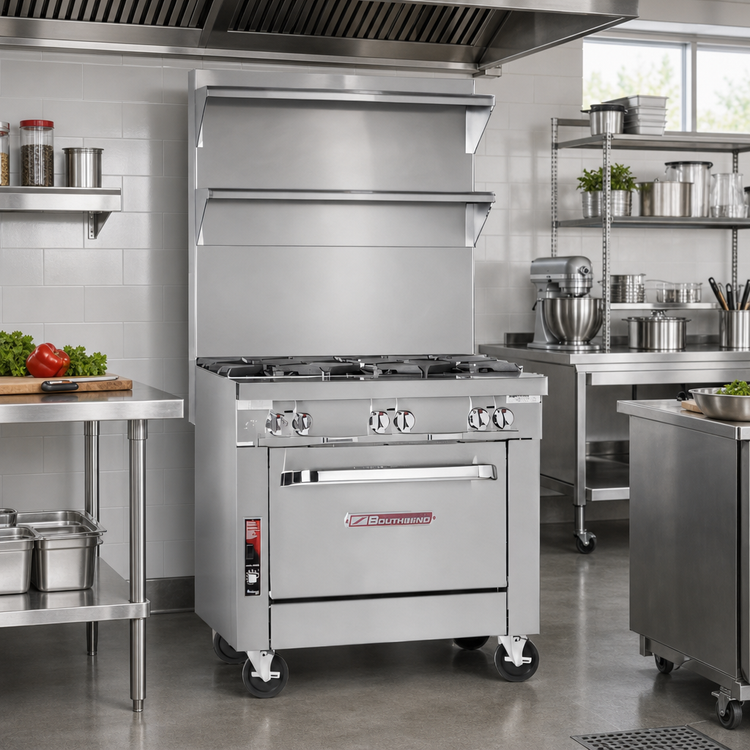

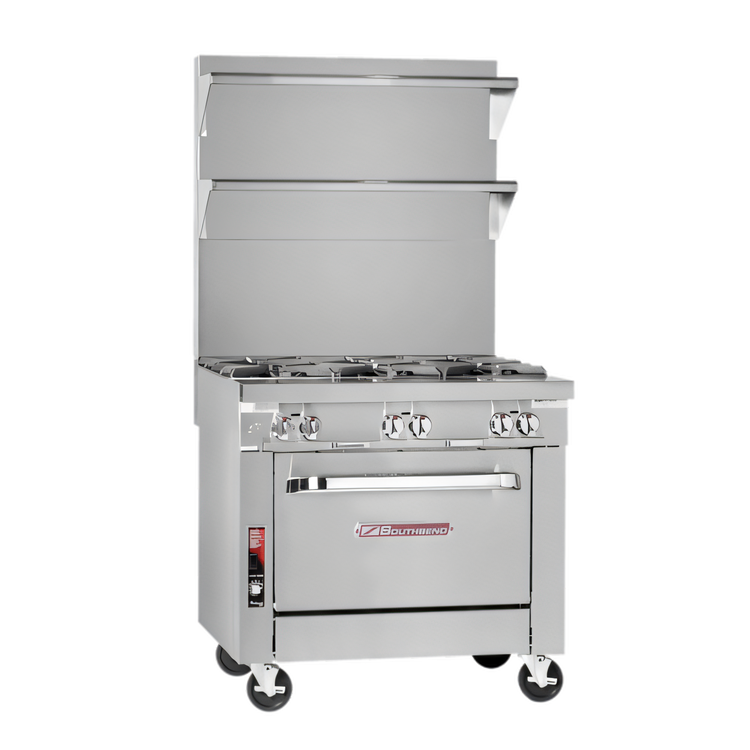

Southbend Platinum Series 32" Heavy-Duty Gas Range
Model P32D-BBB | 6 Open Burners + Standard Oven | 255,000 BTUBuilt for high-volume, around-the-clock cooking, the Southbend Platinum P32D-BBB delivers uncompromising power and durability in a space-saving 32-inch footprint. Six clog-free open burners and a full-size standard oven give your kitchen the flexibility to sauté, simmer, sear and bake—all on one rugged platform.
Key Features

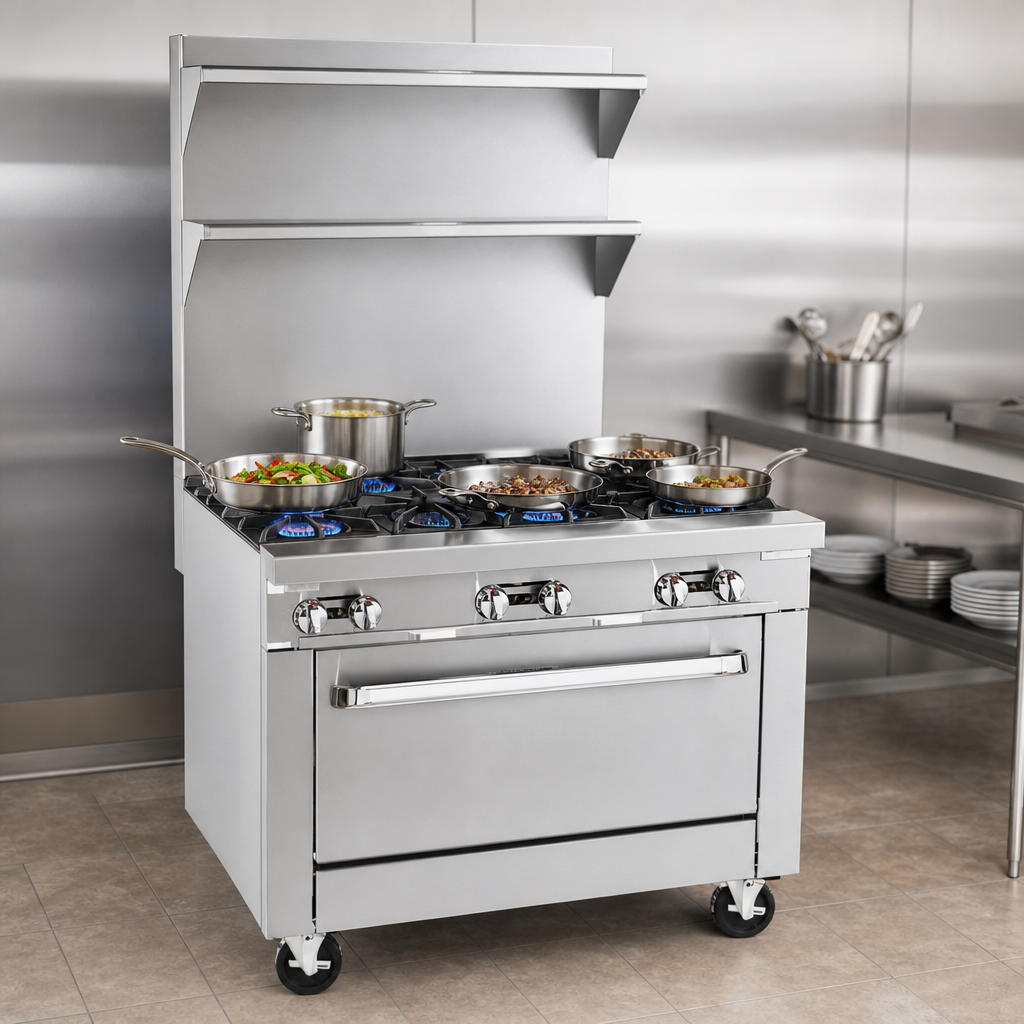

- Six × 35,000 BTU open burners (210,000 BTU total) with patented clog-free design
- Manual, individual burner controls for precise flame adjustment
- Removable welded-steel top grates and full-width drip tray for fast clean-up

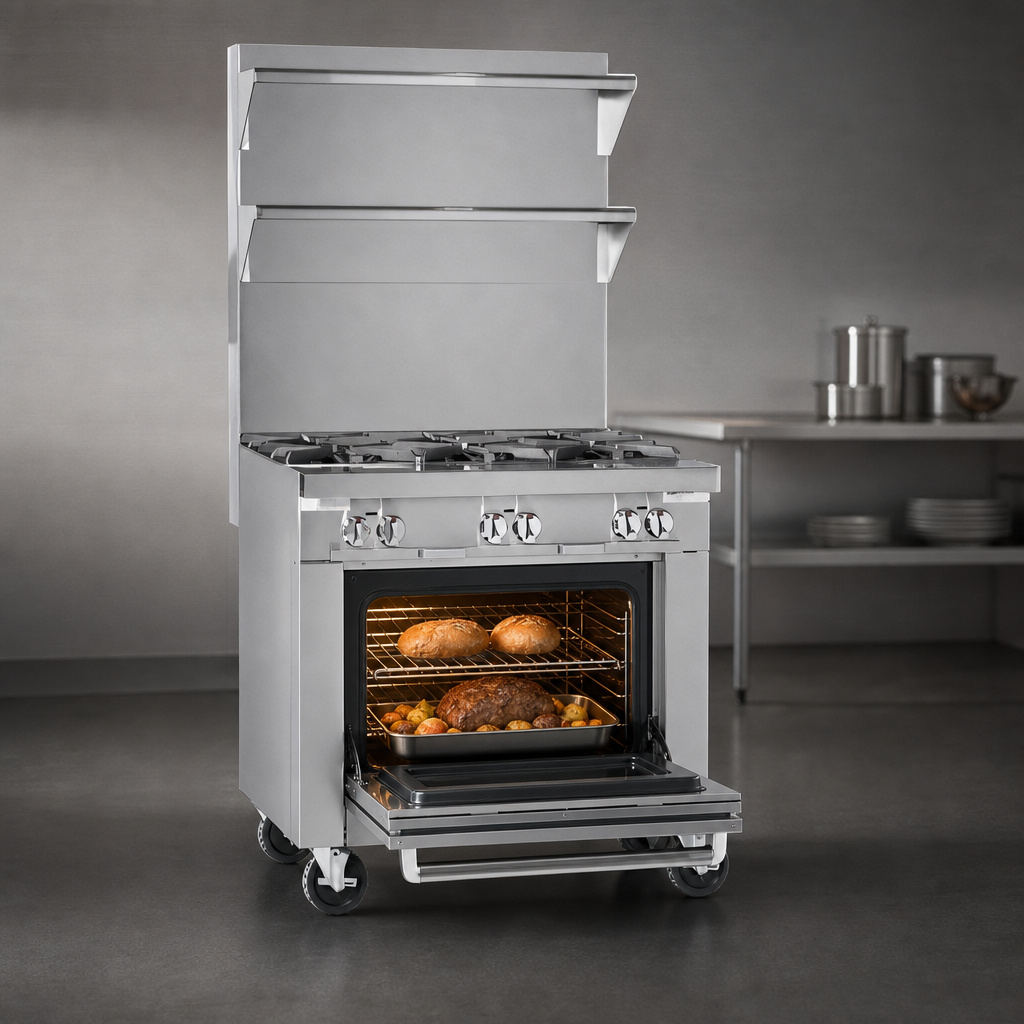

- 45,000 BTU standard oven with
Insta-On
thermostat (175 °F – 550 °F) - Porcelain-enameled oven interior fits 18" × 26" sheet pans either direction
- Includes two heavy-duty oven racks with five rack positions
- 9-1/4" deep front rail plus 5" stainless flue riser
- All-stainless front, sides, rear and exterior bottom; fully insulated burner box
- 6" adjustable stainless legs for easy leveling
- 1-1/4" front gas manifold & 1" rear gas connection—ideal for line-ups
- Certified: CSA, NSF & cCSAus
Performance & Capacity
| Total Input | 255,000 BTU/h (Natural or LP) |
|---|---|
| Cooktop | 6 × 35,000 BTU open burners, manual control valves |
| Oven | 45,000 BTU standard oven, standing pilot |
| Temperature Range | 175 °F – 550 °F (79 °C – 288 °C) |
| Oven Interior (H × W × D) | 14" × 26" × 26.5" (356 × 660 × 673 mm) |
| Rack Positions / Supplied | 5 positions / 2 racks |
| Gas Connection | 1-1/4" NPT front manifold, 1" NPT rear |
Dimensions & Shipping
| Overall Width | 32" (813 mm) |
|---|---|
| Overall Depth | 41" (1,041 mm) to front rail |
| Working Height | 36" (914 mm) plus 5" flue riser |
| Shipping Crate (W × H × D) | 39" × 42.5" × 44" (991 × 1,080 × 1,118 mm) |
| Approx. Ship Weight | 530 lb (240 kg) |
What's Included
- (2) heavy-duty oven racks
- 5" stainless steel flue riser
- 6" adjustable stainless steel legs
- One-year limited parts & labor warranty
- Free battery-design assistance from Southbend
Need flexible payment options? Ask about Middleby Equipment Financing for quick credit decisions and affordable monthly payments.
