Southbend (Middleby)  |  Platinum  |  SKU: P32D-171

Southbend (Middleby) P32D-171 Platinum Deck Ovens

$24,711.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Middleby financial flyer Owner's manual Warranty sheet
Related Searches
Deck Ovens Ovens

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

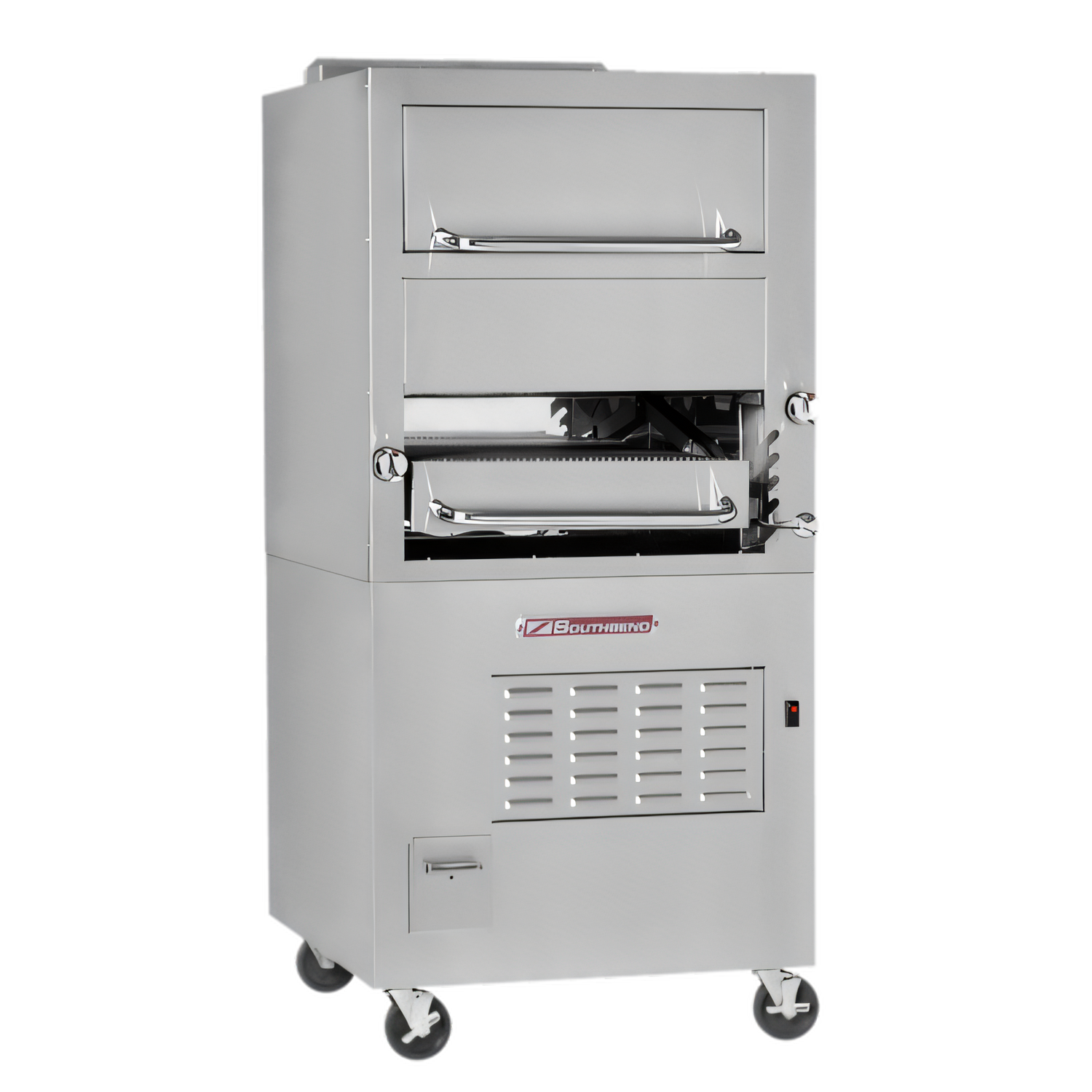

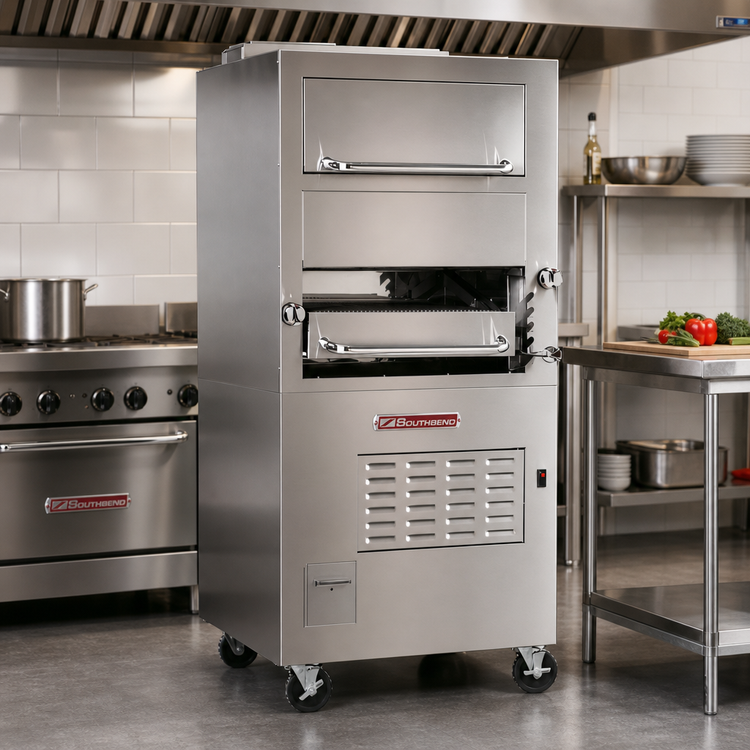

Platinum 32" Infrared Single-Deck Broiler with Standard Oven Base

Southbend | Model P32D-171 | 149,000 BTU | CSA & NSF Listed

Bring steak-house performance to a compact 32 inch footprint. Southbend’s Platinum single-deck broiler delivers blistering infrared heat, a full-size standard oven and a labor-saving warming cavity—everything you need to keep proteins sizzling and plates moving during peak service.

Why You’ll Love It

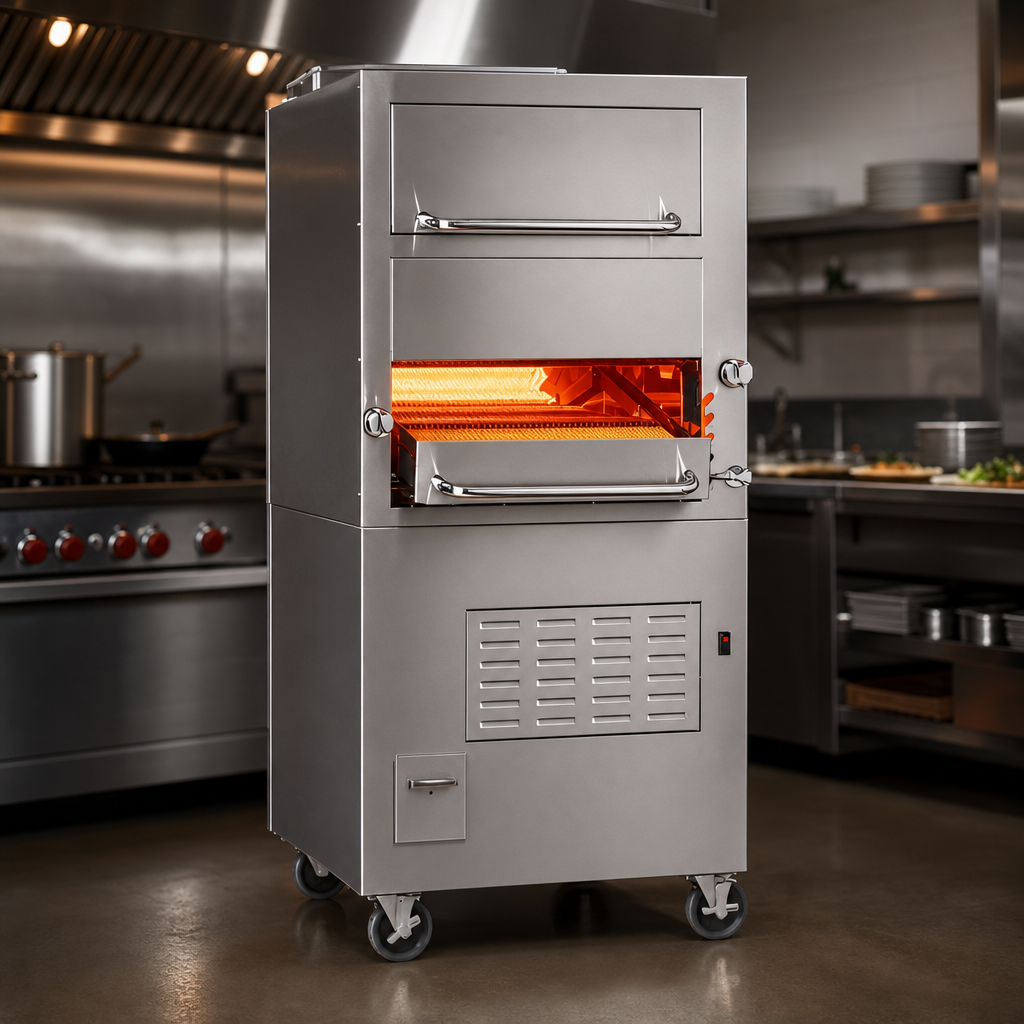

  • Blazing-fast sear – 104,000 BTU infrared burners reach broiling temperature in about 90 seconds with no recovery time between loads.
  • Four-position roll-out grid – 24 ½" W × 28" D grid rolls out 17 ¼" for safe, easy loading and can be set to four height positions for perfect caramelization.

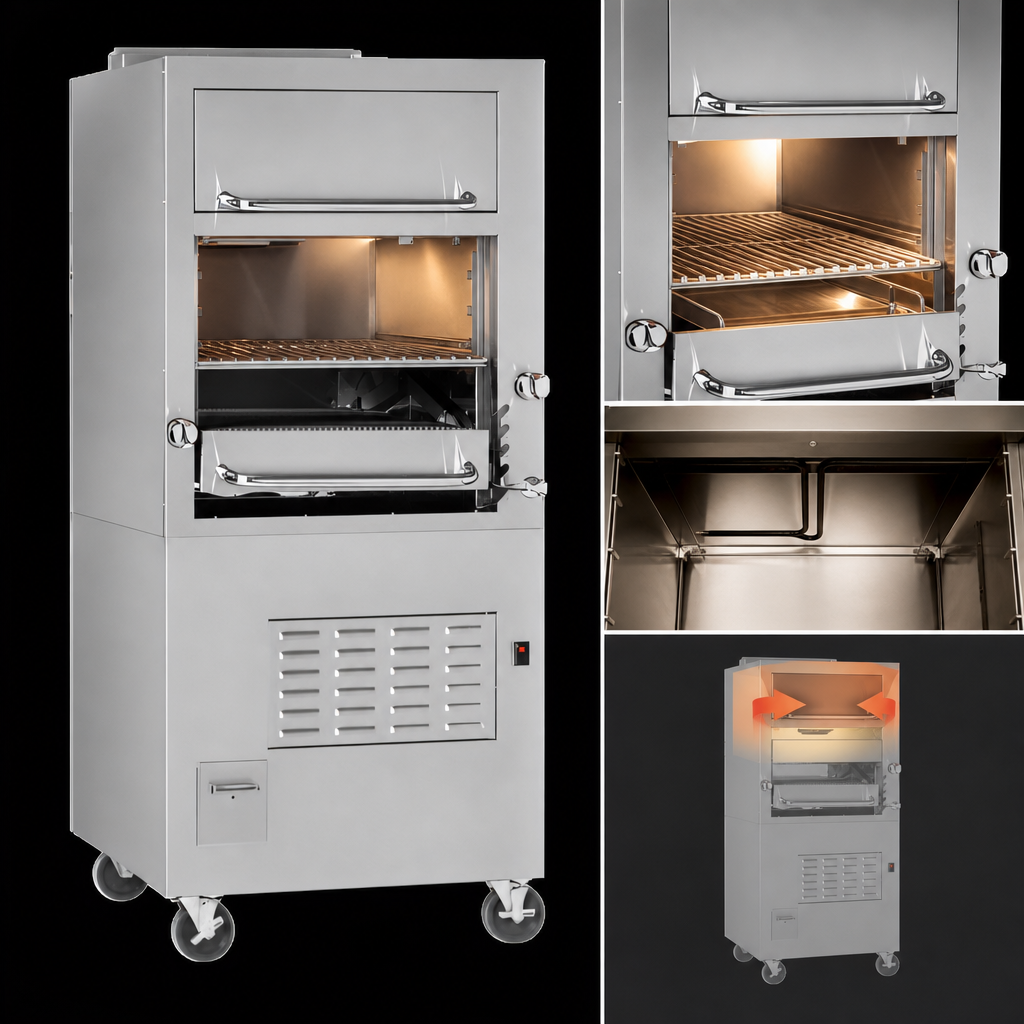

  • Overhead warming oven – 25" × 25" cavity is heated by broiler flue gases to keep finished items hot (3 kW electric booster element optional).
  • Full standard oven base – 45,000 BTU, porcelain-lined cavity fits 26" × 26" sheet pans either direction; “Insta-On” thermostat 175 – 550 °F and two nickel-plated racks included.
  • Built for the line – Stainless steel front, sides and back, fully insulated burner boxes, 6" adjustable stainless legs and NEMA 4 water-resistant controls.
  • Range match – 1 ¼" front gas manifold lines up seamlessly with other Southbend Platinum sectional pieces.

At-a-Glance Specs

Model P32D-171
Footprint 32" W × 37" D (overall) *
Heat Source Natural or Propane Gas
Broiler BTU 104,000 BTU/h (infrared)
Oven BTU 45,000 BTU/h (standard oven)
Total Input 149,000 BTU/h
Electrical 120 V, 1 ø, 1 A for controls
208/236 V, 1 ø, 20 A (optional 3 kW warming-oven element)
Gas Connections 1 ¼" front manifold; 1" rear male NPT
Oven Interior 14" H × 26" W × 26 ½" D  |  5-position rack guides, 2 racks included
Shipping Crate 45.5" W × 83" H × 55" D  |  995 lb
Certifications CSA, NSF, ANSI Z83.11/CSA 1.8
Warranty 1-year parts & labor (see warranty details below)
* Exact installed dimensions may vary slightly; refer to factory spec sheet for detailed drawings.

Popular Options (sold separately)

  • Extra oven racks
  • Open-frame base with locking casters & restraint cable
  • 3 kW electric booster element for warming oven
  • Full caster kit (front casters lock)
Warranty Highlight: Southbend covers the Platinum broiler/oven for one (1) year on parts and labor when installed and serviced by an authorized Southbend agency. Consumables such as broiler tiles and door seals are covered for 90 days. Improper installation or misuse will void coverage.

Need easy payments? Ask us about fast Middleby equipment financing and get your Platinum series broiler on the line without tying up capital.

Features & Specs

Manufacturer

Southbend (Middleby)

Brand_name

Platinum

Certifications

NSF, CSA

Height

81.0in

Width

32.0in

Depth

41.0in

Shipping Weight

995.0lbs

Heat

infrared

Warming Oven

with

Design

range match

Decks

single

Base

standard oven

Exterior Finish

stainless steel front & sides

Specifications

Platinum Single Deck Broiler Heavy Duty Range Match, gas, 32", infrared burners, standard oven base, warming oven, stainless steel front & sides, 6" adjustable legs, 149,000 BTU, CSA, NSF
