Southbend (Middleby)  |  Platinum  |  SKU: P32C-XX

Southbend (Middleby) P32C-XX Platinum Gas Ranges

$8,740.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Installation & operation Middleby financial flyer Owner's manual Warranty sheet
Related Searches
Butane Stove Cooking Equipment Cooking Equipment Countertop Cooking Equipment Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

Southbend Platinum 32" Heavy-Duty Gas Range

4 × 45,000 BTU Pyromax™ Open Burners • Stainless Cabinet Base • 180,000 BTU Total

Built for demanding commercial kitchens, the Southbend Platinum P32C puts 180,000 BTU of searing power in a compact 32-inch footprint. Four patented Pyromax™ clog-free burners sit above a heavy-duty stainless-steel cabinet base—giving you relentless cooking performance plus dry, convenient storage in one rock-solid unit.

Highlights

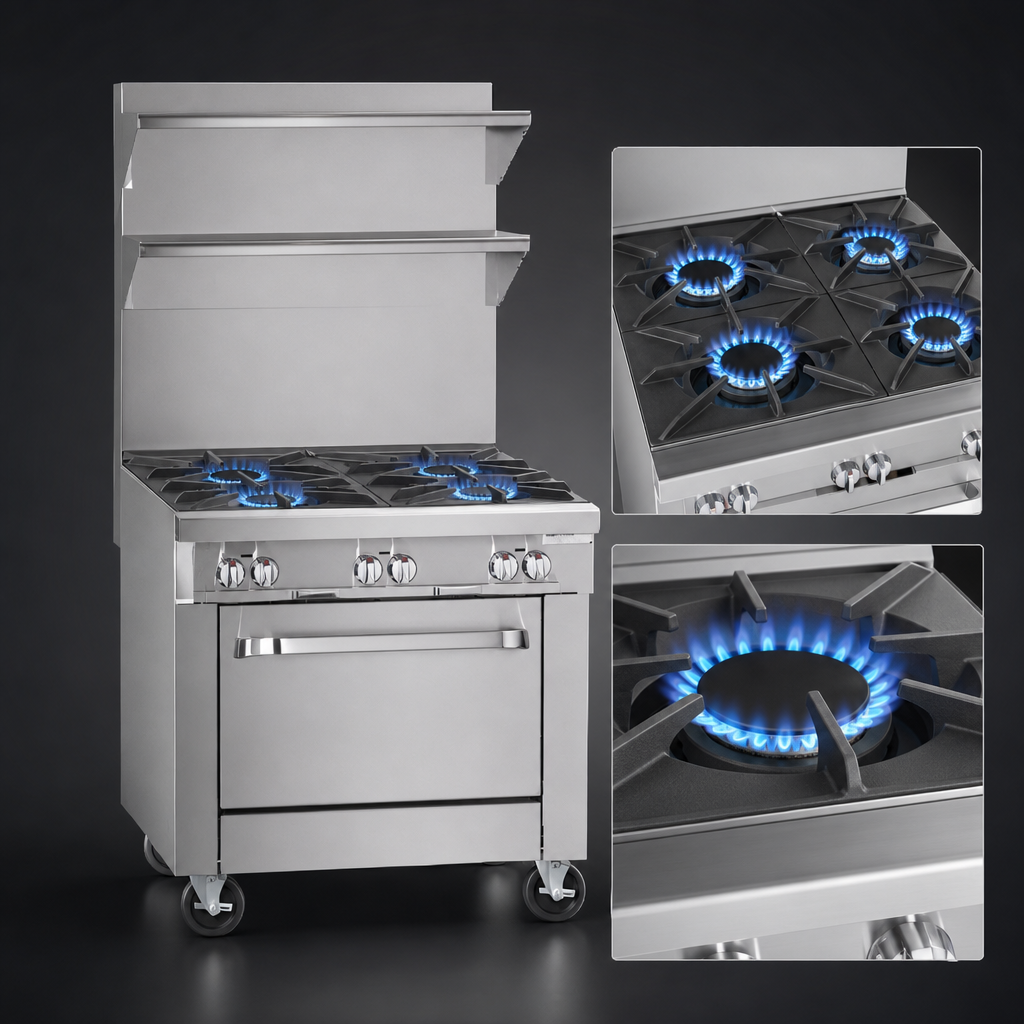

  • Four 45,000 BTU open burners deliver instant, even heat—perfect for sauté, stockpots, or high-volume searing.
  • Signature Pyromax™ design resists clogging and reduces downtime for cleaning.
  • Removable welded-steel top grates stand up to oversized cookware and lift off for quick sanitation.
  • 9-¼" deep front rail stays cool and offers extra plating or utensil space.
  • Full stainless construction (front, sides, rear, flue & 6" adjustable legs) withstands daily punishment and wipes clean fast.
  • Stainless cabinet base with center-opening doors keeps sheet pans, stock, or smallwares close at hand.
  • 5" stainless flue riser channels heat into the hood and off the cooking line.
  • Manual infinite-control valves for precise flame adjustment on every burner.
  • Removable drip tray speeds end-of-shift cleanup.
  • CSA & NSF listed for gas safety and food-service sanitation.

Specifications

Model P32C-XX (cabinet base)
Overall width 32" / 813 mm
Overall depth 37 ½" / 953 mm
Cook surface height ≈ 37 ½" with 6" adjustable legs
Height to top of flue ≈ 42 ½"
Number of burners 4 open-top Pyromax™
BTU per burner 45,000 BTU (NAT or LP)
Total input 180,000 BTU/hr
Gas connection 1 ¼" front manifold & 1" rear NPT; regulated supply required
Minimum gas pressure 7" W.C. Natural • 11" W.C. Propane
Electrical None required (standing pilot)
Certifications CSA • NSF
Warranty 1-year parts & labor (details)

Popular Factory Options

  • External gas pressure regulator
  • 24" or 36" high flue riser with optional shelves
  • Removable cast-iron grate tops
  • Front-locking casters or open-frame base with casters
  • Battery spark ignition for open burners
  • Cable-restraint safety kit (required with flexible gas hose)
Important: Oversized cookware (12" dia.+) should be kept to the rear burners. Allowing pans to hang over the front rail can trap heat and damage components—damage caused by improper cookware placement is not covered under warranty.

For best results install under a vented hood and comply with all local fire and sanitary codes. Intended for commercial use only.

Features & Specs

Manufacturer

Southbend (Middleby)

Brand_name

Platinum

Certifications

NSF, CSA

Height

41.0in

Width

32.0in

Depth

37.5in

Shipping Weight

490.0lbs

Top

(4) open burners

Vent

backriser

Base

cabinet(s)

Exterior Finish

stainless steel front & sides

Specifications

Platinum Heavy Duty Range, gas, 32", (4) 45,000 BTU open burners, manual controls, (1) cabinet base, stainless steel front, sides & 6" adjustable legs, 180,000 BTU, CSA, NSF
