Southbend (Middleby) P32C-XT Platinum Gas Ranges
Description
Southbend Platinum 32″ Heavy-Duty Gas Range – 2 Open Burners & 16″ Thermostatic Griddle
Model P32C-XG/T | 130,000 BTU Total InputSqueeze maximum productivity into a 32-inch footprint. Two 45,000 BTU Pyromax™ open burners sit beside a precision-controlled 16″ griddle, giving your kitchen the speed and versatility it needs during the rush—without sacrificing an inch of durability.
Why chefs choose this range
- 130,000 BTU total output keeps up with the heaviest tickets.

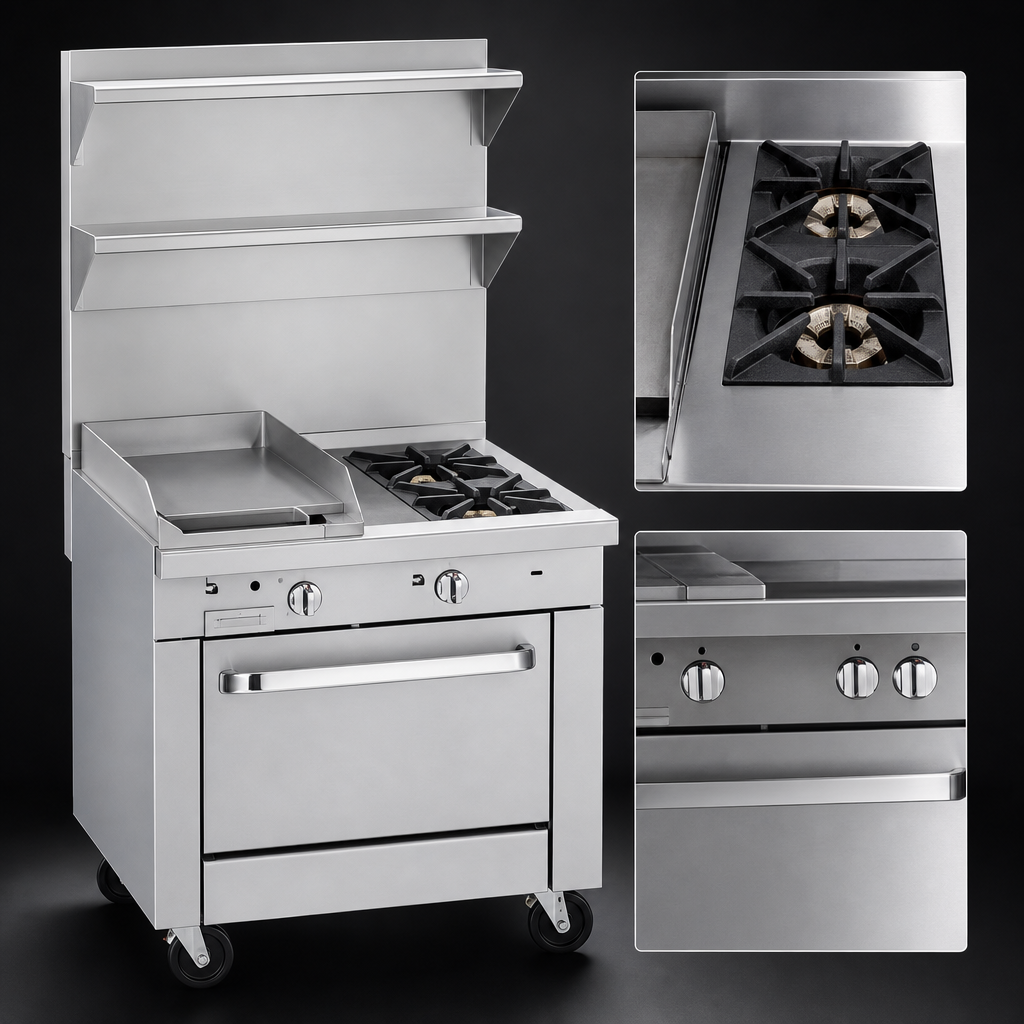

- 2 × 45,000 BTU clog-free Pyromax™ open burners for rapid boils, intense searing, or low-simmer finesse.

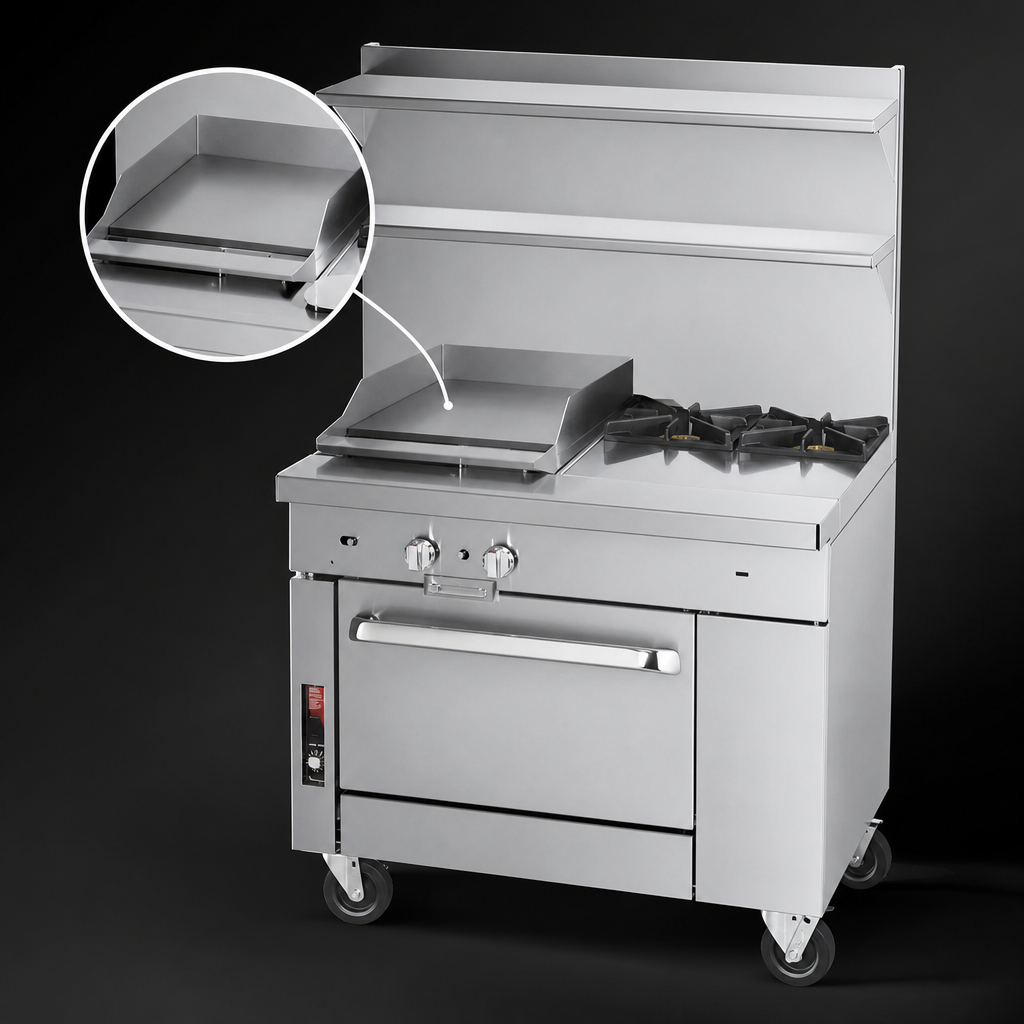

- 16″ griddle with 1″-thick steel plate and Insta-On thermostat (180–400 °F) for consistent browning and overnight peace-of-mind.
- Battery spark ignition—no standing pilots on the cook surface, saving energy and heat.
- All-stainless front, sides, rail, flue, and cabinet stand up to daily scrubbing.
- Fully insulated burner box keeps line cooks cooler and improves efficiency.
- 9 ¼″ deep front rail and 6″ adjustable stainless legs for ergonomic, level installation.
- Certified cCSAus, CSA Flame, CSA Star, and NSF for code-compliant operation anywhere in North America.
Built-in storage, built-in speed
The integrated stainless cabinet base (with optional interior shelf) keeps stock pots, sheet pans, or hotel pans right where you need them—no more sprinting across the kitchen mid-service.
Technical specifications
| Overall width | 32″ (813 mm) |
|---|---|
| Overall depth | 37 ½″ (953 mm) |
| Cook surface height | 37 ½″ with 6″ legs & 5″ flue riser |
| Open burners | 2 × 45,000 BTU Pyromax™ open burners (90,000 BTU) |
| Griddle | 16″ W × 24″ D, 1″ plate, 40,000 BTU (NAT), thermostatic 180–400 °F |
| Total input | 130,000 BTU/hr (Natural) • 120,000 BTU/hr (Propane) |
| Gas connection | 1 ¼″ front manifold & 1″ rear male NPT – 7″ WC NAT / 11″ WC LP min. |
| Ignition | Battery spark (top) • standing pilot in base |
| Certifications | cCSAus • CSA Flame • CSA Star • NSF |
| Warranty | 1-year parts & labor (commercial use) |
| Approx. shipping weight | 440 lb (200 kg) |
Factory-installed options (extra cost)
- 24″ or 36″ flue riser with storage shelves
- Heavy-duty locking casters & restraining cable
- Grooved or chrome-plated griddle surface
- External gas pressure regulator
Looking for a different top configuration or oven base? Southbend’s sectional design makes custom batteries easy—ask us for details.
When the dinner rush hits, every second matters. Equip your line with the Southbend Platinum 32″ Heavy-Duty Range and taste the difference real power makes.
