Southbend (Middleby) P32C-XH-RE Platinum Gas Ranges
Description

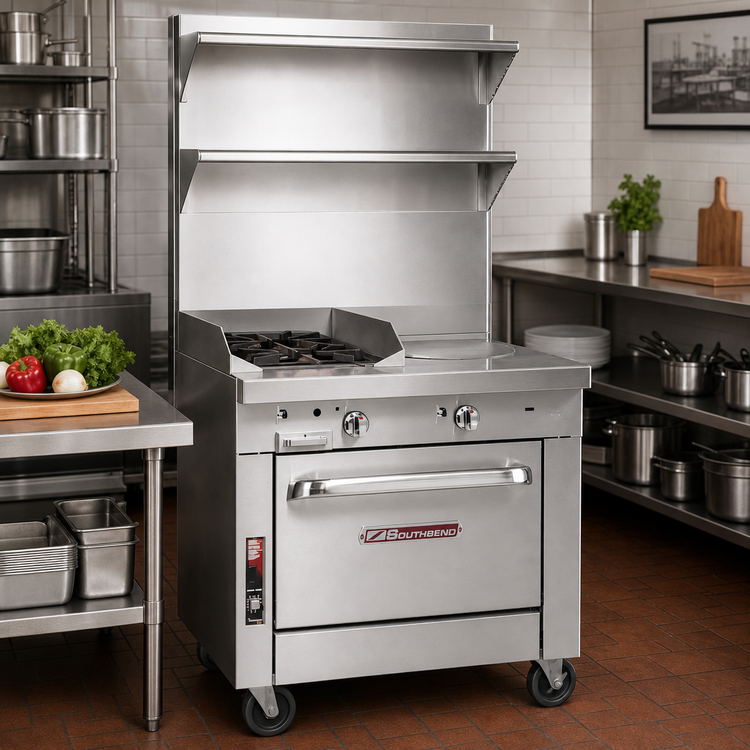

Southbend Platinum 32" Heavy-Duty Sectional Range – 2 Open Burners & Rear 16" Hot Top
Model P32C-XH-RE | 130,000 BTU (NAT) • CSA & NSF ListedPut uncompromising power and versatility into just 32 inches of cook-line real estate. The Southbend Platinum Series pairs two 45,000 BTU Pyromax burners up front with a 16" rear hot top capable of 700°F surface temperatures—perfect for sautéing, stock production, simmering and holding, all at once. Built on a stainless cabinet base, this unit anchors any battery while keeping pans and smallwares close at hand.
Why You’ll Love It

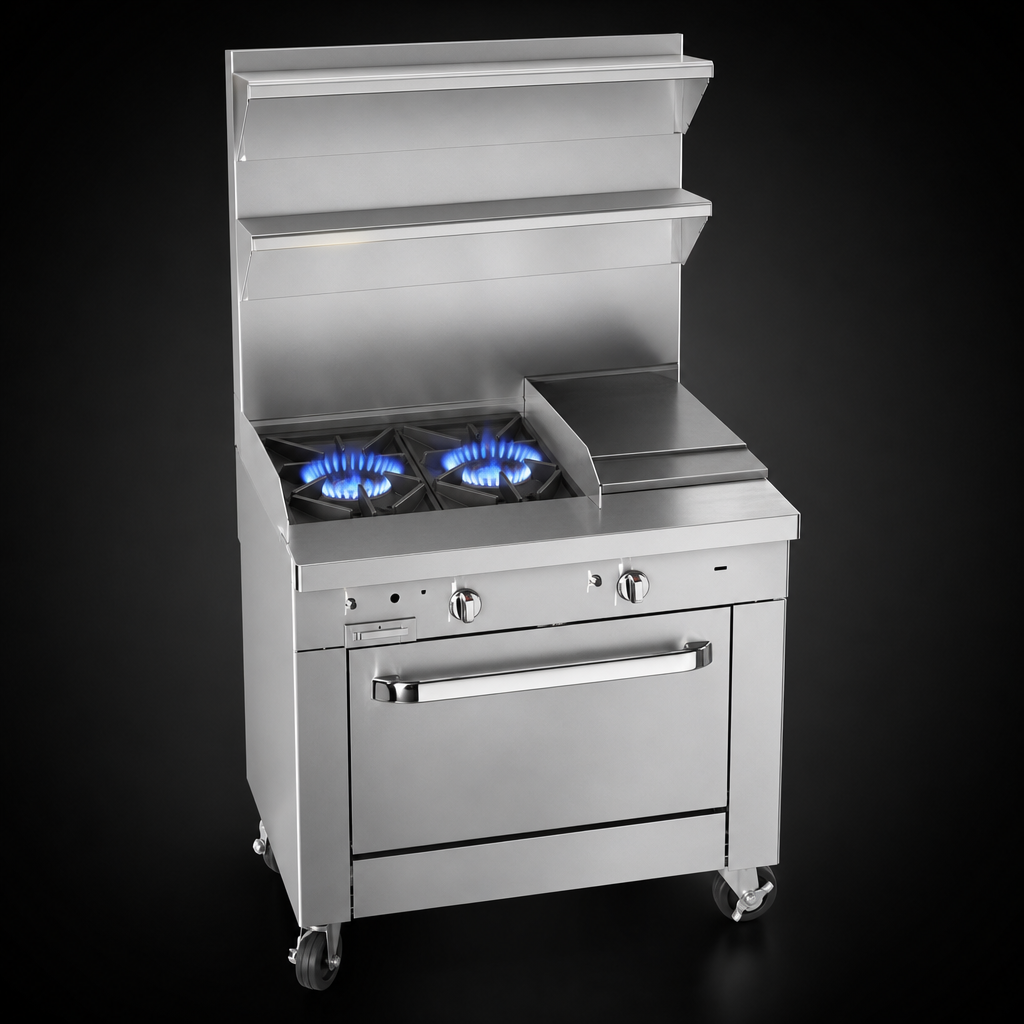

- Blistering Power – 90,000 BTU from two patented clog-free Pyromax open burners.

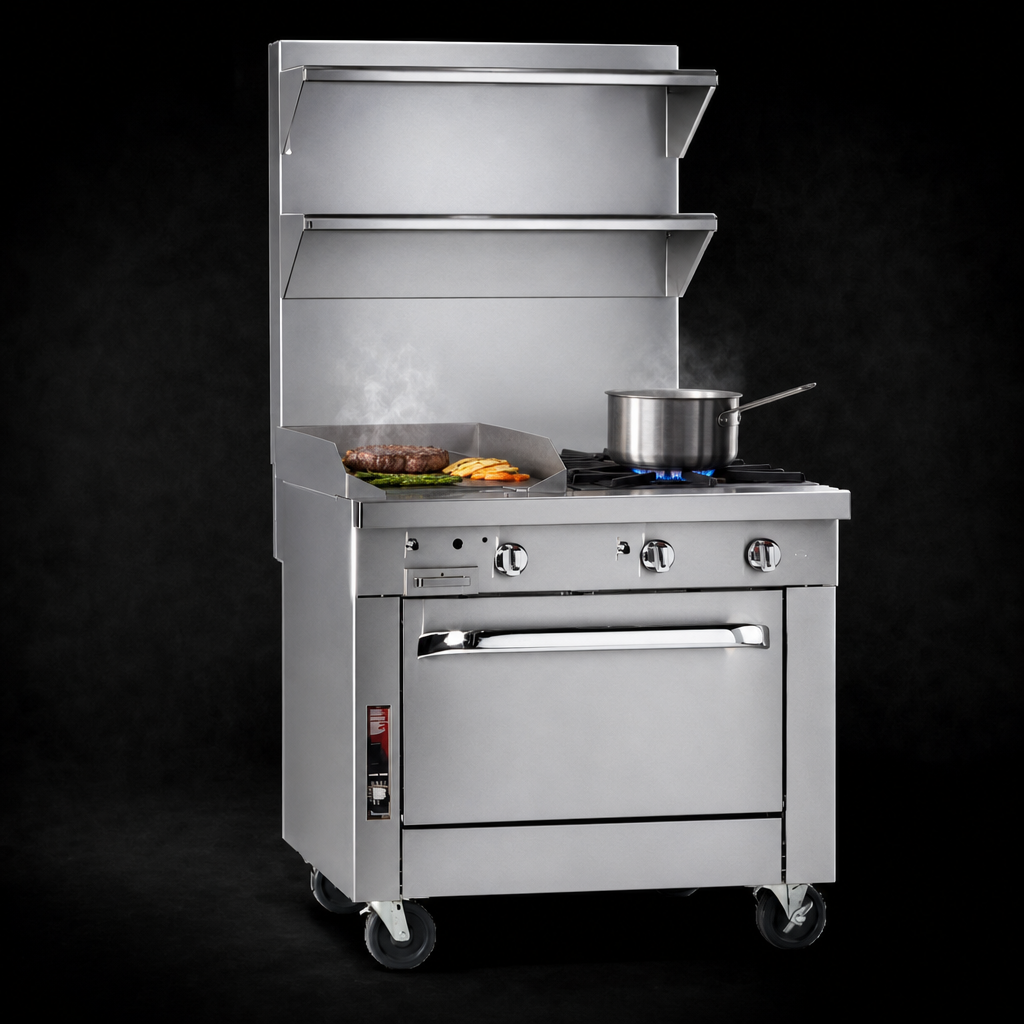

- Versatile Hot Top – Rear 16" steel plate with two 20,000 BTU burners and high/low control for even 700°F coverage or gentle holding.
- Energy-Saving Ignition – Battery spark lights burners on demand; no standing pilots wasting gas.
- Rugged Construction – 430/304 stainless front, sides, cabinet doors and 6" adjustable legs stand up to the rush.
- Modular Flexibility – 1-1/4" front manifold couples seamlessly with other Platinum sections—Southbend will even assist with free battery design.
- Ample Storage – Fully enclosed cabinet base with removable shelf keeps the line clutter-free.
- Operator Friendly – 9-1/4" deep rail, 5" flue riser, and fully insulated burner box help maintain a cooler, safer work area.
- Peace of Mind – Backed by a 1-year parts & labor warranty and nationwide authorized service network.
At-A-Glance Specs
| Configuration | (2) 45,000 BTU open burners (front) + 16" hot top (rear) |
|---|---|
| Total Input | 130,000 BTU/hr Natural Gas | 120,000 BTU/hr Propane |
| Width | 32" (813 mm) |
| Depth (to front rail) | 37-1/2" (953 mm) |
| Cooking Height | 36" with 6" legs • 41" overall with 5" flue riser |
| Base Type | Stainless steel cabinet, double doors, removable shelf |
| Controls | Manual infinite valves • Battery spark ignition |
| Gas Connection | 1" NPT rear (factory supplied) • 1-1/4" front manifold for battery line-up |
| Clearances (combustible) | 10" sides • 12" rear |
| Certifications | CSA, NSF – Commercial use only |
| Warranty | 1 year parts & labor (Heavy Duty Sectional Range) |
Popular Factory Options
- 24" or 36" flue riser with one or two shelves
- Front locking casters or open-frame base with casters
- External gas pressure regulator
- Square belly bar or 7-1/4" deep front rail
- Cable restraint kit for mobile installations (required with casters)
Need multiple sections or a custom battery? Southbend’s design team will configure a matching line-up at no additional charge. For complete warranty terms visit the Southbend service page.
