Southbend (Middleby) P32C-XG Platinum Gas Ranges
Description

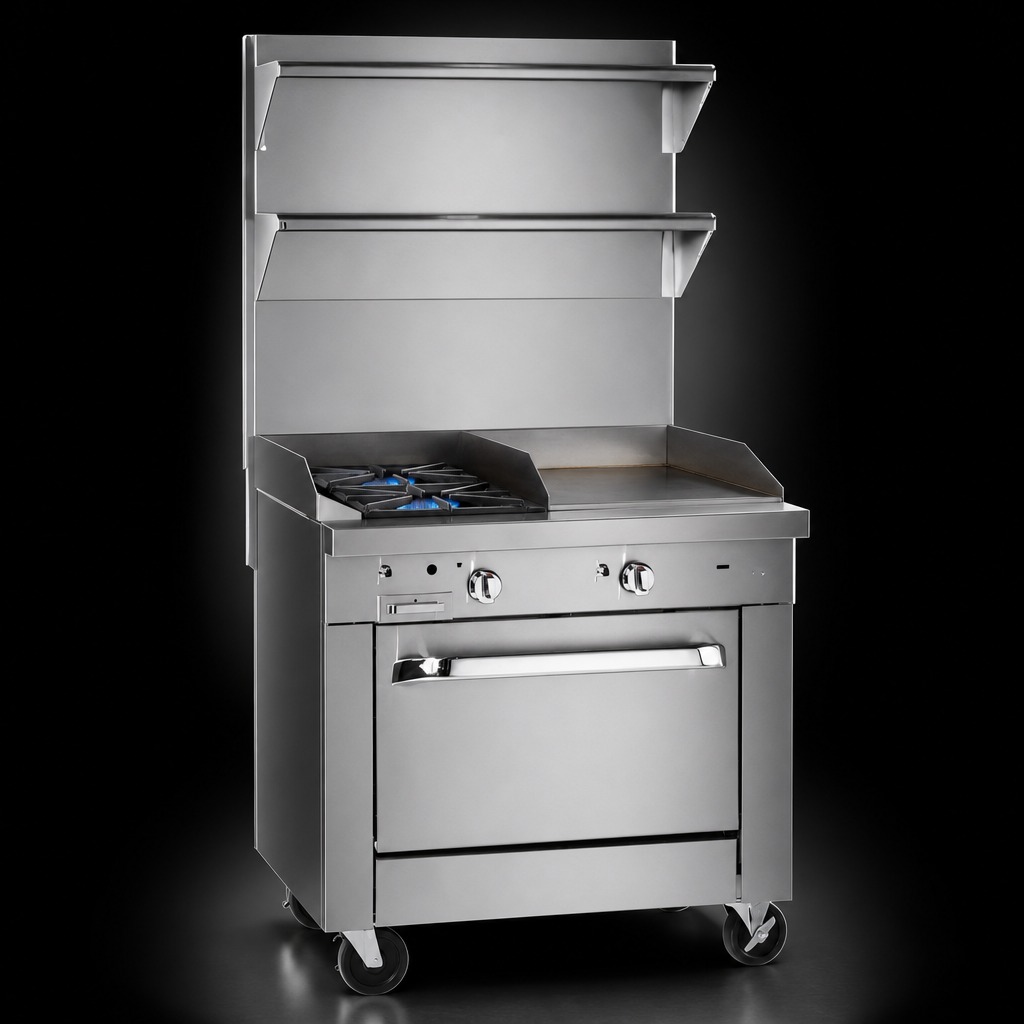

Platinum Series 32" Heavy-Duty Gas Range w/ 16" Manual Griddle & Cabinet Base
Southbend Model P32C-XG • 130,000 BTU (NAT/LP)Engineered for high-volume kitchens that refuse to compromise on versatility or longevity, Southbend’s 32" Platinum Series sectional range combines two blistering-hot Pyromax open burners with a full 16" manual griddle — all mounted above a roomy stainless steel cabinet base. The result is a compact powerhouse that sears, sautés, and griddles while keeping your mise en place close at hand.
Why You’ll Love It
- Two 45,000 BTU Pyromax open burners – patented clog-free design delivers intense, even heat.
- 1" thick, 16" manual griddle – 40,000 BTU (two burners) with battery-spark ignition for instant start-ups.
- Durable cabinet base – stainless interior & exterior with two removable doors for dry storage.
- All-stainless construction – front, sides, 5" flue riser & 6" height-adjustable legs stand up to years of abuse.
- Sectional flexibility – 1-¼" front gas manifold mates cleanly in a battery line-up; 1" rear NPT for single install.
- No electricity required – battery ignition keeps you cooking during power outages.
- Certified cCSAus, CSA Flame, CSA Star & NSF for gas safety and sanitation.
Performance & Utilities
| Overall BTU | 130,000 BTU/hr (Natural or Propane) |
|---|---|
| Open Burners | (2) Pyromax, 45,000 BTU each |
| Griddle Section | 16" W x 24" D, 1" polished steel plate, 40,000 BTU, manual controls |
| Gas Connection | 1" rear male NPT (7" W.C. NAT • 11" W.C. LP min. supply) |
| Front Manifold | 1-¼" quick-couple design for battery installations |
| Dimensions (W × D × H) | 32" × 37.5" × 34" (to cook surface) + 5" flue riser |
| Shipping Weight | ≈ 440 lb / 200 kg |
| Warranty | 1-year parts & labor (see full terms below) |
Popular Factory Options
- 24" or 36" flue riser with one or two shelves
- Chrome or grooved griddle surface
- Front rail cut-outs or 7-¼" deep rail
- Locking front casters & restraining cable kit
- External gas pressure regulator
Compliance
Certified to cCSAus, CSA Flame, CSA Star & NSF standards. Intended for commercial use only and must be installed under a vented hood in accordance with local codes.
Southbend Limited Warranty
One-year parts & labor coverage when serviced by an authorized Southbend agency. Oversized cookware & improper cleaning practices may void warranty. Full policy available upon request.
