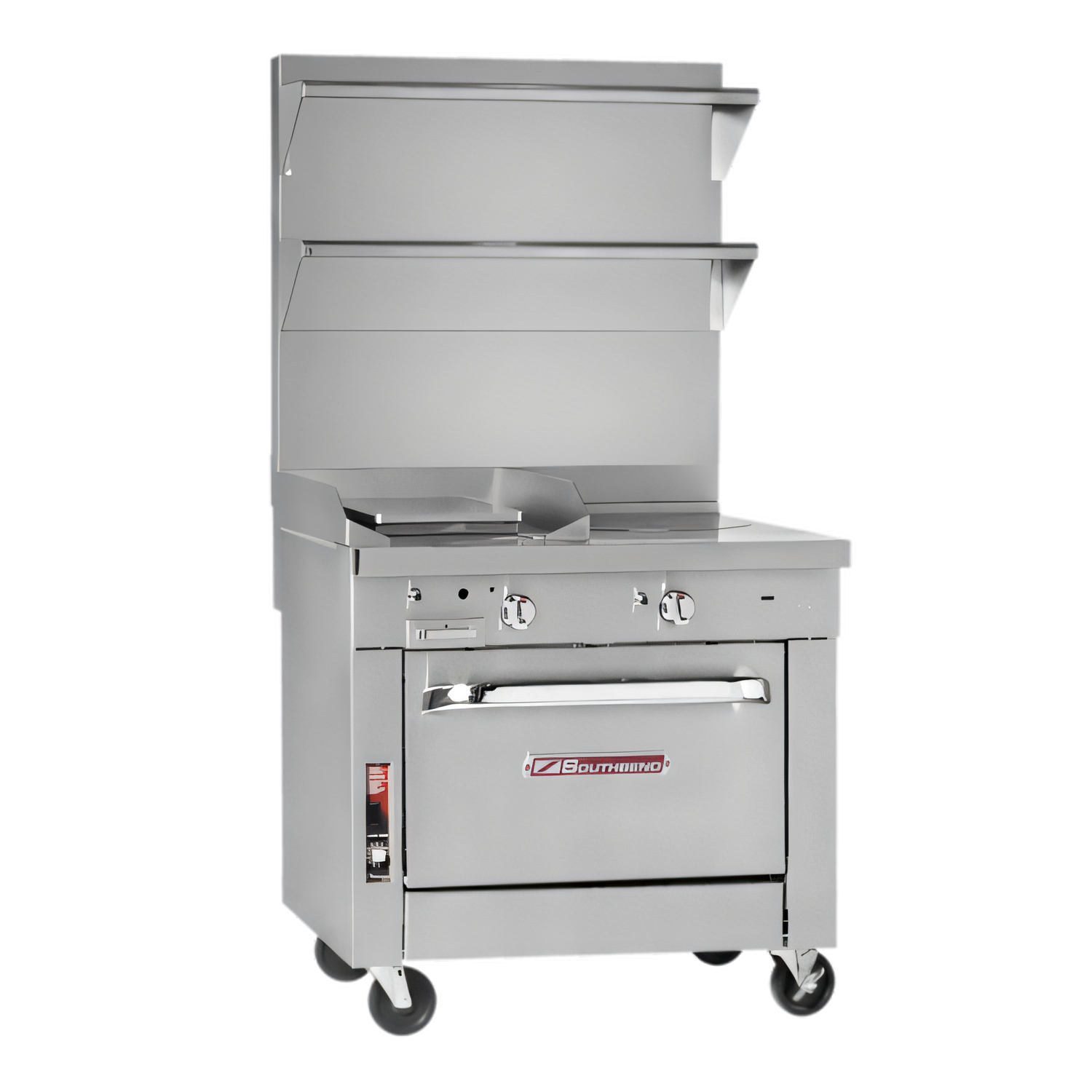

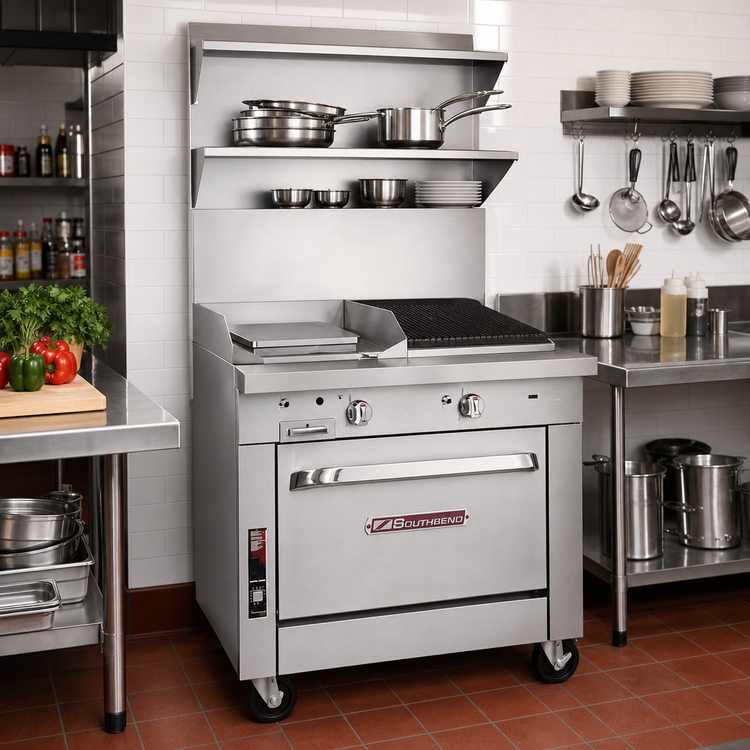

Southbend Platinum 32-Inch Heavy Duty Gas Range with 16-Inch Griddle and 16-Inch Charbroiler, Cabinet Base

SKU: P32C-TC
$13,809.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Butane Stove Cooking Equipment Cooking Equipment Countertop Cooking Equipment Gas Ranges New Arrivals Ranges Restaurant Equipment Southbend (Middleby)

Southbend Platinum 32-Inch Heavy Duty Gas Range with 16-Inch Griddle and 16-Inch Charbroiler, Cabinet Base

1-Inch Thick Plate, Thermostatic Controls, Battery Spark Ignition, Stainless Steel Front and Sides

Built for high-volume kitchens, this 32-inch Platinum range combines a thermostatic griddle, charbroiler, and rugged cabinet base in one powerful gas unit.

  • 32-inch heavy-duty gas range with integrated 16-inch griddle and 16-inch charbroiler.
  • 1-inch thick griddle plate provides durable, even cooking performance.
  • Charbroiler section includes cast iron grates and stainless steel radiants.
  • Battery spark ignition and thermostatic controls support reliable operation.
  • Cabinet base design with stainless steel front and sides for demanding commercial use.
  • Includes 6-inch adjustable legs for installation flexibility.

Overall Dimensions:

32.0"W x 37.5"D x 41.0"H

Product Weight:

490.0 lb

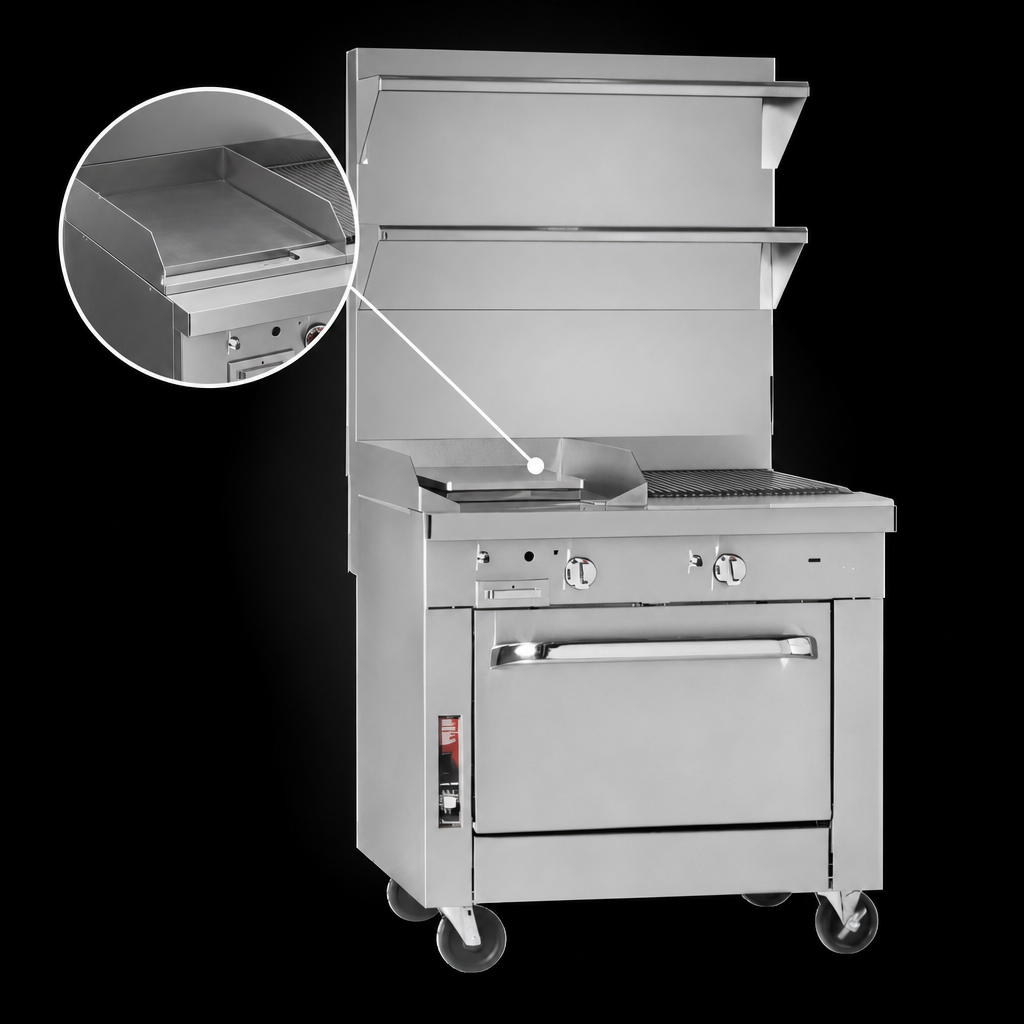

16-Inch Griddle

Integrated griddle section with thermostatic controls for consistent cooking temperatures.

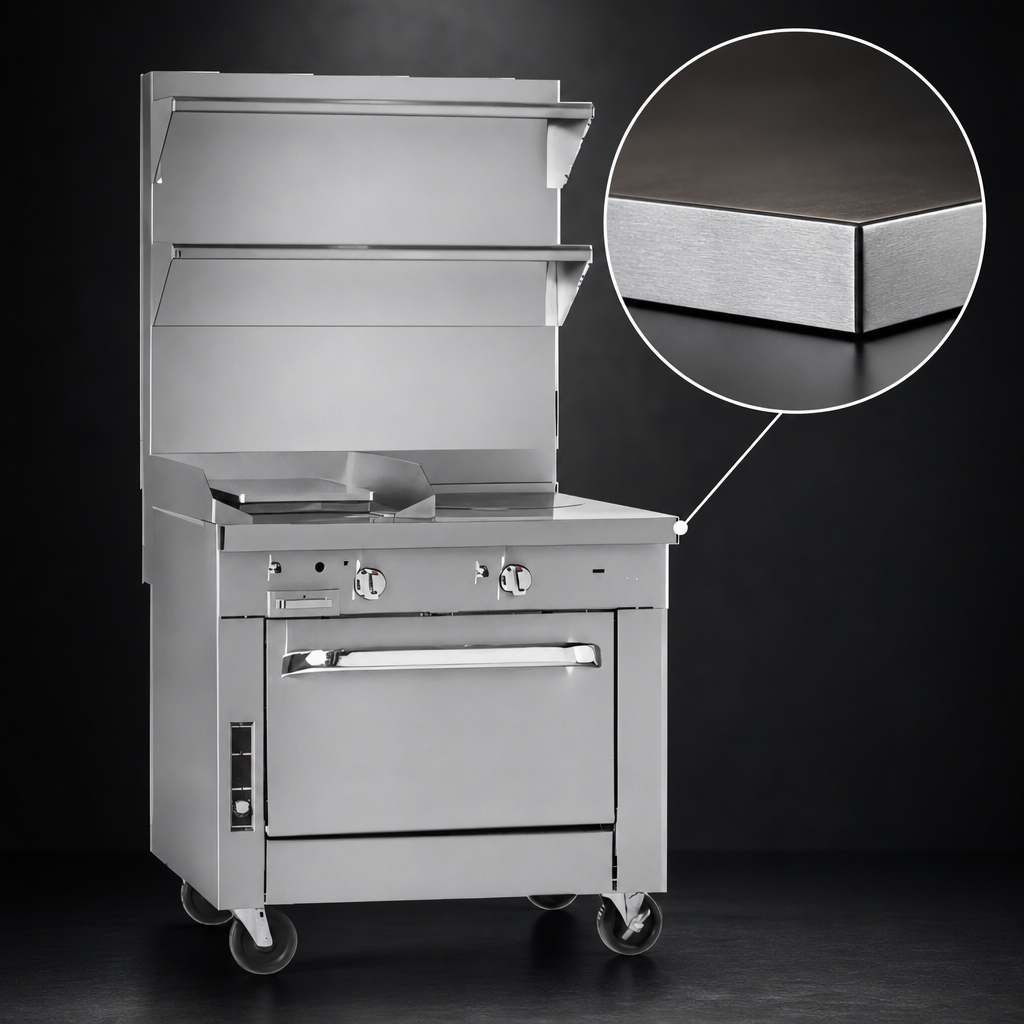

1-Inch Thick Plate

Heavy plate construction helps retain heat and stand up to intensive daily use.

16-Inch Charbroiler

Dedicated charbroiler section expands menu flexibility for grilled items.

Cast Iron Grates

Durable grates support strong heat retention and rugged commercial use.

Battery Spark Ignition

Reliable ignition system for quick startup without a standing pilot.

Cabinet Base

Built-in cabinet base adds storage and creates a sturdy floor-mounted platform.

Stainless Steel Radiants

Radiants beneath the charbroiler help distribute heat and improve broiling performance.

Stainless Steel Exterior

Stainless steel front and sides offer a professional look and easier cleaning.

6-Inch Adjustable Legs

Provides installation flexibility and helps level the unit.

Backriser Vent Configuration

Backriser vent design is identified for this range.

Type Heavy Duty Range
Style Platinum
Installation Type Floor Model
Controls Thermostatic
BTU 80,000 BTU
Material Stainless Steel
Finish Stainless Steel
Shipping Width 32 Inches
Shipping Depth 38 Inches
Shipping Height 41 Inches
Shipping Weight 490 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Warranty & Protection

1 year parts and labor from the date of original purchase.

Documents

PDF Cutsheet PDF Download PDF Installation & operation PDF Download PDF Middleby financial flyer PDF Download PDF Owner's manual PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It includes one 16-inch thermostatically controlled griddle with a 1-inch thick plate and one 16-inch charbroiler with cast iron grates.
Yes, it includes one cabinet base.
It uses battery spark ignition.
The unit is rated at 80,000 BTU.
Yes, it includes 6-inch adjustable legs.
