Southbend (Middleby) P32C-PPP Platinum Gas Ranges
Description

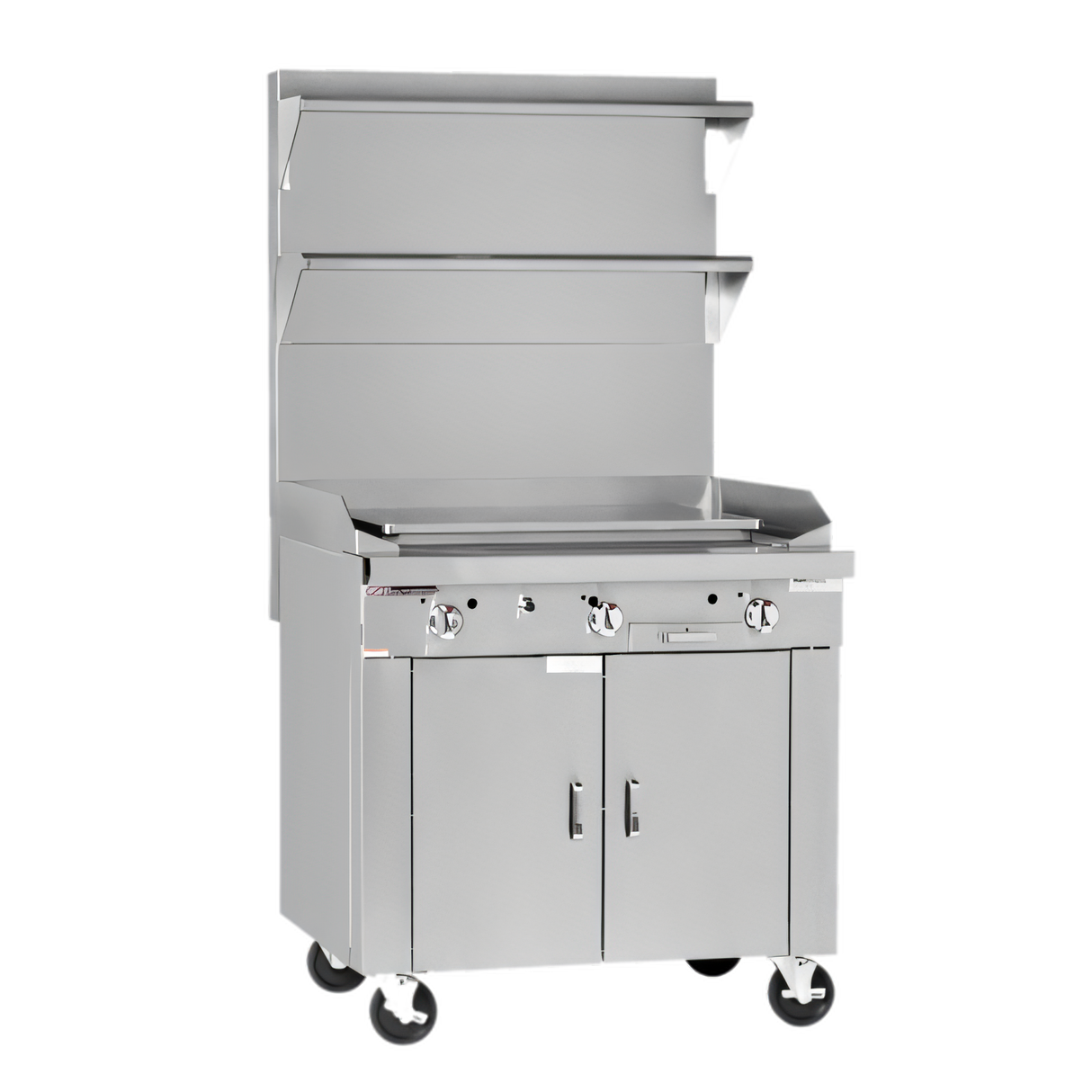

Southbend Platinum Series 32" Plancha Griddle Range
Model P32C-PPP | 48,000 BTU Natural Gas | Cabinet BaseBuilt for volume kitchens that live and die by ticket times, the Platinum Series Plancha Range delivers instant, even heat up to 800 °F on a 25-3/4" steel plate—perfect for rapid sear-to-finish production. Add heavy-gauge stainless construction, generous storage, and battery spark ignition, and you have a workhorse designed to own the rush.
Why You’ll Love It

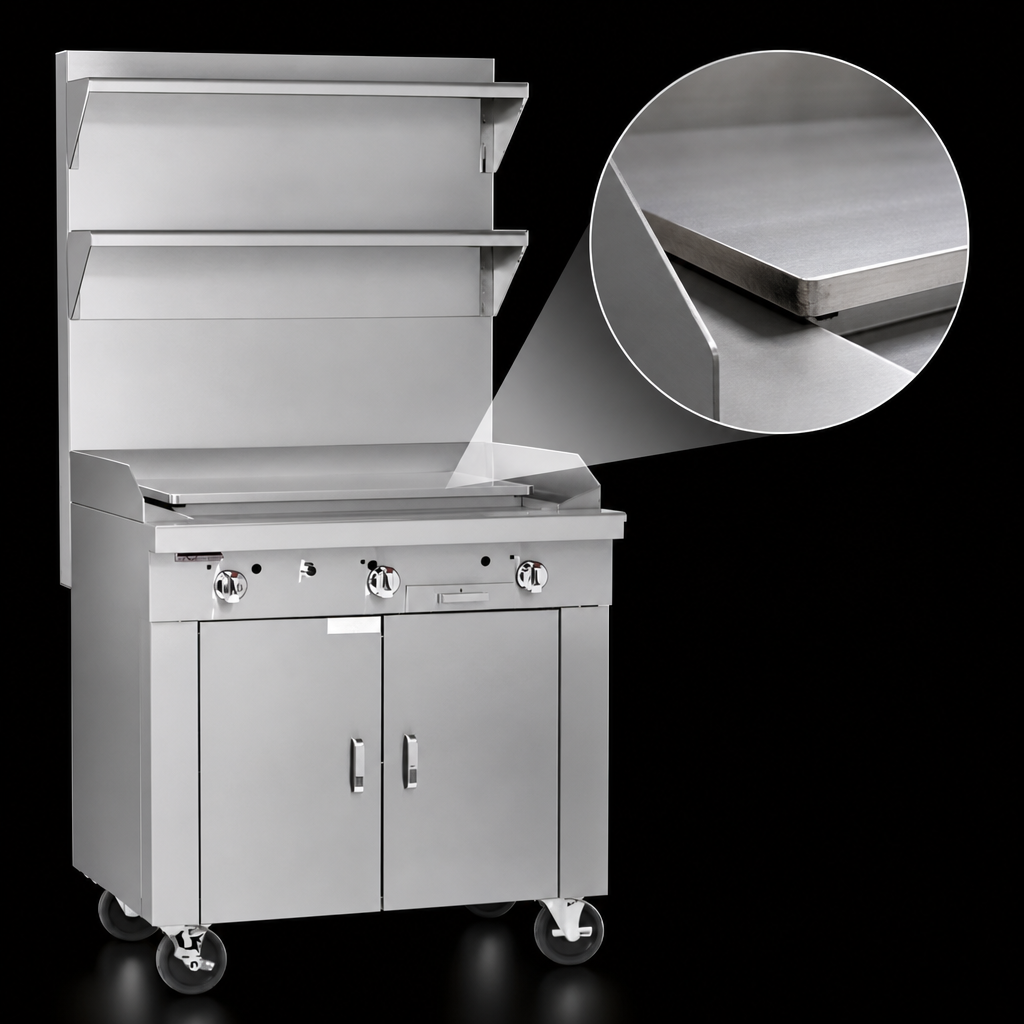

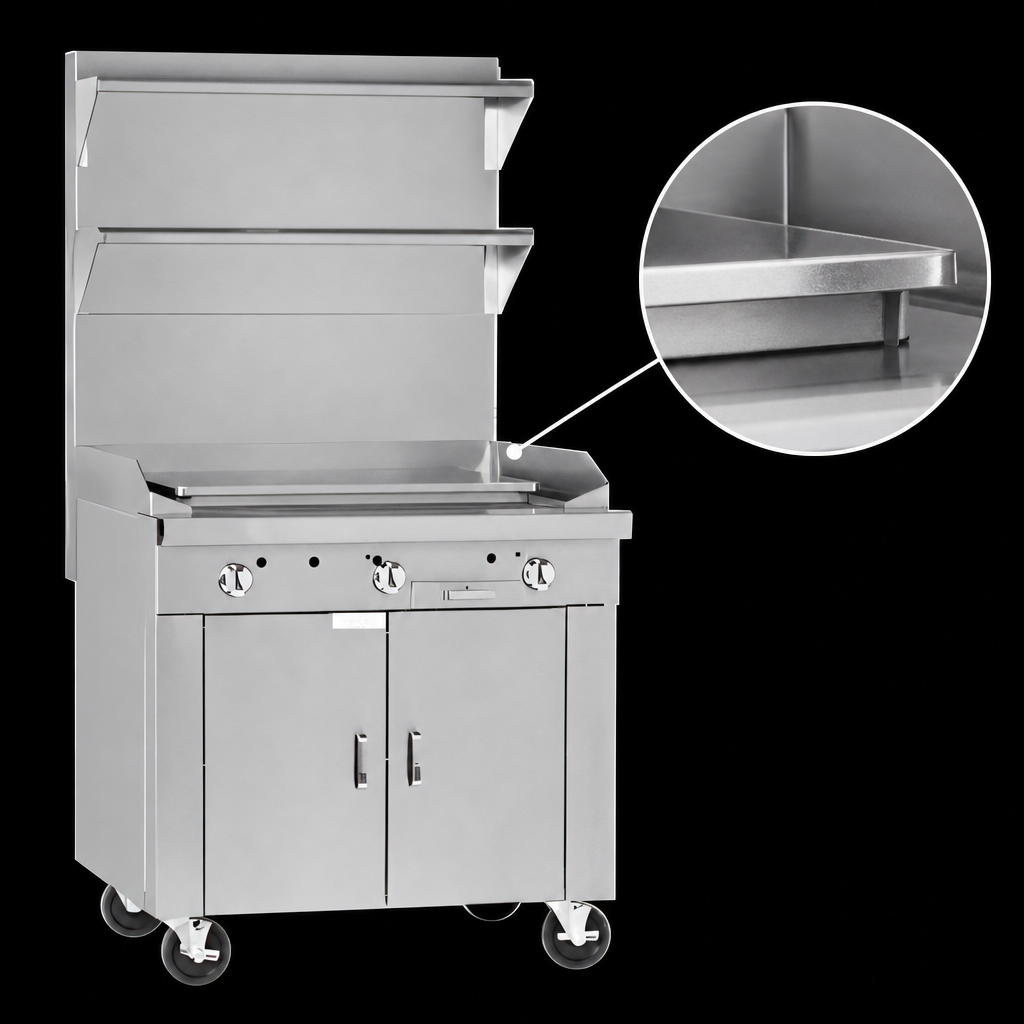

- 25-3/4" raised plancha with ½" reinforced steel plate for superior heat retention & recovery.
- Three 16,000 BTU cast-iron burners (48,000 BTU total) create an 800 °F front-zone for perfect sear, with a cooler finishing zone at the rear.
- Battery spark ignition eliminates standing pilots—cutting utility costs and excess heat.
- Manual, individual burner controls give chefs on-the-fly responsiveness.
- 5" deep front rail, side & rear splashers, and an oversized slide-out grease drawer keep the line clean.
- Stainless steel front, sides, rear & exterior bottom—built to withstand punishing commercial kitchens.
- Fully insulated burner box and 5" stainless flue riser protect surrounding stations.
- 32" sectional footprint integrates seamlessly into any Platinum battery.
- Cabinet base with center-opening stainless doors adds convenient, sanitary dry storage.
- 6" adjustable stainless legs for easy leveling and under-unit cleaning.
Popular Factory Options (Sold Separately)
- External gas pressure regulator
- Locking casters or open-frame base with casters for battery line-ups
- 24" or 36" flue riser (shelves & salamander/cheesemelter mounts available)
- Cable restraint kit for mobile installations
- Extra-deep rear-extending flue riser for high-stack ventilation
- Removable interior shelf for cabinet base
At-a-Glance Specs
| Cooking Surface | 25-3/4" raised plancha griddle |
|---|---|
| Plate Thickness | ½" (12.7 mm) reinforced steel |
| Total Heat Output | 48,000 BTU/hr Natural | 46,500 BTU/hr LP |
| Burners | 3 × 16,000 BTU cast-iron, manual controls |
| Ignition | Battery spark (no standing pilot) |
| Gas Connection | 1-¼" front manifold | 1" rear male NPT Min. pressure – 7" WC NAT / 11" WC LP (regulator required) |
| Exterior Dimensions (W × D × H) | 32" × 37-½" × 36" to cook surface + 5" flue (813 × 953 × 914 mm) |
| Shipping Weight | 560 lb (254 kg) |
| Base Type | Stainless steel cabinet with removable center-opening doors |
| Legs | 6" stainless, adjustable |
| Certifications | CSA, NSF |
| Warranty | 1-year limited parts & labor (Heavy Duty Sectional) |
Plancha units operate as a single heat zone and do not support independent temperature controls. Minimum clearances, vent-hood installation, and regulated gas supply are required; consult local codes and the installation manual. Intended for commercial use only.
