Southbend (Middleby) P32C-HT Platinum Gas Ranges
$13,315.00
Unit price
/
Unavailable
Description
Southbend Platinum Heavy Duty 32" Sectional Range
Model P32-HG/T — Hot Top & Thermostatic Griddle, Cabinet Base, 80,000 BTUBuilt for high-volume, high-heat commercial kitchens, the Southbend Platinum Series combo top gives you two versatile cooking surfaces in just 32 inches of space— perfect for battery line-ups or standalone use.
Why You’ll Love It
- All-stainless exterior (front, sides & bottom) for unmatched durability and easy cleanup.
- Compact 32" footprint delivers 80,000 BTU of heavy-duty firepower.
- Battery spark ignition on the top section—no standing pilots, no wasted gas.
- Cabinet base with double doors keeps pans, trays & utensils right where you need them.
- 5" stainless flue riser directs heat safely into your hood system.
- cCSAus, CSA Flame & Star, NSF listed for worry-free code compliance.
Dual-Action Cooking Surface
-

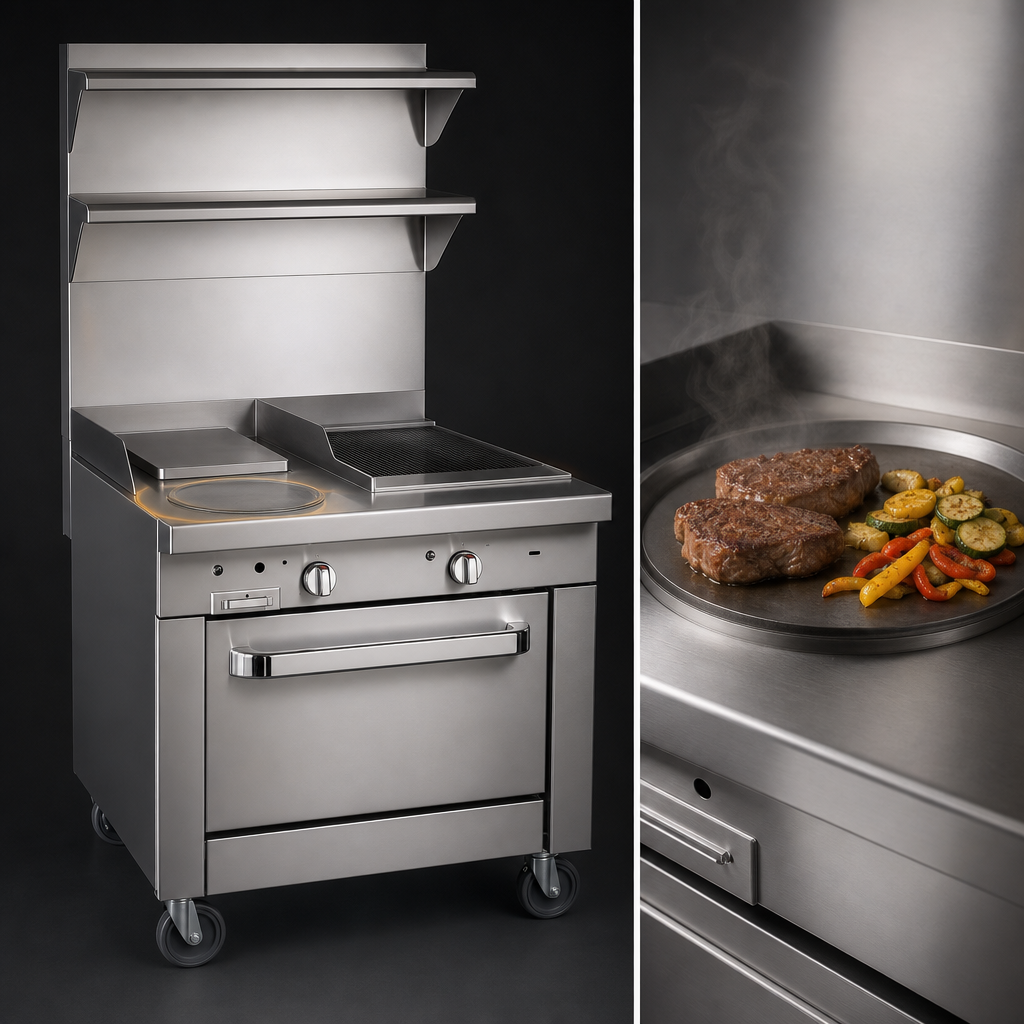

16" Hot Top
• Two 20,000 BTU NAT burners
• 700 °F surface temp on high
• One infinite high/low control
• Removable steel plates for fast cleanup -

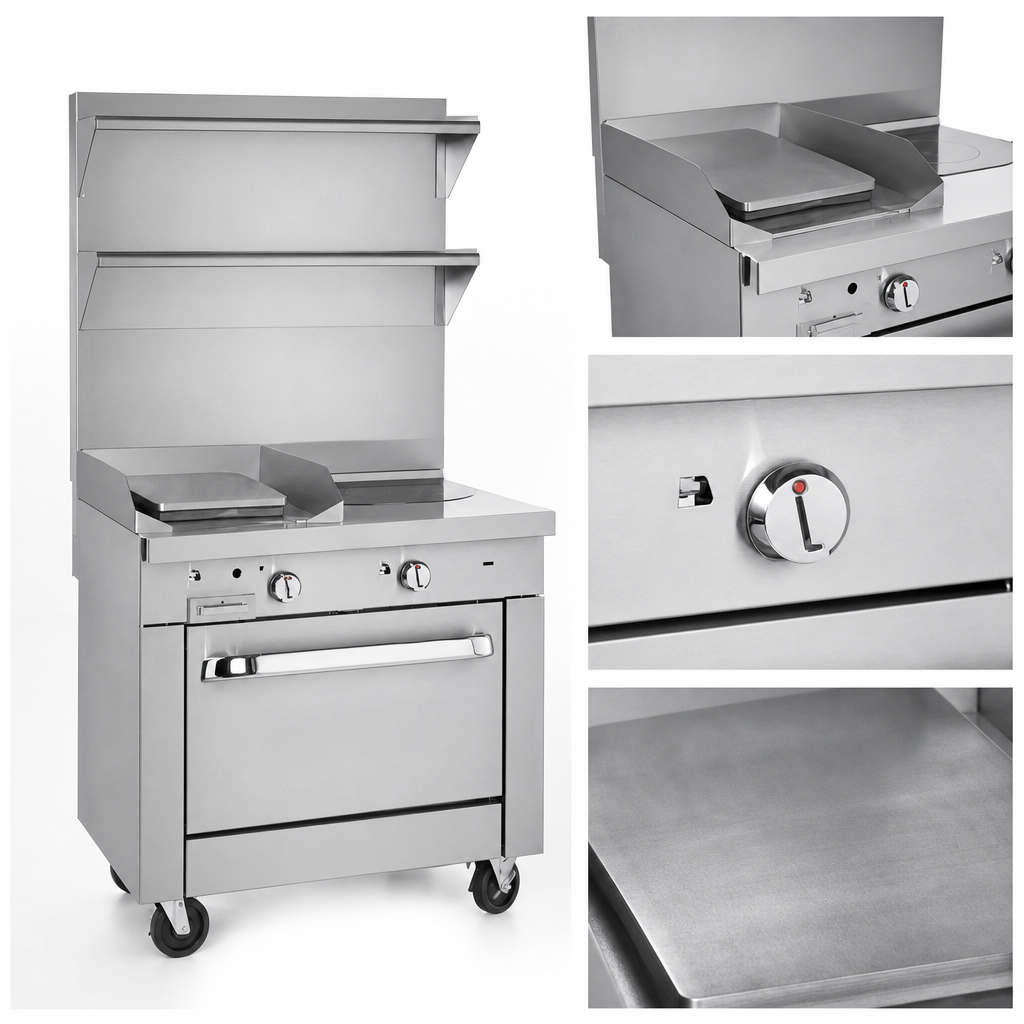

16" Thermostatic Griddle
• Two 20,000 BTU NAT burners with “Insta-On” thermostatic control (180–400 °F)
• 1" thick steel plate with side & rear splashers
• Removable stainless grease drawer keeps your line clean
Engineered to Go the Distance
- Fully insulated lining & burner box conserve energy and keep your kitchen cooler.
- 9¼" deep front rail stands up to heavy pots and daily abuse.
- Heavy-gauge welded frame rated for continuous, high-temperature use.
- 6" adjustable stainless legs standard; optional locking casters available.
- Free lifetime battery-design assistance direct from Southbend.
At-a-Glance Specs
| Overall Width | 32" (813 mm) |
|---|---|
| Overall Depth | 37 ½" (953 mm) |
| Height to Cook Surface | 37 ½" (953 mm) + 5" flue |
| Total BTU Input | 80,000 BTU/hr (Natural) | 72,000 BTU/hr (LP) |
| Gas Connection | 1¼" front manifold (for battery) | 1" rear male NPT |
| Top Configuration | (1) 16" Hot Top | (1) 16" Thermostatic Griddle |
| Base Type | Stainless steel cabinet with dual doors |
| Ignition | Battery spark on top burners |
| Certifications | cCSAus, CSA Flame, CSA Star, NSF |
| Warranty | 1-year parts & labor (factory-authorized service nationwide) |
Installation & Clearance
- Minimum 10" side clearance & 12" rear clearance to combustibles.
- Must be installed under a commercial exhaust hood.
- External gas regulator required (sold separately).
Commercial Use Only — This equipment is intended for professional kitchens.
Limit oversized (12"+) cookware to the rear portion of the range to prevent front-rail
overheating; damage from improper use is not covered under warranty.
Need a grooved or chrome griddle, flue-mounted shelves or caster kit? Our team can configure a Platinum range to fit your exact workflow.
Features & Specs
Features & Specs
Manufacturer
Southbend (Middleby)
Brand_name
Platinum
Certifications
NSF, cCSAus, CSA Star, CSA Flame
Height
41.0in
Width
32.0in
Depth
37.5in
Shipping Weight
490.0lbs
Plate Thickness
1.000" = 1"
Exterior Finish
stainless steel front & sides
Base
cabinet(s)
Vent
backriser
Top
(1) 16" hot top, (1) 16" griddle with thermostats
Specifications
Platinum Heavy Duty Range, gas, 32", (1) 16" hot top, (1) 16" griddle, thermostatic controls, battery spark ignition, (1) cabinet base, stainless steel front, sides, exterior bottom & 6" adjustable legs, 80,000 BTU, cCSAus, CSA Flame, CSA Star, NSF
