Southbend (Middleby) P32C-HH Platinum Gas Ranges
Description
Southbend Platinum Series 32" Heavy-Duty Gas Range
Model P32C-HH • Full-Width Uniform Hot Top & Cabinet BaseBuilt for the busiest commercial kitchens, the Southbend Platinum 32" range delivers 80,000 BTU of even, controllable heat on a seamless hot-top surface—perfect for sliding stock pots, sauté pans, and sauce pots without losing temperature. Rugged stainless-steel construction and a storage-ready cabinet base make it an ideal anchor unit or battery partner on the cook line.
Why You’ll Love It

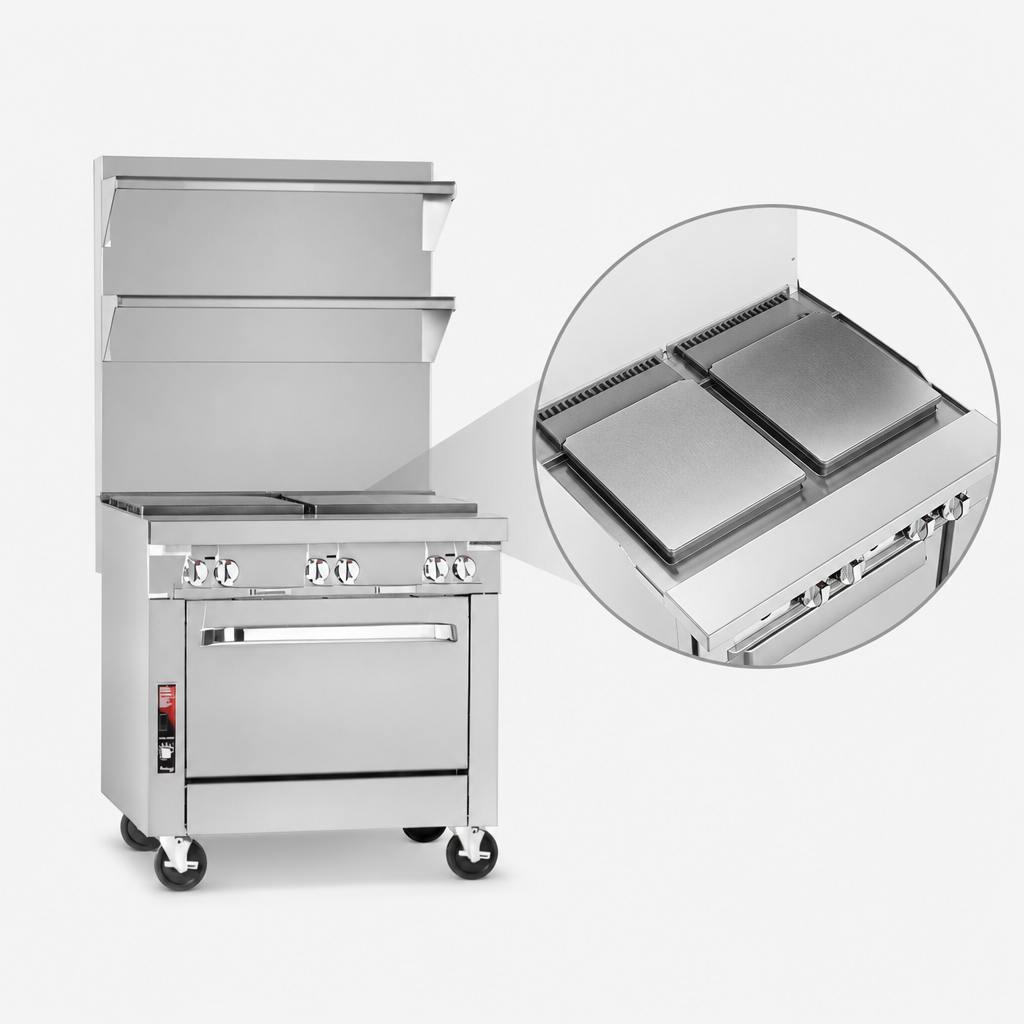

- Two 16" uniform hot-top sections create one 32" flat cooking surface.
- Four 20,000 BTU burners with dual high/low manual valves for precise zone control.
- Battery spark ignition—no standing pilots to relight.
- Removable steel plates reach up to 700 °F for lightning-fast recovery.
- Stainless steel cabinet base with center-opening removable doors for convenient pan or utensil storage.
- All-stainless front, sides, exterior bottom, and fully insulated burner box for long service life.
- 9-1/4" deep front rail and 5" stainless flue riser protect operators and adjacent equipment.
- 6" adjustable stainless legs make leveling under any hood system easy.
- CSA & NSF listed; ships ready for heavy-duty commercial-only installation.
Uninterrupted Cooking Real Estate
From rapid boils to low simmer holds, the full-width hot top eliminates grate gaps so you can slide cookware anywhere on the surface. Dual control zones let you maintain a roaring boil on one side while keeping delicate sauces warm on the other—all without juggling burners.
Specifications
| Manufacturer | Southbend (Middleby) |
|---|---|
| Series | Platinum Heavy Duty |
| Model # | P32C-HH |
| Cooking Surface | Full-width uniform hot top (2 × 16") |
| Total Input | 80,000 BTU/hr Natural | 72,000 BTU/hr LP |
| Controls | Manual high/low valves & battery spark ignition |
| Base Type | Stainless steel cabinet with removable doors |
| Overall Width | 32" (813 mm) |
| Overall Depth | 37-1/2" (953 mm) |
| Cooking Height | Approx. 36" on 6" legs |
| Flue Riser | 5" stainless steel (standard) |
| Gas Connection | 1-1/4" front manifold | 1" rear male NPT |
| Certifications | CSA, NSF |
| Warranty | 1-year parts & labor (commercial use) |
| Ship Weight | ≈ 490 lb (222 kg) |
Popular Factory Options
- 24" or 36" flue riser with integral shelves
- Rear-extending extra-deep flue riser
- Locking front casters & cable restraint kit
- External gas pressure regulator
- 7-1/4" deep or cut-out front rail configurations
• This appliance is intended for commercial kitchens and must be installed under a vented hood in accordance with local codes.
• Use oversized cookware (12" diameter or larger) on the rear portion of the range to avoid excessive heat on the front rail.
• Minimum clearances: 0" from non-combustible surfaces; 10" sides / 12" rear from combustibles.
• Gas supply must be regulated and connected with appropriately sized hose and restraining device if unit is on casters.
