Southbend (Middleby)

Southbend Platinum Heavy Duty 32-Inch Gas Sectional Range with Full-Width Graduated Hot Top and Cabinet Base

SKU: P32C-GRAD
$9,902.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Butane Stove Cooking Equipment Cooking Equipment Countertop Cooking Equipment Gas Ranges New Arrivals Ranges Restaurant Equipment Southbend (Middleby)

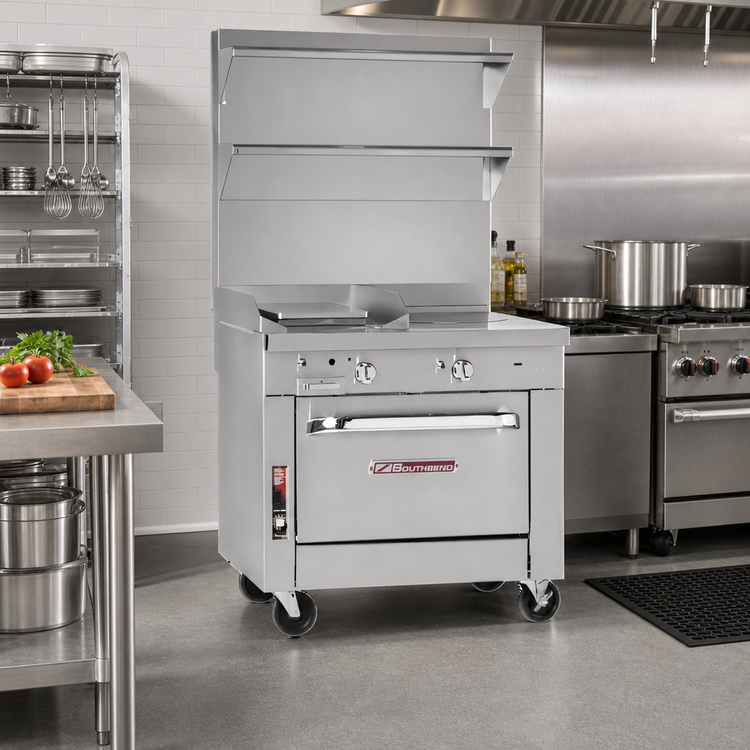

Southbend Platinum Heavy Duty 32-Inch Gas Sectional Range with Full-Width Graduated Hot Top and Cabinet Base

Manual Controls, Battery Spark Ignition, 62,000 BTU

This 32-inch sectional range combines a full-width graduated hot top, rugged stainless-steel construction, and an integrated cabinet base in a compact, high-output design.

  • 32-inch gas sectional range with a full-width graduated hot top.
  • 62,000 BTU burner on natural gas; 42,000 BTU rating on propane.
  • Manual controls and battery spark ignition for simple operation.
  • Integrated stainless steel cabinet base with removable center-opening doors.
  • Heavy-duty stainless steel construction with insulated lining and burner box.
  • 6-inch adjustable legs and battery-friendly sectional design for flexible installation.

Overall Dimensions:

32.0"W x 37.5"D x 41.0"H

Product Weight:

490.0 lb

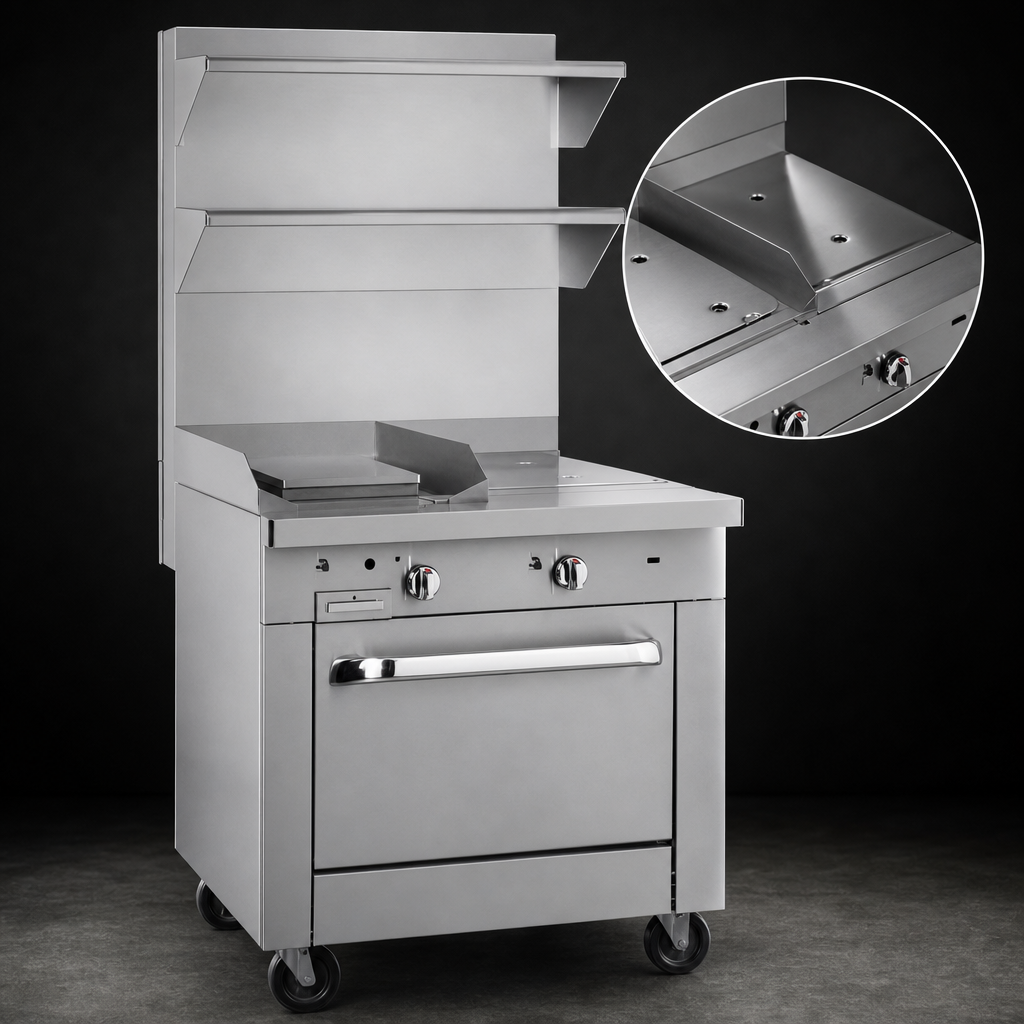

Full-Width Graduated Hot Top

Removable steel plates and a high/low setting provide a versatile hot surface with center temperatures up to 900°F.

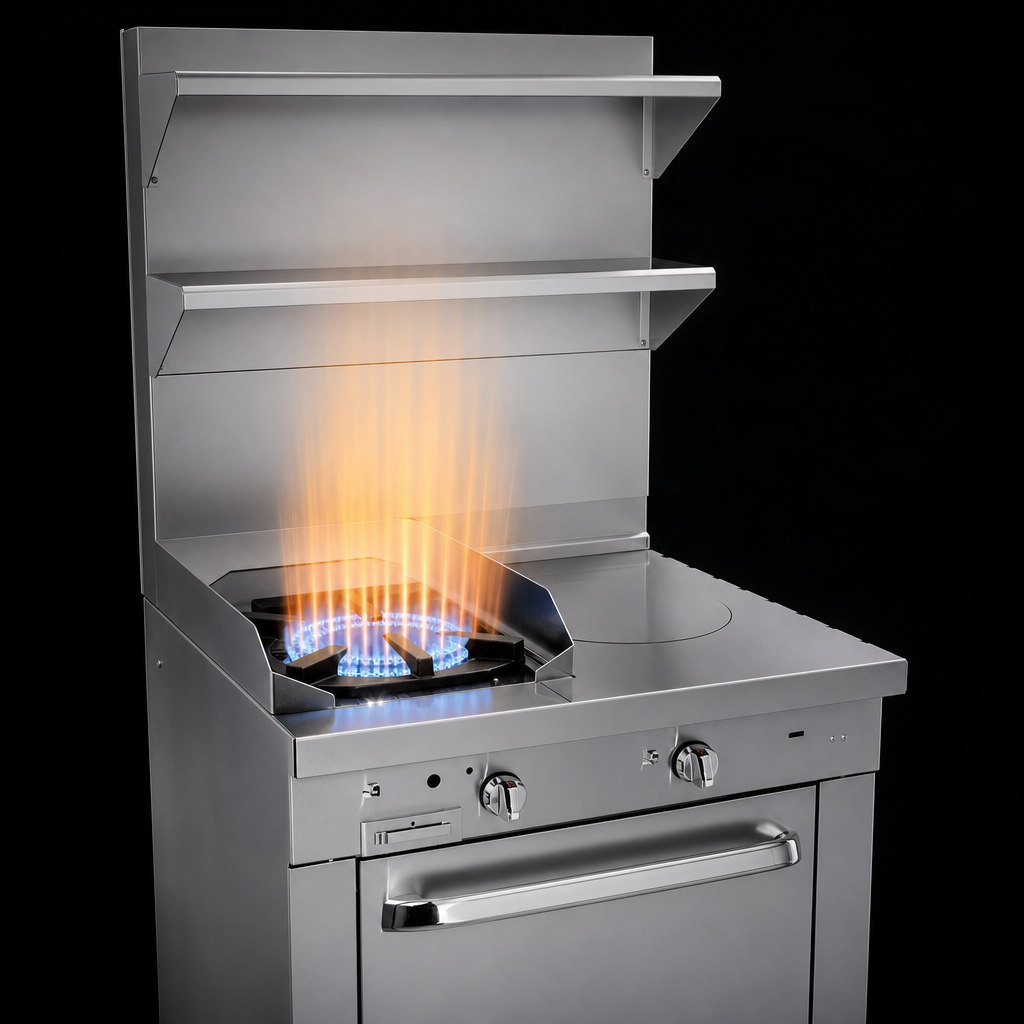

High-Output Gas Burner

Single burner delivers 62,000 BTU on natural gas and 42,000 BTU on propane.

Manual Controls

Straightforward manual operation for easy heat adjustment.

Battery Spark Ignition

Battery-powered spark ignition helps start the burner without a hardwired electrical connection.

Cabinet Base Storage

Stainless steel cabinet base includes removable doors that open from the center for under-counter storage.

Heavy-Duty Stainless Construction

Stainless steel front, sides, rear, and exterior bottom are built for commercial durability.

Installation-Ready Gas Connections

Includes a 1-1/4 inch front gas manifold and 1 inch rear gas connection for sectional installation.

Adjustable Legs and Front Rail

6-inch stainless steel adjustable legs and a 9-1/4 inch deep front rail support stable placement and workspace protection.

Type Sectional Range
Style Graduated Hot Top
Installation Type Floor Model
Controls Manual
Material Stainless Steel
Finish Polished Stainless Steel
BTU 62,000 BTU
Gas Type Natural Gas
Gas Inlet Pressure 7 Inches W.C.
Gas Connection Size 1-1/4 Inch Front Manifold; 1 Inch Rear Gas Connection
Shipping Width 39 Inches
Shipping Depth 44 Inches
Shipping Height 42.5 Inches
Shipping Weight 490 Pounds
Country of Origin USA
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Warranty & Protection

1-year parts and labor

Documents

PDF Cutsheet PDF Download PDF Installation & operation PDF Download PDF Owner's manual PDF Download PDF Middleby financial flyer PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

Model P32C-GRAD is the cabinet-base version and includes stainless steel cabinet doors that open from the center.
The range has a 62,000 BTU burner on natural gas and a 42,000 BTU rating on propane.
Standard operation uses battery spark ignition, so no hardwired electrical connection is listed for this model.
Yes. The unit is designed to be positioned in a battery with adjacent sectional units.
Yes. The cut sheet states that all sectional units require a regulated gas supply and that a pressure regulator must be ordered separately.
This model includes a 1-year limited warranty covering parts and labor.
