Southbend (Middleby) P32C-GG Platinum Gas Ranges
Description

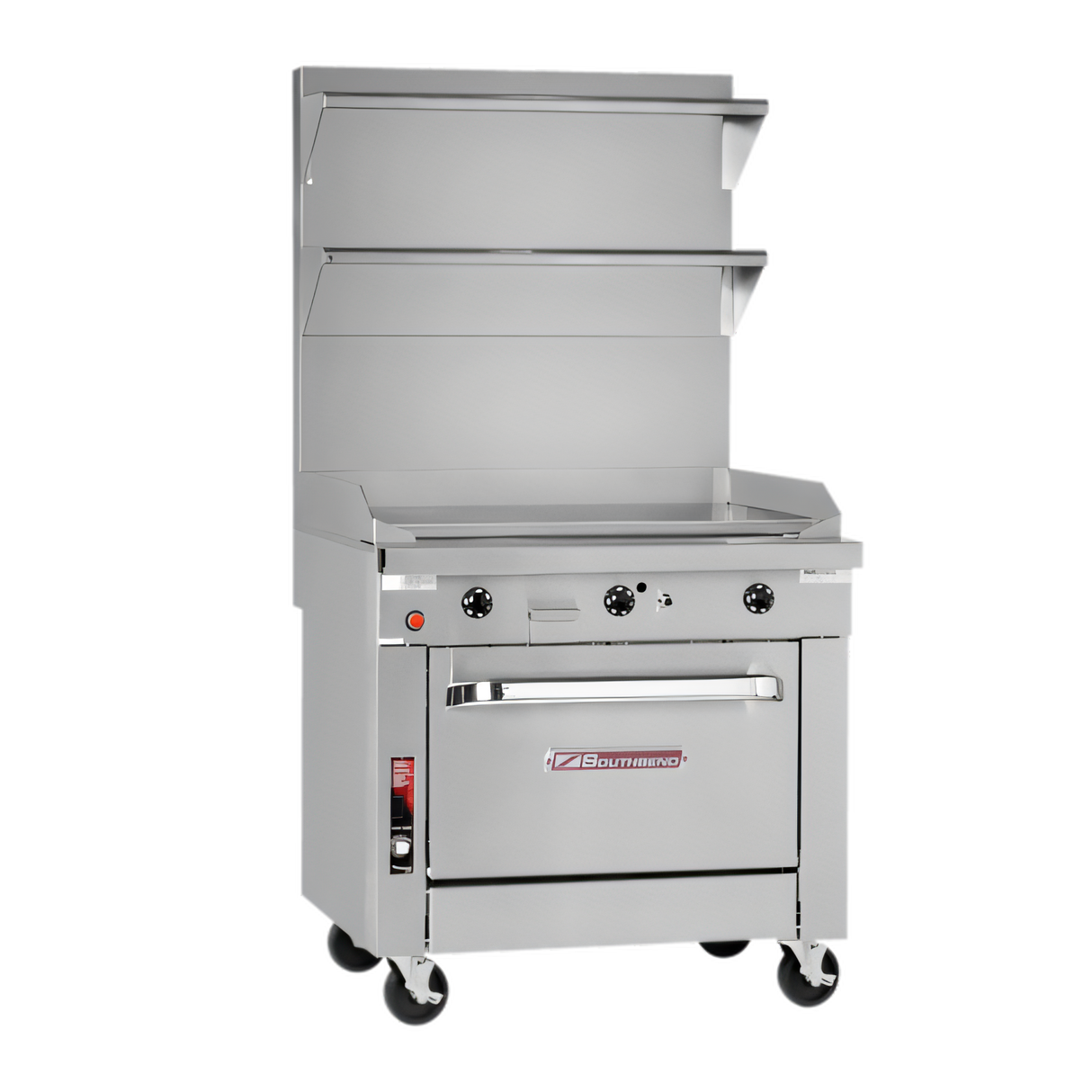

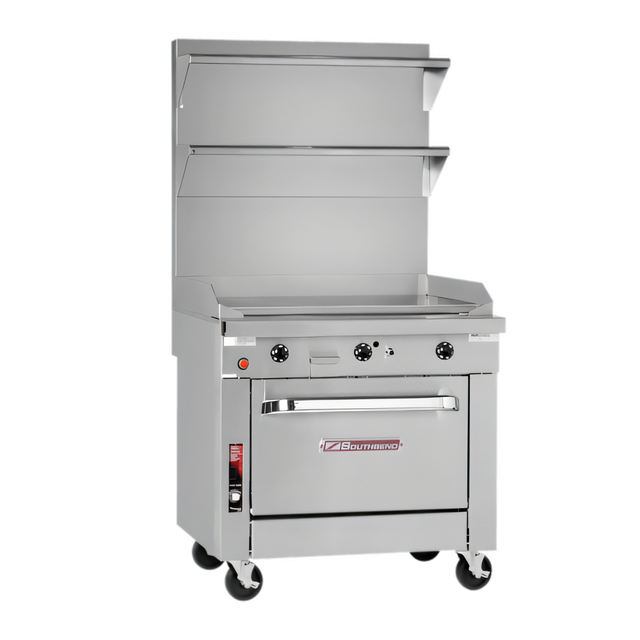

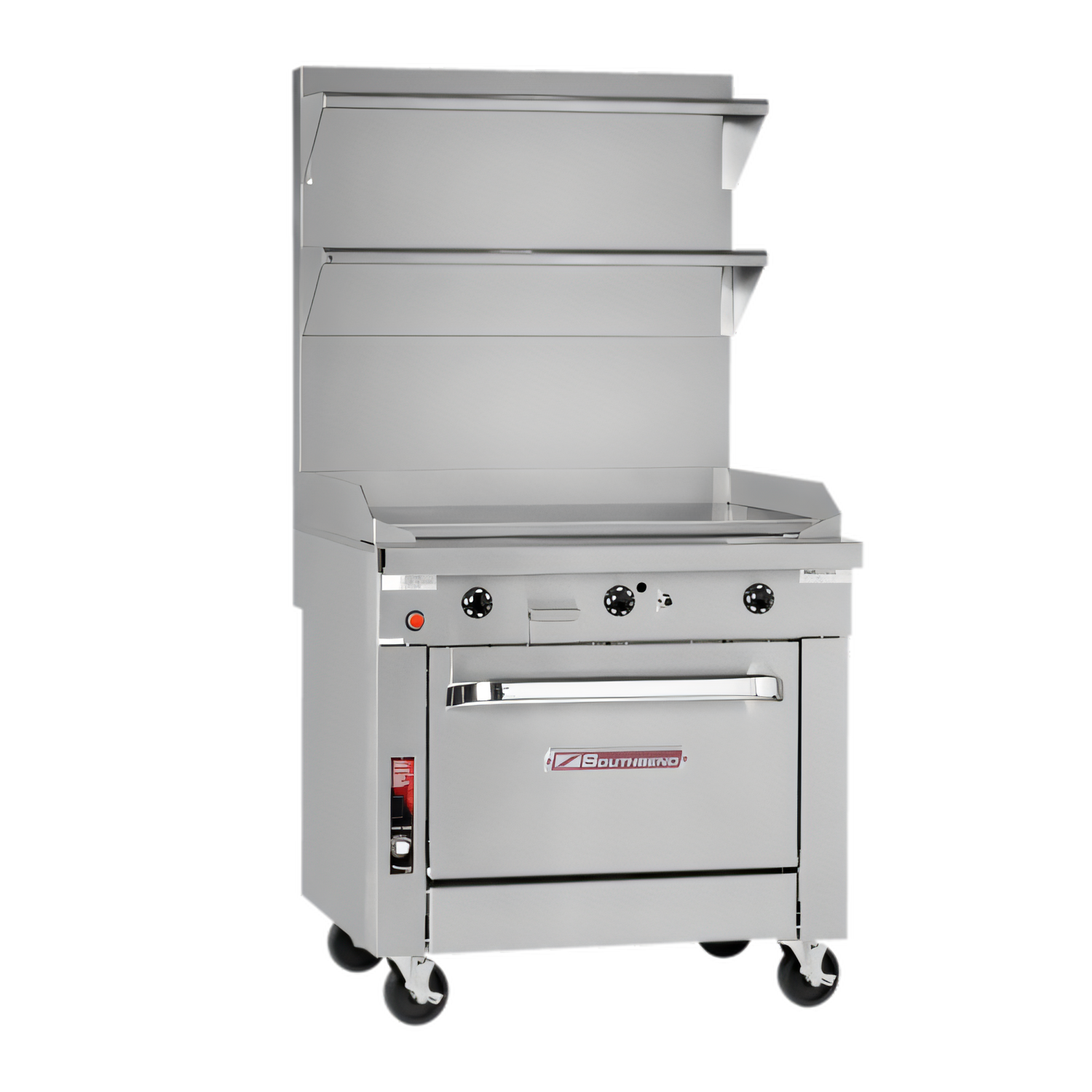

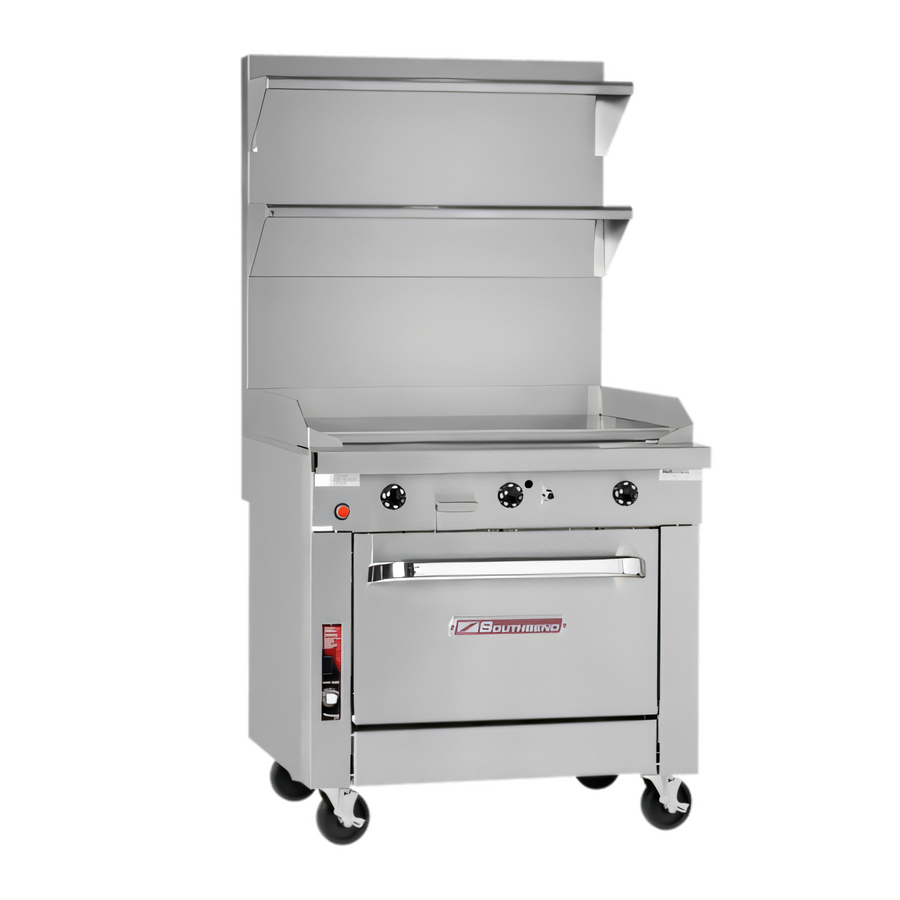

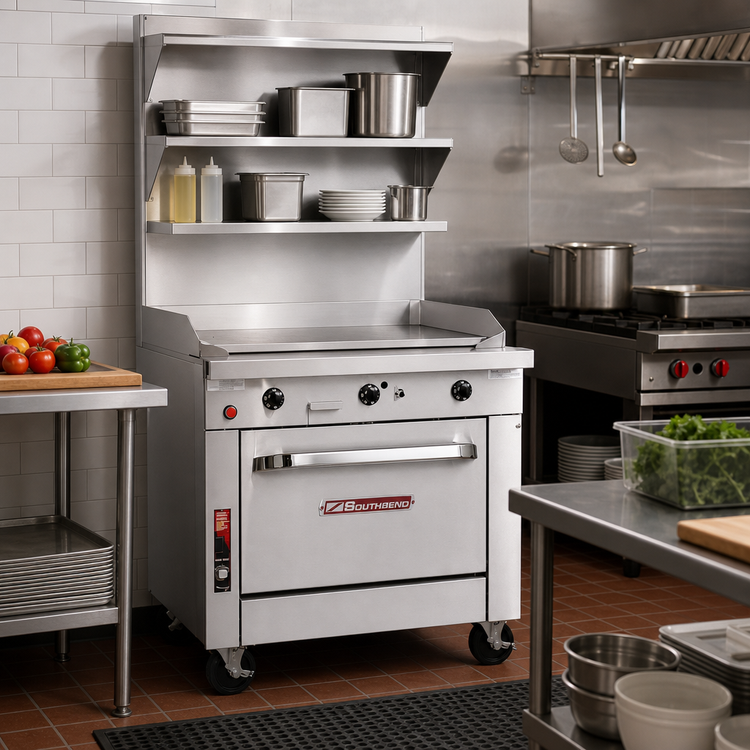

Platinum Series 32" Heavy-Duty Gas Griddle Range
Southbend Model P32C-GG – Cabinet-Base | 80,000 BTUBuilt for the busiest commercial kitchens, the Southbend Platinum Series P32C-GG combines a full-width, 1-inch thick griddle plate with a rugged stainless cabinet base. Four powerful 20,000 BTU burners deliver an even 80,000 BTU of cooking power, while manual controls and battery-spark ignition keep operation simple and reliable—no electrical hookup required.
Why You’ll Love It

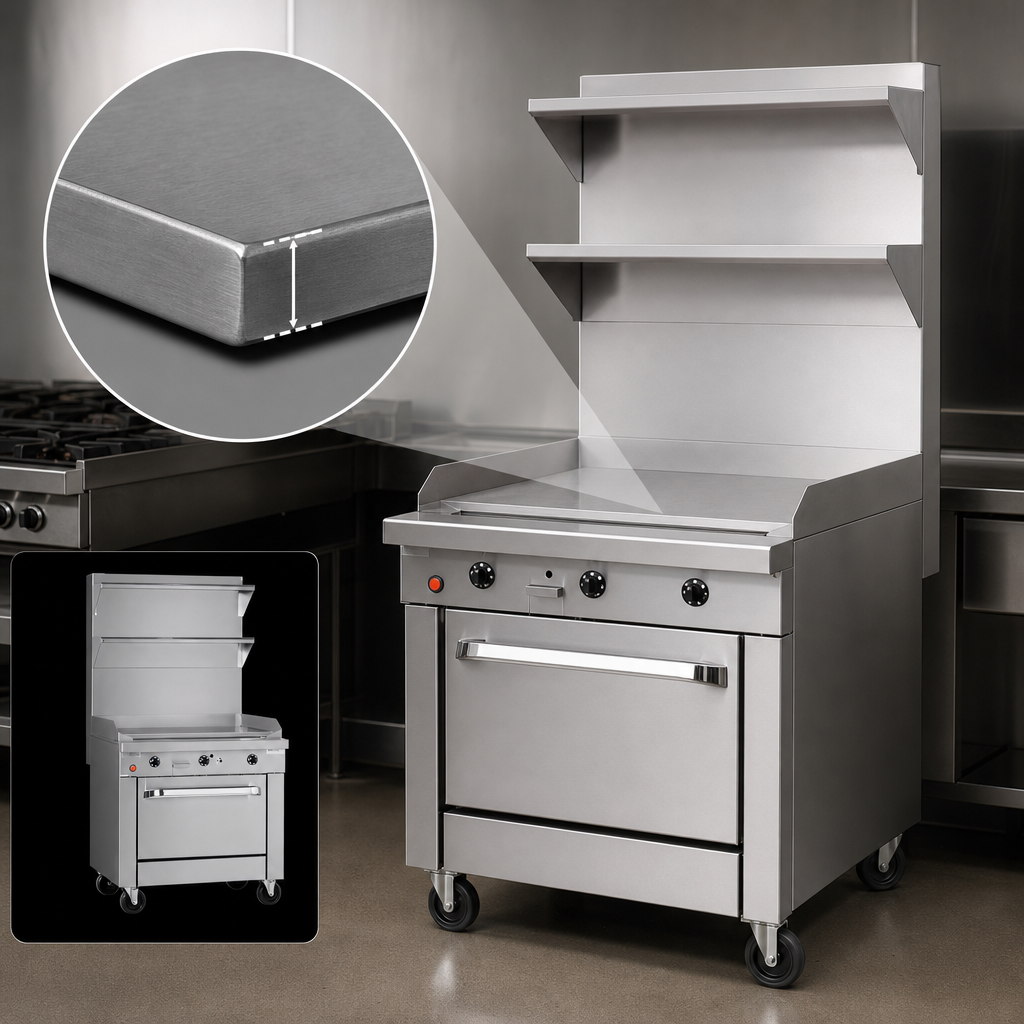

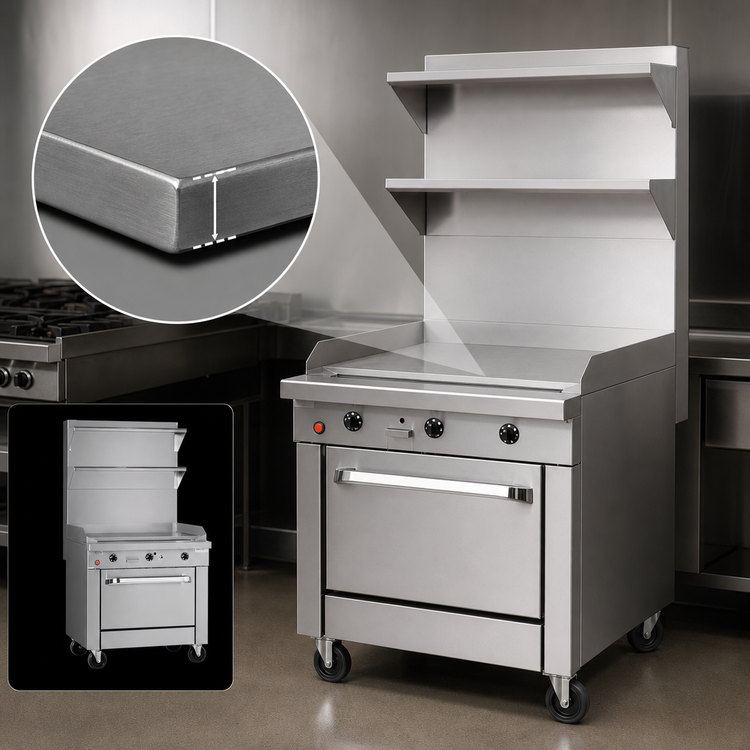

- Full-width 32" griddle with 1" thick polished steel plate for maximum heat retention.
- Side & rear splashers plus extra-deep 9-¼" front rail keep grease where it belongs.
- Battery-spark ignition—ideal for kitchens with limited power outlets.
- Heavy-gauge stainless steel front, sides, rear & bottom stand up to daily abuse.
- Fully insulated burner box for cooler kitchen ambient temperatures.
- Spacious stainless cabinet base with center-opening doors stores pans, utensils & more.
- 6" adjustable stainless legs make leveling on uneven floors effortless.
- Field-ready gas manifold: 1-¼" front / 1" rear male NPT connection.
- Certified cCSAus, CSA Flame, CSA Star & NSF for worry-free code compliance.
- Backed by a 1-year parts & labor warranty from Southbend.
At-a-Glance Specs
| Cooking surface | 32" W full-width griddle, 1" thick plate |
|---|---|
| Total input | 80,000 BTU/hr Natural 72,000 BTU/hr LP |

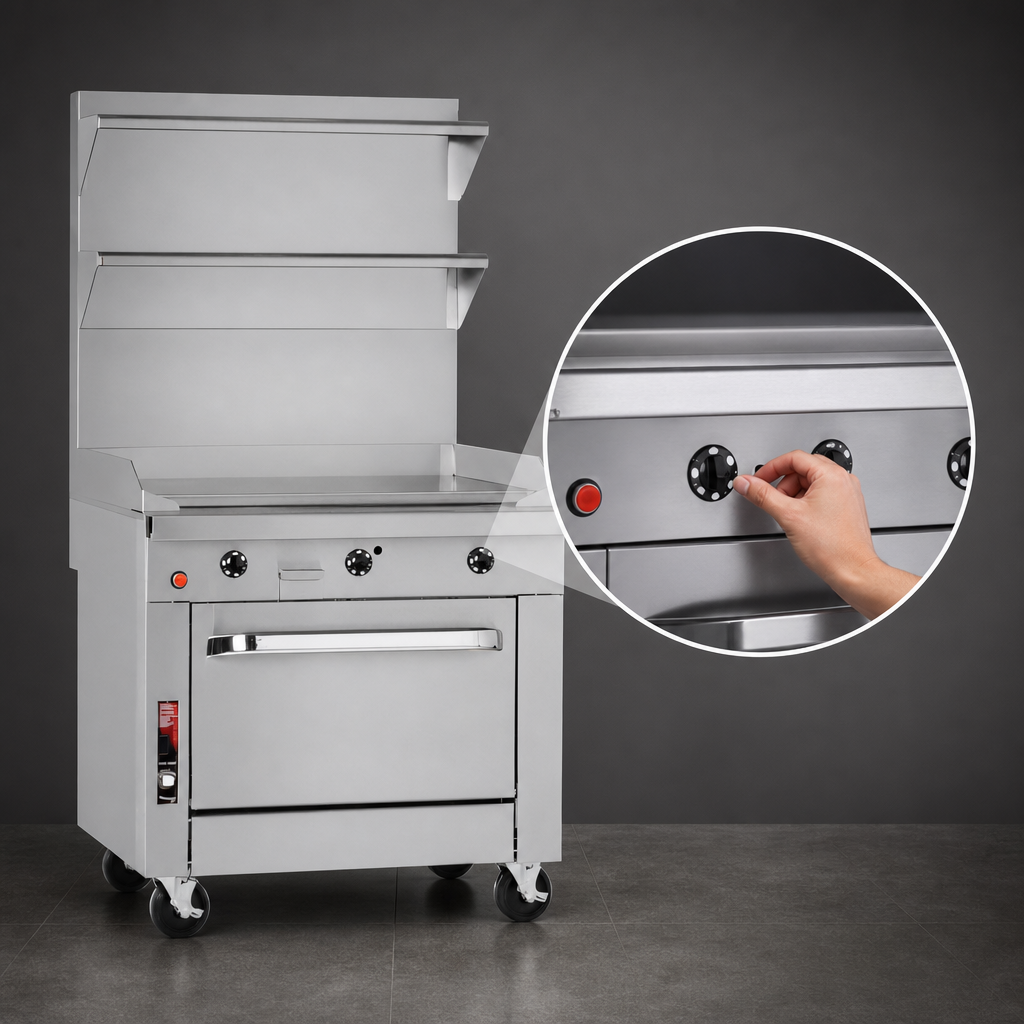

| Controls | Manual valves (no thermostatic temperature selection) |
| Ignition | Battery spark (no external power required) |
| Base type | Stainless steel cabinet with removable, center-opening doors |
| Exterior dimensions* | 32" W × 37.5" D × 42" H (to top of 5" flue) |
| Gas connection | 1-¼" front manifold | 1" rear male NPT |
| Shipping weight | Approx. 560 lb / 254 kg |
| Certifications | cCSAus, CSA Flame, CSA Star, NSF |
| Warranty | 1-year parts & labor (commercial use) |
*Factory drawings available; always verify utility & clearance requirements before installation.
Common Upgrade Options (sold separately)
- Grooved or chrome-plated griddle surface
- 24" or 36" flue riser with integrated shelf
- Open-frame base with casters for battery line-ups
- Cable restraint kit for caster installations
- External gas pressure regulator
