Southbend (Middleby) P32C-GC Platinum Gas Ranges
Description

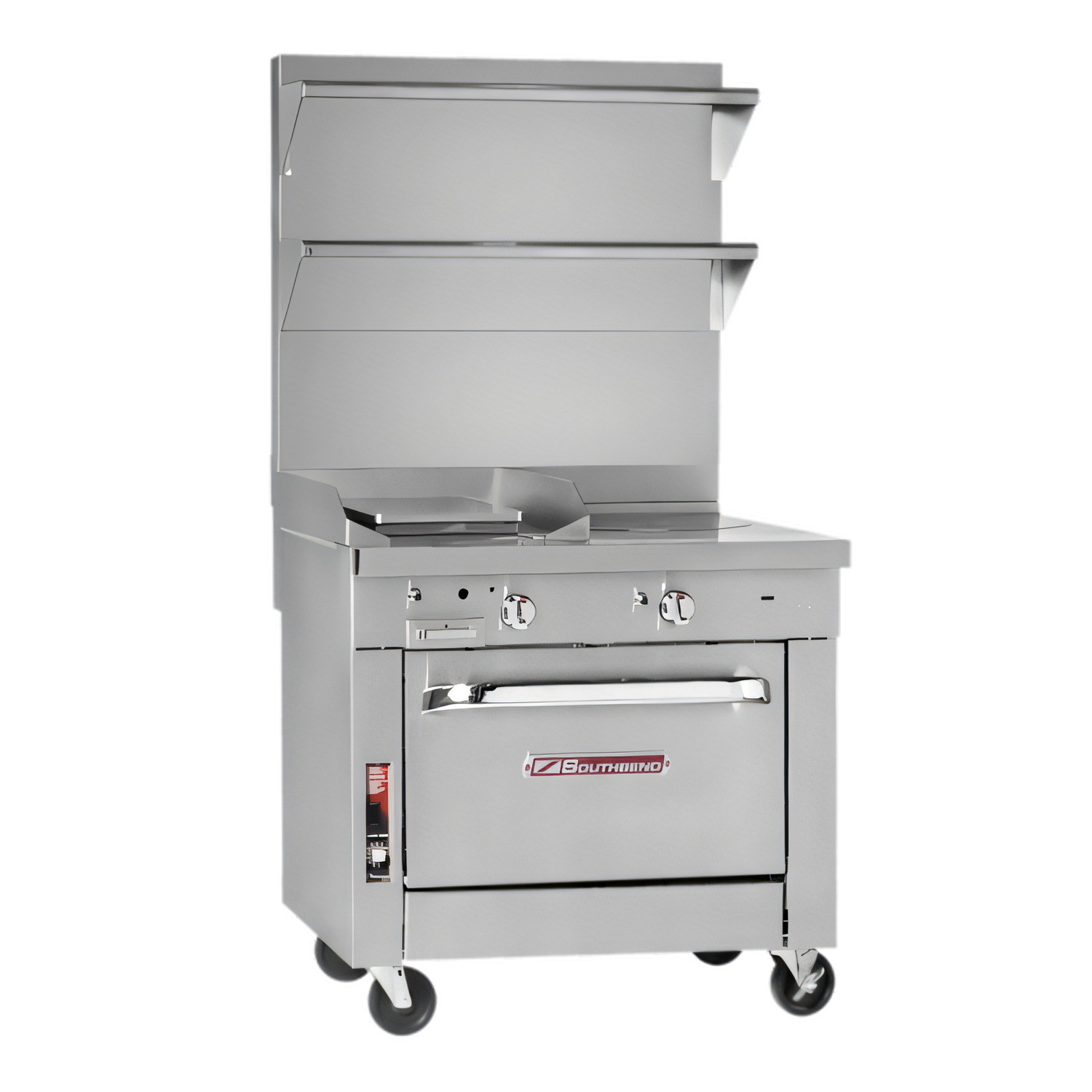

Southbend Platinum 32" Heavy-Duty Range

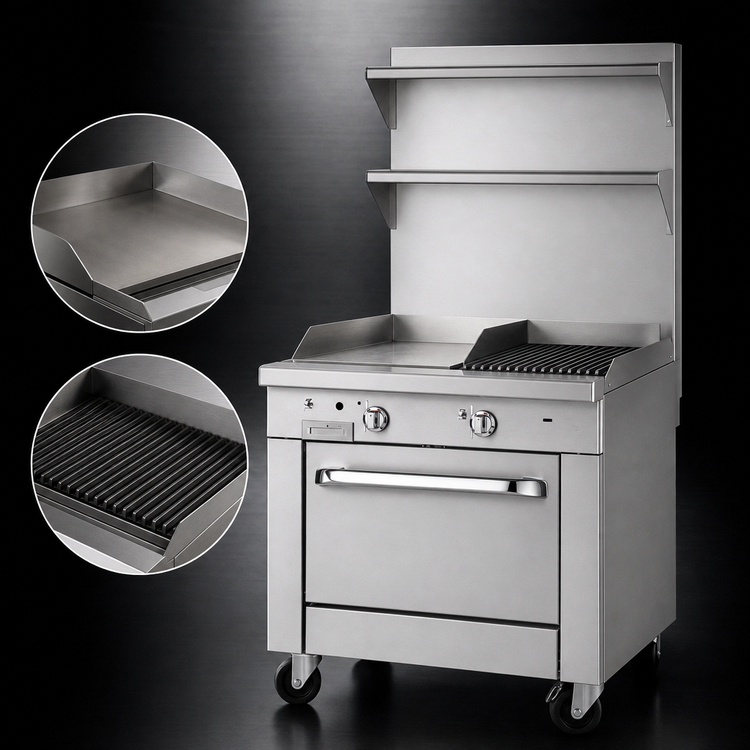

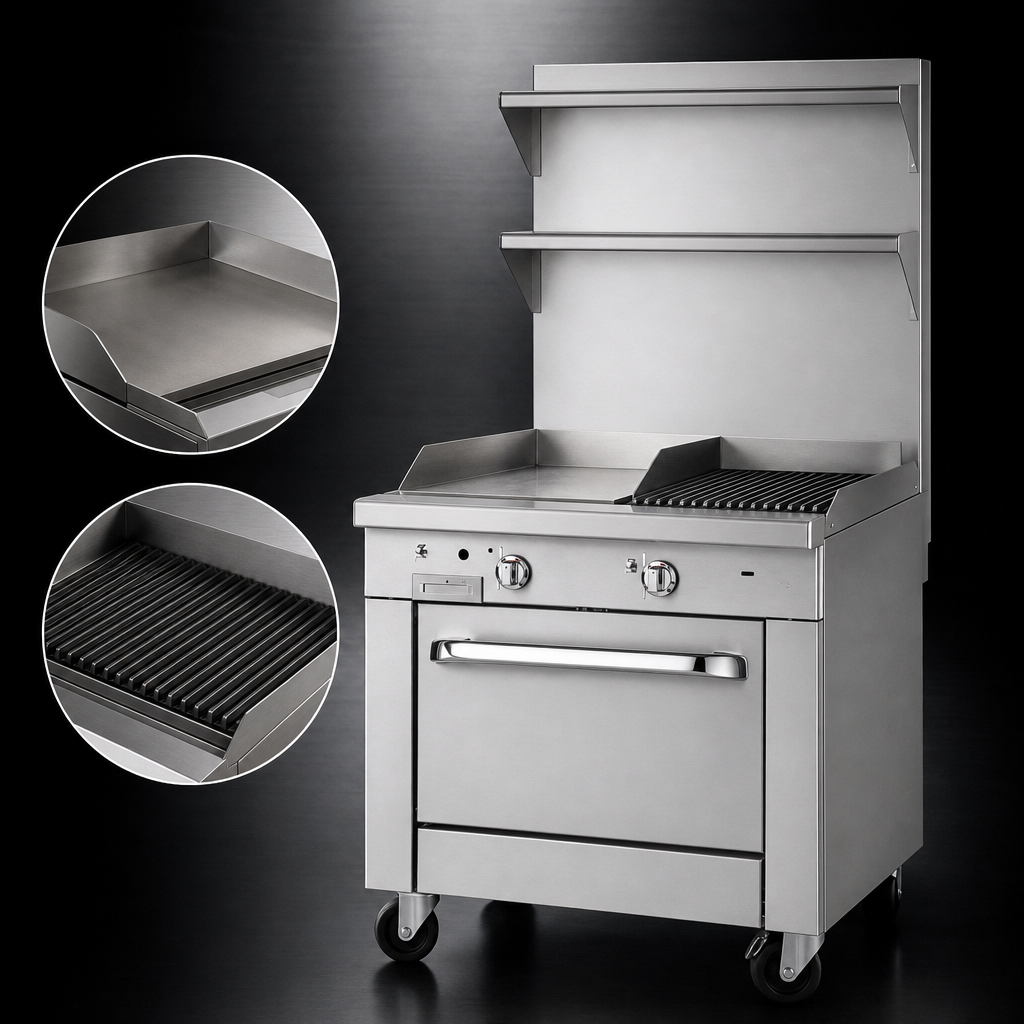

16" Manual Griddle + 16" Charbroiler | Cabinet Base | 80,000 BTUBuilt for the most demanding commercial kitchens, the Southbend Platinum 32" combo range pairs a precision-milled griddle with a high-heat charbroiler, giving chefs two powerhouse cooking zones in one compact footprint. All wrapped in heavy-gauge stainless steel and backed by Southbend’s legendary performance.
Key Features
- 32" sectional platform—ideal for lineups or as a stand-alone workhorse
- 16" manual griddle

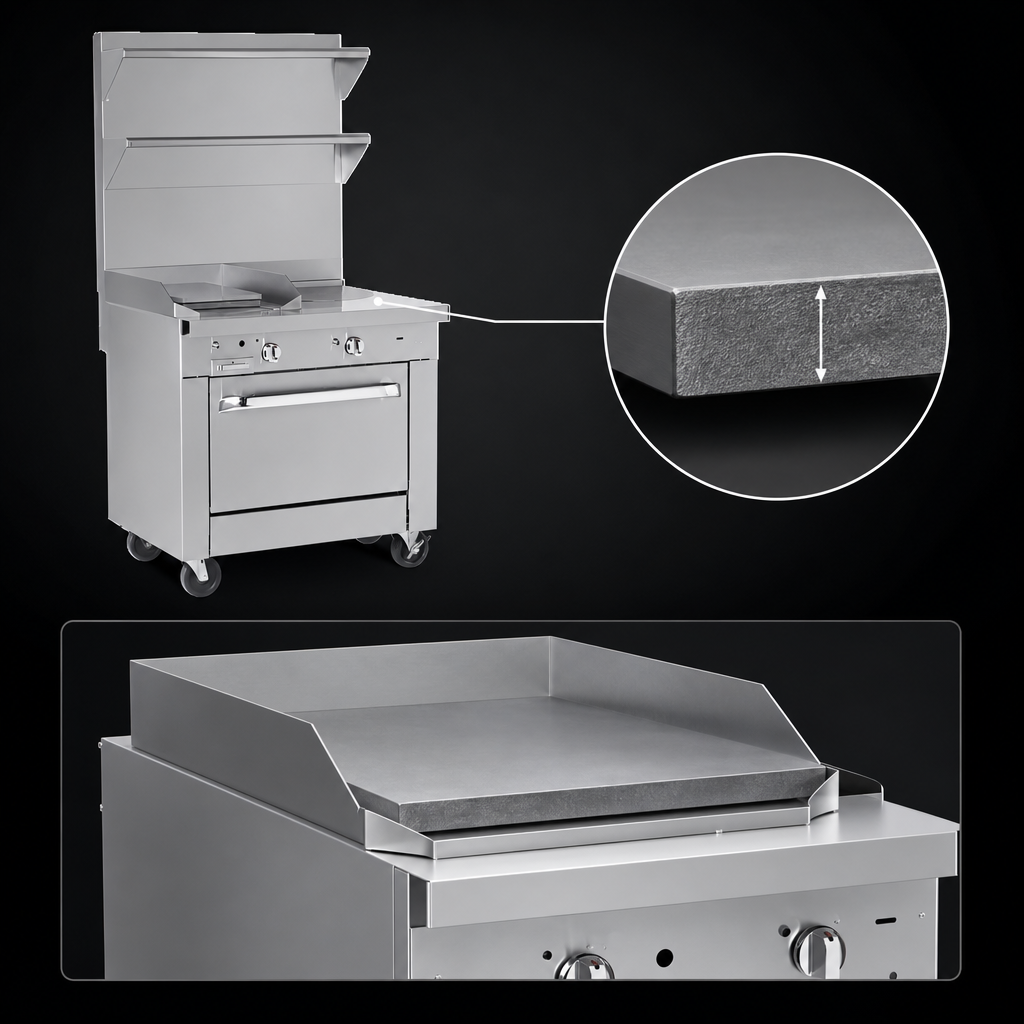

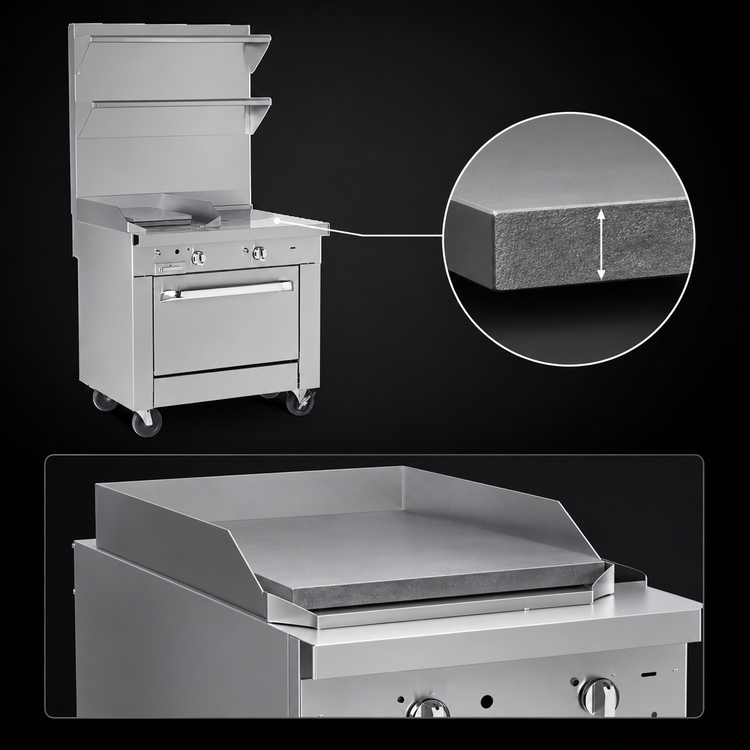

- 1" thick polished steel plate retains & distributes heat evenly
- Two 20,000 BTU burners (40,000 BTU zone)
- Side & rear splash guards plus removable stainless grease drawer
- 16" charbroiler
- Two 20,000 BTU burners (40,000 BTU zone)
- Stainless steel radiants for consistent 600 °F surface temps
- Reversible cast-iron grates (1/8" or 1/4" ridges) with adjustable front-to-back slope
- Full-width drip tray for rapid clean-up
- Open cabinet base with two stainless doors—keep sheet pans & utensils close at hand
- Stainless front, sides & exterior bottom; fully insulated burner box
- 9-1/4" deep front rail for plating or prep
- 5" stainless flue riser channels exhaust into the ventilation hood
- 6" adjustable stainless legs stabilize the unit on uneven floors
- 1-1/4" front gas manifold couples easily with other Southbend sectionals
- Certified: cCSAus, CSA Flame, CSA Star & NSF for gas safety & sanitation
At-A-Glance Specifications
| Model | P32-GC (Platinum Series) |
|---|---|
| Cooking Surface | 16" manual griddle + 16" charbroiler |
| Total Input | 80,000 BTU/hr (natural gas) |
| Gas Connection | 1 " NPT (rear) | 7" W.C. NG / 11" W.C. LP minimum |
| Exterior Dimensions* | 32" W × 37.5" D × 40" H (work surface height 37.5") |
| Griddle Plate | 1" thick polished steel |
| Charbroiler Grates | Reversible cast iron, 1/8" or 1/4" ridges |
| Base | Stainless cabinet with two removable doors |
| Certifications | NSF, cCSAus, CSA Flame, CSA Star |
| Warranty | 1 year parts & labor (commercial use) |
*Allow an additional 2" clearance behind convection blower motors if the unit is paired with a convection oven base.
Popular Options (Factory-Installed)
- 24" or 36" flue riser with single or double shelves
- Grooved or chrome-plated griddle surface
- Casters with front locks & rear restraining cable
- External gas pressure regulator
- Plated fish grids for charbroiler
Upgrade your cookline with the versatility, power and durability of a Southbend Platinum combo range—engineered to keep pace with the busiest kitchens shift after shift.
