Southbend (Middleby) P32C-CC Platinum Gas Ranges
Description
Southbend Platinum Series 32" Heavy-Duty Gas Charbroiler Range – Cabinet Base
Model P32C-CC | 80,000 BTU | CSA, NSF, cCSAusBring steakhouse performance to any cookline with Southbend’s Platinum 32" full-width charbroiler. Four cast-iron burners pump out 80,000 BTU for sizzling, even heat up to 600 °F, while the built-in stainless steel cabinet keeps pans and prep tools right where you need them.
Key Features
- Full-width 32" cooking surface with four 20,000 BTU burners

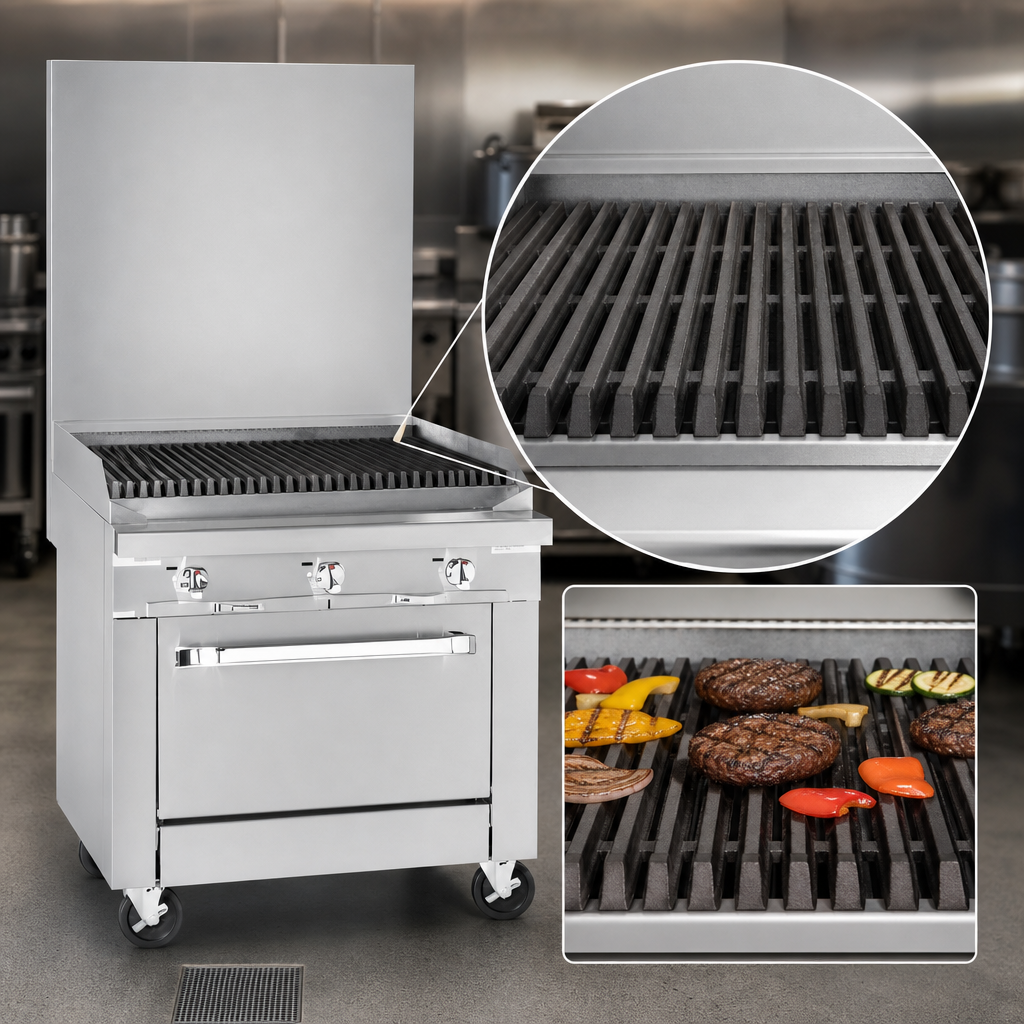

- Reversible cast-iron grates (1/8" or 1/4" grids) with adjustable front-to-back slope
- Stainless steel radiants for maximum heat distribution & longevity
- Manual high/low valve controls for precise searing or gentle holding
- 9-1/4" deep front rail designed to stay cool and safe
- Removable drip tray speeds daily clean-up
- All-stainless exterior (front, sides, rear & bottom) with fully-insulated burner box
- 6" adjustable stainless steel legs for easy leveling under a hood
- Cabinet base with two center-opening, removable stainless doors
- Free battery-design assistance & 1-year parts-and-labor warranty
Technical Specifications
| Cooking Surface | 32" W × 24" D full-width charbroiler |
|---|---|
| Total Input | 80,000 BTU/hr Natural Gas (72,000 BTU/hr Propane) |
| Temperature | Up to 600 °F surface on high setting |
| Controls | Manual high/low valves – 2 knobs control 4 burners |
| Base | Stainless steel cabinet with removable doors |
| Exterior Construction | 430 & 304 stainless steel |
| Overall Dimensions | 32" W × 37-1/2" D × 37-1/2" H (with 5" flue) |
| Gas Connections | 1-1/4" front manifold (battery ready) & 1" rear male NPT |
| Certifications | CSA, NSF, cCSAus |
| Warranty | 1-year limited parts & labor |
Popular Options (sold separately)
- External gas pressure regulator
- 24" or 36" flue riser, or extra-deep rear-extending flue riser
- Locking swivel casters or open-frame base with casters
- Plated fish grids for delicate products
- Interior shelf for cabinet base
- Cable restraint kit for mobile installations
• Keep oversized cookware (12" Ø or larger) to the rear grates to avoid front-rail overheating.
• Never place sheet pans over charbroiler grates while burners are on; reflected heat can cause damage that is not covered under warranty.
Need help building a battery line or selecting accessories? Southbend provides complimentary design assistance—just ask!
