Southbend (Middleby) P32C-BBB-SU Platinum Gas Ranges
Description

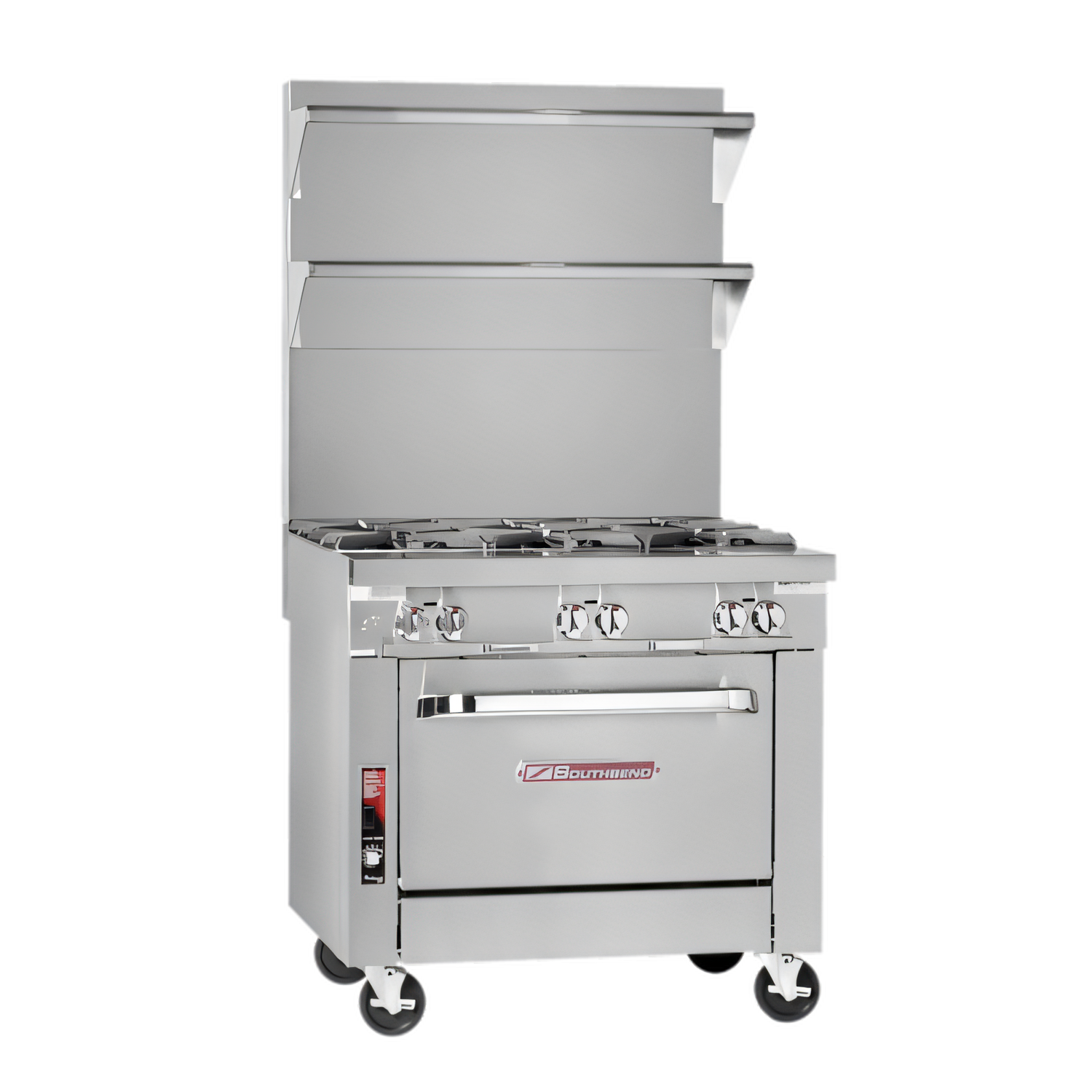

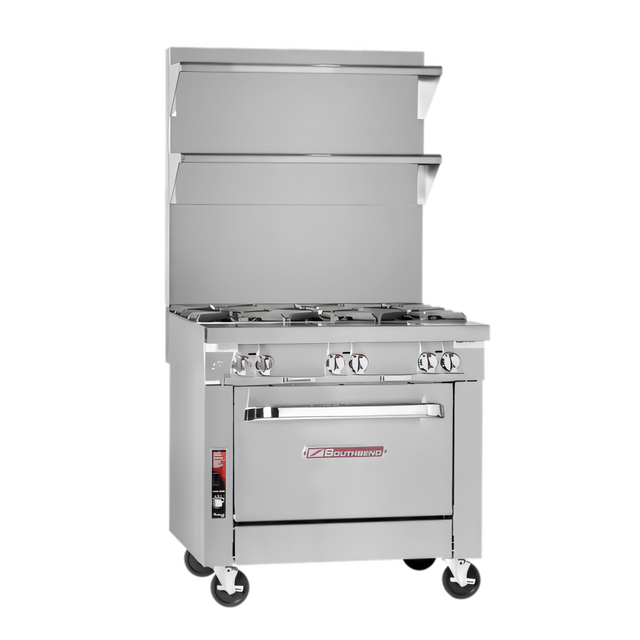

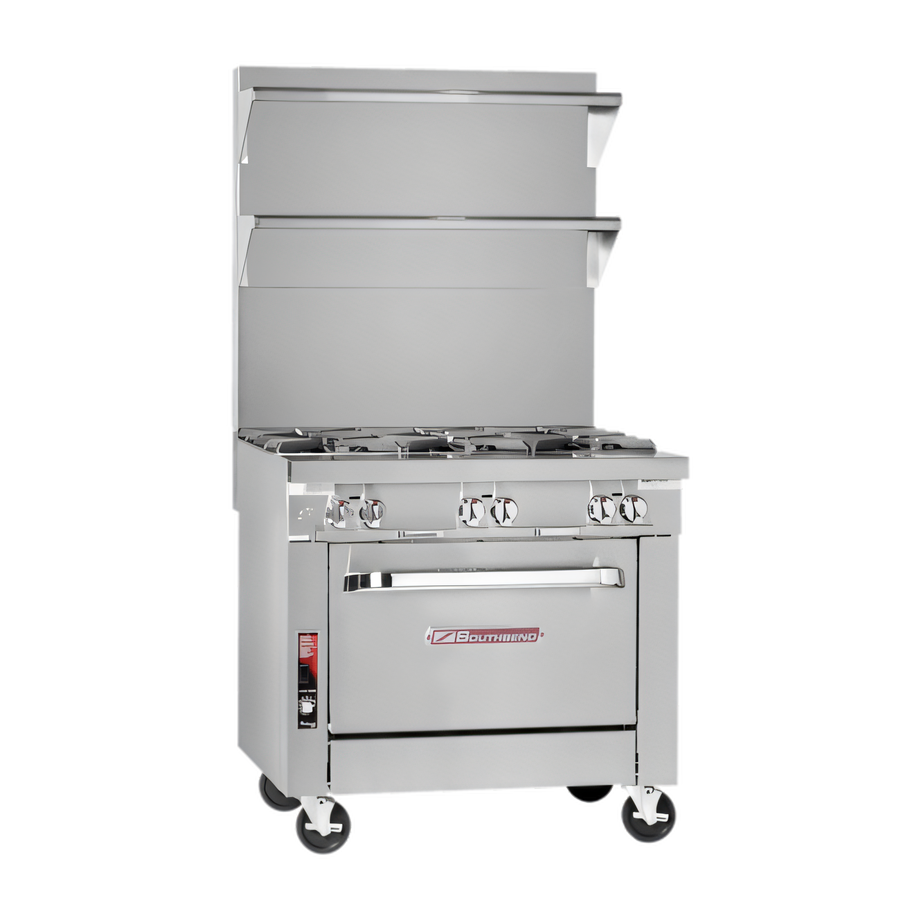

Southbend Platinum 32" Step-Up Heavy-Duty Gas Range
Model P32C-BBB-SU | 210,000 BTU | Cabinet-BaseBuilt to anchor the toughest cook line, the Southbend Platinum Series 32" step-up range delivers uncompromising power, rugged construction and smart storage in one compact footprint. Three front burners handle high-volume sauté work while three elevated rear burners keep stock pots accessible yet out of the way—perfect for busy, multi-tasking kitchens.
Why You’ll Love It

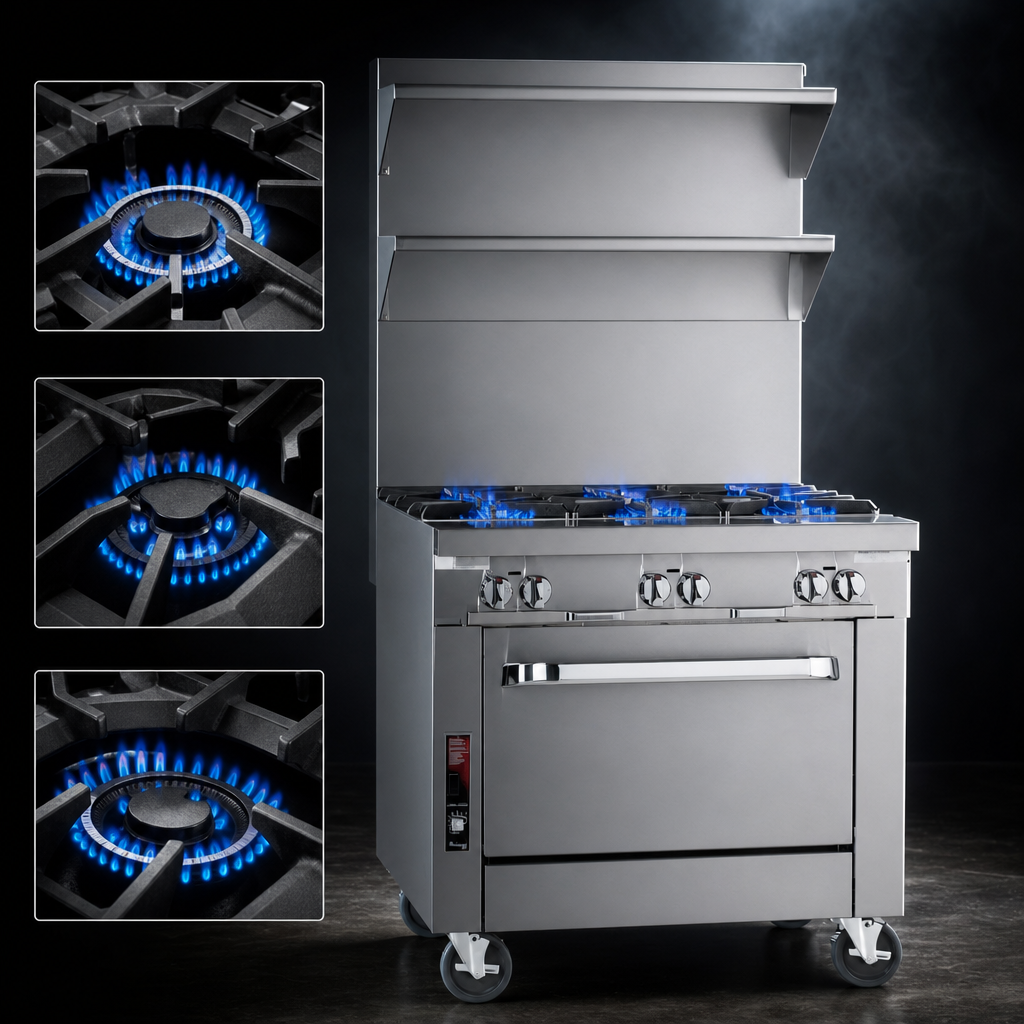

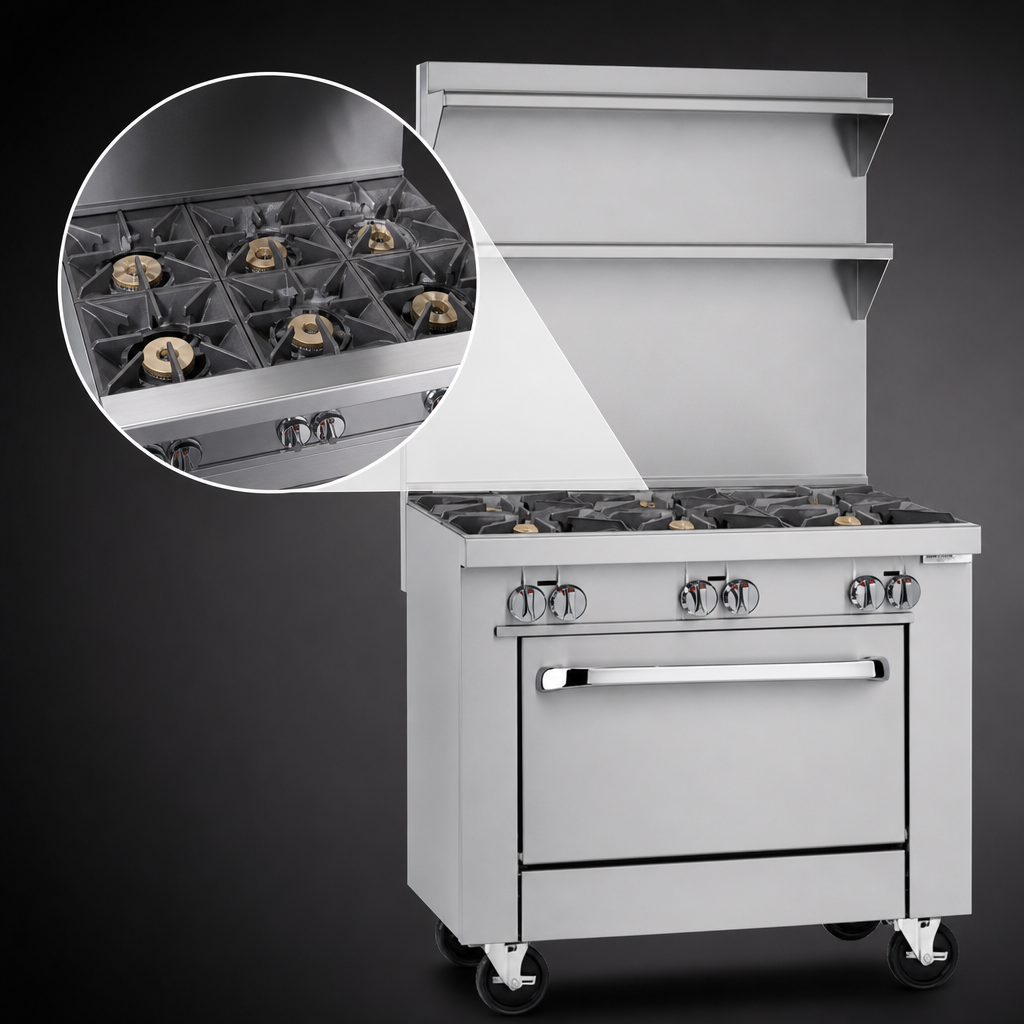

- 6 clog-free open burners (35,000 BTU each) for a blazing 210,000 BTU total output.
- Step-up design raises the rear burners 4" for easier access to large pots.
- All-stainless exterior—front, sides, rear & bottom—stands up to years of abuse.
- 9-¼" deep front rail doubles as a plating shelf and protects controls from splatter.
- Removable welded-steel top grates & drip tray speed up end-of-shift cleanup.
- Fully insulated burner box improves efficiency and keeps the cook line cooler.
- Spacious stainless cabinet base with center-opening doors keeps pans and stock within reach.
- 6" adjustable stainless legs for simple leveling on uneven floors.
Perfect For
- High-volume restaurants & hotel kitchens
- Catering facilities and commissaries
- Institutional & military foodservice operations
- Any cook line that needs maximum BTU in minimal space
At-a-Glance Specs
| Footprint (W × D × H) | 32" × 37.5" × 34" to cooking surface (39" H with 5" flue) |
|---|---|
| Total BTU | 210,000 BTU (Natural or LP) |
| Burners | 3 front + 3 step-up rear open burners, 35,000 BTU each |
| Base | Stainless cabinet with two removable doors |
| Gas Connections | 1 ¼" front manifold (battery ready) & 1" rear NPT; min. 7" W.C. NAT / 11" W.C. LP |
| Standard Flue Riser | 5" stainless steel |
| Shipping Weight | Approx. 450 lb / 204 kg |
| Certifications | CSA, NSF, cCSAus |
| Warranty | 1-year limited parts & labor (Heavy-Duty Sectional) |
Utility Notes
- Factory-ready for Natural gas; easily field-convertible to LP.
- External gas pressure regulator (ordered separately) required.
- If casters and a flexible hose are used, a restraining device is mandatory to protect the connection.
Popular Factory Options
- 24" or 36" flue riser with single or double shelves
- Locking front casters for easy cleaning
- Battery spark ignition for open burners
- Removable cast-iron grate tops
- External pressure regulator & cable restraint kit
Commercial use only. Installation under a vented hood is recommended. Specifications subject to change without notice.
