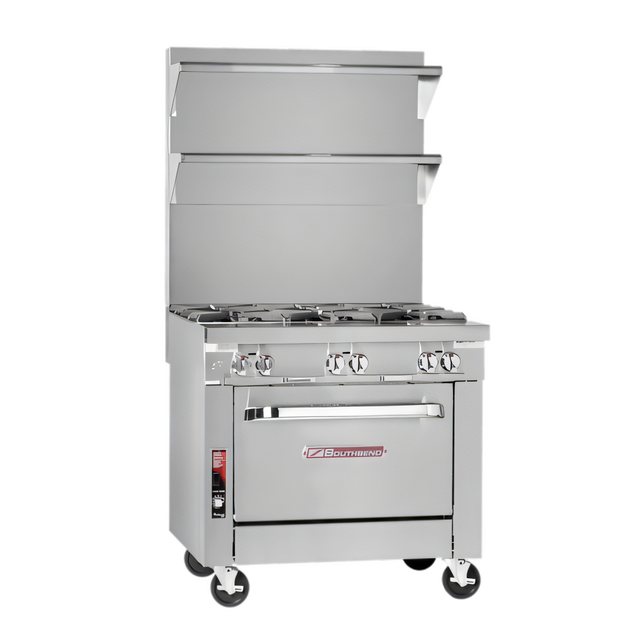

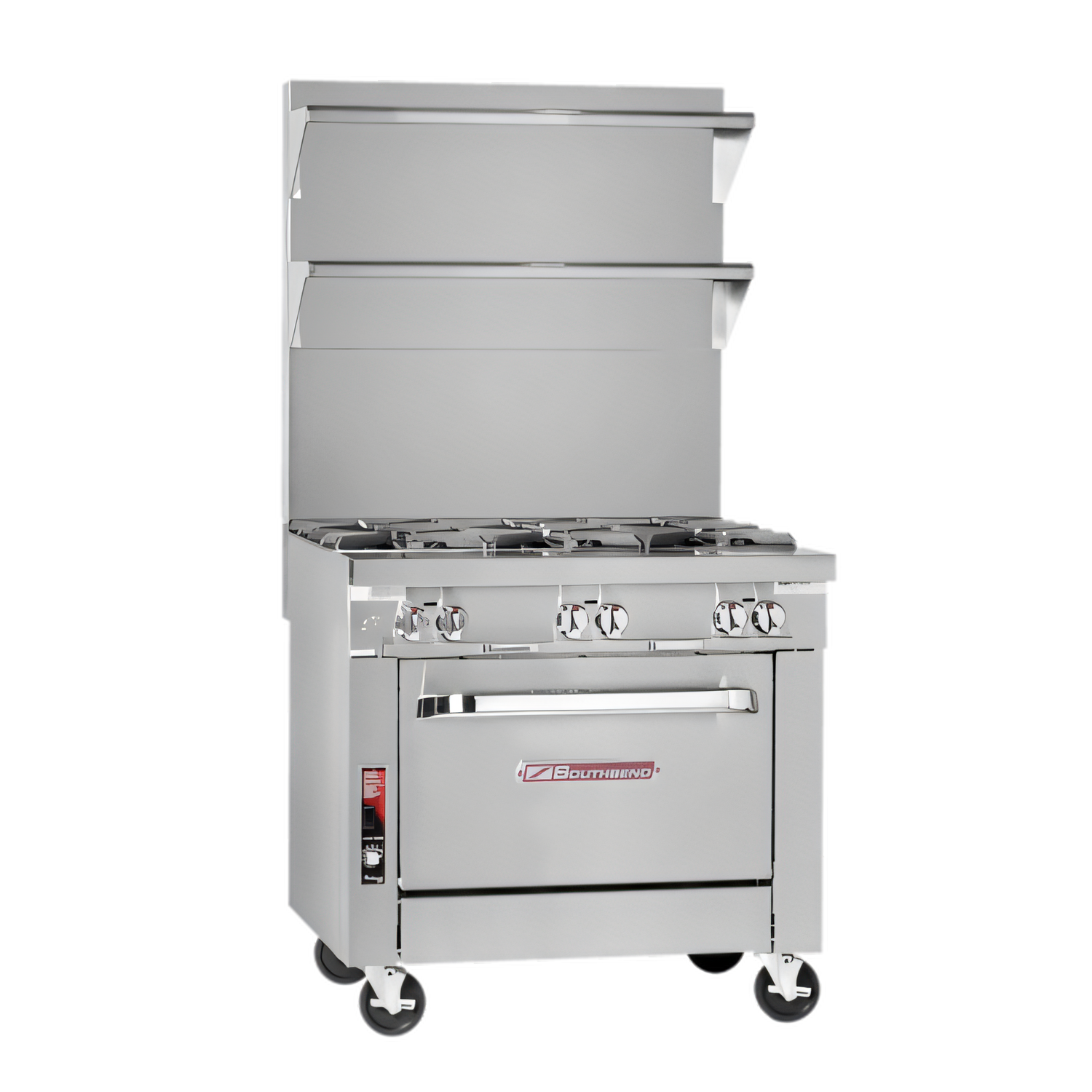

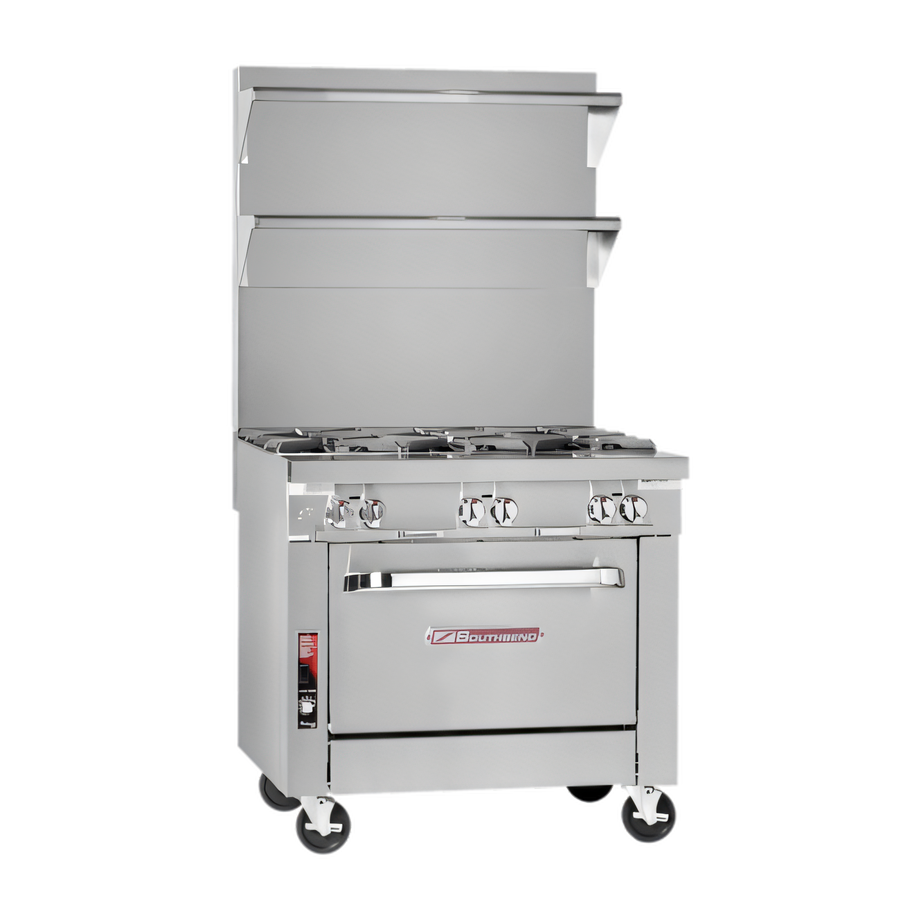

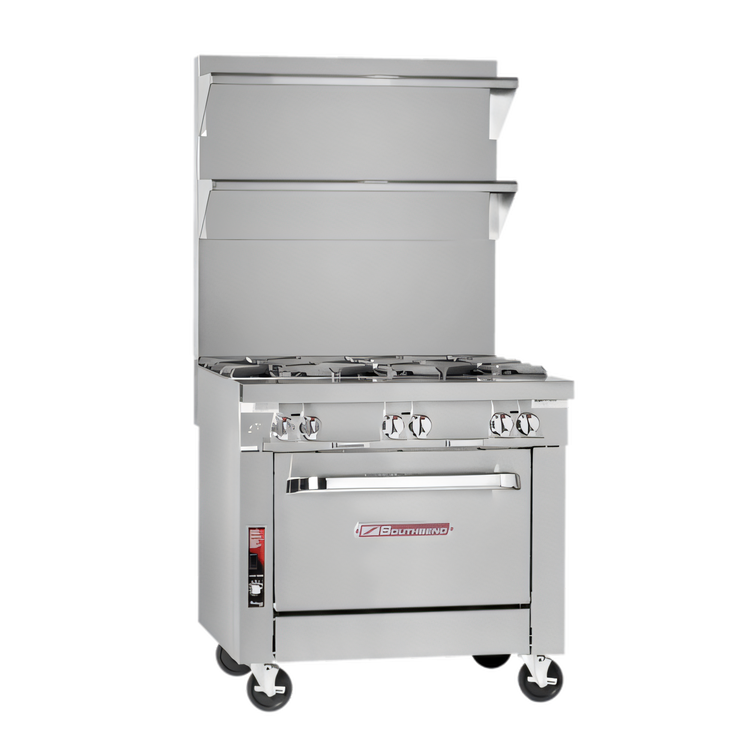

Southbend (Middleby) P32C-BBB Platinum Gas Ranges
Description
Southbend Platinum 32" Heavy-Duty Gas Range
Model P32C-BBB | Six 35,000 BTU Open Burners with Cabinet BaseBuilt for the busiest commercial kitchens, the Southbend Platinum Series P32C-BBB packs six patented clog-free open burners, a rugged stainless cabinet base, and true heavy-duty construction into a compact 32-inch footprint. When uptime, power, and versatility matter, this 210,000 BTU workhorse delivers shift after shift.
Why choose the Platinum P32C-BBB?

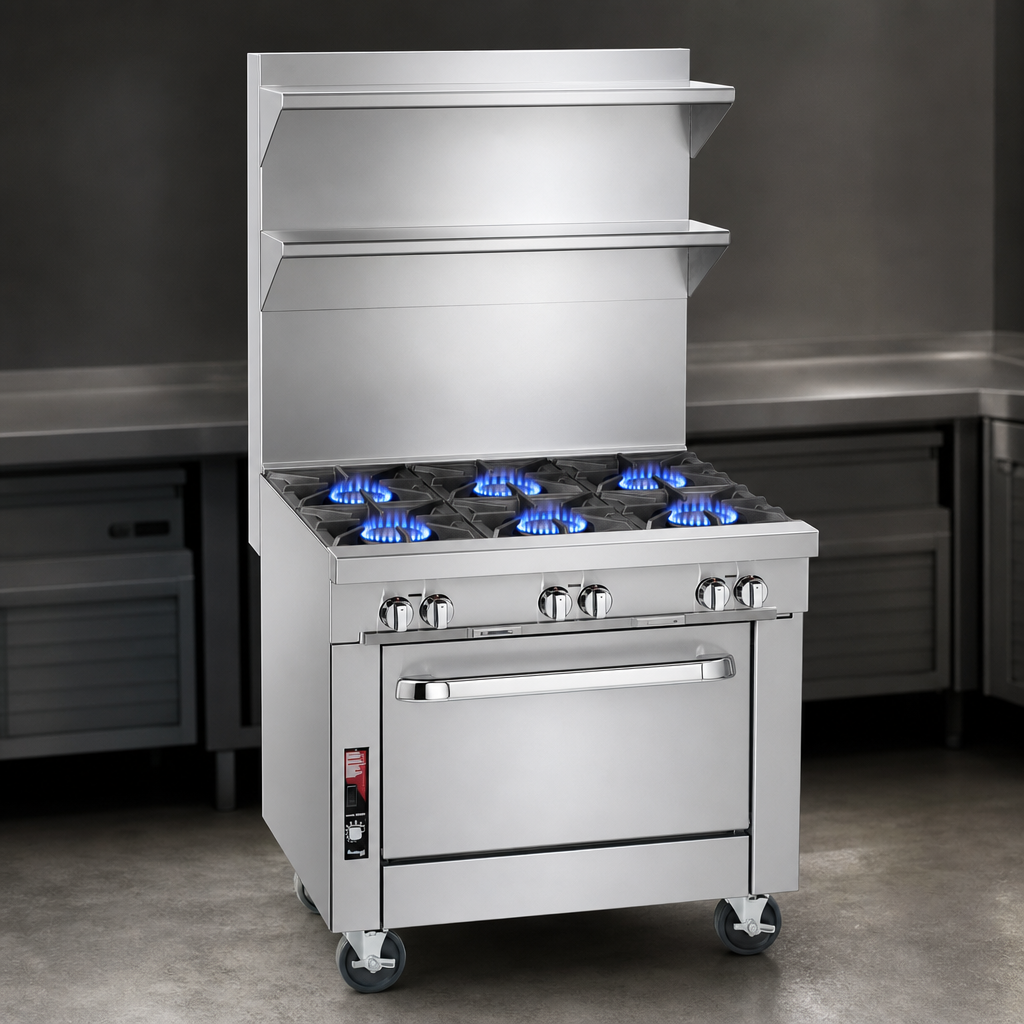

- Six high-performance burners – 35,000 BTU each (NAT or LP) for rapid boil, sear, or sauté.
- Clog-free design – patented burner ports resist grease build-up and eliminate downtime.
- Heavy welded top grates – removable steel grates stand up to oversized stockpots.
- 9¼" deep front rail – wide landing ledge keeps plating and pans within easy reach.
- Built-in drip tray – full-width tray slides out for fast, mess-free clean-up.
- Rugged cabinet base – stainless double-door storage for sheet pans, hotel pans, or smallwares.
- All-stainless exterior – front, sides, rear & bottom resist corrosion and wipe clean quickly.
- Adjustable 6" legs – level the unit perfectly on any commercial floor.
- 5" flue riser – directs heat into the hood and away from the cooking line.
- Battery-ready – 1¼" front gas manifold mates seamlessly with other Platinum sectional pieces.
Specifications
| Model | P32C-BBB (Southbend Platinum Series) |
|---|---|
| Overall Width | 32" (813 mm) |
| Depth — to front rail | 37½" (953 mm) |
| Height (to cook surface / top of 5" flue) | 34" / 39" (864 / 991 mm) |
| Open Burners | 6 × 35,000 BTU (clog-free; NAT or LP) |
| Total Input | 210,000 BTU/h |

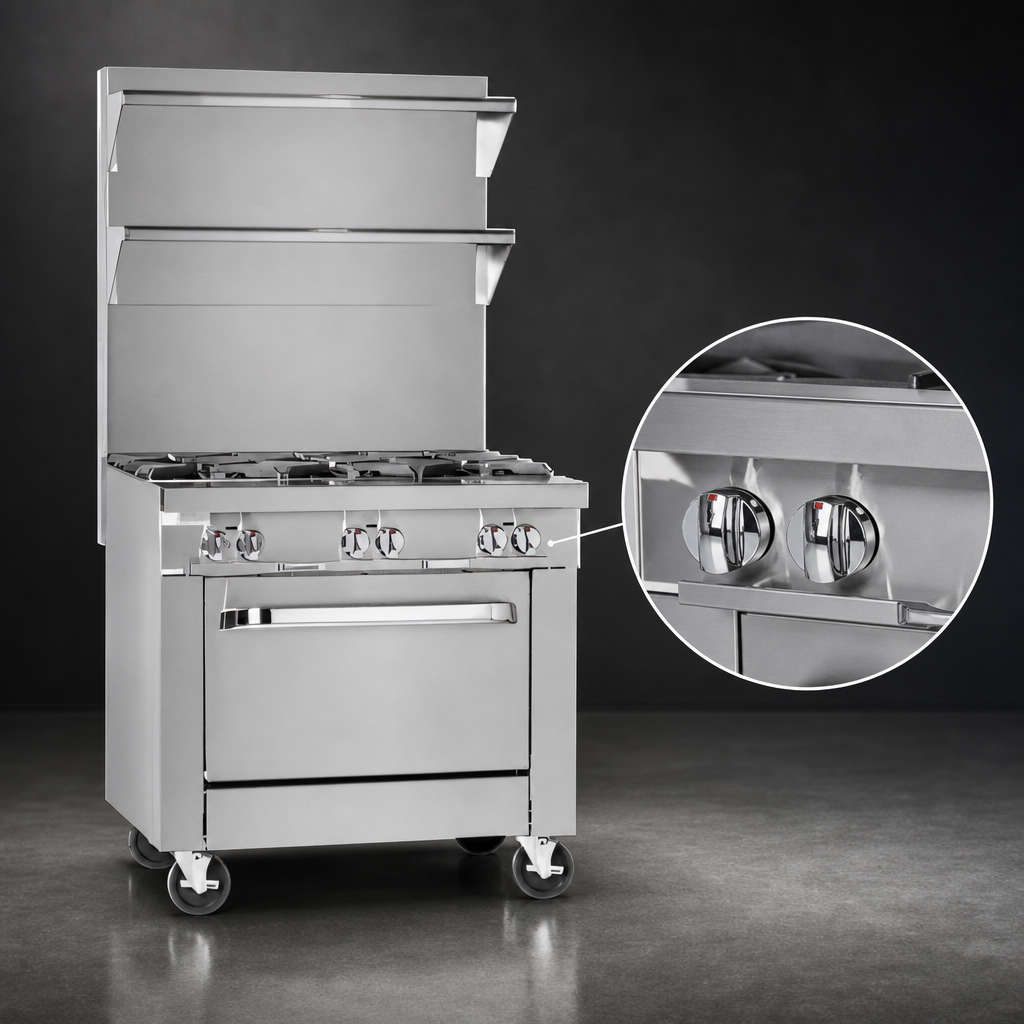

| Controls | Manual infinite valves, standing pilots |
| Base | Stainless steel cabinet, double center-opening doors |
| Gas Connection | 1¼" NPT front manifold; 1" rear male NPT Min. pressure – Natural 7" W.C. | LP 11" W.C. |
| Certifications | CSA, cCSAus, NSF |
| Warranty | 1 year parts & labor (commercial use) |
| Shipping Weight | ≈ 450 lb (204 kg) |
Need a different base, step-up burners, or electronic ignition? The Platinum Series offers modular, oven, or convection bases and dozens of factory options – ask our team for details.
Popular factory options (extra cost)
- Casters (front locking)
- 24" or 36" flue riser with shelves
- Battery spark ignition for open burners
- Removable cast-iron grate tops
- Square belly bar or 7¼" deep front rail
- External gas pressure regulator
Upgrade your cookline with uncompromising power and durability – order the Southbend Platinum P32C-BBB today and keep every service running at full flame.
