Southbend (Middleby)  |  Platinum  |  SKU: P32C-32B

Southbend (Middleby) P32C-32B Platinum Deck Ovens

$13,484.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Middleby financial flyer Owner's manual Warranty sheet
Related Searches
Deck Ovens Ovens

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

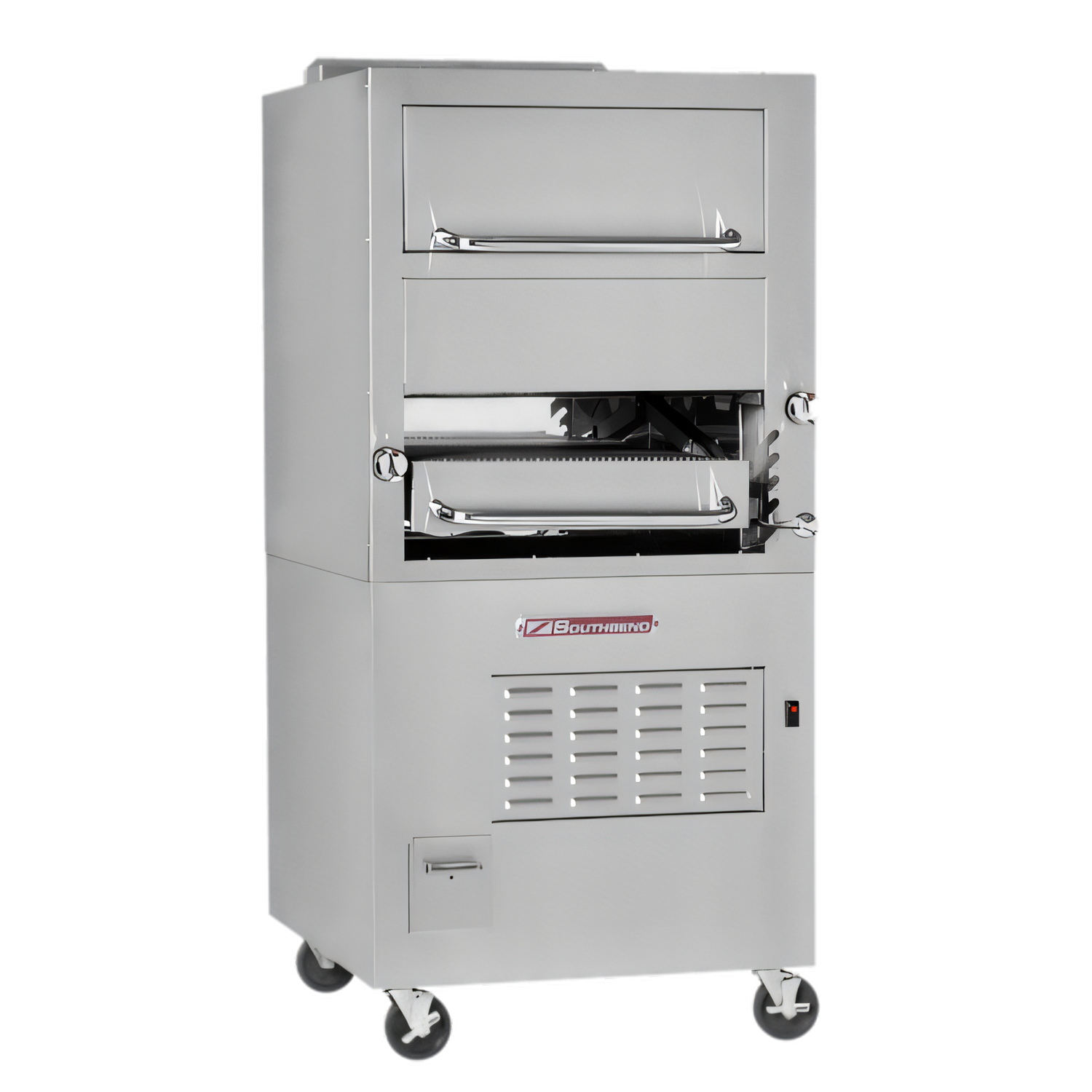

Platinum Series 32" Heavy-Duty Radiant Broiler with Warming Oven & Cabinet Base

Model P32C-32B · Gas · 110,000 BTU · CSA & NSF

Boost ticket times and plate presentation with Southbend’s flagship Platinum broiler. Two high-power radiant burners and a flue-heated warming oven give chefs the throughput of a full char station in just 32 inches of line space.

Performance Advantages

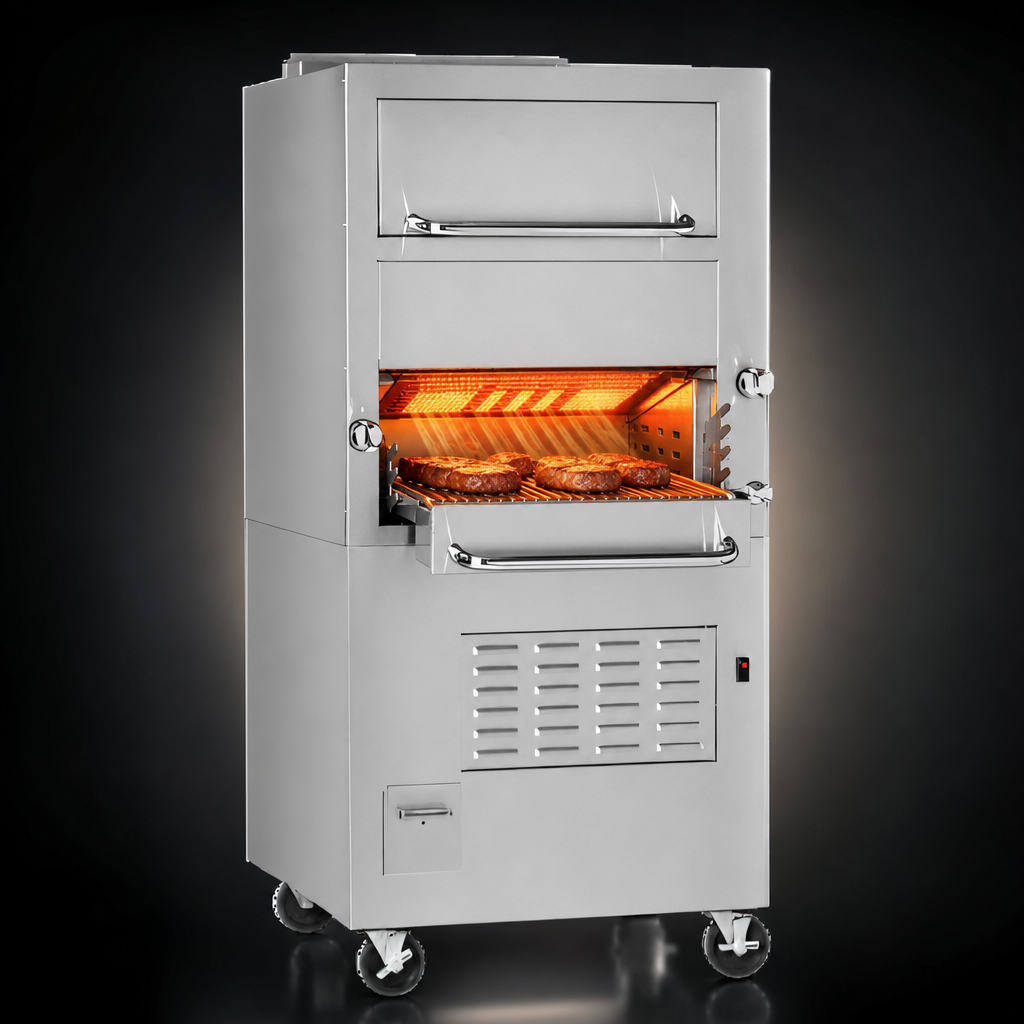

  • 110,000 BTU natural gas output (90,000 BTU LP) from two independent radiant burners
  • Four-position roll-out grid (24 ½" W × 28" D) glides 17 ¼" for effortless loading & plating

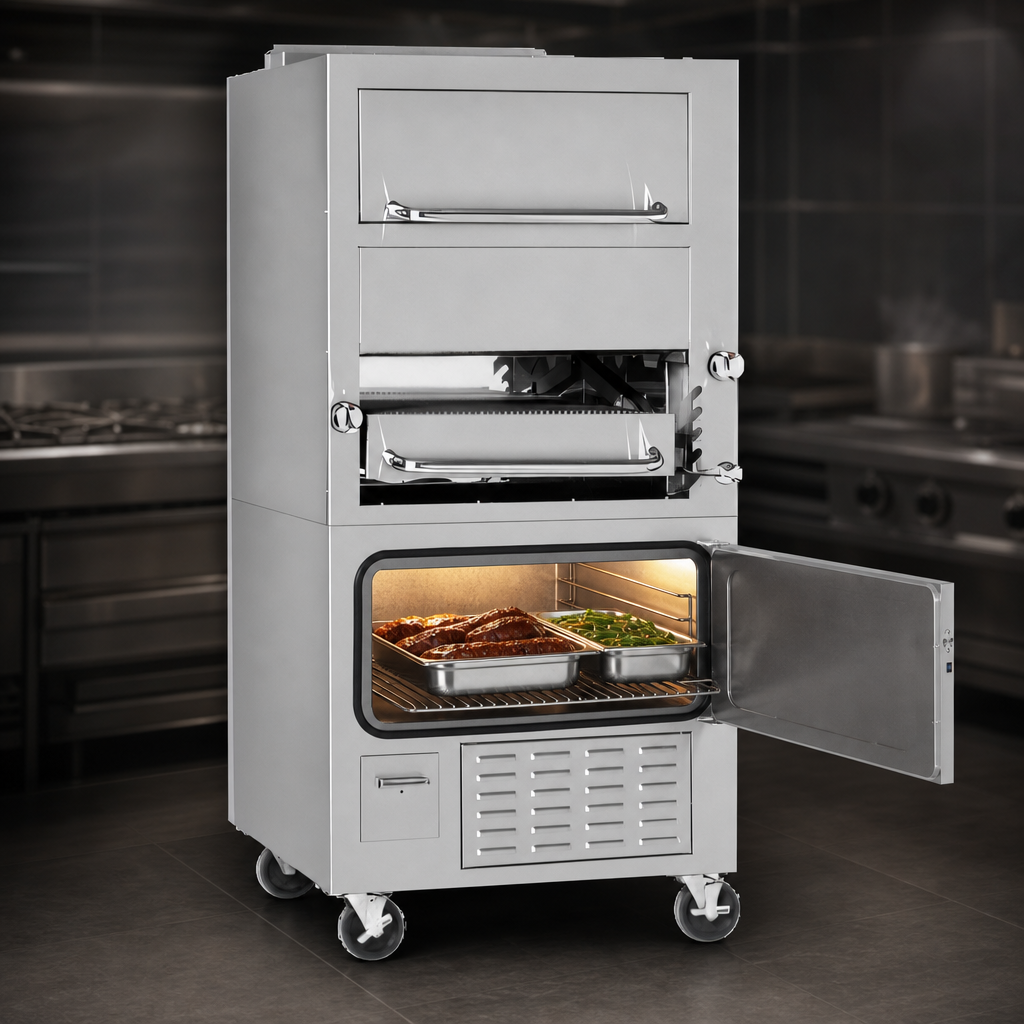

  • Flue-heated warming oven (25" W × 25" D) keeps plates and sides hot without extra fuel
  • Separate burner controls let you zone-cook everything from delicate seafood to 2" rib-eyes
  • Fully insulated lining and burner boxes concentrate heat on the product, not the kitchen

Built for the Rush

  • 430 stainless steel front, sides & back for long-term durability
  • Stainless cabinet base with dual, removable doors keeps pans and utensils close at hand
  • 6" stainless, adjustable legs simplify leveling on uneven floors
  • Quick-clean removable drip drawer
  • 1 ¼" front manifold & 1" rear NPT gas connection for easy line-up installation

Technical Specifications

Cooking surface 24 ½" W × 28" D (roll-out 17 ¼")
Warming oven 25" W × 25" D, flue-heated
Total BTU 110,000 (Natural) / 90,000 (Propane)
Burners (2) radiant, individually controlled
Gas connection 1 ¼" front manifold & 1" rear male NPT
Electrical None required
Overall dimensions 32" W × 35 ¾" D × 77" H
Shipping weight ≈ 900 lb (crated)
Listings CSA, NSF
Warranty 1-year parts & labor

Popular Options (sold separately)

  • Locking caster kit & cable restraint
  • Open-frame base with casters
  • Additional rack for warming oven
Installation Note: Unit requires a vented hood and regulated gas supply (minimum 7" W.C. NAT / 11" W.C. LP). Maintain 6" clearance from combustible surfaces and follow all local codes.

Designed and manufactured in Fuquay-Varina, NC. For commercial use only.

Features & Specs

Manufacturer

Southbend (Middleby)

Brand_name

Platinum

Certifications

NSF, CSA

Height

75.0in

Width

32.0in

Depth

39.75in

Shipping Weight

955.0lbs

Design

range match

Warming Oven

with

Heat

radiants

Exterior Finish

stainless steel front & sides

Decks

single

Base

cabinet base

Specifications

Platinum Heavy Duty Broiler, gas, 32", single deck, radiant burners, cabinet base, warming oven, stainless steel front, sides & 6" adjustable legs, 110,000 BTU, CSA, NSF
