Southbend (Middleby) P32C-171 Platinum Deck Ovens
$21,520.00
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Southbend (Middleby) P32C-171 Platinum Deck Ovens is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Southbend (Middleby) P32C-171 Platinum Deck Ovens
$21,520.00
Unit price
/
Unavailable
Description

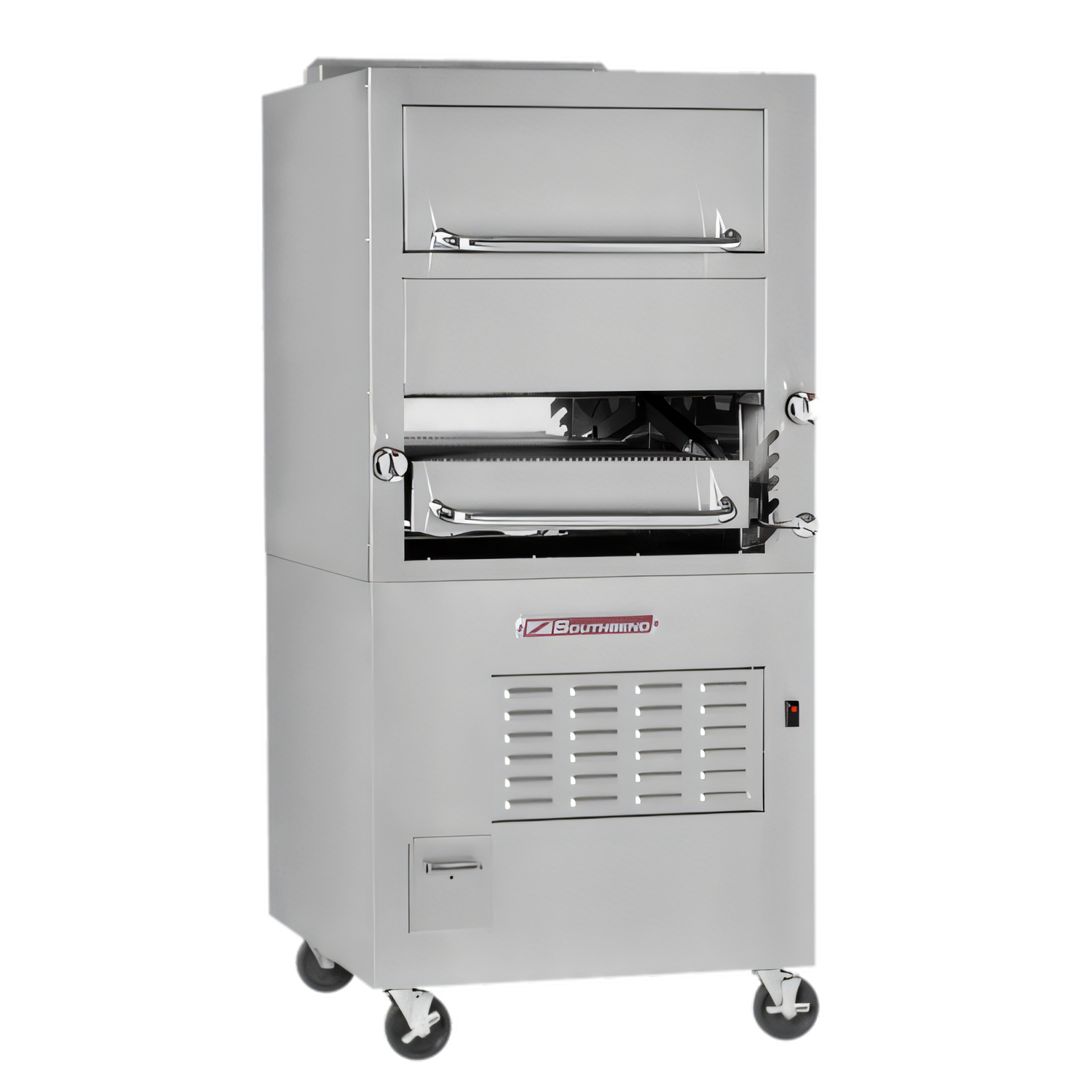

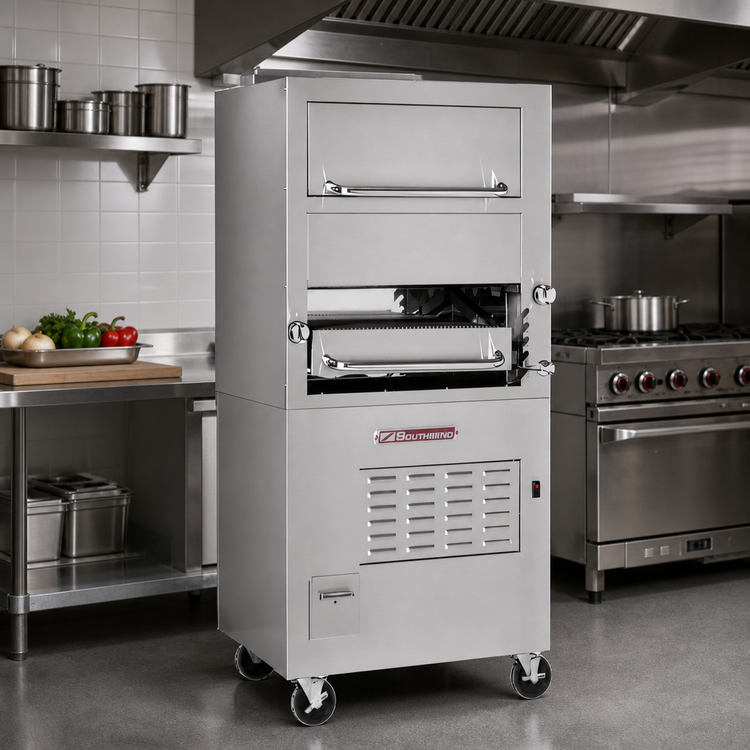

Platinum Series 32" Infrared Broiler with Warming Oven & Cabinet Base
Southbend Model P32C-171 | 104,000 BTU | Natural or LP GasEngineered for the busiest steak-houses, institutions and hotel kitchens, the Southbend Platinum P32C-171 delivers blistering infrared heat, ultra-fast recovery and rugged construction that stands up to true heavy-duty service.
Why You’ll Love It

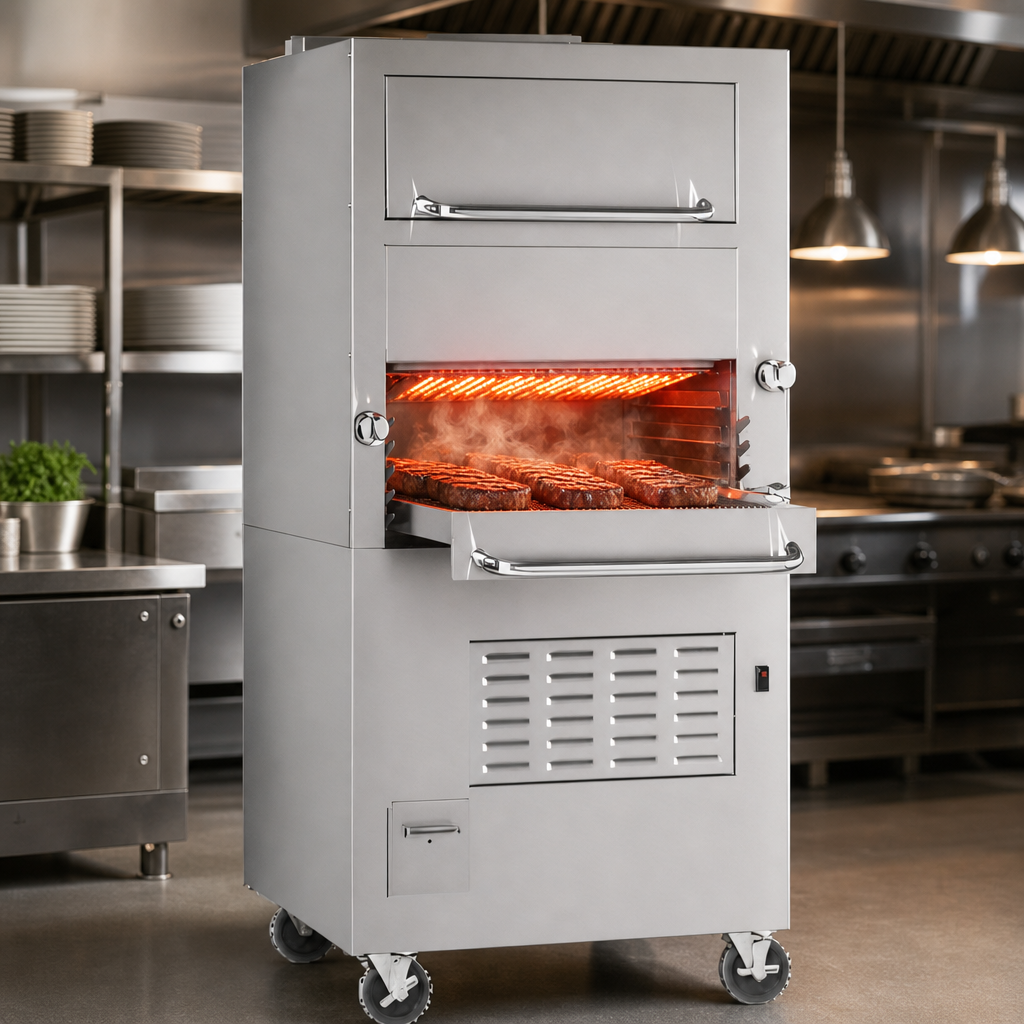

- 104,000 BTU infrared burners reach full temperature in about 90 seconds—no waiting between loads.
- Roll-out broiler grid (24½" W × 28" D) glides out a full 17¼" for safe, fast loading and plating.
- Four grid-height positions with a rugged adjustment mechanism give you perfect control of finish and caramelization.

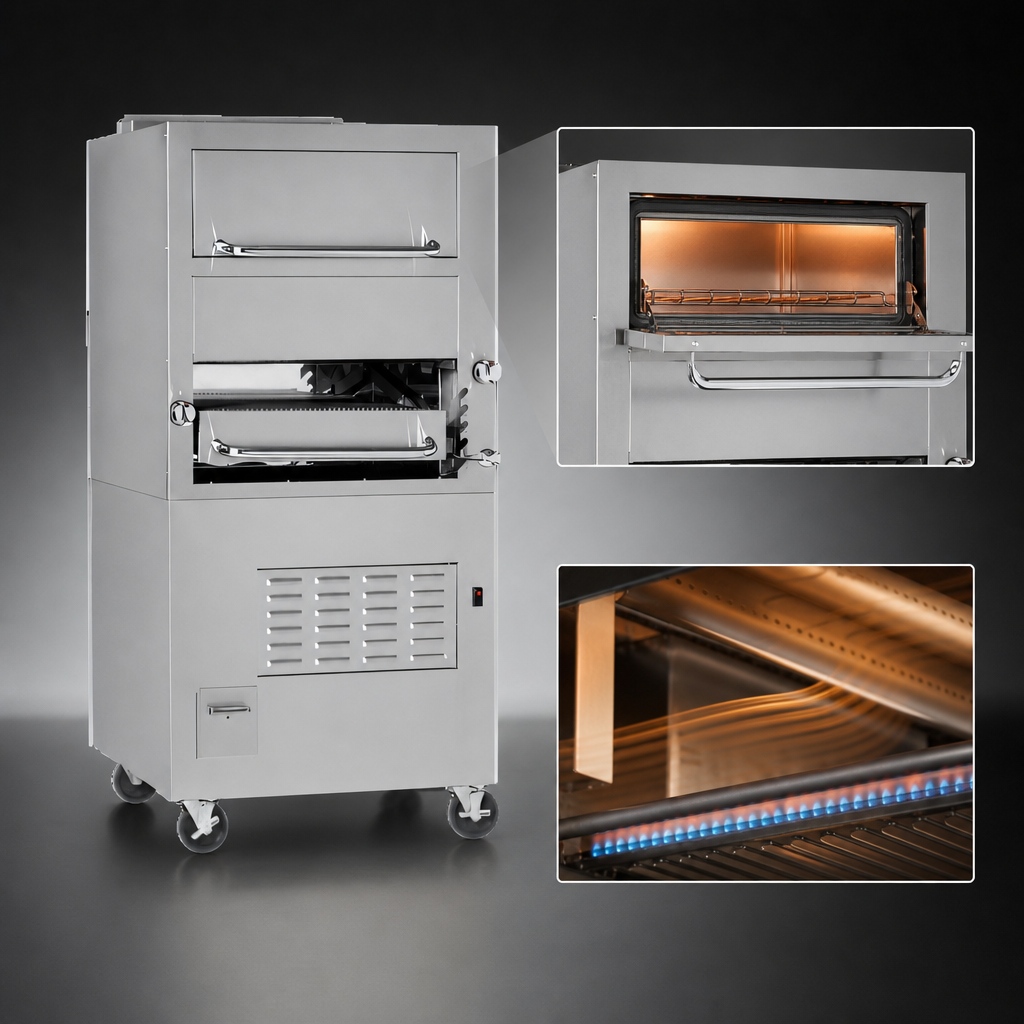

- Overhead 25" × 25" warming oven utilizes broiler flue heat to hold plates; 3 kW electric booster element available.
- Space-saving stainless-steel cabinet base keeps pans, sauces and utensils right where you need them.
- Stainless steel front, sides, back and 6" adjustable legs for long-term durability and easy cleaning.
- Fully insulated lining and burner box maximize thermal efficiency and keep surrounding equipment cooler.
- Field convertible for Natural or Propane gas; 1¼" front manifold & 1" rear NPT gas connections simplify installation.
- CSA & NSF listed and backed by Southbend’s 1-year parts & labor warranty.
At-a-Glance Specs
| Model | P32C-171 |
|---|---|
| Broiler Type | Single-deck infrared, cabinet base |
| Total BTU Input | 104,000 BTU/hr (Natural or LP) |
| Broiler Grid Size | 24.5" W × 28" D (rolls out 17.25") |
| Warming Oven | 25" W × 25" D, flue-heated (3 kW 208/236 V option) |
| Overall Width | 32" (nominal) |
| Overall Depth | 37" |
| Overall Height | ≈54" |
| Gas Connections | 1¼" front manifold & 1" rear male NPT |
| Electrical | 120 V, 1 ph, 1 A (208/236 V, 20 A if warming-oven element added) |
| Shipping Weight | ≈900 lb |
| Certifications | CSA, NSF |
Popular Options & Accessories
- 3,000 W electric element for warming oven
- Open-frame base with casters
- Swivel or locking casters (front two locking)
- Cable restraint kit for units on casters
- Additional oven racks
Important: This appliance is intended for commercial use only. Maintain a minimum clearance of 6" from combustible construction and install under a vented hood in accordance with all local codes.
Looking to spread out the cost? Ask about fast, fixed-payment options through Middleby Equipment Financing.
Features & Specs
Features & Specs
Manufacturer
Southbend (Middleby)
Brand_name
Platinum
Certifications
NSF, CSA
Height
81.0in
Width
32.0in
Depth
41.0in
Shipping Weight
900.0lbs
Heat
infrared
Warming Oven
with
Design
range match
Decks
single
Exterior Finish
stainless steel front & sides
Base
cabinet base
Specifications
Platinum Heavy Duty Broiler, gas, 32", single deck, infrared burners, cabinet base, warming oven, stainless steel front, sides & 6" adjustable legs, 104,000 BTU, CSA, NSF
