Southbend (Middleby)  |  Platinum  |  SKU: P32A-XX

Southbend (Middleby) P32A-XX Platinum Gas Ranges

$15,358.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Owner's manual Middleby financial flyer Warranty sheet
Related Searches
Butane Stove Cooking Equipment Cooking Equipment Countertop Cooking Equipment Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

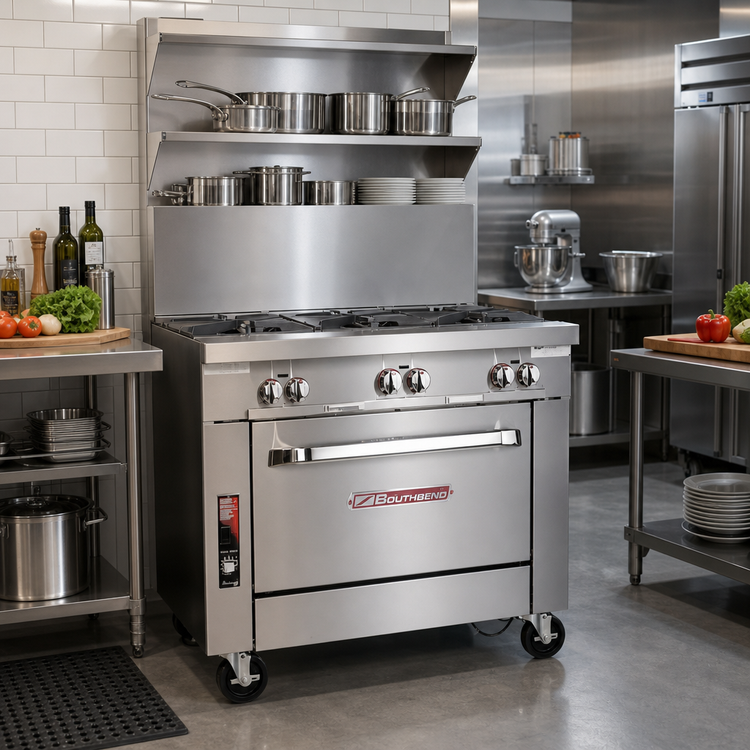

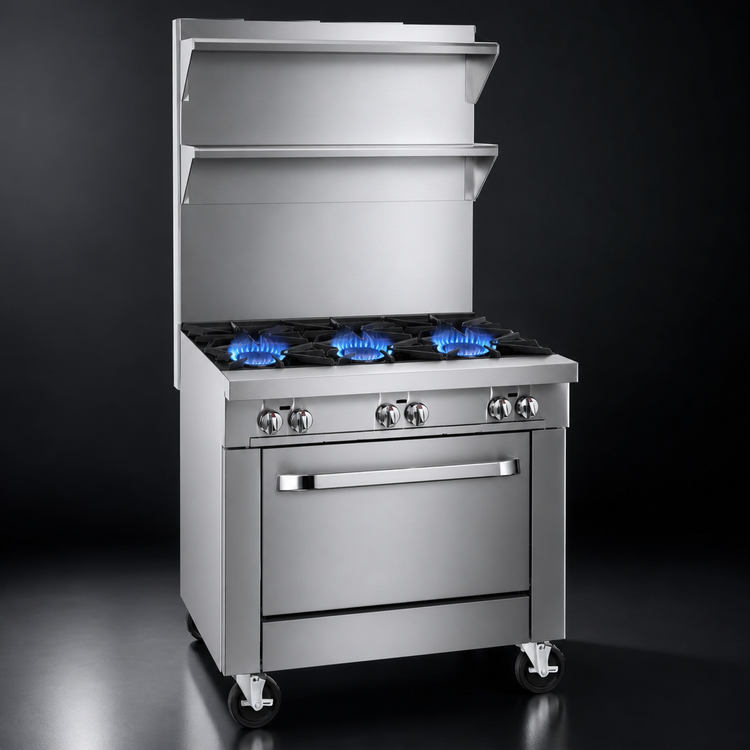

Southbend Platinum 32" Heavy-Duty Gas Range with Convection Oven & 4 Open Burners

Model P32A-XX | 225,000 BTU | CSA & NSF Listed

Put unrivaled power and versatility on your cookline. The Platinum Series 32" sectional range marries four high-output Pyromax™ burners with a full-size convection oven—delivering the performance busy commercial kitchens demand without wasting a single inch of space.

Key Features

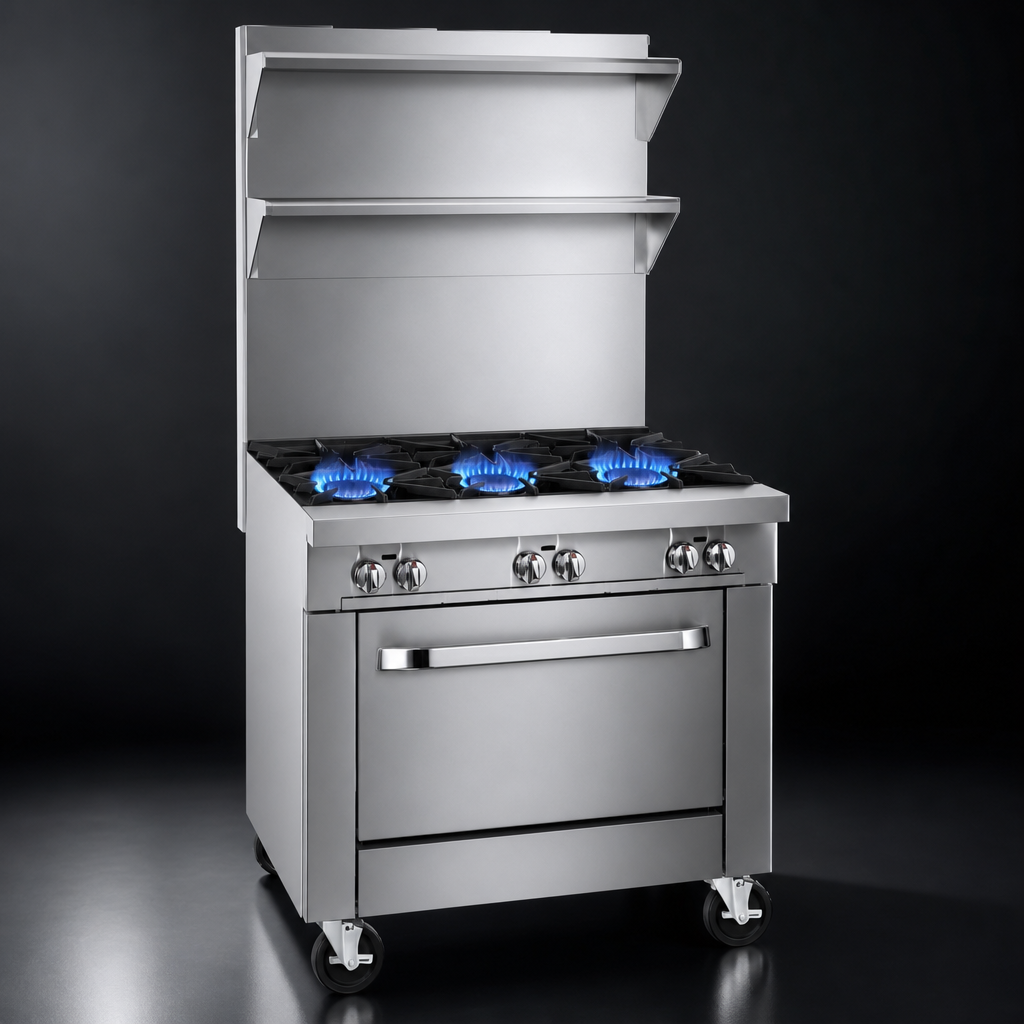

  • Four clog-free Pyromax™ open burners – 45,000 BTU each (180,000 BTU total)

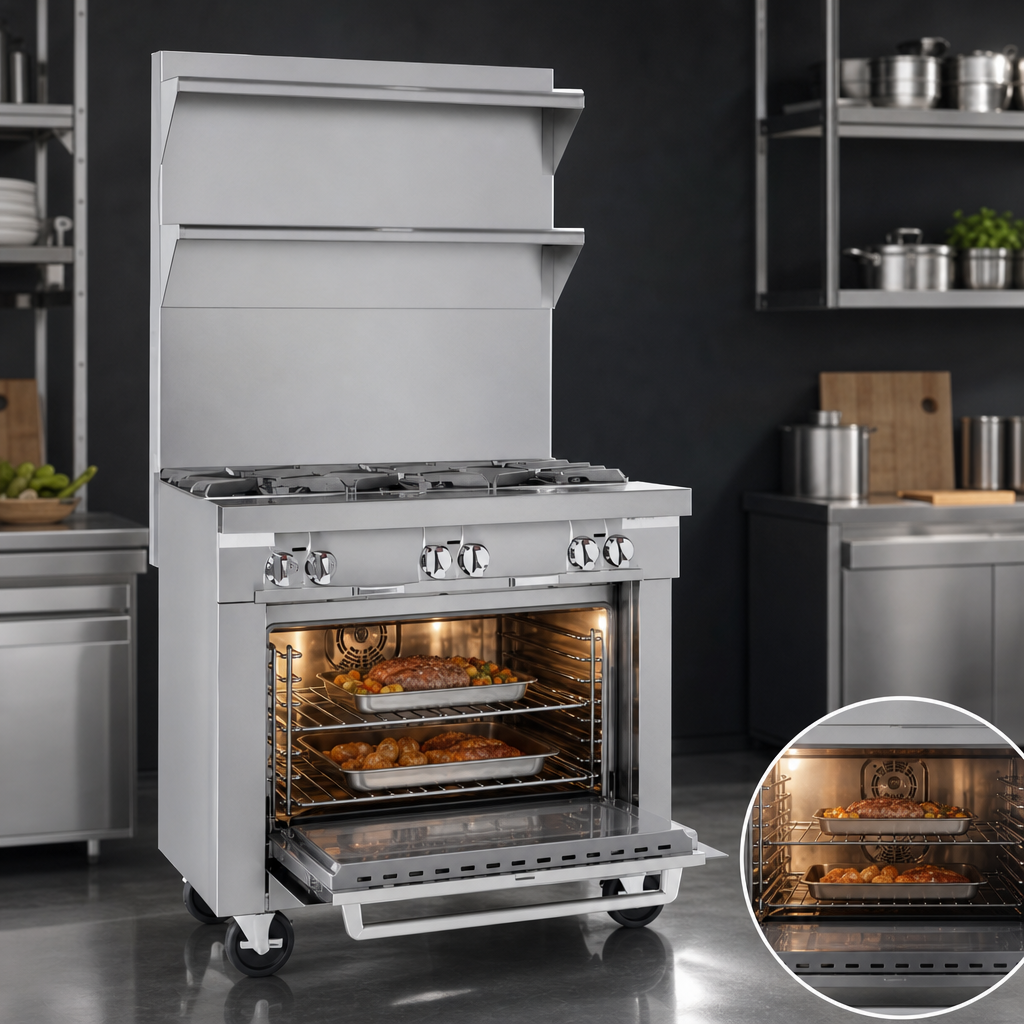

  • 45,000 BTU convection oven with ½ hp two-speed blower for uniform baking & roasting
  • “Insta-On” thermostat from 175 °F–550 °F (79 °C–288 °C)
  • Porcelain-enamel oven interior with 3 heavy-duty racks & 5-position side rails
  • Removable welded-steel top grates & slide-out drip tray for fast cleanup
  • 9-¼" deep stainless front rail—perfect for plating and smallwares
  • Stainless steel front, sides, rear & exterior bottom; 6" adjustable stainless legs
  • 5" stainless flue riser; 1-¼" front gas manifold & 1" rear NPT connection
  • Compatible with battery line-ups—free design assistance from Southbend
  • 1-year limited parts & labor warranty backed by a nationwide service network
Technical Specifications
Exterior Width 32" / 813 mm
Exterior Depth 37-½" / 953 mm
Cooking Height 36" / 914 mm (with 6" legs)
Standard Flue Riser 5" / 127 mm  (24" & 36" optional)
Total Gas Input 225,000 BTU/hr (Natural or Propane)
Open Burners 4 × 45,000 BTU Pyromax
Oven Type Convection, 45,000 BTU, ½ hp two-speed blower
Oven Temp. Range 175 °F–550 °F / 79 °C–288 °C
Oven Interior (H × W × D) 14" × 26" × 24" / 356 × 660 × 610 mm
Oven Racks Included 3 chrome-plated racks
Gas Inlet 1-¼" front manifold, 1" rear NPT
Clearances* 0" sides & rear (non-combustible) • 13" sides / 6" rear (combustible)
Certifications CSA, NSF
Warranty 1-year parts & labor
Popular Options & Accessories
  • 24" or 36" flue riser with single or double shelf
  • Swivel casters or open-frame base for mobile batteries
  • Electronic oven pilot ignition (no-charge)
  • Salamander broiler or cheesemelter mounted to riser
  • Removable cast-iron grate tops
Safety Reminder: Oversized cookware (12" dia. or larger) should be placed on the rear grates to prevent excessive heat build-up in the control cavity and front rail.

*Always verify local codes and vent-hood requirements prior to installation.

Features & Specs

Manufacturer

Southbend (Middleby)

Brand_name

Platinum

Certifications

NSF, CSA

Height

41.0in

Width

32.0in

Depth

43.0in

Shipping Weight

670.0lbs

Top

(4) open burners

Vent

backriser

Base

(1) convection oven

Exterior Finish

stainless steel front & sides

Specifications

Platinum Heavy Duty Range, gas, 32", (4) 45,000 BTU open burners, manual controls, (1) convection oven, includes (3) racks, stainless steel front, sides & 6" adjustable legs, 225,000 BTU, CSA, NSF
