Southbend (Middleby) P32A-XT Platinum Gas Ranges
Southbend (Middleby) P32A-XT Platinum Gas Ranges is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Southbend (Middleby) P32A-XT Platinum Gas Ranges
Description
Southbend Platinum 32" Heavy-Duty Gas Range
with (2) 45,000 BTU Open Burners, 16" Thermostatic Griddle & Convection Oven
Model P32A-XGT | 175,000 BTU total | Natural or Propane Gas
Engineered for demanding commercial kitchens, the Southbend Platinum Series 32" sectional range merges blistering burner power, precise griddle control and high-performance convection baking—all in one space-saving chassis. Rugged stainless-steel construction, battery spark ignition and free design-assist service make this the professional’s choice for lineups, islands or stand-alone installations.
Top-Side Power & Versatility
- Two 45,000 BTU patented Pyromax™ clog-free open burners—designed for maximum heat transfer and easy cleanup.

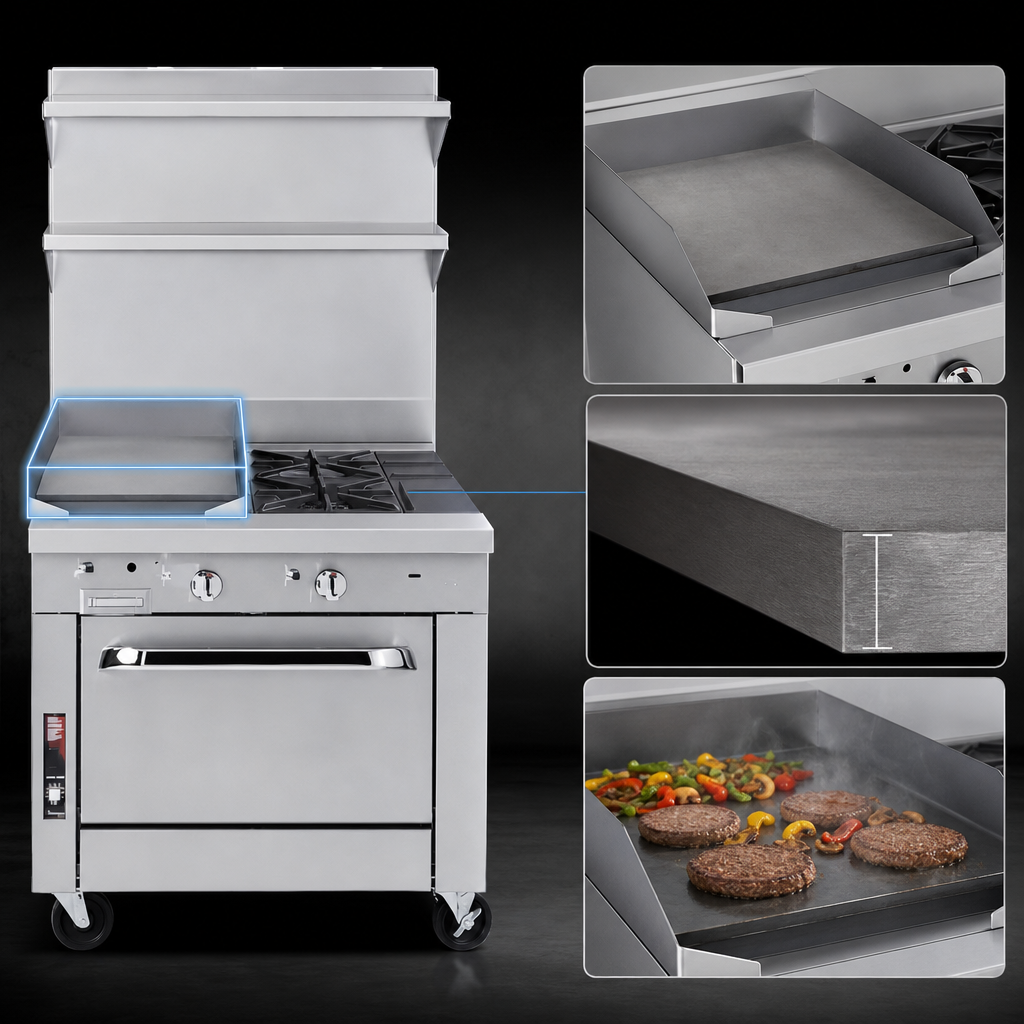

- One 16" thermostatic griddle (two 20,000 BTU burners) with “Insta-On” control from 180 – 400 °F for pancakes, proteins or finishing sauté pans.
- 1" thick polished steel plate for fast recovery and even heat distribution.
- Full-width stainless grease drawer and 5" flue riser keep the cookline tidy and cool.
- Battery spark ignition standard—no standing pilots on the cook-top saves energy and improves kitchen comfort.
High-Efficiency Convection Oven
- 45,000 BTU gas burner with adjustable 175 – 550 °F thermostat.
- Two-speed ½ hp blower motor circulates heat for faster, more even baking and roasting.
- Porcelain-enameled cavity measures 14"H × 26"W × 24"D and ships with three heavy racks on 5-position guides.
- Standing pilot for reliable lighting; electronic pilot ignition available at no charge.
Construction & Cleanability
- Front, sides and 9-¼" deep rail are 430/304 stainless steel—scratch-resistant and easy to wipe down.
- Fully insulated lining and burner box improve efficiency and keep exterior surfaces cooler.
- 6" stainless adjustable legs for easy leveling; modular design drops into batteries seamlessly.
- 1-¼" front gas manifold couples with adjacent Southbend sectional units for a clean, continuous lineup.
Technical Specifications
| Overall width | 32" / 813 mm |
|---|---|
| Cook surface depth | 37 ½" / 953 mm |
| Total input | 175,000 BTU/hr (Natural or LP) |
| Open burners | 2 × 45,000 BTU Pyromax™; individual lift-off grates |
| Griddle section | 16" W × 24" D × 1" thick plate, thermostatic 180 – 400 °F |
| Convection oven | 45,000 BTU, 175 – 550 °F, 3 racks, ½ hp 2-speed fan |
| Gas connection | 1 ¼" front manifold; 1" rear NPT, 7" W.C. NAT / 11" W.C. LP |
| Electrical | 120 V, 1-phase, 5.9 A, 7-ft cord & plug (fan motor) |
| Certifications | cCSAus, CSA Flame, CSA Star, NSF |
| Shipping weight | Approx. 710 lb / 322 kg |
What’s Included
- (3) heavy-duty oven racks
- 5" stainless flue riser
- Battery spark ignition (top), standing pilot (oven)
- One-year limited parts & labor warranty
Popular Factory Options (extra cost)
- 24" or 36" flue riser with solid or tubular shelving
- Chrome-plated or grooved griddle surface
- Front rail cut-outs, square belly bar or 7-¼" deep rail
- Open-frame base with casters, cable restraint kit
- Electronic oven pilot ignition (no charge)
Southbend reserves the right to change specifications without notice. Please refer to local codes for gas & electrical installation requirements.
