Southbend (Middleby)  |  Platinum  |  SKU: P32A-XH-RE

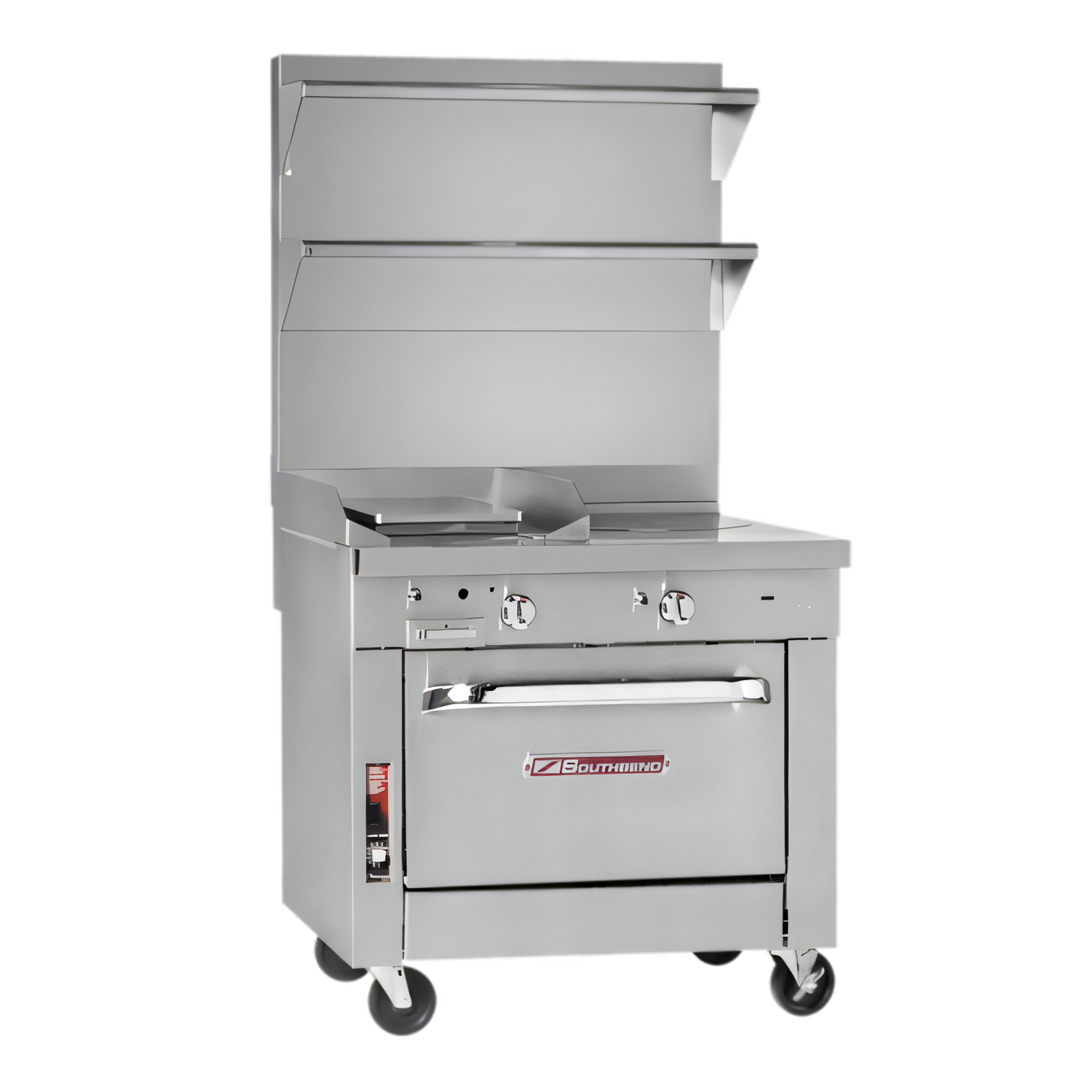

Southbend (Middleby) P32A-XH-RE Platinum Gas Ranges

$17,957.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Owner's manual Installation & operation Middleby financial flyer Warranty sheet
Related Searches
Butane Stove Cooking Equipment Cooking Equipment Countertop Cooking Equipment Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

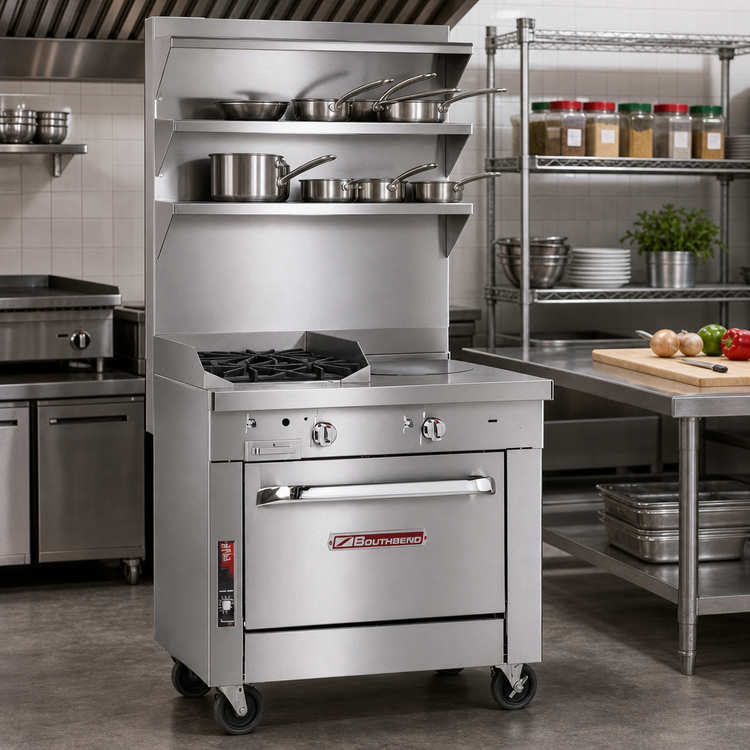

Southbend Platinum 32″ Heavy-Duty Gas Range

Model P32XH-RE – 2 Open Burners • 16″ Rear Hot Top • Convection Oven Base

Pack the power of a full battery into just 32 inches. Southbend’s Platinum Series heavy-duty range delivers legendary Pyromax™ burner performance up front, a high-temperature hot top in back, and a bakery-depth convection oven below—making it the ultimate space-saving workhorse for high-volume restaurants, hotels, and institutions.

Standard Highlights

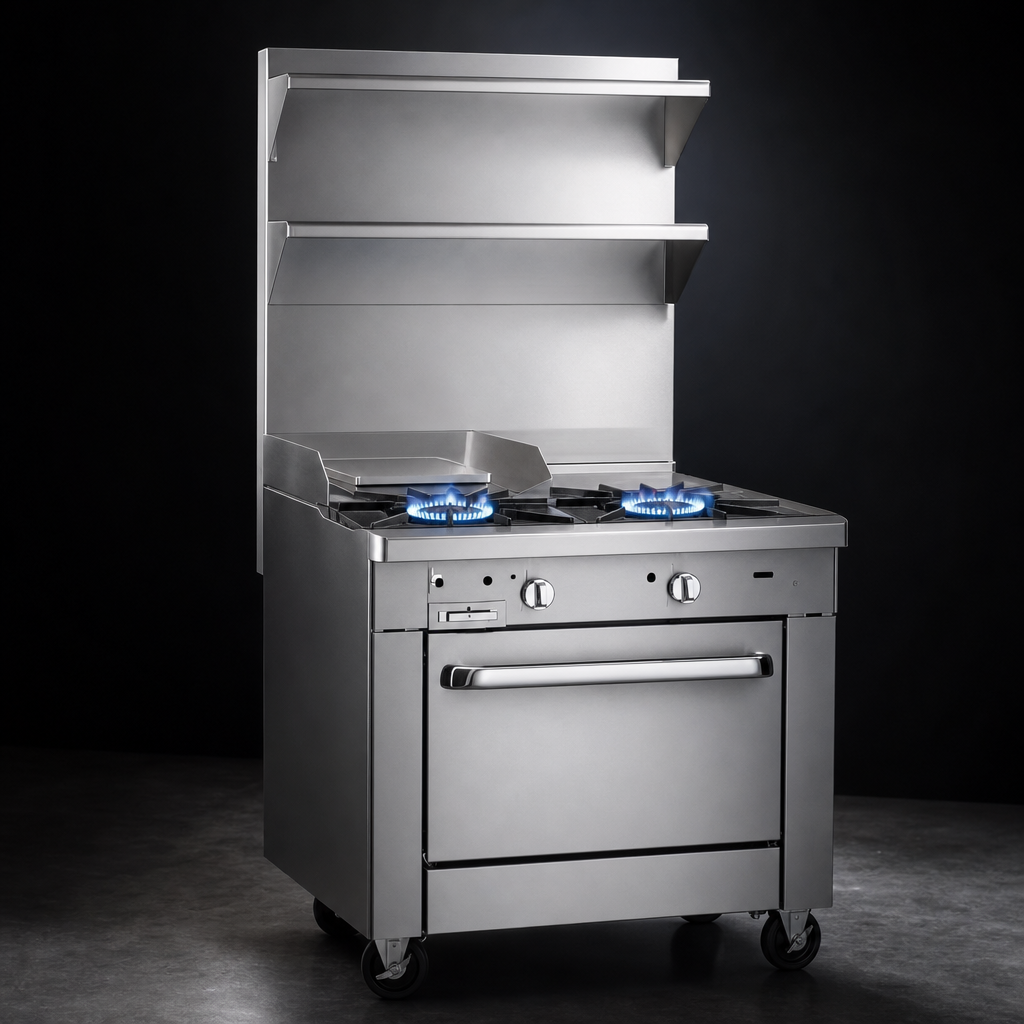

  • (2) 45,000 BTU Pyromax™ clog-free open burners for instant, even heat.
  • 16″ rear hot top powered by (2) 20,000 BTU burners; removable steel plates reach 700 °F.
  • 45,000 BTU convection oven with 3 chrome racks, 5 rack positions, and two-speed ½ HP blower.
  • Manual top controls with battery spark ignition—no standing pilots, lower gas bills.
  • Stainless steel front, sides & 5″ flue riser; 9-¼″ deep front rail keeps the cookline comfortable.
  • 6″ stainless adjustable legs (leveling or curb-mount ready).
  • Fully insulated lining & burner box for cooler, safer kitchen operation.
  • 1-¼″ front / 1″ rear gas manifolds—designed for seamless battery line-ups.
  • CSA & NSF certified; built in Fuquay-Varina, NC, USA.

Performance Specifications

Overall width 32″ (813 mm)
Open burners 2 × 45,000 BTU (90,000 BTU total)
Rear hot top 40,000 BTU (two burners, high/low control)
Convection oven 45,000 BTU – 175 °F – 550 °F
Total output 175,000 BTU/hr
Oven interior (H × W × D) 14″ × 26″ × 24″ – porcelain enamel
Racks included 3 chrome racks, 5 positions
Gas connection 1-¼″ front manifold, 1″ rear NPT; 7″ WC Nat / 11″ WC LP
Electrical (blower) 120 V 1 ph 5.9 A cord-and-plug or 208/240 V 1 ph 2.7 A
Clearances – combustible 10″ sides, 12″ rear (hot top)
Certifications CSA, NSF
Warranty 1-year parts & labor (heavy-duty sectional)

Popular Factory Options

  • 24″ or 36″ flue riser with storage shelf
  • Factory-supplied gas pressure regulator
  • 7-¼″ deep “old-style” front rail or rail cut-outs for sauciers
  • Locking casters or open-frame base with casters
  • Stainless steel oven interior
  • Cable restraint kit for flexible-hose installations
Installation note: Unit must be installed under a vented hood and connected to a regulated gas supply. Follow all local codes. Oversized cookware (12″ Ø+) should be kept to rear positions to protect front-rail components.

Looking for an easy upgrade? Ask us about Middleby equipment financing—fast approvals and fixed monthly payments keep your cash flow cooking.

Features & Specs

Manufacturer

Southbend (Middleby)

Brand_name

Platinum

Certifications

NSF, CSA

Height

41.0in

Width

32.0in

Depth

40.25in

Shipping Weight

710.0lbs

Base

(1) convection oven

Vent

backriser

Top

(2) open burners, (1) 16" hot top

Exterior Finish

stainless steel front & sides

Specifications

Platinum Heavy Duty Range, gas, 32", (2) 45,000 BTU open burners front, (1) 16" hot top rear, manual controls, battery spark ignition, (1) convection oven, includes (3) racks, stainless steel front, sides & 6" adjustable legs, 175,000 BTU, CSA, NSF
