Southbend (Middleby) P32A-XH Platinum Gas Ranges
Description
Southbend Platinum 32" Heavy-Duty Gas Range – 2 Open Burners / 16" Hot Top with Convection Oven (Model P32A-XH)
175,000 BTU total | Battery spark ignition | CSA & NSF ListedCombine Southbend’s legendary Pyromax burners with a blazing 700 °F hot top and a full-size convection oven—all inside a compact 32-inch footprint. The Platinum Series P32A-XH is purpose-built for high-volume, 24/7 kitchens that refuse to compromise on power, precision, or durability.
Why You’ll Love It

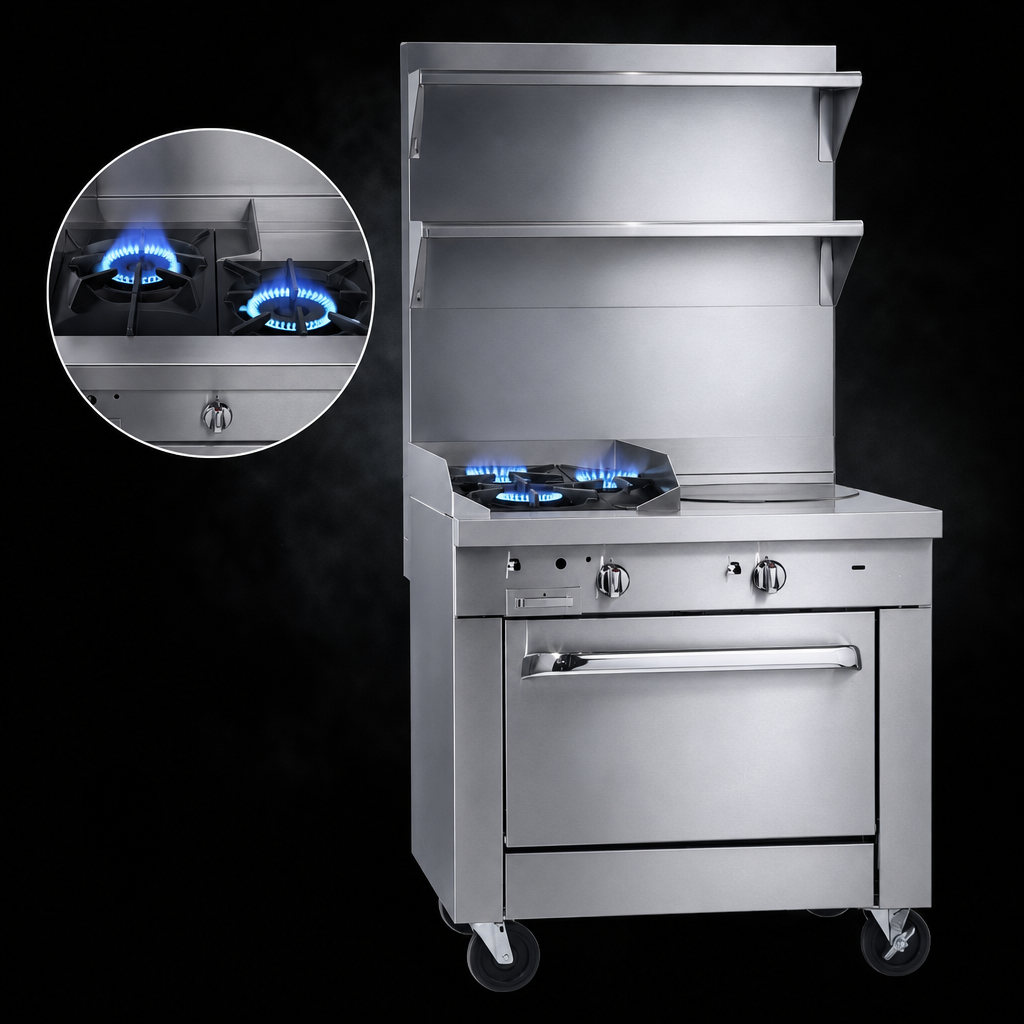

- Two clog-free Pyromax open burners pump out 45,000 BTU each for lightning-fast boils, sears, and sautés.

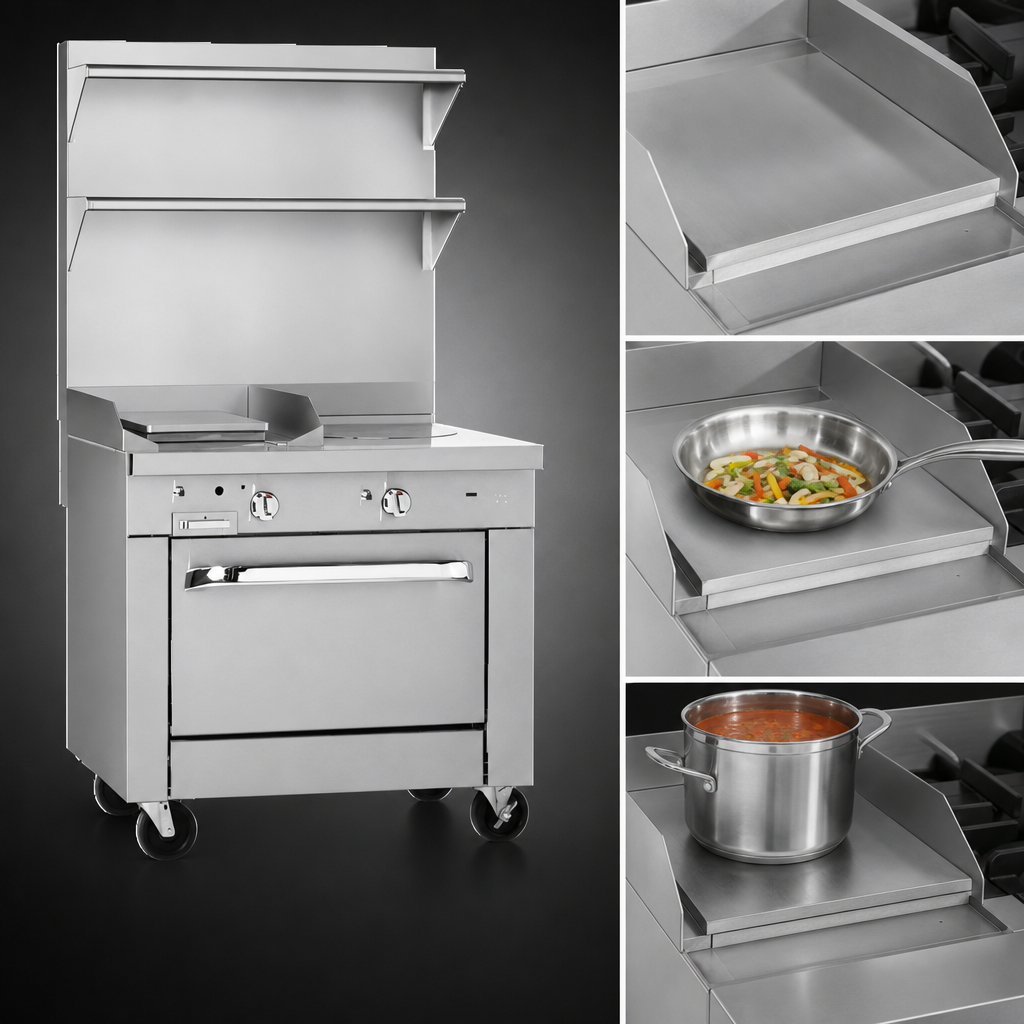

- 16" hot top powered by 40,000 BTU (2 × 20K) burners delivers an even 700 °F surface for holding, finishing, or pan roasting.
- High-performance convection oven (45,000 BTU) with 2-speed fan cooks faster and more evenly than standard ovens.
- Battery spark ignition—no standing pilots—cuts energy costs and lowers kitchen heat.
- Rugged stainless-steel front, sides, flue, and 6" adjustable legs stand up to daily abuse.
- Fully insulated burner box keeps exterior surfaces cooler and boosts efficiency.
- 9 ¼" extra-deep front rail adds plating space while protecting staff from heat.
Cooktop Highlights
- Removable cast-iron top grates & drip tray for fast clean-ups.
- Hot-top plate lifts off for easy access to burners.
- Single high/low valve controls both hot-top burners for precise holding temps.
- 5" stainless flue riser directs exhaust into the hood; accepts optional shelves or salamanders.
Convection Oven Features
- Temperature range: 175 °F – 550 °F (79 °C – 288 °C).
- Porcelain-enamel interior: 14" H × 26" W × 24" D fits full-size sheet pans front-to-back.
- Includes 3 adjustable racks with 5 position guides.
- ½ HP, 2-speed blower motor for even air circulation.
Technical Specs
| Overall Width | 32" (813 mm) |
|---|---|
| Depth (incl. rail) | 37.5" (953 mm) |
| Height to Cook Surface | 37.5" (953 mm) + 5" flue riser |
| Total BTU Input | 175,000 BTU/hr (Natural or LP) |
| Gas Connection | 1 ¼" front manifold, 1" rear NPT; 7" W.C. Nat / 11" W.C. LP minimum |
| Ignition | Battery spark (cooktop & oven) |
| Controls | Manual valves (burners & hot top) + thermostat (oven) |
| Construction | 430/304 stainless front & sides; fully insulated liner |
| Legs | 6" stainless steel, adjustable |
| Certifications | CSA, NSF |
| Warranty | 1-year parts & labor (heavy-duty sectional range) |
| Shipping Weight | Approx. 710 lb (322 kg) |
Optional accessories: gas pressure regulator, flue shelves, casters, salamander broiler, chrome or grooved griddle plates (sold separately).
Upgrade your cookline with the muscle, versatility, and reliability of Southbend’s Platinum Series—and keep the orders flying out of the kitchen.
