Southbend (Middleby) P32A-XG Platinum Gas Ranges

Southbend Platinum 32" Heavy-Duty Gas Range

Built for the toughest, highest-volume kitchens, the Southbend Platinum Series 32" sectional range combines blistering open-flame performance, a versatile manual griddle, and a powerful convection oven in one compact footprint. Stainless-steel construction, patented clog-free Pyromax burners, and a fully-insulated chassis deliver the durability and efficiency today’s chefs demand.

Top-of-Range Advantages

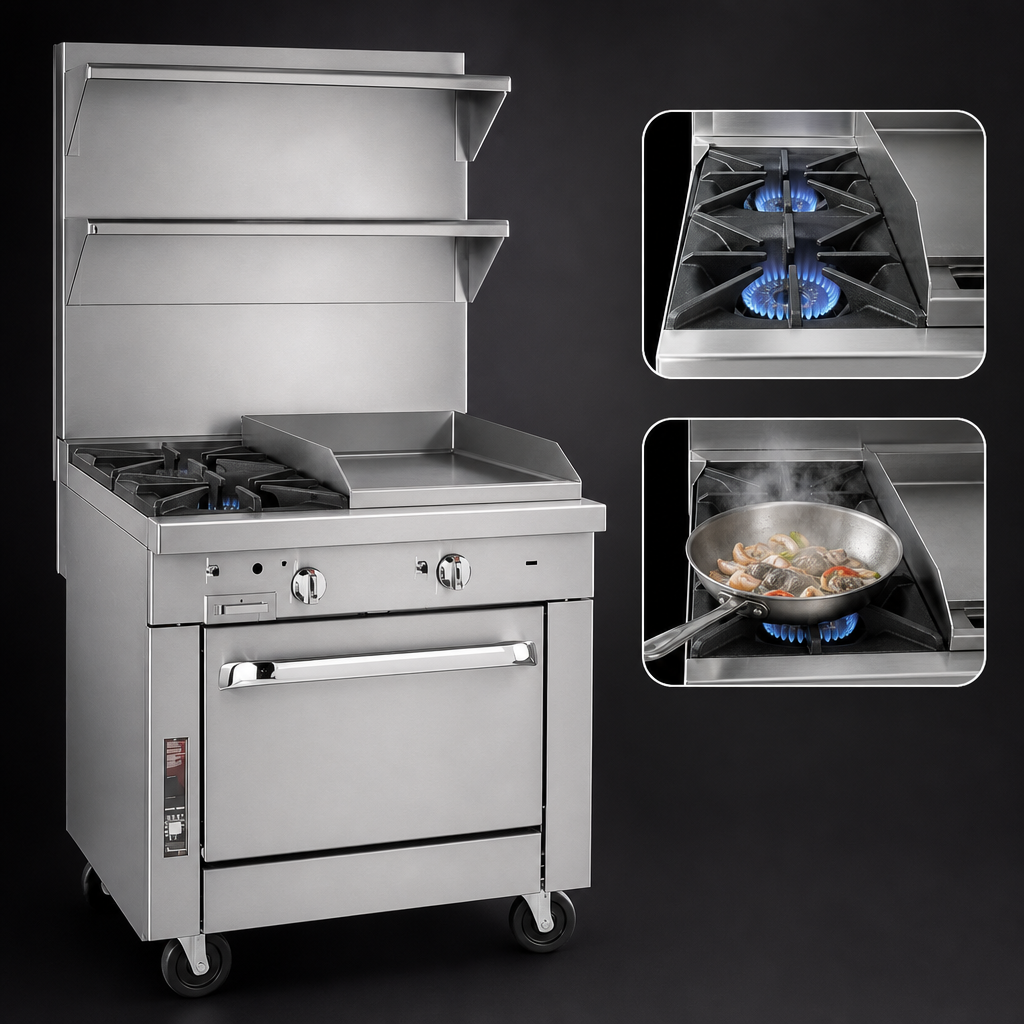

• (2) 45,000 BTU Pyromax™ open burners—patented, clog-free design handles even oversize stock pots with ease.

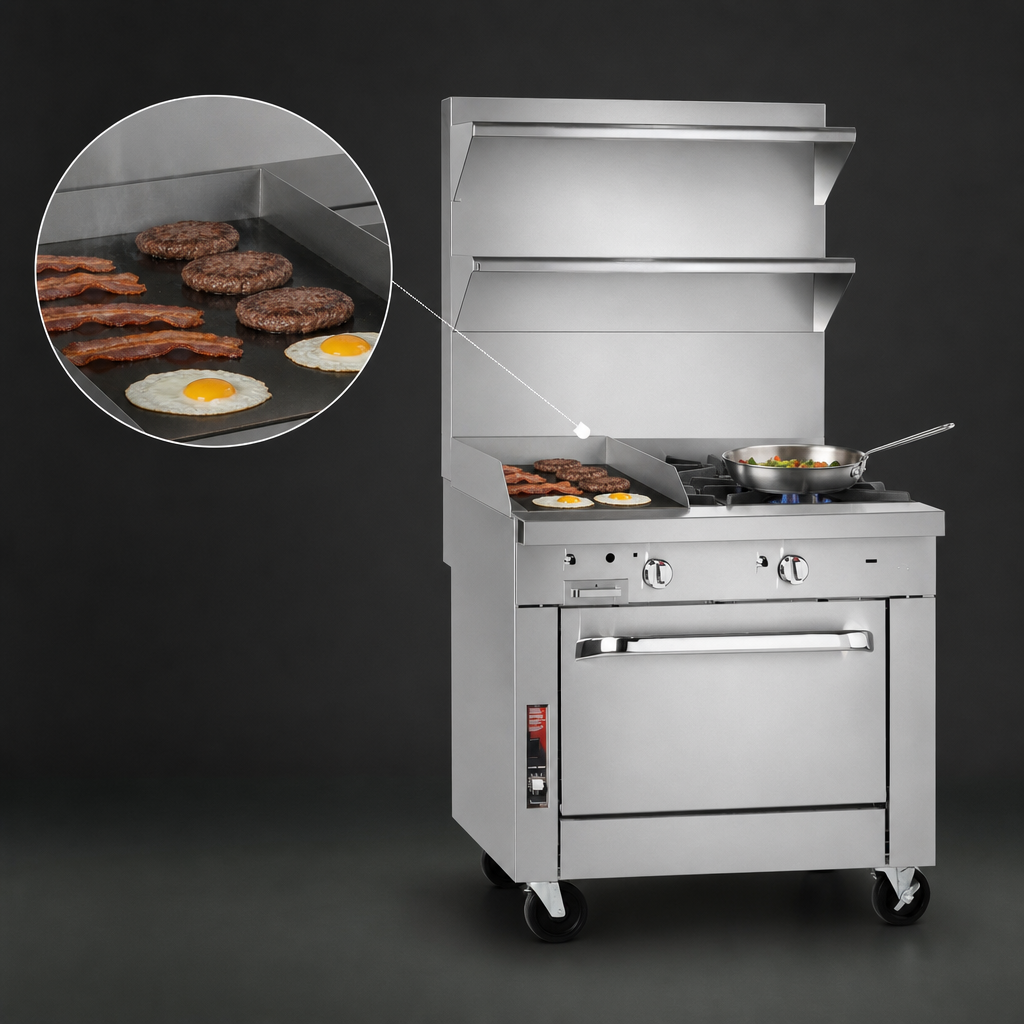

• 16" manual griddle section with 1" thick plate, side/rear splashers, and 40,000 BTU of even heat—perfect for all-day searing and finishing.
• Battery spark ignition on all top sections for match-free lighting—no external power required.
• 9-1/4" deep stainless front rail keeps plates and pans close at hand.
• 5" stainless flue riser efficiently vents heat away from the cooking surface.

High-Performance Convection Oven

• 45,000 BTU oven burner with standing pilot; thermostat range 175 °F – 550 °F (79 °C – 288 °C).
• Porcelain-enamel cavity (14" H × 26" W × 24" D) and three heavy-duty racks with five rack positions.
• Two-speed ½ HP blower motor delivers fast heat-up and even baking from corner to corner.

Built to Last

• Rugged 430/304 stainless steel front, sides, rear & exterior bottom.
• Fully-insulated lining and burner box to keep kitchen temperatures down and efficiency up.
• 6" stainless steel adjustable legs—level the unit on any surface or add optional casters for mobility.
• 1-1/4" front gas manifold couples seamlessly with other Platinum sectional units for battery installations.
• cCSAus, CSA Flame, CSA Star and NSF listed for gas safety and sanitation compliance.

Specifications

Oversize cookware (12" Ø or larger) should be kept to the rear burners to protect controls and front rail, per Southbend guidelines. Full warranty terms are available at the Southbend service site.  View warranty
