Southbend (Middleby) P32A-XC Platinum Gas Ranges
Description
Southbend Platinum 32" Gas Range – 2 Open Burners, 16" Charbroiler & Convection Oven
Model P32A-XC | 175,000 BTU | CSA & NSF CertifiedBuilt for high-volume, high-heat cooking, the Southbend Platinum P32A-XC combines two 45,000 BTU Pyromax open burners, a 16" heavy-duty charbroiler, and a powerful convection oven in one 32" sectional footprint. All-stainless construction, industry-leading 45 K BTU burners and a fully-featured convection oven give you the muscle and flexibility to sear, grill, sauté, roast and bake on a single, space-saving platform.
Highlights at a Glance
- Total input: 175,000 BTU
- (2) Pyromax clog-free open burners – 45,000 BTU each
- 16" manual-control charbroiler with stainless radiants – 40,000 BTU
- Convection oven base – 45,000 BTU, 3 racks included
- 32" heavy-duty sectional frame with 6" stainless adjustable legs
- 5" stainless flue riser keeps heat & smoke headed for the hood
- All stainless front & sides for quick clean-ups and long service life
- 1-year parts & labor warranty, plus free battery-design assistance

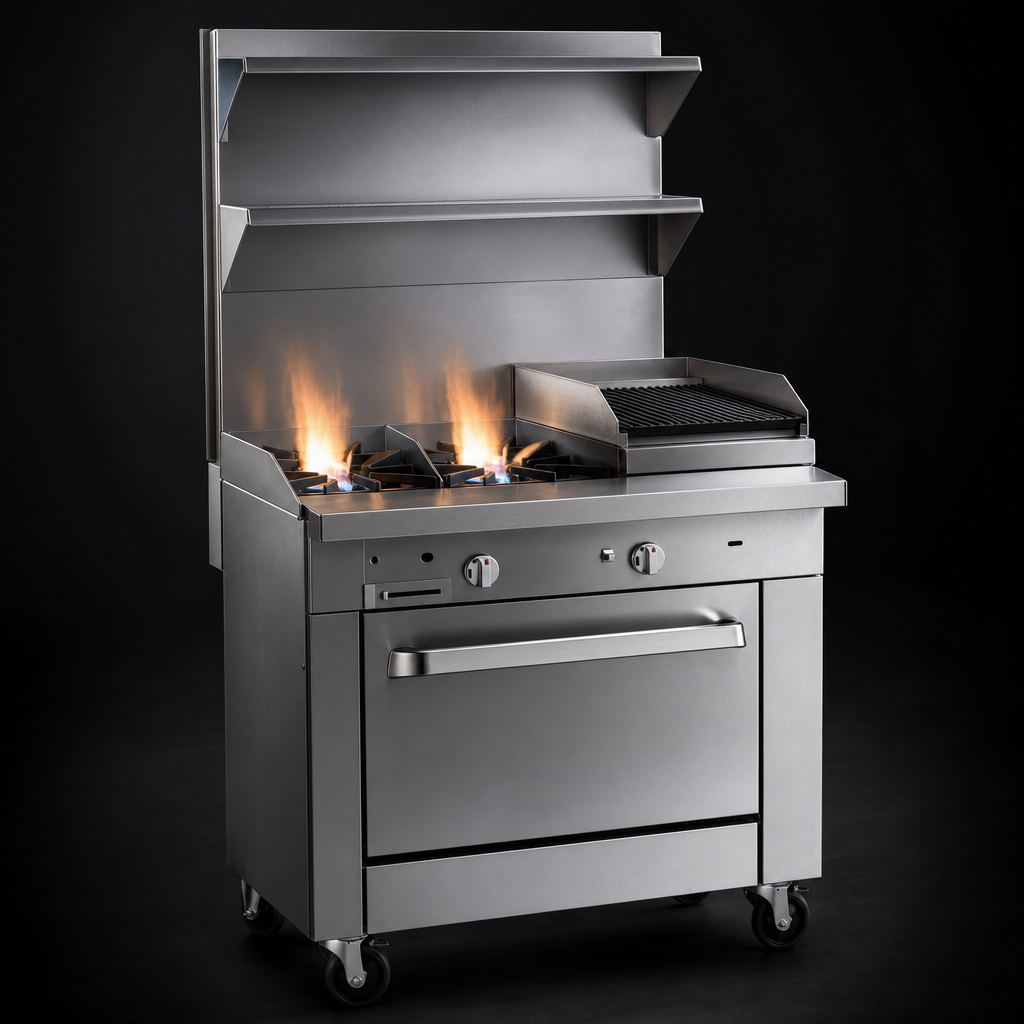

Open Burners
- Two patented Pyromax burners deliver a blistering 90,000 BTU combined
- Cast-iron grates are welded & removable for easy cleaning
- Clog-free design keeps flames consistent under heavy use
- Removable drip tray below the grates simplifies nightly maintenance

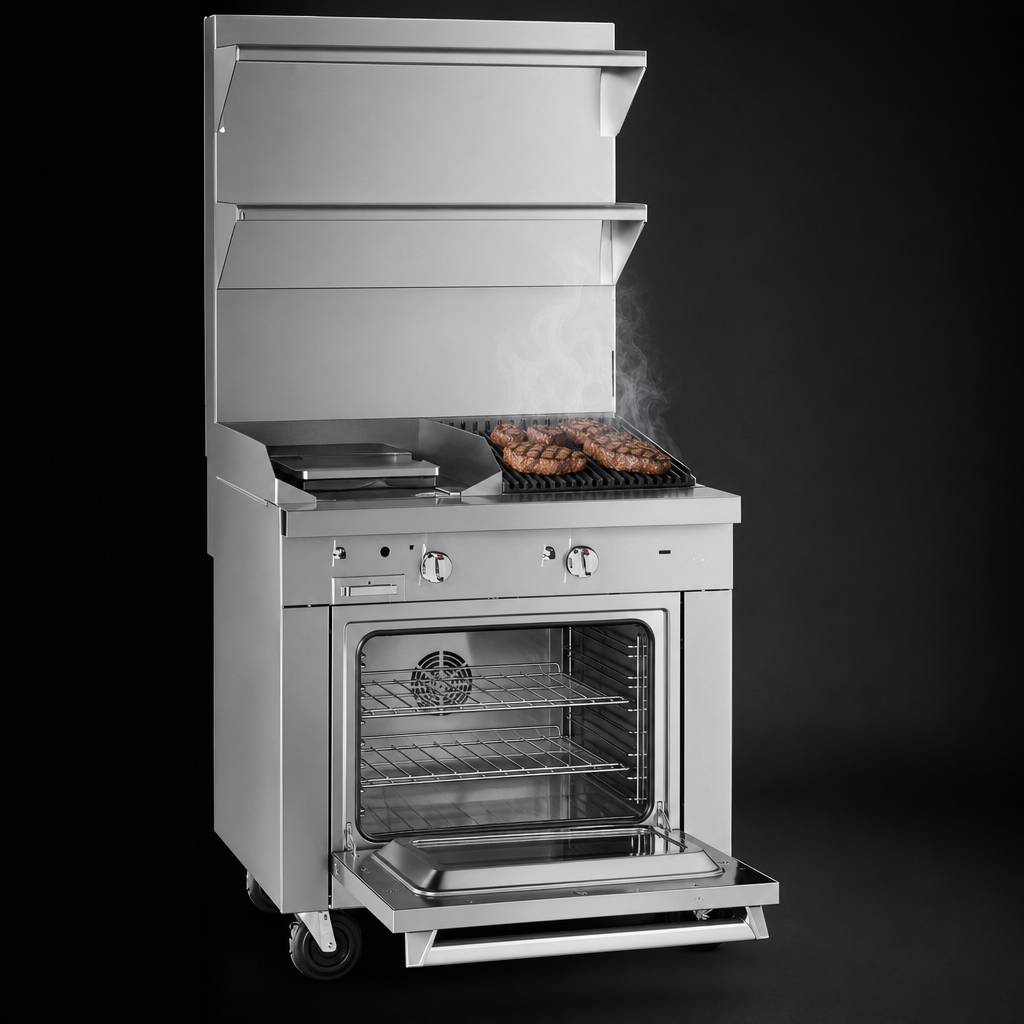

16" Charbroiler Top
- (2) 20,000 BTU burners with a single high/low manual control
- Removable cast-iron grates flip to 1/8" or 1/4" grid width & adjust front-to-back slope
- Stainless steel radiants for even heat distribution up to 600 °F
- Integrated drip tray slides out for fast grease disposal
45 K BTU Convection Oven Base
- Temperature range: 175 °F – 550 °F with standing pilot ignition
- Porcelain enamel interior: 14"H × 26"W × 24"D
- Three heavy-duty racks on 5-position side rails
- Two-speed ½ HP blower for even baking & roasting
Specifications
| Overall width | 32" (813 mm) |
|---|---|
| Depth (front – back) | 37 ½" (953 mm) |
| Height (to cook surface) | 36" working height, 5" flue riser |
| Gas type | Natural or Propane |
| Total BTU input | 175,000 BTU/hr |
| Gas connection | 1 ¼" front manifold, 1" rear male NPT |
| Electrical (convection fan) | 120 V, 1-phase, 5.9 A, 7-ft cord & plug |
| Certifications | CSA Flame, CSA Sanitation, NSF |
| Warranty | 1-year parts & labor |
Optional Upgrades (sold separately)
- 24" or 36" flue risers with single or double shelves
- Factory-installed casters & restraining cable kit
- Chrome or grooved griddle plates (when configured with griddle)
- External gas pressure regulator
- Electronic oven pilot ignition
For commercial installation only. Always consult local codes and a licensed professional for gas & electrical hook-ups.
