Description

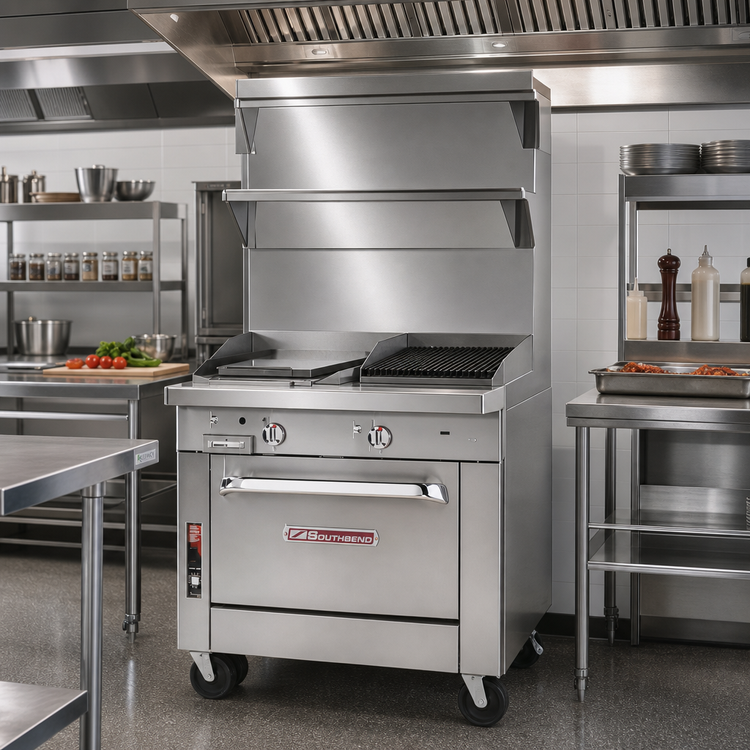

Southbend Platinum 32" Heavy-Duty Gas Range – Griddle/Charbroiler & Convection Oven

Model P32A-G/TC | 125,000 BTU | NSF, cCSAus, CSA Flame & Star

Put two powerhouse cooktops and a full-size convection oven in a single 32" footprint. The Southbend Platinum Series delivers searing heat, precise griddle control and rapid, even baking – all wrapped in heavy-gauge stainless steel built for the most demanding kitchens.

Top Reasons to Choose Platinum

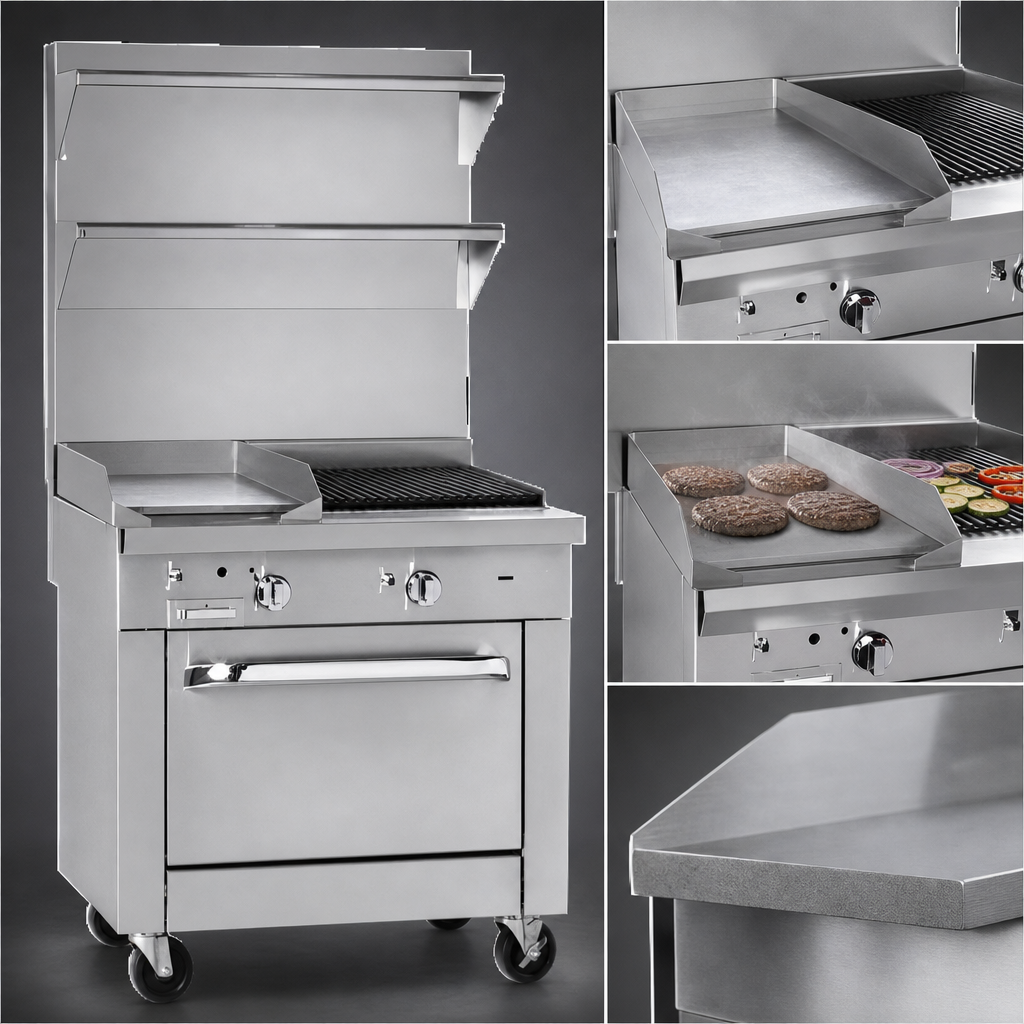

  • Combo cooktop: 16" thermostatic griddle + 16" radiant charbroiler.
  • Insta-On thermostatic griddle control holds 180 – 400 °F on a massive 1" plate.
  • Charbroiler hits a consistent 600 °F with slope-adjustable, reversible cast-iron grates.
  • 45,000 BTU convection oven with three racks & two-speed blower for fast, even results.
  • Battery spark ignition for match-free starts; standing pilot in oven (electric ignition optional).
  • All-stainless front, sides, flue & 6" adjustable legs – easy to clean, built to last.
  • 9 ¼" deep front rail, lift-off grates and full-width drip/grease drawers simplify cleanup.

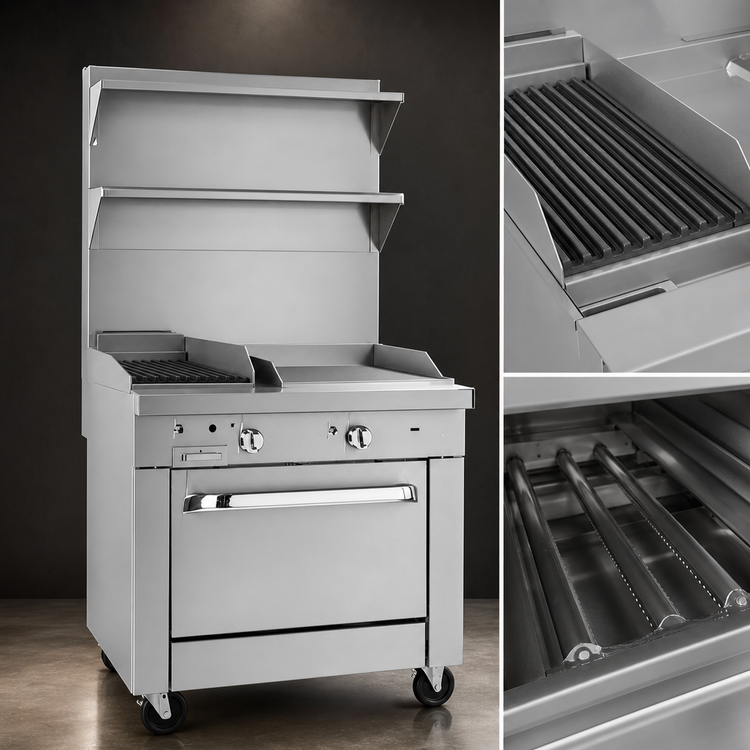

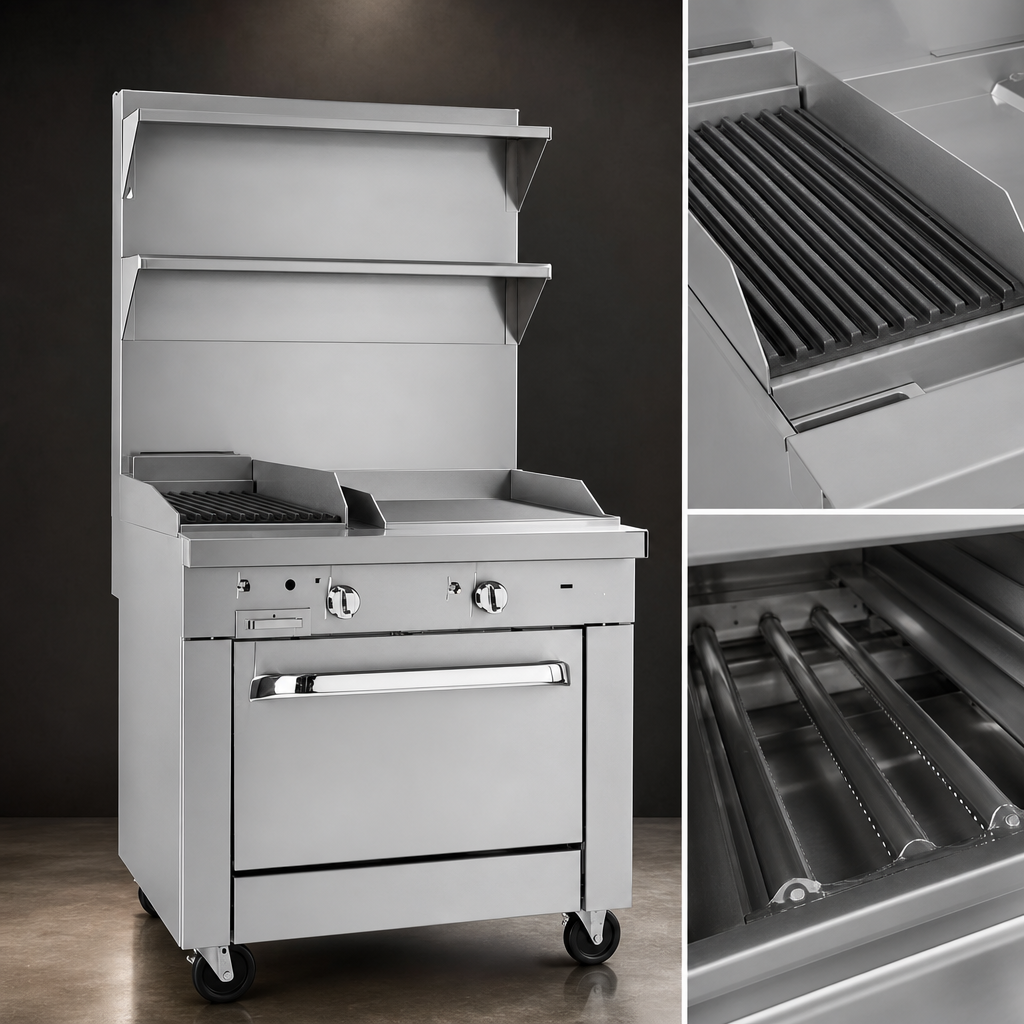

Charbroiler Highlights

  • 2 × 20,000 BTU stainless burners with independent high/low control.
  • Reversible grates provide ⅛" or ¼" branding and front-to-back slope adjustment.
  • Stainless steel radiants for superior heat retention and corrosion resistance.
  • Removable drip tray for fast, mess-free maintenance.

Griddle Highlights

  • 2 × 20,000 BTU burners under a seamless 1" thick plate.
  • Snap-action thermostat reacts instantly to load changes.
  • Side & rear splashers contain splatter; extra-deep stainless grease drawer lifts out for dumping.

Convection Oven Base

  • 45,000 BTU burner with 175 – 550 °F thermostat range.
  • 14"H × 26"W × 24"D porcelain-enameled chamber resists corrosion & wipes clean.
  • (3) nickel-plated racks, 5-position side rails.
  • ½ HP two-speed blower ensures uniform browning and shorter cook times.

Specifications

Overall Width 32" (813 mm)
Depth 37.5" (953 mm)
Height (to cooktop / with 5" flue) 37.5" / 40" (953 / 1,016 mm)
Total Input 125,000 BTU/hr (Natural gas)
Top Configuration 16" thermostatic griddle (40k BTU) + 16" radiant charbroiler (40k BTU)
Oven 45k BTU convection, 175 – 550 °F, (3) racks
Gas Connection 1 ¼" front manifold coupler, 1" rear NPT; 7" W.C. NAT / 11" W.C. LP minimum
Electrical (oven blower) 120 V, 5.9 A cord & plug (208/240 V, 2.7 A terminal block optional)
Construction Stainless steel front, sides, flue & legs; fully insulated burner box
Shipping Weight ≈ 800 lb (363 kg)
Certifications NSF, cCSAus, CSA Flame, CSA Star

Popular Options & Accessories

  • Chrome-plated or grooved griddle surface
  • 24" or 36" flue riser with single or double shelves
  • Cast-iron fish grids for charbroiler
  • Casters or open-frame base with casters
  • External gas pressure regulator & flexible hose restraint kit
  • Electronic oven pilot ignition (no-charge option)
Important installation notes:
• Charbroiler sections are approved for non-combustible locations only.
• Maintain 10" side and 12" rear clearance from combustibles for griddle units.
• Do not allow oversized cookware to overlap the front rail – heat damage is not covered under warranty.
• Install under a vented hood with a properly sized gas regulator, following all local codes.

Warranty

Southbend backs every Platinum heavy-duty sectional range with a 1-year limited parts & labor warranty. Extended coverage and factory start-up services are available – ask your dealer for details.

Features & Specs

Manufacturer

Southbend (Middleby)

Brand_name

Platinum

Certifications

NSF, cCSAus, CSA Star, CSA Flame

Height

41.0in

Width

32.0in

Depth

40.25in

Shipping Weight

800.0lbs

Plate Thickness

1.000" = 1"

Vent

backriser

Base

(1) convection oven

Top

(1) 16" griddle with thermostat, (1) 16" charbroiler

Exterior Finish

stainless steel front & sides

Specifications

Platinum Heavy Duty Range, gas, 32", (1) 16" griddle, 1" thick plate, (1) 16" charbroiler, cast iron grates, thermostatic controls, battery spark ignition, (1) convection oven, includes (3) racks, stainless steel radiants, front, sides & 6" adjustable legs, 125,000 BTU, cCSAus, CSA Flame, CSA Star, NSF
