Southbend (Middleby) P32A-HT Platinum Gas Ranges
Description

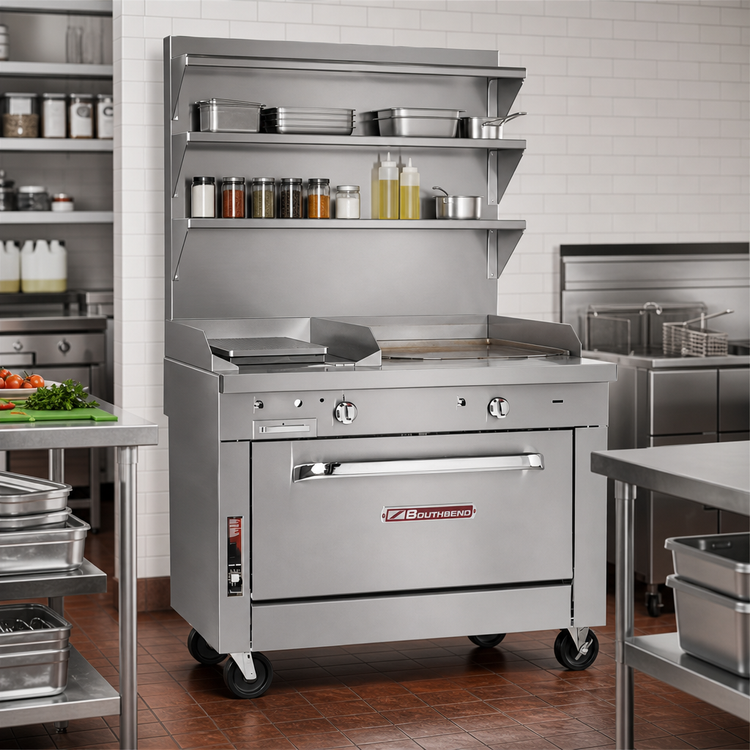

Southbend Platinum Series 32" Heavy-Duty Gas Range
Hot Top • Thermostatic Griddle • Convection Oven | Model P32A-HG/TEngineered for the most demanding commercial kitchens, the 32" Platinum Series sectional range packs a high-output hot top, a precision-controlled griddle, and a full-size convection oven into a single, battery-ready footprint. From soups and sauces to perfectly seared proteins and golden-brown baked goods, it delivers the versatility your line depends on—shift after shift.
Performance highlights
- 125,000 BTU total output (natural gas) for maximum productivity

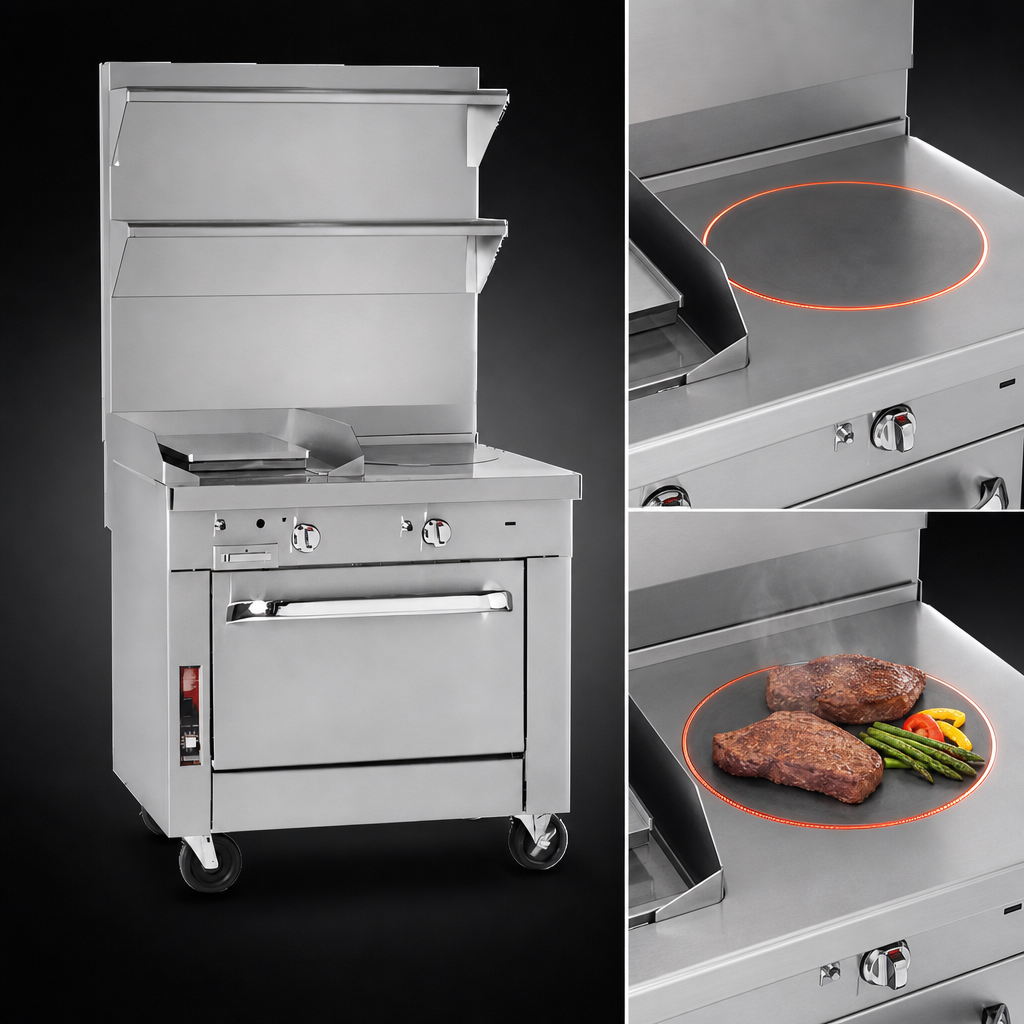

- 16" Hot Top – two 20 k BTU burners, high/low control, 700 °F surface

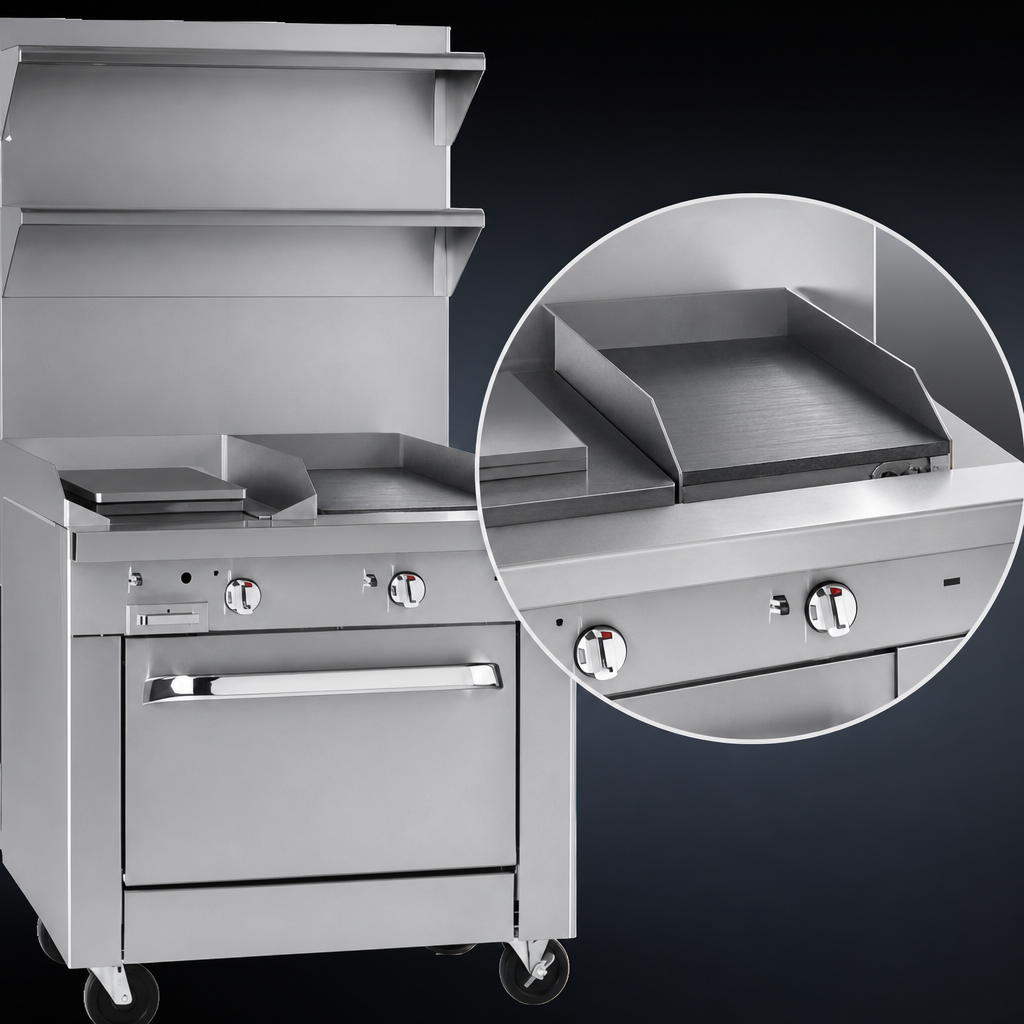

- 16" Thermostatic Griddle – two 20 k BTU burners, 1" thick plate, 180–400 °F range
- 45 k BTU Convection Oven – 175–550 °F, two-speed ½ hp blower, porcelain interior
- Battery spark ignition eliminates matches & pilot relighting
- Stainless steel front, sides, exterior bottom & 9-¼" deep rail
- 5" stainless flue riser directs heat to your hood system
- (3) chrome racks on 5-position rails included
- 6" adjustable stainless steel legs standard; caster-ready
Specification sheet
| Overall width | 32" (813 mm) |
|---|---|
| Depth (to rail) | 37 ½" (953 mm) |
| Height w/ legs | 36" (914 mm) cooking surface |
| Flue riser height | 5" (127 mm) |
| Top configuration | 16" hot top + 16" thermostatic griddle, 1" plate |
| Temperature ranges | Hot top to 700 °F • Griddle 180–400 °F • Oven 175–550 °F |
| Total BTU | 125,000 BTU (NAT) / 117,000 BTU (LP) |
| Gas connection | 1 ¼" front manifold, 1" rear male NPT – min. 7" W.C. NG / 11" W.C. LP |
| Electrical (oven blower) | 120 V, 1-ph, 5.9 A cord & plug 208/240 V, 1-ph, 2.7 A terminal block |
| Oven interior | 14" H × 26" W × 24" D porcelain enamel |
| Certifications | NSF • cCSAus • CSA Flame • CSA Star |
| Approx. ship weight | 710 lb (322 kg) |
| Warranty | 1-year parts & labor (commercial use) |
Ideal for
- Full-service & chain restaurants
- Hotels, resorts & banquet operations
- Catering commissaries and ghost kitchens
- Institutional foodservice—schools, healthcare, corrections
What’s in the box
- Southbend Platinum 32" gas range (hot top + thermostatic griddle + convection oven)
- (3) oven racks
- 5" stainless steel flue riser
- 6" adjustable legs (installed)
- Owner’s manual & warranty packet
Designing a battery line? Southbend offers complimentary layout assistance. Contact us for details.
