Southbend (Middleby)  |  Platinum  |  SKU: P32A-HH

Southbend (Middleby) P32A-HH Platinum Gas Ranges

$15,982.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options

Documents

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

Southbend Platinum Series 32" Heavy-Duty Gas Range

Dual 16" Uniform Hot Tops • Convection-Oven Base • 125,000 BTU

Engineered for relentless commercial use, the Southbend Platinum P32A-HH packs even heat, rock-solid construction and a high-performance convection oven into a single 32-inch footprint—ideal for busy restaurants, hotels and institutional kitchens that refuse to compromise on throughput or consistency.

Why You’ll Love It

  • Even-Heating Dual Hot Tops – Two 16" uniform plates reach 700 °F for all-over searing, sautéing or holding without hotspots.
  • Battery Spark Ignition – Reliable, match-free starts at the push of a button.

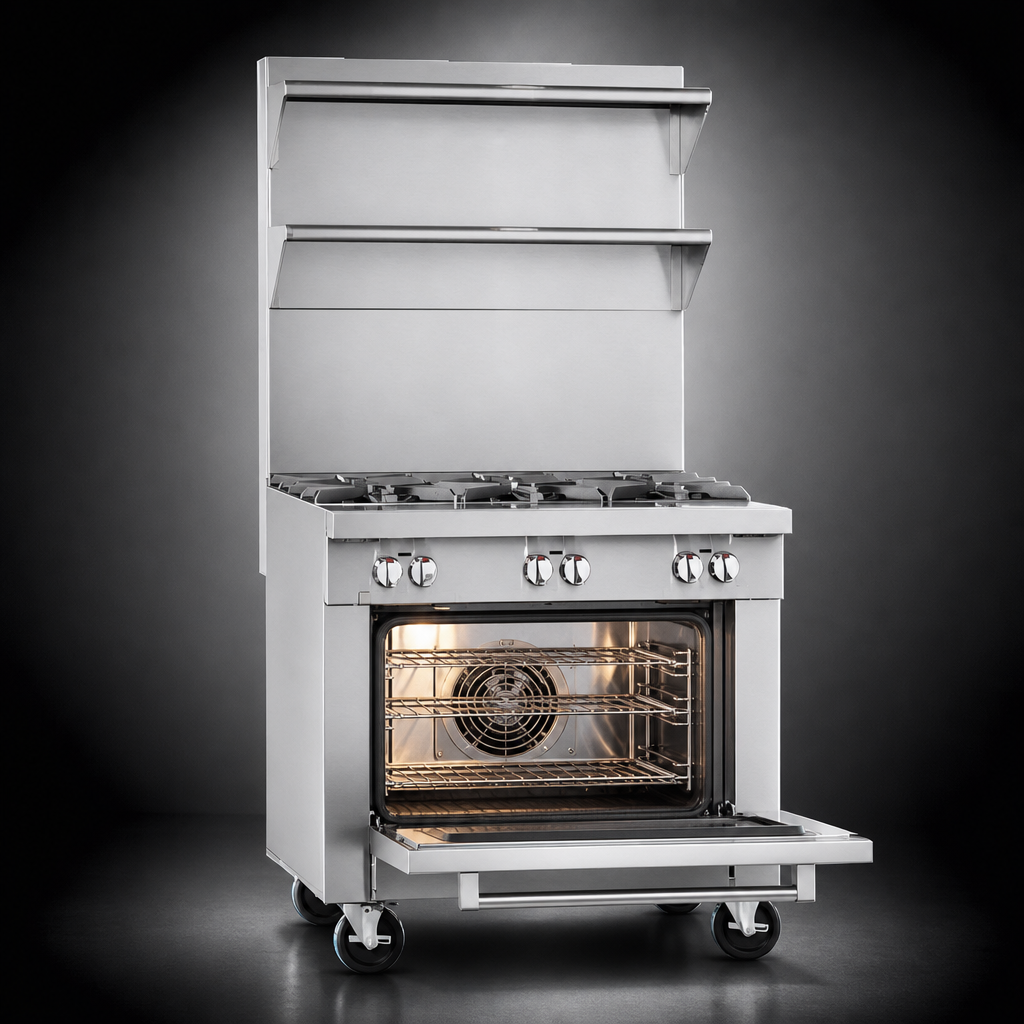

  • 45 kBTU Convection Oven – ½ HP, two-speed blower circulates heat around three full-size sheet pans (included) for faster, more even bakes and roasts.
  • Rugged Stainless Build – Front, sides, rear and exterior bottom are all 400-series stainless steel for maximum durability and easy cleanup.
  • Space-Saving 32" Width – Fits seamlessly into a Platinum battery or stands alone on 6" adjustable legs.
  • Simple Manual Controls – Intuitive high/low knobs give chefs instant command of four 20 kBTU burners beneath the hot tops.
  • Certifications You Trust – CSA & NSF listings meet today’s strictest safety and sanitation codes.
  • 1-Year Parts & Labor Warranty – Backed by Southbend’s nationwide network of authorized service agencies.

At-a-Glance Specifications

Model P32A-HH
Gas Type Natural or Propane (field convertible)
Total Input 125,000 BTU/h
(80 kBTU hot tops + 45 kBTU convection oven)
Cooking Surface (2) 16" removable steel plates, 700 °F max
Oven Interior (WxDxH) 26" × 24" × 14" porcelain enamel
Oven Racks / Positions 3 racks / 5 positions
Exterior Dimensions (WxDxH) 32" × 37.5" × 43.5" (to top of 5" flue riser)
Gas Connections 1¼" front manifold • 1" rear NPT male
Electrical Not required (standing oven pilot & battery spark top ignition)
Ship Weight 670 lb
Certifications CSA, NSF

Perfect For

  • High-volume line cooking where multiple pans must be held at precise temps
  • Scratch kitchens seeking a compact yet powerful bake/roast solution
  • Caterers and hotels building Platinum batteries for future expansion
  • Institutional foodservice that needs bulletproof construction and parts availability
One-year parts & labor warranty. Intended for commercial use only.
Important: This appliance must be installed under a vented hood and supplied with a regulated gas source. Maintain 10" side and 12" rear clearance from combustible surfaces. Always keep oversized cookware off the front rail to prevent heat damage.

Features & Specs

Manufacturer

Southbend (Middleby)

Brand_name

Platinum

Certifications

NSF, CSA

Height

41.0in

Width

32.0in

Depth

40.25in

Shipping Weight

670.0lbs

Exterior Finish

stainless steel front & sides

Base

(1) convection oven

Vent

backriser

Top

(2) hot tops

Specifications

Platinum Heavy Duty Range, gas, 32", (2) 16" uniform hot tops, manual controls, battery spark ignition, (1) convection oven, includes (3) racks, stainless steel front, sides, exterior bottom & 6" adjustable legs, 125,000 BTU, CSA, NSF
