Southbend (Middleby) P32A-HG Platinum Gas Ranges
$18,449.00
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Southbend (Middleby) P32A-HG Platinum Gas Ranges is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Southbend (Middleby) P32A-HG Platinum Gas Ranges
$18,449.00
Unit price
/
Unavailable
Description

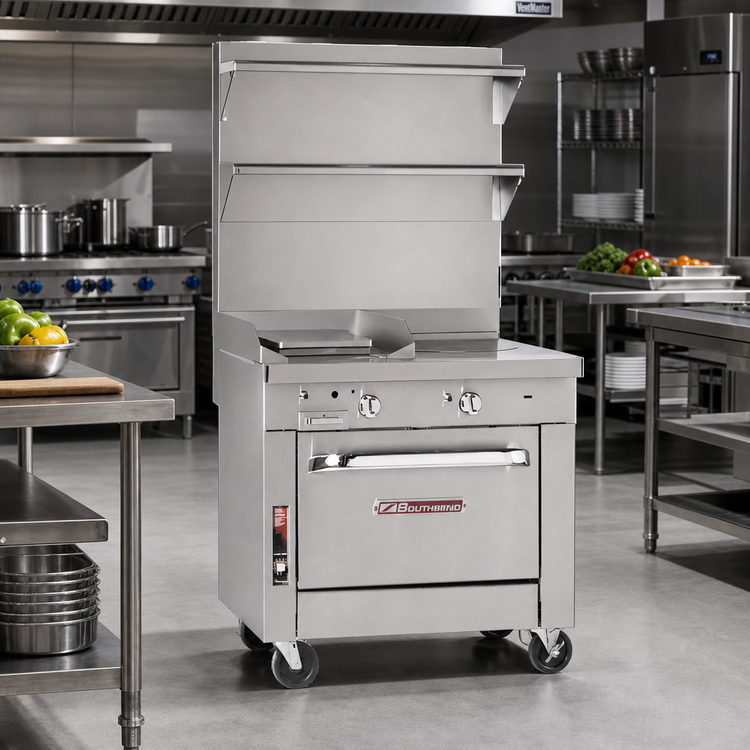

Southbend Platinum 32" Heavy-Duty Gas Range
16" Hot Top • 16" Manual Griddle • Convection Oven BaseBuilt for high-volume kitchens that refuse to compromise, the Platinum 32" combination range unites rapid sautéing, even griddling, and turbo-charged convection baking in one stainless-steel powerhouse.
Key Benefits
- Dual cooking surfaces: 16" hot top + 16" griddle let you sear, simmer, and grill without swapping equipment.

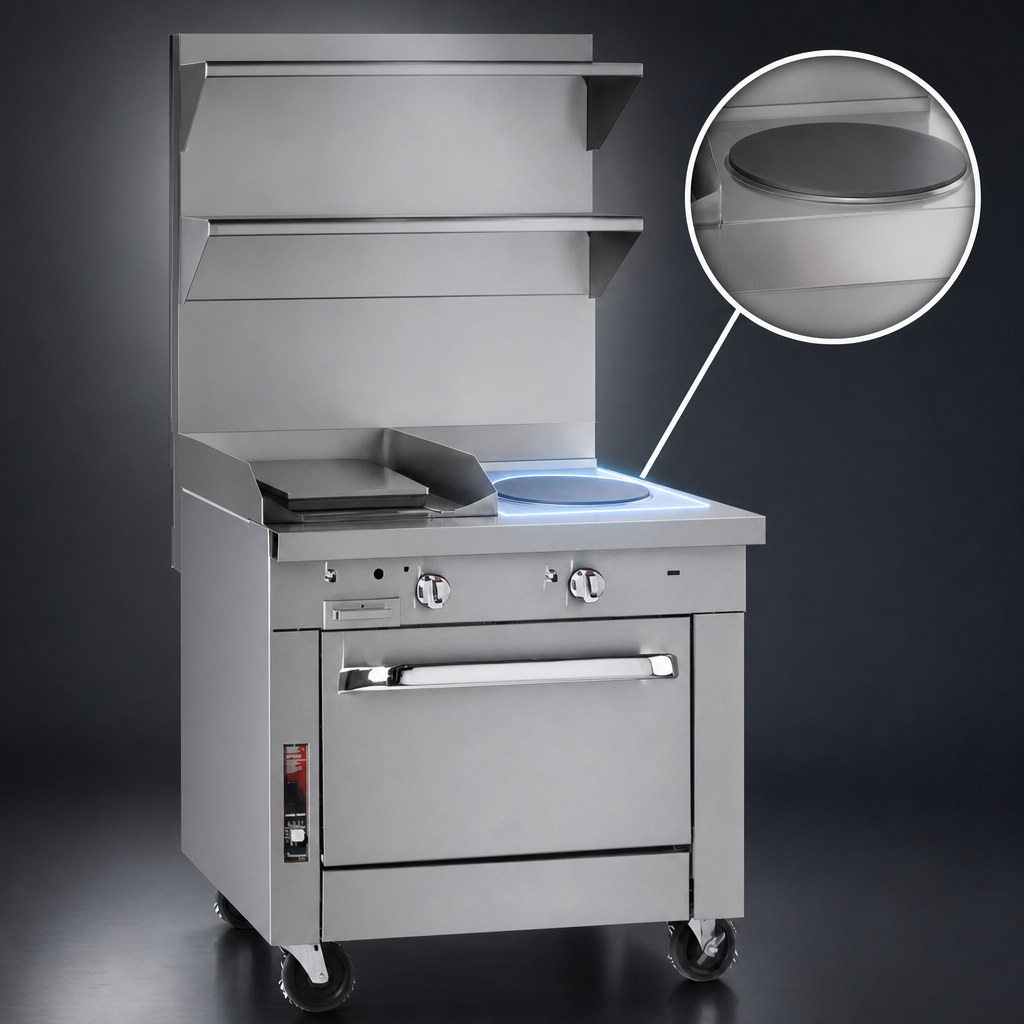

- Hot Top: two 20,000 BTU burners with HI/LO control heat removable steel plates to ≈700 °F.

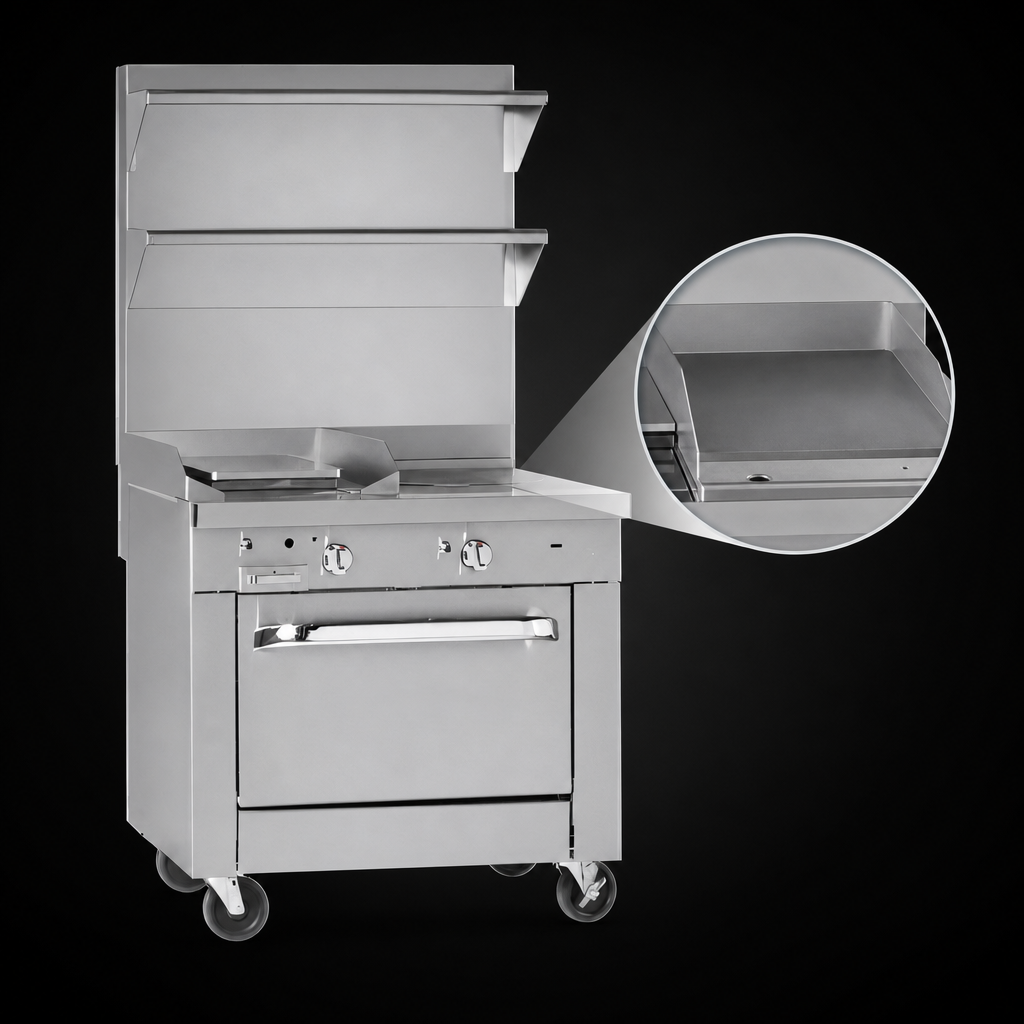

- Manual Griddle: two 20,000 BTU burners under a 1" thick steel plate with side & rear splashers; perfect for all-day breakfast or smash burgers.
- Battery spark ignition on the top section—no standing pilots means energy savings and safer start-ups.
- 45,000 BTU convection oven circulates heat with a ½ hp, two-speed blower for faster, even baking; three nickel-plated racks included.
- Rugged stainless steel front, sides, and 9-¼" deep rail stand up to the toughest shifts and simplify wipe-downs.
- 6" stainless steel adjustable legs plus a 5" flue riser for easy alignment under your hood.
Performance & Certifications
- Total input: 125,000 BTU/h (natural gas).
- Certified: cCSAus, CSA Flame, CSA Star, NSF.
- One-year limited parts & labor warranty backed by Southbend’s nationwide service network.
Technical Specifications
| Overall Width | 32" / 813 mm |
|---|---|
| Overall Depth | 37-½" / 953 mm |
| Working Height | 36" / 914 mm (with legs) |
| Hot Top Output | 40,000 BTU/h |
| Griddle Output | 40,000 BTU/h |
| Convection Oven Output | 45,000 BTU/h |
| Oven Interior (H × W × D) | 14" × 26" × 24" / 356 × 660 × 610 mm |
| Gas Connection | 1-¼" front manifold; 1" rear NPT |
| Electrical (blower) | 120 V, 5.9 A, 7-ft cord & plug |
| Construction | Stainless steel front, sides, rear & bottom; fully insulated burner box |
Included with Your Range
- (3) nickel-plated convection oven racks
- 5" stainless steel flue riser (installed)
- Operator’s manual & quick-start guide
- One-year parts & labor warranty
A regulated gas supply of 7" W.C. (natural) or 11" W.C. (propane) is required. Professional installation under a vented hood is mandatory.
Cleaning Tip: Never place a sheet pan over the griddle while burners are on—
reflected heat can damage components and void your warranty. Scrape and season the
plate according to the manual for best results.
Features & Specs
Features & Specs
Manufacturer
Southbend (Middleby)
Brand_name
Platinum
Certifications
NSF, cCSAus, CSA Star, CSA Flame
Height
41.0in
Width
32.0in
Depth
40.25in
Shipping Weight
800.0lbs
Plate Thickness
1.000" = 1"
Exterior Finish
stainless steel front & sides
Base
(1) convection oven
Vent
backriser
Top
(1) 16" hot top, (1) 16" griddle
Specifications
Platinum Heavy Duty Range, gas, 32", (1) 16" hot top, (1) 16" griddle, 1" thick plate, manual controls, battery spark ignition, (1) convection oven, includes (3) racks, stainless steel front, sides & 6" adjustable legs, 125,000 BTU, cCSAus, CSA Flame, CSA Star, NSF
