Southbend (Middleby) P32A-HC Platinum Gas Ranges
Description
Southbend Platinum Series 32" Heavy-Duty Gas Range
Model P32A-HC – 16" Hot Top • 16" Charbroiler • Convection Oven BaseEngineered for round-the-clock production, the Platinum P32A-HC combines two high-performance cooktop stations with a 45,000 BTU convection oven, delivering 125,000 total BTU in just 32 inches of floor space. From flash-seared steaks to evenly baked pastries, this all-stainless workhorse keeps pace with the most demanding commercial kitchens.
Why You’ll Love It

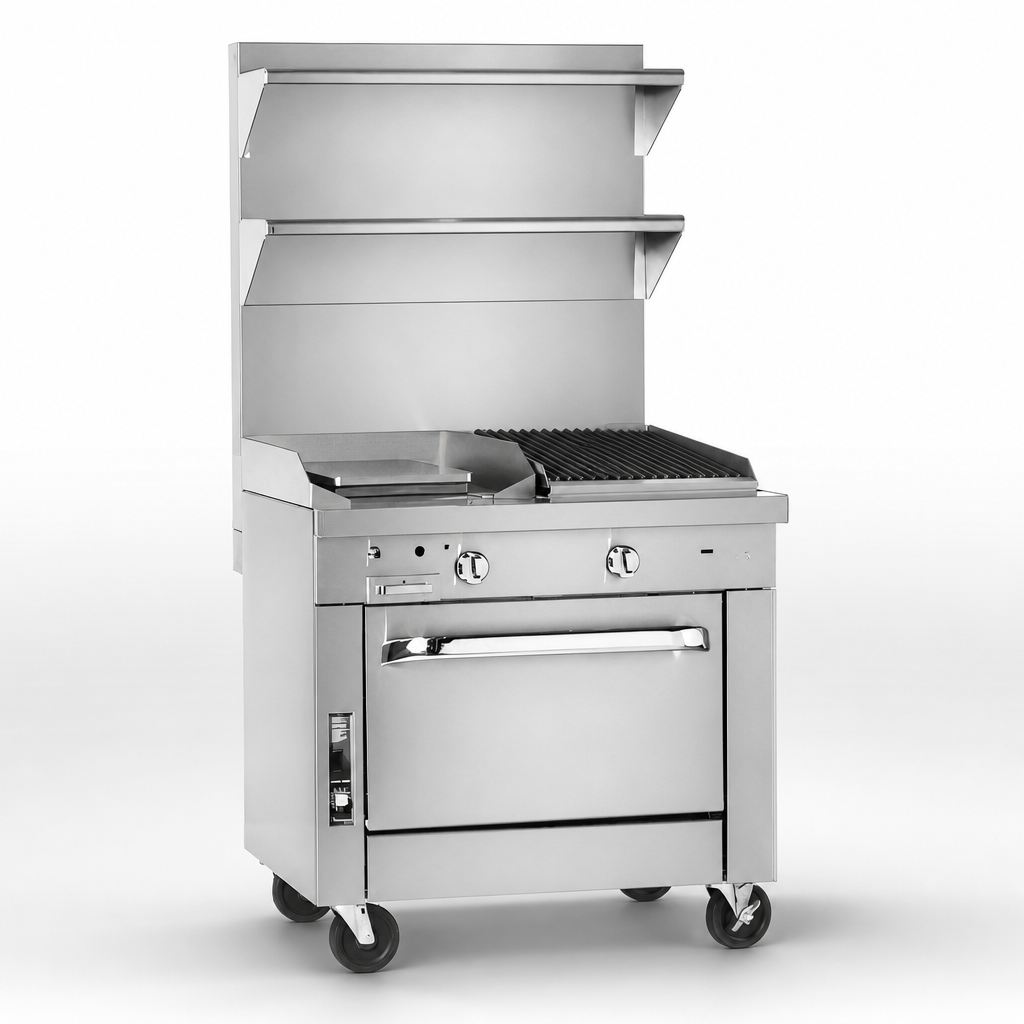

- Dual Cooking Stations – 16" hot top reaches 700°F for stock pots, sauté pans and more, while the 16" charbroiler hits 600°F for perfect grill marks.
- Heavy-Duty Power – Two 20,000 BTU NAT burners under each section, plus a 45,000 BTU oven burner, all with manual hi/lo controls.

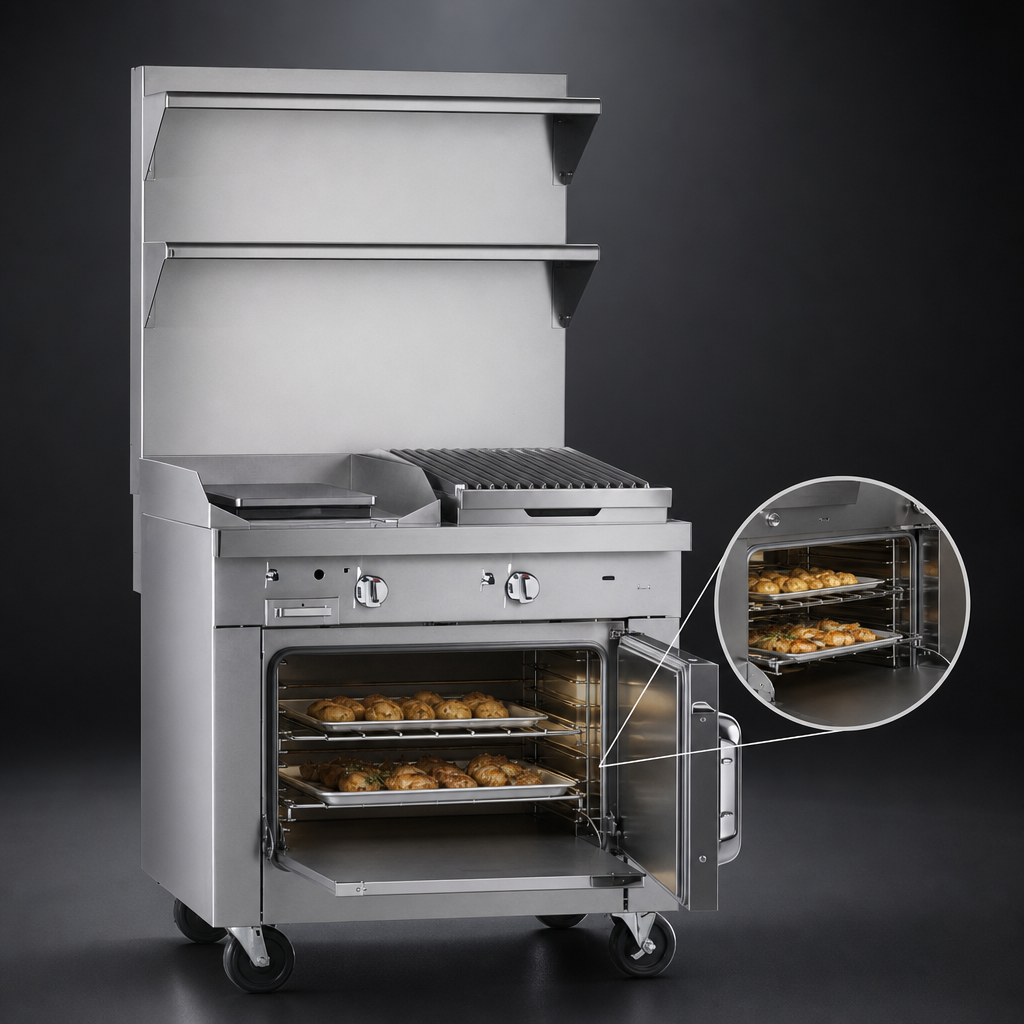

- True Convection Baking – ½ hp, two-speed blower circulates heat across three adjustable racks inside a porcelain-enameled cavity (14"H x 26"W x 24"D).
- Rugged Construction – 430/304 stainless front, sides, rear and bottom, removable cast-iron grates, stainless radiants and 6" adjustable legs.
- Sectional Flexibility – 1¼" front gas manifold mates with other Platinum units; 1" rear NPT connection simplifies installation.
- Certified & Protected – CSA-Gas, NSF listed and backed by a 1-year parts & labor warranty.
Performance at a Glance
| Input BTU (Natural) | Hot Top 40,000 | Charbroiler 40,000 | Convection Oven 45,000 | Total 125,000 |
|---|---|
| Cooking Surface | Removable steel hot-top plates; flip-over cast-iron charbroiler grates with adjustable slope |
| Temperature Range | Hot Top up to 700°F • Charbroiler up to 600°F • Oven 175–550°F |
| Oven Capacity | 3 full-size sheet pans on 5-position rack guides |
| Exterior Dimensions | 32"W x 37 ½"D x 40"H* (to top of 5" flue riser) *Height excludes any optional flue extensions. |
| Gas Connection | 1 ¼" front manifold (battery) • 1" rear male NPT |
| Shipping Weight | Approx. 710 lb (322 kg) |
| Certifications | CSA Gas, NSF |
| Warranty | 1 year parts & labor (heavy-duty sectional range) |
Built to Go the Distance
- Fully insulated burner box and oven cavity for energy efficiency.
- 9 ¼" deep stainless front rail keeps plating areas comfortable and safe.
- Battery spark ignition on hot-top and charbroiler burners – no standing pilots on the cooktop.
- 5" stainless flue riser directs heat into your hood system for a cooler kitchen.
• Range must be placed under a vented hood in a non-combustible location.
• Avoid cookware larger than 12" diameter on the front hot-top section to prevent damage to the front rail.
• Do not use sheet pans to cover the charbroiler while burners are on; reflected heat can cause irreparable damage.
