Southbend (Middleby)

Southbend Platinum 32-Inch Gas Sectional Range with Full-Width Graduated Hot Top and Convection Oven Base

SKU: P32A-GRAD
$16,204.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Butane Stove Cooking Equipment Cooking Equipment Countertop Cooking Equipment Gas Ranges New Arrivals Ranges Restaurant Equipment Southbend (Middleby)

Southbend Platinum 32-Inch Gas Sectional Range with Full-Width Graduated Hot Top and Convection Oven Base

Manual Controls, Battery Spark Ignition, Stainless Steel, 6-Inch Adjustable Legs

This heavy-duty 32-inch range combines a full-width graduated hot top with a convection oven base for versatile, high-output cooking in one durable unit.

  • 32-inch sectional gas range with a full-width graduated hot top.
  • Convection oven base includes three racks and a wide 175°F to 550°F thermostat range.
  • Manual controls and battery spark ignition support straightforward daily operation.
  • Stainless steel front, sides, rear, and exterior bottom are built for heavy-duty use.
  • 6-inch adjustable stainless steel legs help with leveling and installation.
  • High-output 107,000 BTU design suits demanding commercial kitchens.

Overall Dimensions:

32.0"W x 40.25"D x 41.0"H

Product Weight:

670.0 lb

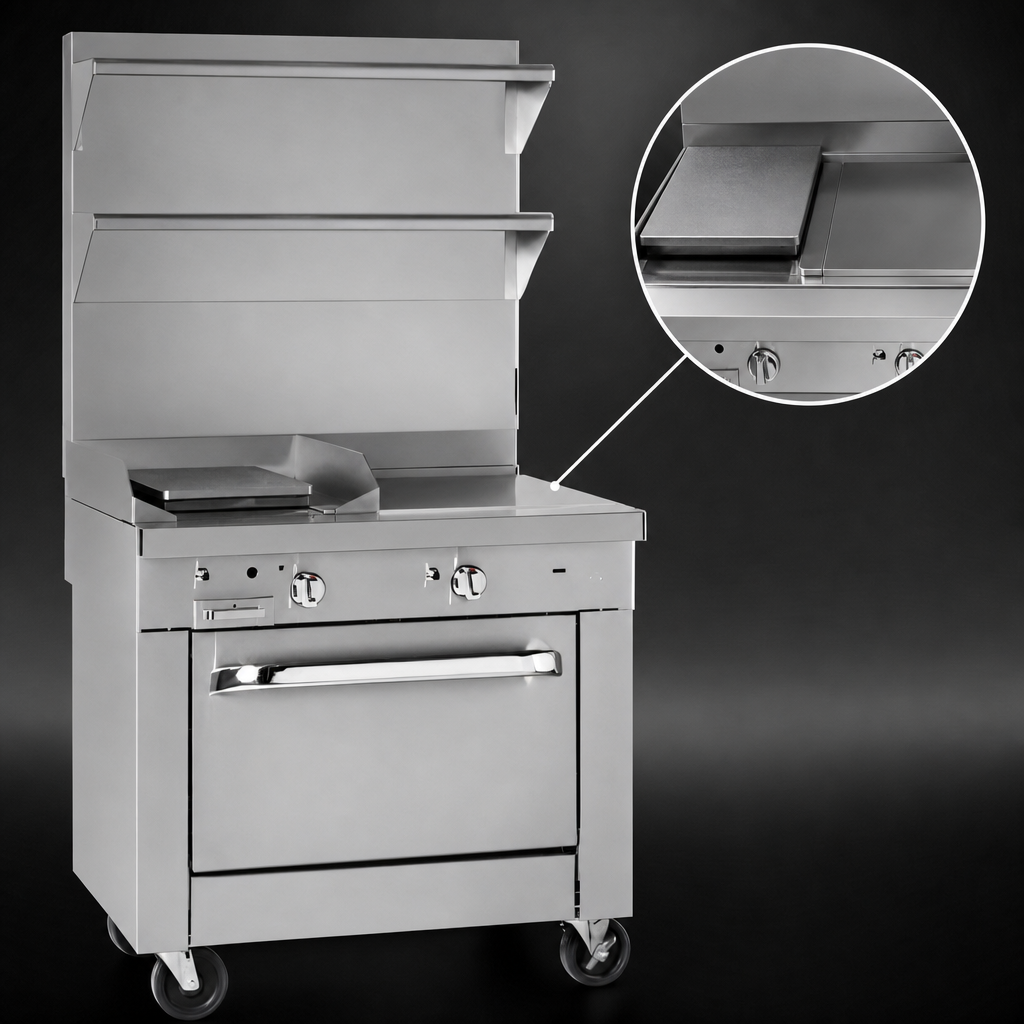

Full-Width Graduated Hot Top

Removable steel plates and a high/low surface deliver flexible, high-heat top cooking.

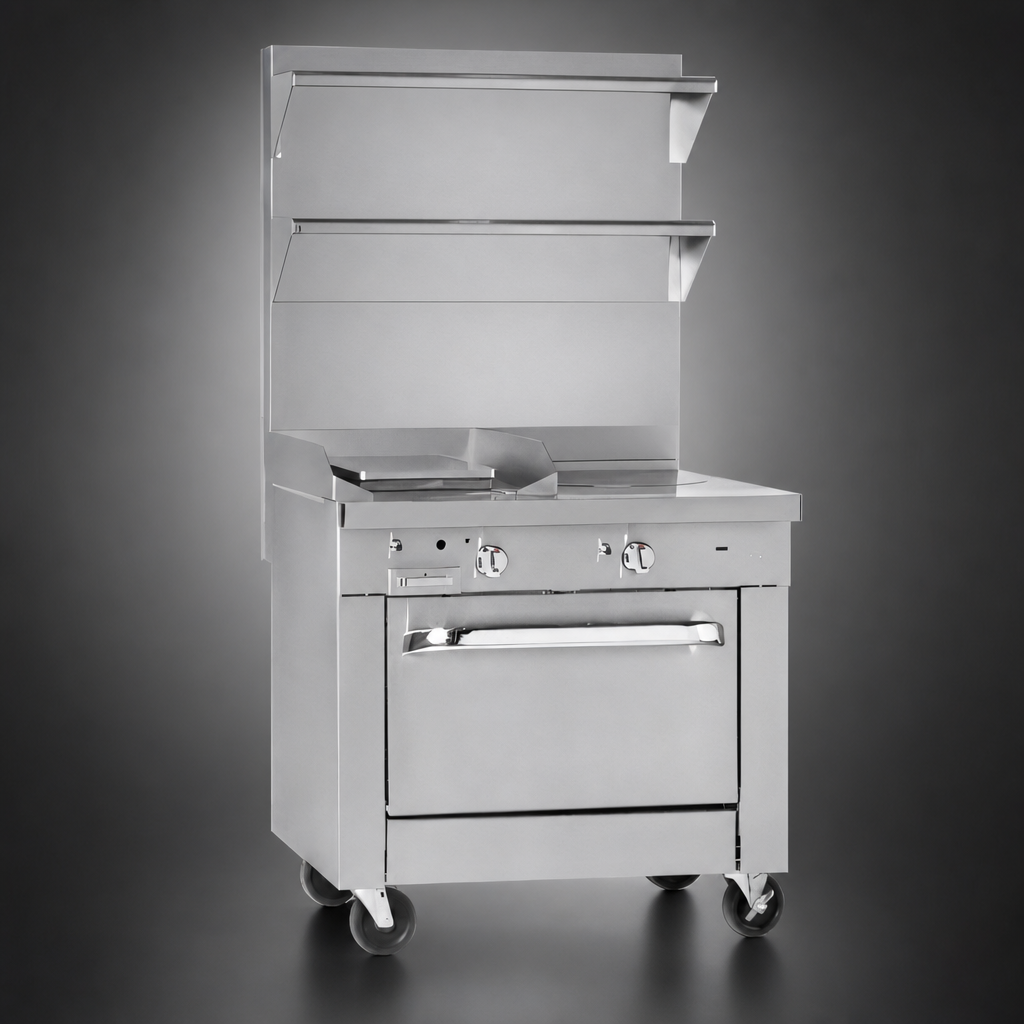

Convection Oven Base

One convection oven with a standing pilot and two-speed, 1/2 hp blower motor.

Three Oven Racks Included

Ships with three racks and five-position side rails for baking and roasting.

Manual Controls

Straightforward manual operation for dependable heat management.

Battery Spark Ignition

Battery-powered ignition helps start the top burner without an external electrical connection.

Stainless Steel Construction

Stainless steel front, sides, rear, and exterior bottom for durability in demanding kitchens.

Porcelain Enamel Oven Interior

The oven cavity is porcelain enamel for easier cleaning.

Adjustable Legs

6-inch stainless steel adjustable legs come standard for leveling and installation.

High Output Gas Design

107,000 BTU total input for demanding commercial cooking applications.

Utility Connections

1-1/4-inch front gas manifold and 1-inch rear gas connection support sectional installation.

Type Sectional Range
Style Graduated Hot Top
Installation Type Floor Model
Controls Manual
Material Stainless Steel
Interior Finish Porcelain Enamel
BTU 107,000 BTU
Temperature Range 175°F to 550°F
Gas Connection Size 1-1/4 Inches Front Manifold; 1 Inch Rear Gas Connection
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 32 Inches
Shipping Depth 41 Inches
Shipping Height 41 Inches
Shipping Weight 670 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Warranty & Protection

1 year parts and labor

Documents

PDF Cutsheet PDF Download PDF Installation & operation PDF Download PDF Middleby financial flyer PDF Download PDF Owner's manual PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It has a full-width graduated hot top with removable steel plates and a high/low setting.
Three oven racks are included.
The convection oven thermostat ranges from 175°F to 550°F.
It uses a 1-1/4-inch front manifold and a 1-inch rear gas connection and requires a regulated gas supply.
Yes. The unit can be placed in any position in a battery.
A one-year limited parts and labor warranty is included.
