Southbend (Middleby) P32A-GG Platinum Gas Ranges
Description

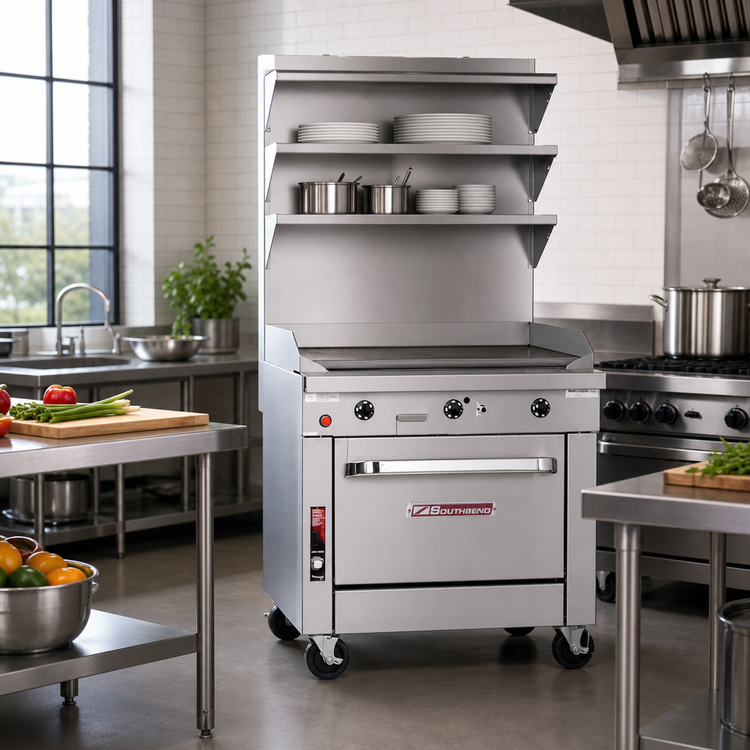

Southbend Platinum 32" Heavy-Duty Gas Range
with Full-Width Manual Griddle & Convection Oven
Model P32A-GG | 125,000 BTU | Natural or LP Gas
Built for non-stop commercial production, the Southbend Platinum 32" Sectional Range combines a 1-inch thick stainless-steel griddle plate with a powerful, bakery-depth convection oven—all in a space-saving footprint. From all-day breakfast service to finishing steaks a-la-minute, this heavy-duty unit delivers the brute heat, rock-solid construction and precise airflow required by high-volume kitchens.
Key Performance Features
- 80,000 BTU full-width manual griddle powered by four 20 kBTU burners

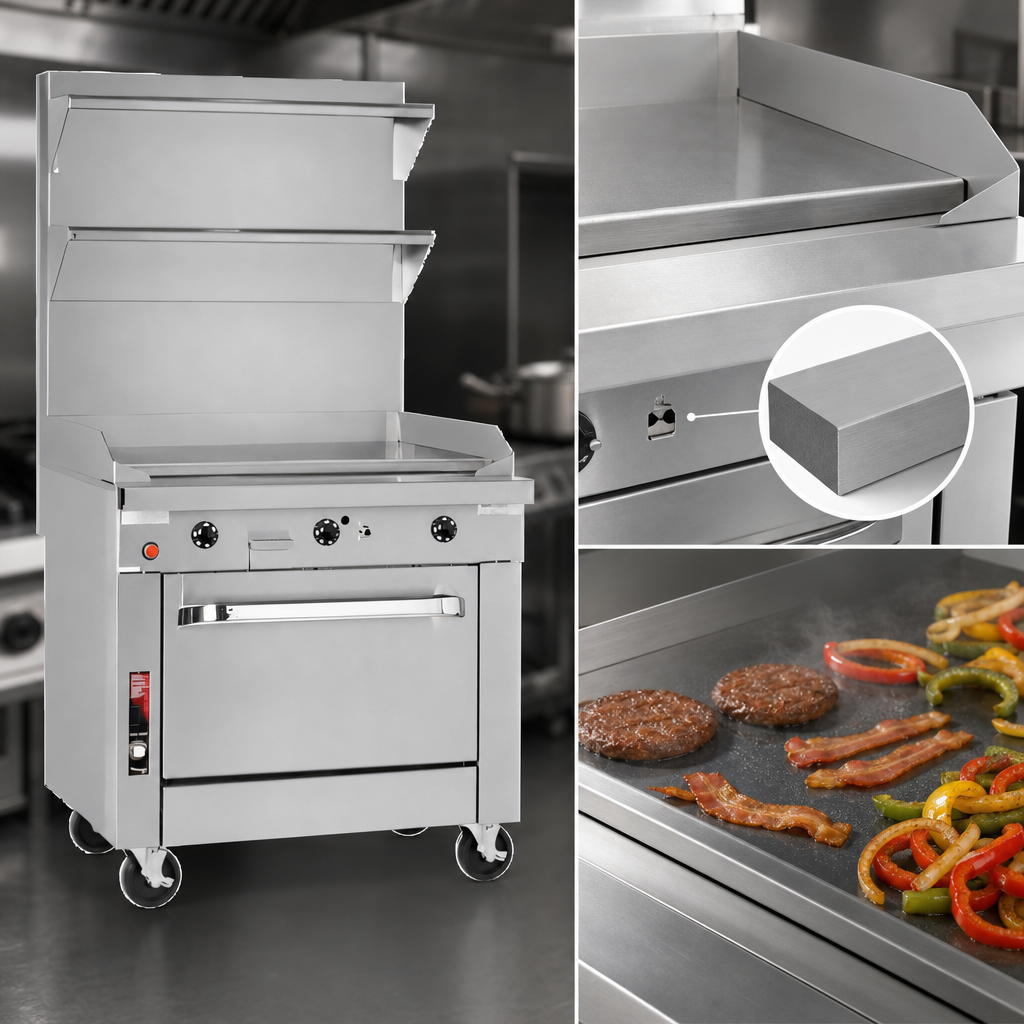

- 1" thick, polished cooking surface for even heat retention and lightning-fast recovery
- Battery-spark ignition—no standing pilot at the griddle saves energy and reduces heat in the kitchen
- 9-1/4" deep front rail keeps plated items safely off the heat zone

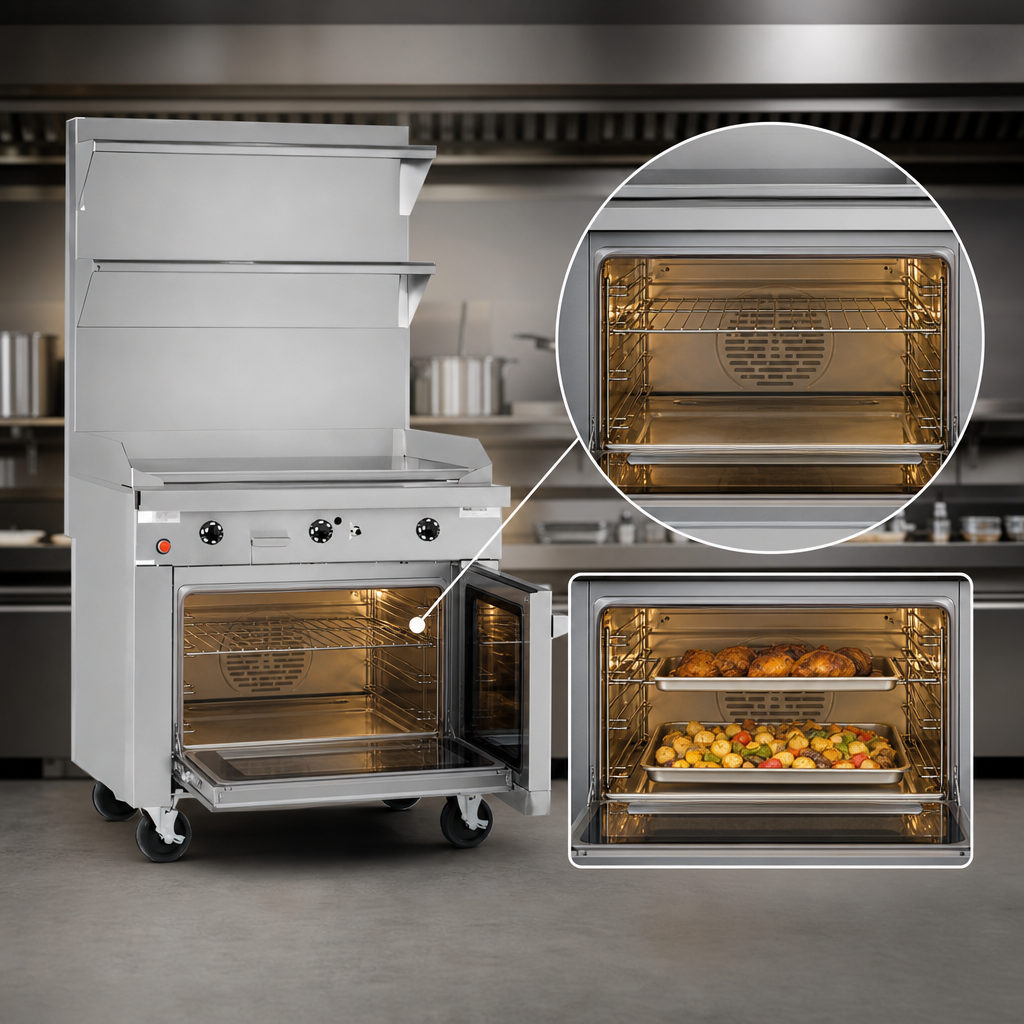

- 45,000 BTU convection oven with 1/2 HP two-speed blower for consistent baking & roasting
- Porcelain-enameled oven cavity fits full sheet pans either way; includes 3 chrome racks with 5 positions
- Rugged #3-finish stainless steel front, sides, rear & exterior bottom—easy to wipe down and built to last
- 6" stainless steel adjustable legs standard; optional casters available
- cCSAus, CSA Flame, CSA Star & NSF certified for gas safety and sanitation
Built-In Advantages
- One-piece side & rear splash guards plus a slide-out grease drawer help maintain a cleaner cookline
- 1-1/4" front gas manifold allows easy battery installation with other Platinum series modules
- Fully insulated burner box minimizes heat loss and keeps your kitchen cooler
- Free design assistance from Southbend engineers when building a custom battery
Specifications
| Overall Width | 32" (813 mm) |
|---|---|
| Overall Depth | 37-1/2" (953 mm) |
| Cooking Surface Height | 36" (914 mm) on 6" adjustable legs |
| Flue Riser Height | 5" standard (24" & 36" optional) |
| Total Input | 125,000 BTU/hr (Natural) | 117,000 BTU/hr (LP) |
| Griddle Input | 80,000 BTU/hr |
| Oven Input | 45,000 BTU/hr |
| Oven Interior (H × W × D) | 14" × 26" × 24" (356 × 660 × 610 mm) |
| Thermostat Range | 175 °F – 550 °F (79 °C – 288 °C) |
| Electrical | 120 V, 1-Phase, 5.9 A (blower motor) 208/240 V, 1-Phase, 2.7 A optional |
| Gas Connection | 1-1/4" front manifold & 1" rear NPT |
| Shipping Weight | 740 lb (335.7 kg) |
| Warranty | 1 year parts & labor |
Popular Options & Accessories
- Grooved or chrome-plated griddle surface
- Open-frame base with heavy-duty casters (front locking)
- 24" or 36" flue riser with single or double shelving
- External gas pressure regulator & cable restraint kit
- Electronic oven pilot ignition (no charge)
Oversized cookware policy: Vessels 12" and larger should be kept to the rear grates to prevent heat damage to the front rail.
Finance It Today
Preserve cash flow and spread the cost over affordable monthly payments through Middleby Equipment Financing. Quick online approvals—even for start-ups.
Intended for commercial use only. Installation under a properly vented hood and in accordance with local codes is required.
