Description

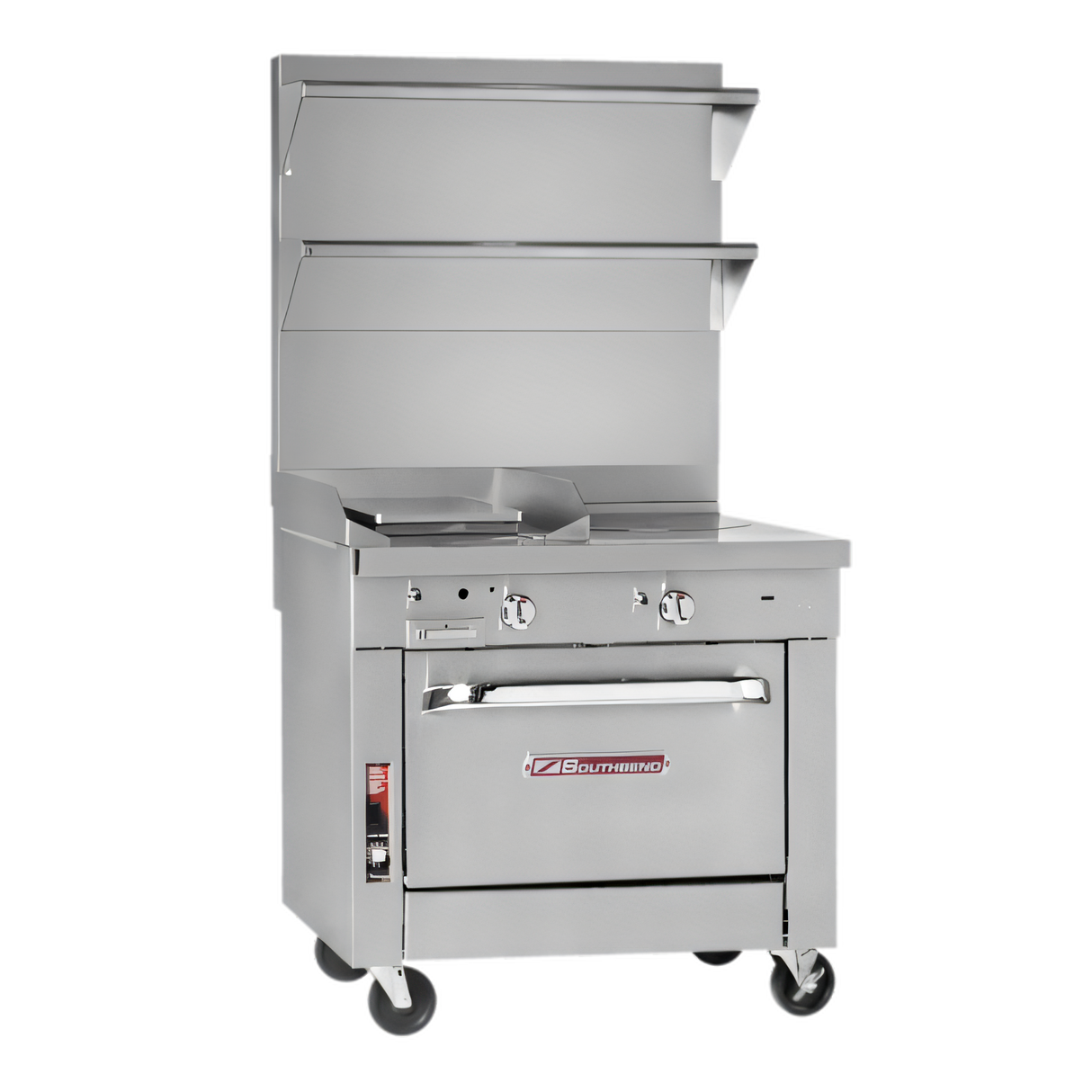

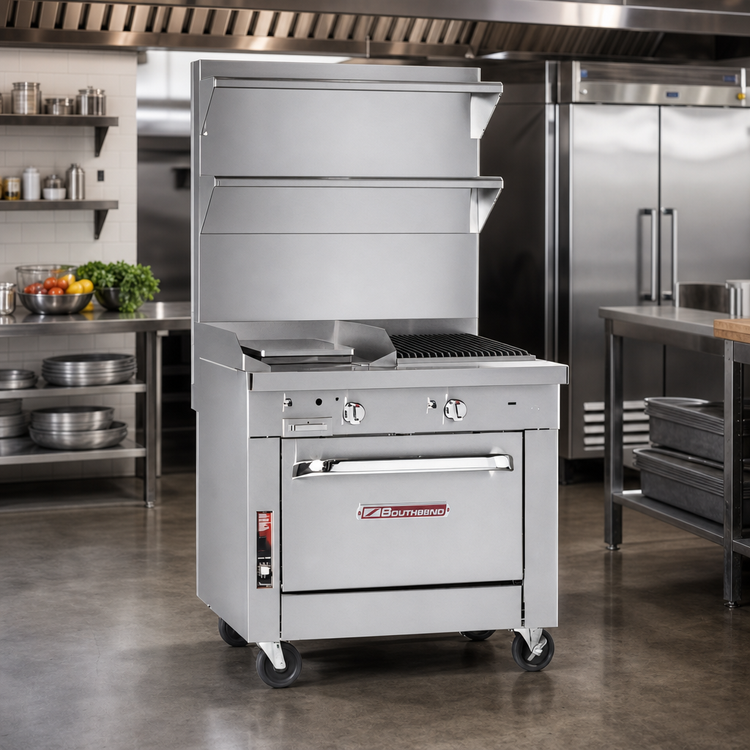

Southbend Platinum Heavy Duty 32" Gas Range

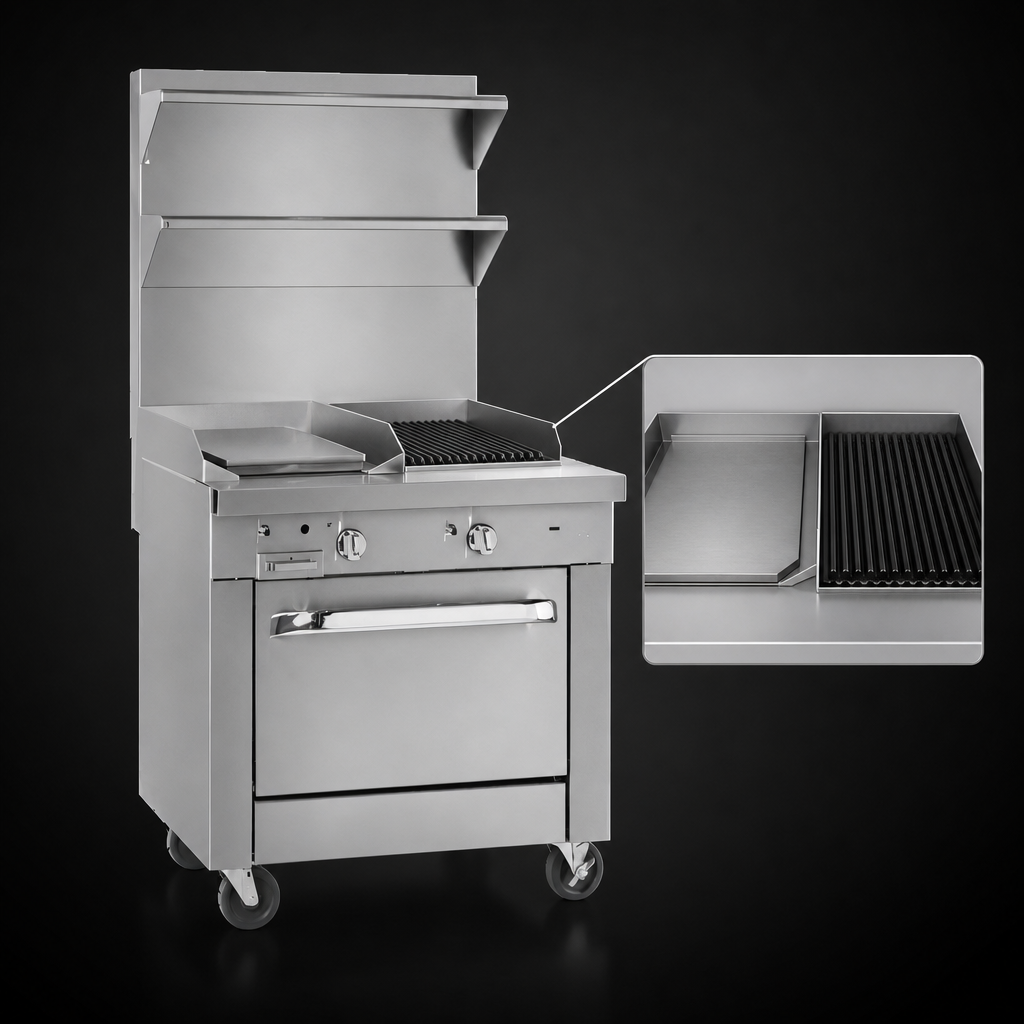

16" Manual Griddle + 16" Charbroiler | Convection Oven Base | 125,000 BTU

Built for relentless commercial duty, the Southbend Platinum Series 32" range delivers the fire-power of a charbroiler, the versatility of a griddle and the even bake of a convection oven in one space-saving footprint.

Top Reasons You’ll Love It
  • All-in-one cooking station—sear, grill, sauté & bake simultaneously.
  • Massive 125,000 BTU total output handles peak-hour volume with ease.
  • Heavy-gauge stainless steel construction resists dents, corrosion and daily wear.
  • 5" stainless flue riser keeps heat away from the line and toward the hood.
  • Sectional design with 1 ¼" front gas manifold lets you battery with other Platinum units.
  • cCSAus, CSA Flame, CSA Star and NSF certifications for worry-free code compliance.
Performance Cooking Tops
  • 16" Manual Griddle
    • (2) 20,000 BTU burners (40,000 BTU total)

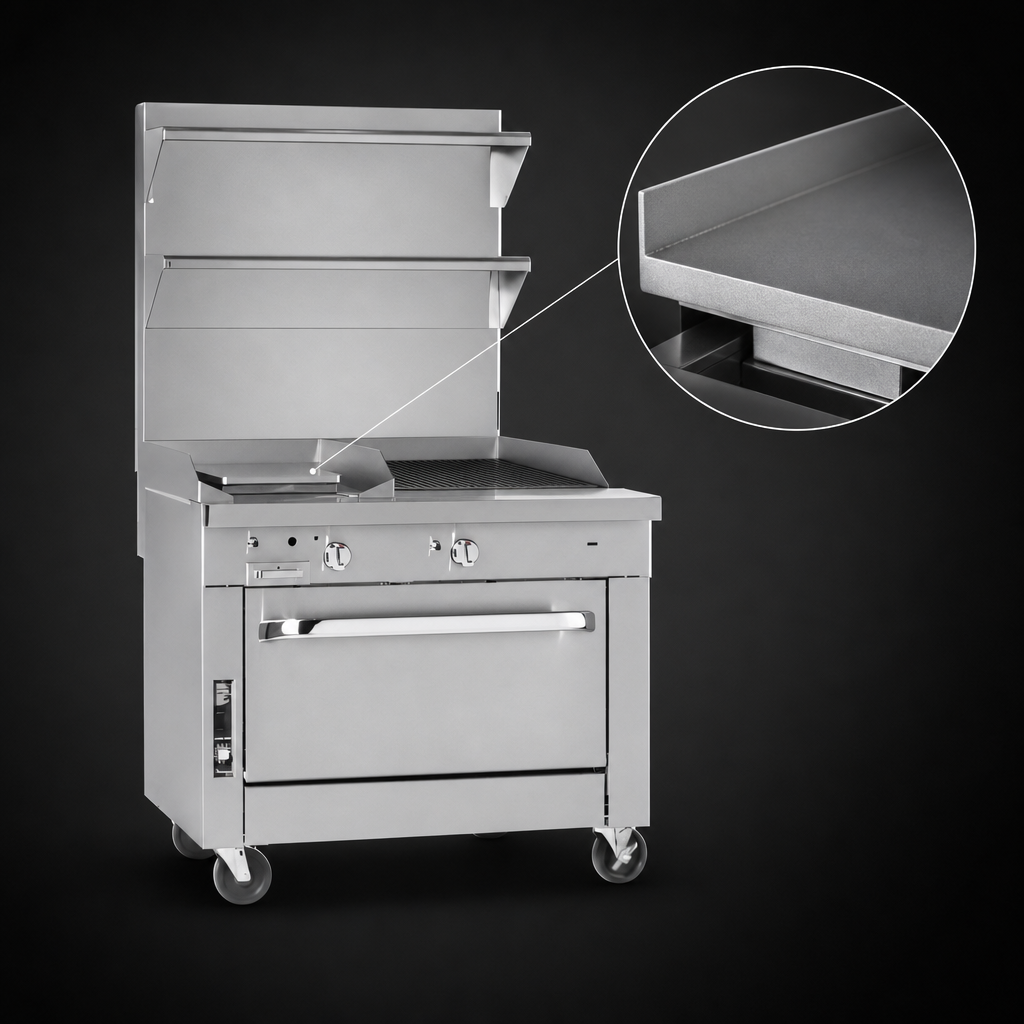

    • 1" thick polished steel plate with side & rear splashers
    • Removable stainless grease drawer for fast clean-up
  • 16" Radiant Charbroiler
    • (2) 20,000 BTU burners (40,000 BTU total)
    • Cast-iron grates flip for ⅛" or ¼" branding and adjust front-to-back slope
    • Stainless steel radiants deliver a uniform 600 °F surface temperature

Manual griddles heat continuously and do not allow precise temperature selection.

Convection Oven Base
  • 45,000 BTU burner, 175 – 550 °F thermostat range
  • 14"H × 26"W × 24"D porcelain-enameled cavity wipes clean easily
  • (3) heavy-duty racks with 5-position side rails
  • Two-speed ½ HP blower for rapid, even heat distribution
  • 120 V, 5.9 A cord-and-plug connection powers the blower
Specifications
Model Platinum P32 G/TC (griddle / charbroiler, convection oven)
Width 32" / 813 mm
Depth (to front rail) 37 ½" / 953 mm
Height (on 6" legs) 36" / 914 mm to cook surface
Total BTU 125,000 BTU /hr (Natural Gas)
Gas Connection 1 ¼" front manifold & 1" rear male NPT; min. 7" W.C. NG / 11" W.C. LP
Electrical 120 V, 5.9 A, single phase (oven blower)
Certifications cCSAus, CSA Flame, CSA Star, NSF
Warranty 1-year limited parts & labor
Perfect For
  • Steakhouses craving consistent grill marks and high-heat searing.
  • Hotel or institutional kitchens where menu flexibility and volume output are critical.
  • Catering commissaries seeking maximum production in minimal space.
Cleaning Tip: Never place sheet pans directly on charbroiler grates while burners are on—reflected heat can damage components and is not covered under warranty.

Ask about Middleby Equipment Financing for fast approvals and budget-friendly monthly payments.

Features & Specs

Manufacturer

Southbend (Middleby)

Brand_name

Platinum

Certifications

NSF, cCSAus, CSA Star, CSA Flame

Height

41.0in

Width

32.0in

Depth

40.25in

Shipping Weight

800.0lbs

Plate Thickness

1.000" = 1"

Top

(1) 16" griddle, (1) 16" charbroiler

Base

(1) convection oven

Exterior Finish

stainless steel front & sides

Vent

backriser

Specifications

Platinum Heavy Duty Range, gas, 32", (1) 16" griddle, 1" thick plate, (1) 16" charbroiler, cast iron grates, manual controls, (1) convection oven, includes (3) racks, stainless steel radiants, front, sides, exterior bottom & 6" adjustable legs, 125,000 BTU, cCSAus, CSA Flame, CSA Star, NSF
