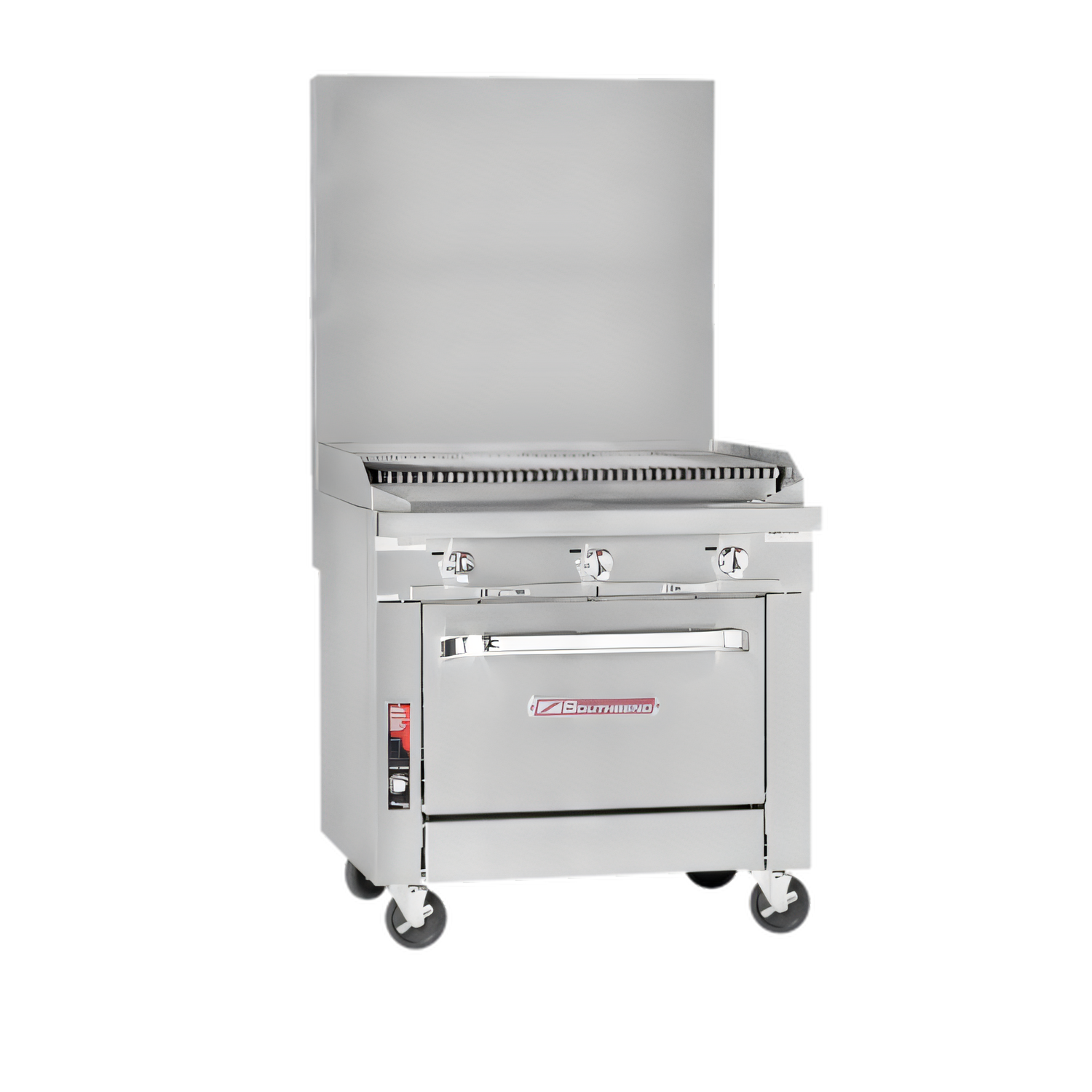

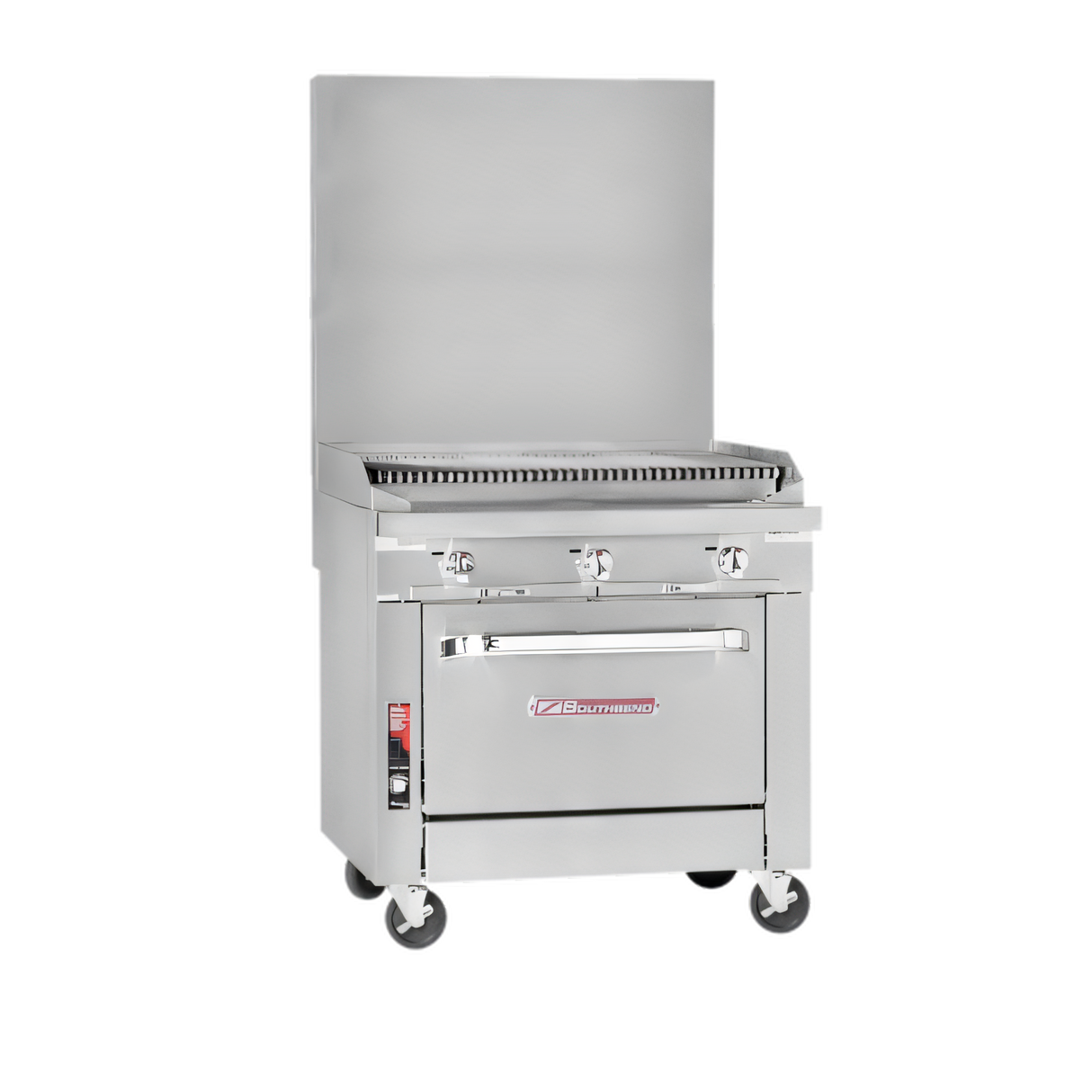

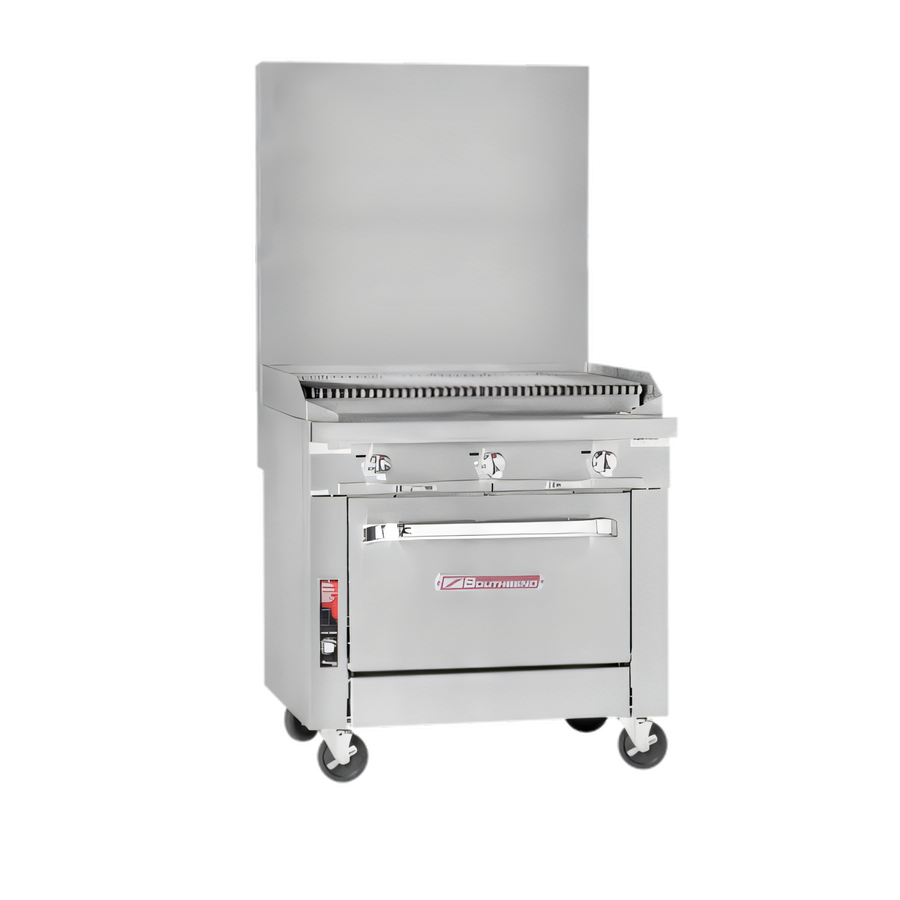

Southbend (Middleby) P32A-CC Platinum Gas Ranges
Description
Southbend Platinum Series 32" Heavy-Duty Gas Range w/ Full-Width Charbroiler & Convection Oven – 125,000 BTU
Model P32A-CC | CSA • NSF • cCSAusPut the power of a high-output charbroiler and a bakery-quality convection oven into just 32 inches of line space. Engineered for round-the-clock, high-volume kitchens, the Southbend Platinum P32A-CC packs a total of 125,000 BTU in an all-stainless chassis that mates effortlessly into any battery.

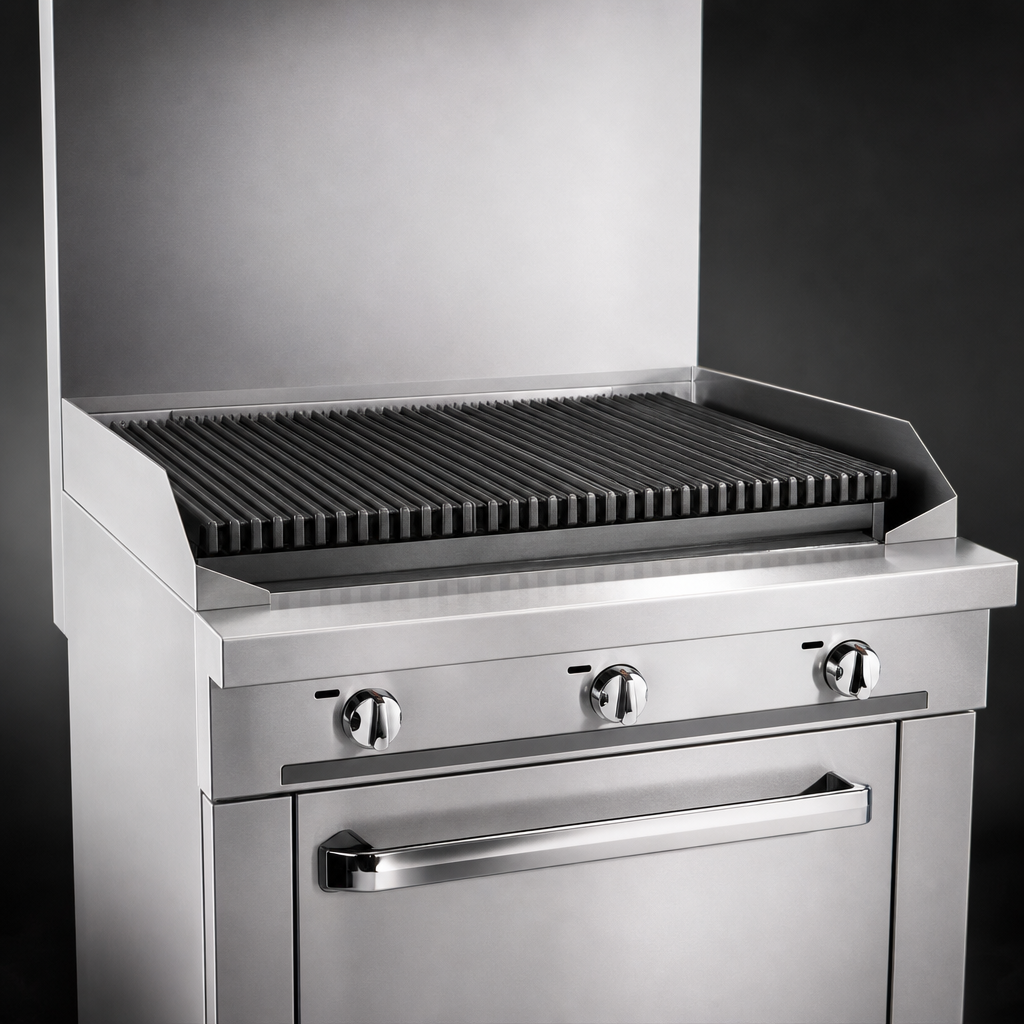

Full-Width Charbroiler Highlights
- Four 20,000 BTU NAT burners (80,000 BTU total) with manual high/low controls
- Reversible cast-iron grates: ⅛" or ¼" grid; front-to-back slope adjustable
- Stainless-steel radiants & fully-insulated burner box hold an even 600 °F surface temp
- 9 ¼" deep rail plus slide-out drip tray for fast, safe clean-up

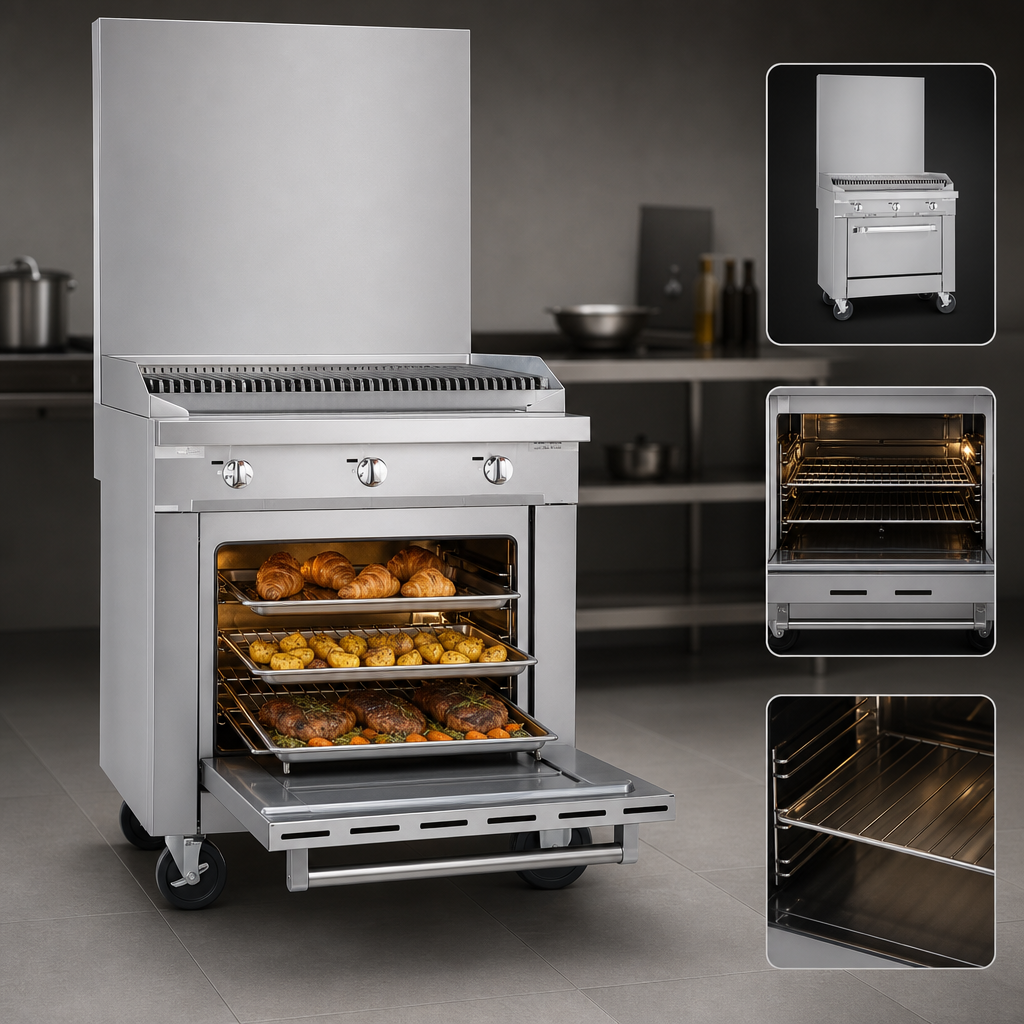

Built-In Convection Oven
- 45,000 BTU NAT forced-air chamber with standing pilot
- “Insta-On” thermostat 175 – 550 °F (79 – 288 °C)
- Porcelain-enameled cavity: 14" H × 26" W × 24" D – fits full-size sheet pans either direction
- (3) nickel-plated racks, five positions & ½ hp two-speed blower for rapid, even bake
- Stainless, stay-cool oven door handle built for heavy commercial use
Rugged Construction & Utilities
- All stainless front, sides, rear, and exterior bottom
- 6" stainless adjustable legs standard (locking casters optional)
- 5" stainless flue riser included; 24"/36" or extra-deep risers available
- 1 ¼" front gas manifold couples to adjacent sections; 1" rear NPT connection
- Total input: 125,000 BTU NAT | 117,000 BTU LP
- Optional electronic ignition: 120 V / 5.9 A or 208/240 V / 2.7 A, single-phase
Key Specifications
| Overall width | 32" (813 mm) |
|---|---|
| Overall depth | 37 ½" (953 mm) |
| Cook surface height | 36" (914 mm) + 5" flue riser |
| Oven interior | 14" H × 26" W × 24" D |
| Total BTU input | 125,000 BTU (Natural Gas) |
| Gas connection | 1" rear NPT (pressure regulator required) |
| Certifications | CSA, NSF, cCSAus |
| Factory warranty | 1-year parts & labor |
Popular Options & Accessories
- External gas pressure regulator
- Locking casters or open-frame base
- 24" or 36" high flue riser / extra-deep rear-extending flue
- Stainless steel oven interior
- Cable restraint kit (required with casters)
- Plated fish grids or square belly bar
- Limit cookware over 12" in diameter to the rear portion of the grates to prevent heat damage to the front rail.
- Never place a sheet pan over charbroiler grates while burners are on; doing so can permanently damage radiants and void the warranty.
