Southbend (Middleby)  |  Platinum  |  SKU: P32A-BBB

Southbend (Middleby) P32A-BBB Platinum Gas Ranges

$15,509.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Middleby financial flyer Owner's manual Installation & operation Warranty sheet
Related Searches
Butane Stove Cooking Equipment Cooking Equipment Countertop Cooking Equipment Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

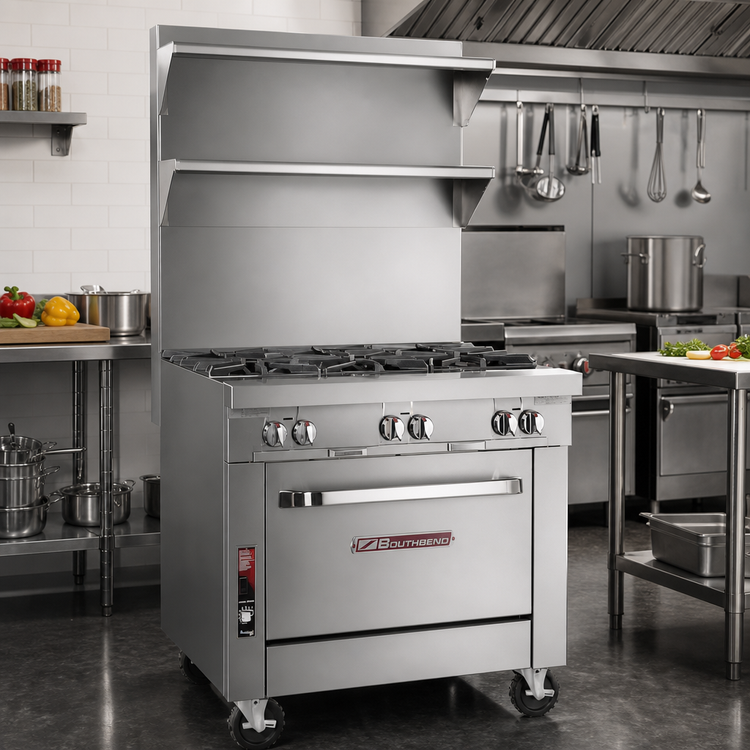

Southbend Platinum 32" Heavy-Duty Gas Range w/ Convection Oven

Model P32A-BBB | Six 35,000 BTU Burners | Total Input 255,000 BTU

Pack more production into every linear foot of your cook line. The Southbend Platinum Series 32" range combines six clog-free 35,000 BTU burners with a high-performance 45,000 BTU convection oven—delivering uncompromising power, precision and durability for the most demanding commercial kitchens.

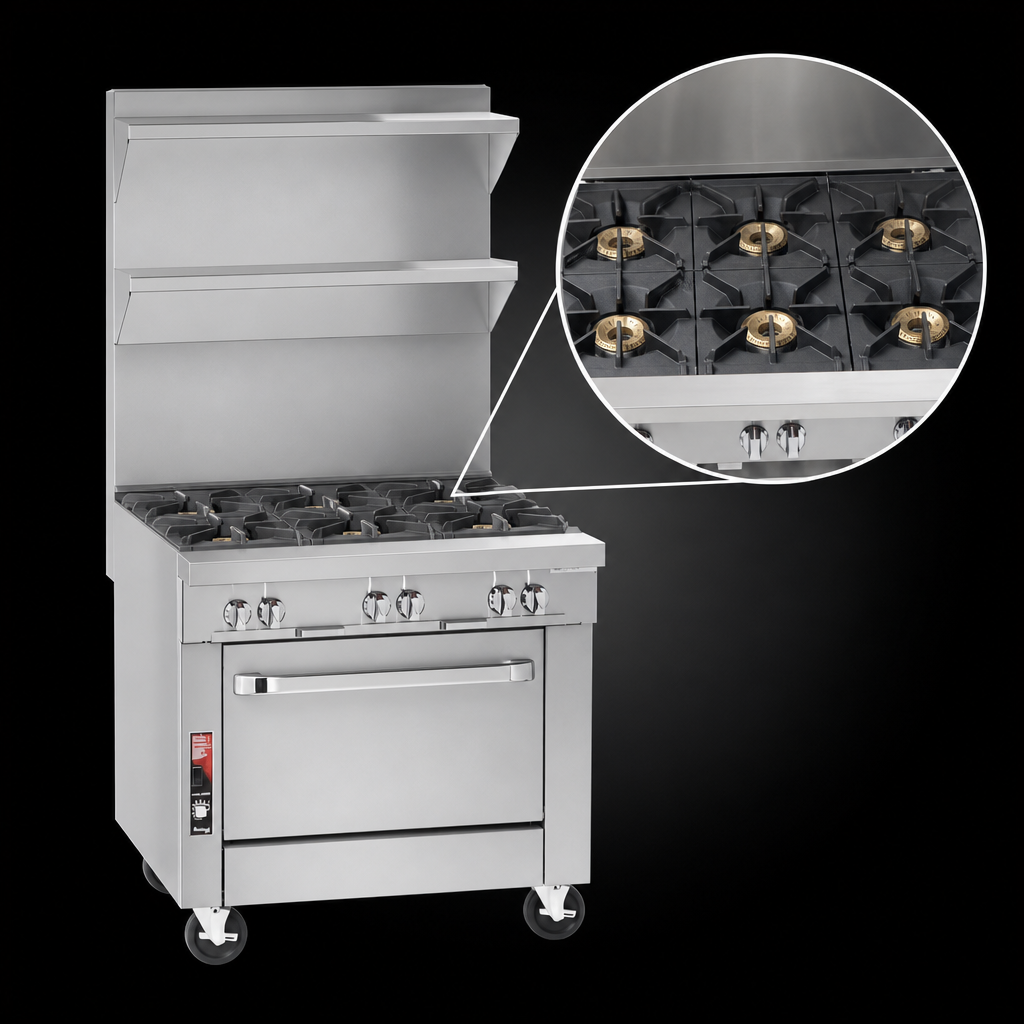

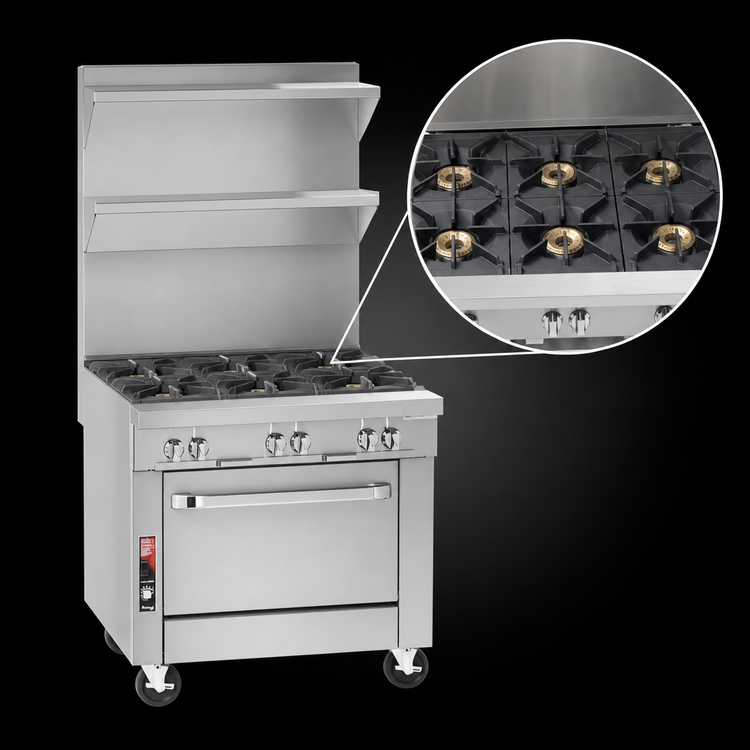

Open-Top Burner Performance

  • Six patented open burners – 35,000 BTU each (Natural or LP)
  • Clog-free design minimizes maintenance and down-time
  • Removable welded-steel top grates for fast clean-ups
  • 9-1/4" deep front rail keeps pans secure and within easy reach
  • Full-width drip tray slides out for quick crumb & grease disposal
  • Individual manual controls put instant flame adjustments at your fingertips

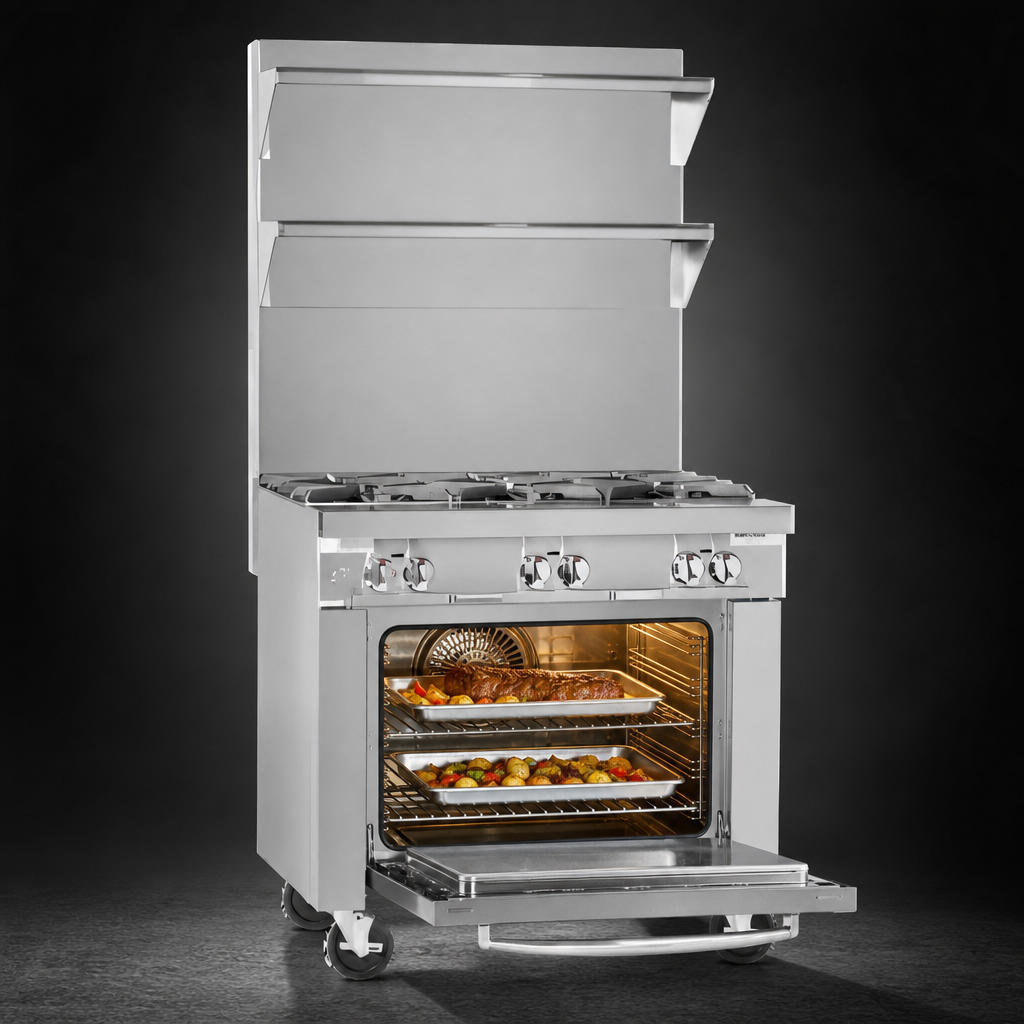

High-Capacity Convection Oven

  • 45,000 BTU burner with standing pilot for immediate starts
  • 1/2 HP two-speed blower ensures even baking & roasting
  • “Insta-On” thermostat from 175 °F to 550 °F (79 °C – 288 °C)
  • Porcelain enamel interior resists corrosion & wipes clean
  • (3) Heavy-duty racks on 5-position side rails — 14" H × 26" W × 24" D cavity fits full sheet pans either direction

Rugged Construction & Utilities

  • Stainless-steel front, sides, rear and exterior bottom
  • 5" stainless flue riser vents heat away from the cook zone
  • 6" adjustable stainless legs level the unit on uneven floors
  • Fully insulated lining & burner box boost efficiency and operator safety
  • 1-1/4" front gas manifold couples seamlessly with other Platinum sectional units
  • 1" rear gas connection (male NPT) – external regulator available
  • CSA & NSF listed for gas safety and sanitation compliance

Technical Specifications

Overall width 32" (813 mm)
Overall depth 37.5" (953 mm)
Working height 37.5" to cook surface • 42.5" to top of flue
Total BTU input 255,000 BTU/hr
Burners 6 × 35,000 BTU open tops
Oven 45,000 BTU convection • ½ HP 2-speed blower
Gas connection Front 1-1/4" manifold • Rear 1" NPT
Required gas pressure 7" W.C. NAT • 11" W.C. LP
Electrical 120 V / 1-ph / 5.9 A (blower & optional electronic ignition)
Shipping weight ≈ 670 lb (304 kg)

What’s in the Box

  • Southbend Platinum 32" gas range with convection-oven base
  • (3) Nickel-plated oven racks
  • 5" stainless flue riser & 6" adjustable legs
  • 1-year limited parts & labor warranty
Oversized cookware notice: Pans 12" or larger should be used on the rear burners and must not hang over the front rail. Doing so can trap excessive heat and damage front-rail components.

Looking to build a battery line or add accessories—casters, flue shelves, salamanders and more? Our team offers free configuration assistance.

Features & Specs

Manufacturer

Southbend (Middleby)

Brand_name

Platinum

Certifications

NSF, CSA

Height

41.0in

Width

32.0in

Depth

43.0in

Shipping Weight

670.0lbs

Base

(1) convection oven

Vent

stub back

Top

(6) open burners

Exterior Finish

stainless steel front & sides

Specifications

Platinum Heavy Duty Range, gas, 32", (6) 35,000 BTU open burners, manual controls, (1) convection oven, includes (3) racks, stainless steel front, sides, exterior bottom & 6" adjustable legs, 255,000 BTU, CSA, NSF
