Southbend (Middleby) P32A-3240 Platinum Deck Ovens
Description

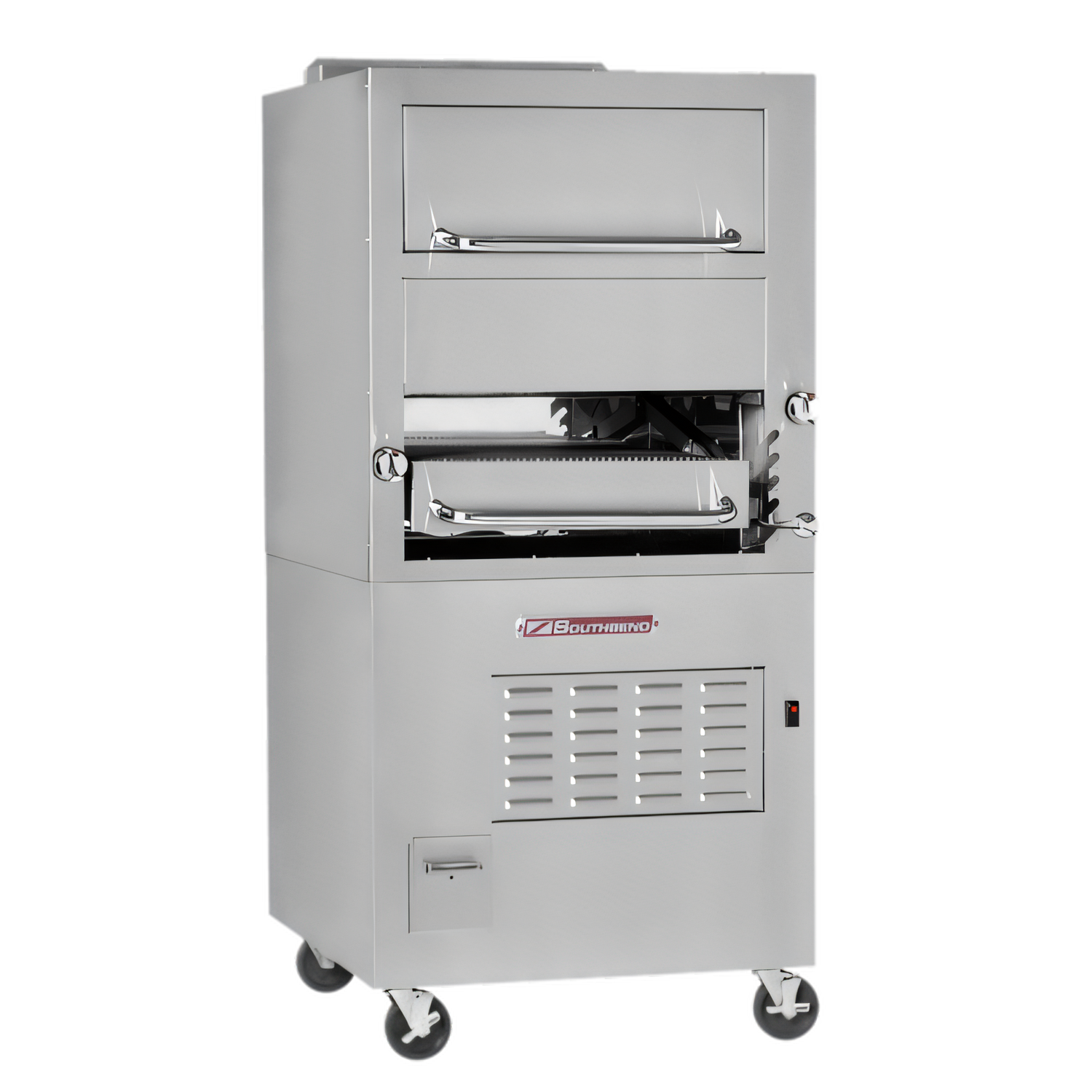

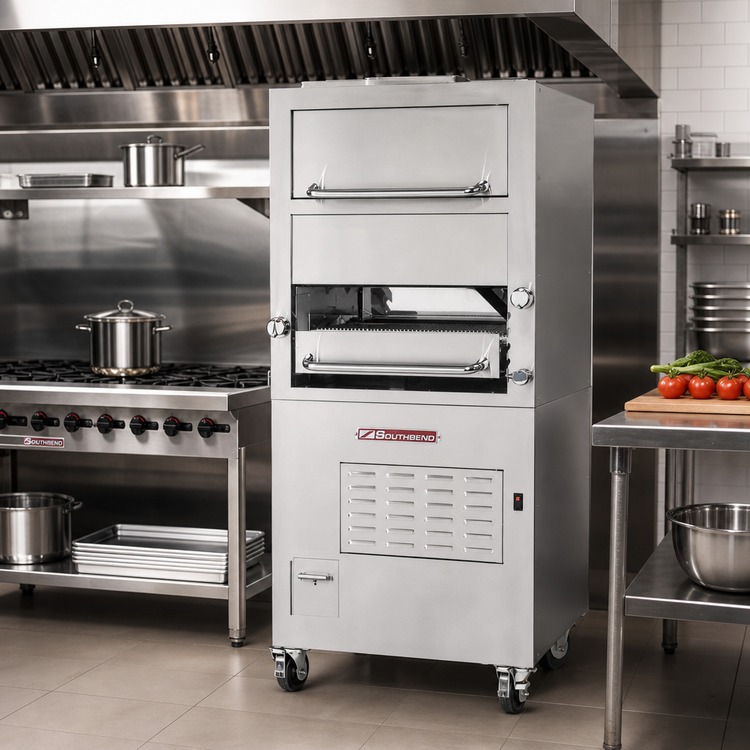

Southbend Platinum 32" Radiant Broiler w/ Convection Oven & Warming Oven
(Model P32A-3240)

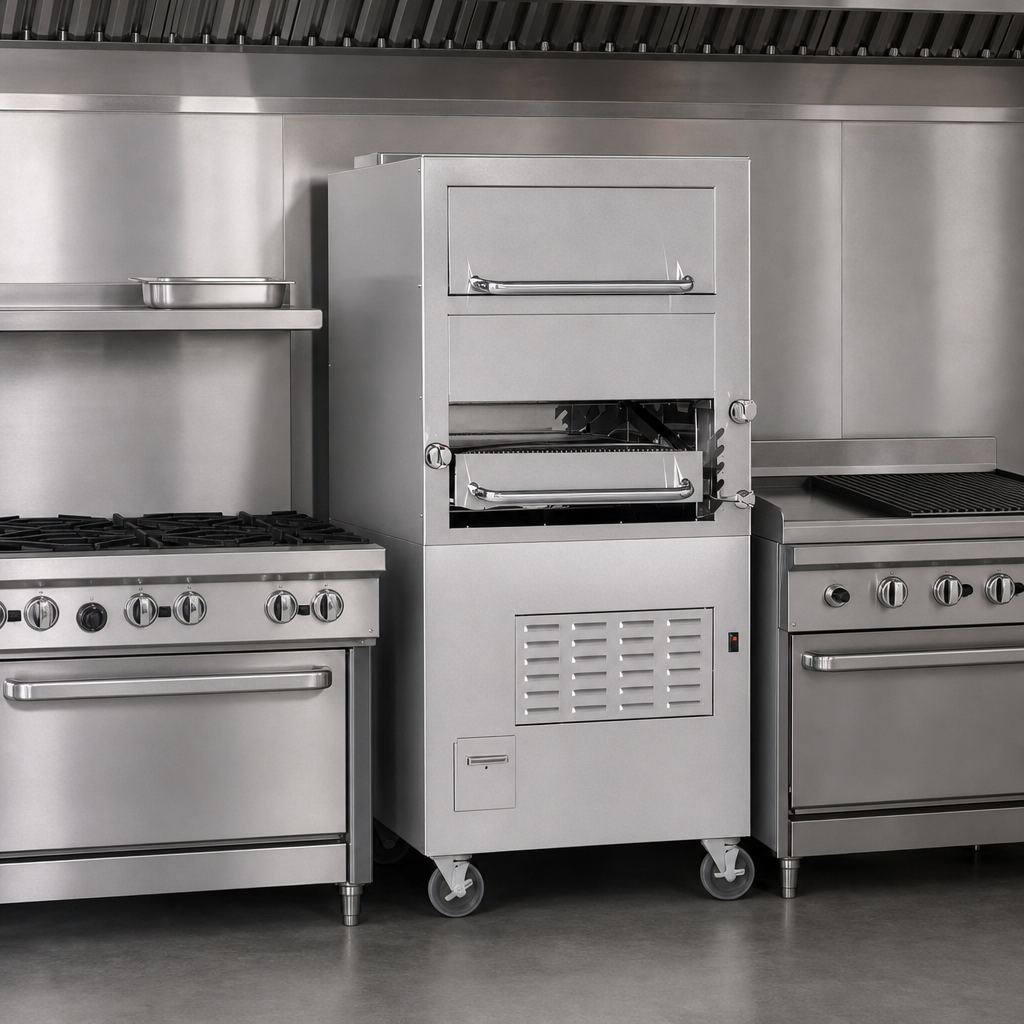

Heavy-Duty Range Match • 155,000 BTU Total • Natural or Propane Gas

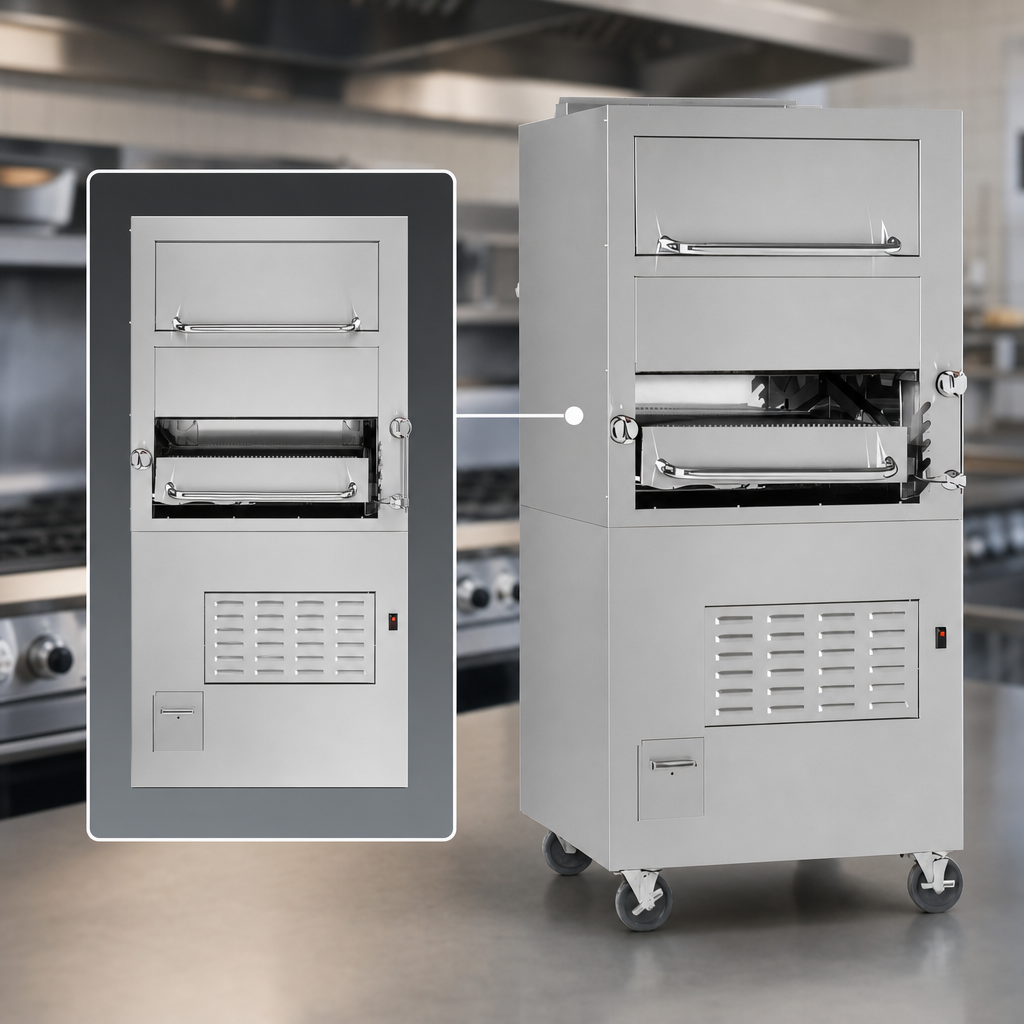

Engineered for high-volume steak houses, hotel kitchens and institutional foodservice, the Southbend Platinum Series single-deck broiler delivers intense radiant heat, a built-in warming oven and a full-size convection oven— all in one 32" footprint.
Performance & Convenience
- Two independent radiant broiler burners (110,000 BTU NAT / 90,000 BTU LP) for precise zone control.
- Roll-out 24 ½" × 28" broiler grid slides out 17 ¼" and locks in four height positions.
- Passive warming oven (25" W × 25" D) above the broiler captures flue heat—perfect for holding plates or product without extra energy.
- 45,000 BTU convection oven base with electronic ignition and “Insta-On” thermostat (175 – 550 °F).
- ½ HP, 2-speed blower ensures even baking and roasting; porcelain-enameled cavity resists corrosion.
- Three heavy-duty racks fit 26" × 26" sheet pans in either direction.
- All-stainless exterior, removable drip drawer and fully insulated burner boxes simplify daily cleaning.
- 6" adjustable stainless legs level the unit on any commercial floor.
- 1 ¼" front gas manifold and 1" rear NPT connection ease line-up installation.
Gas & Electrical Requirements
| Total Input (Natural) | 155,000 BTU/hr |
|---|---|
| Total Input (Propane) | 135,000 BTU/hr |
| Broiler Section | 110,000 BTU/hr (2 burners) |
| Convection Oven | 45,000 BTU/hr |
| Gas Connection | 1 ¼" front manifold · 1" rear male NPT |
| Min. Supply Pressure | 7" W.C. NAT · 11" W.C. LP (regulated) |
| Electrical | 120 V, 4.8 A or 208/240 V, 2.6 A, 1-phase |
Dimensions & Capacities
| Overall Width | 32" (813 mm) |
|---|---|
| Overall Depth | ≈ 35 ¾" (908 mm) |
| Overall Height | ≈ 83" (2108 mm) on 6" legs |
| Broiler Grid | 24 ½" W × 28" D (rolls out 17 ¼") |
| Warming Oven Cavity | 25" W × 25" D |
| Convection Oven Cavity | 14" H × 26" W × 24" D |
| Shipping Weight | ≈ 995 lb (447 kg) |
What’s in the Box
- (3) Nickel-plated convection oven racks
- Five-position rack rails
- Stainless steel drip drawer
- Owner’s manual & installation guide
- 1-year parts & labor warranty (commercial use)
Popular Factory Options
- Additional oven racks
- Locking front casters & rear rigid casters
- Cable restraint kit for units on casters
- Open-frame base with casters
Preserve cash flow with fixed monthly payments—apply for Middleby equipment financing in minutes.
Specifications are subject to change without notice. Always consult the installation manual before connecting utilities.
