Southbend (Middleby)  |  Platinum  |  SKU: P32A-171

Southbend (Middleby) P32A-171 Platinum Deck Ovens

$28,274.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Owner's manual Middleby financial flyer Warranty sheet
Related Searches
Broilers Deck Ovens Deck Ovens Ovens Restaurant Equipment Southbend (Middleby) Upright Broilers

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

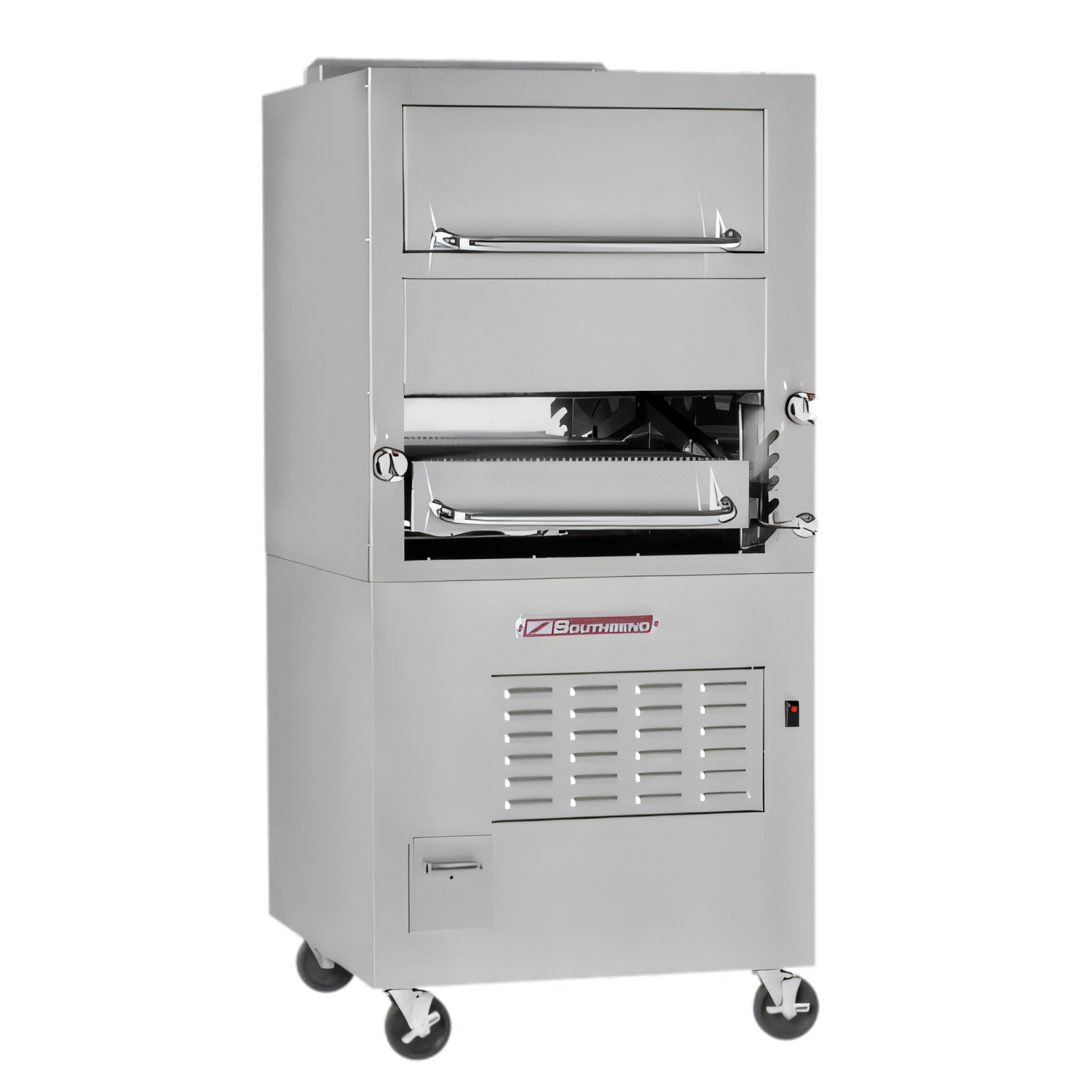

Southbend Platinum 32" Infrared Single-Deck Broiler with Convection Oven Base

Model P32A-171 | 149,000 BTU | Natural or Propane Gas

Built for high-volume kitchens that refuse to compromise on flavor or speed, the Platinum P32A-171 marries a lightning-fast infrared broiler, a heavy-duty convection oven and a convenient overhead warming compartment—all in a 32-inch footprint that lines up perfectly with your Southbend heavy-duty range battery.

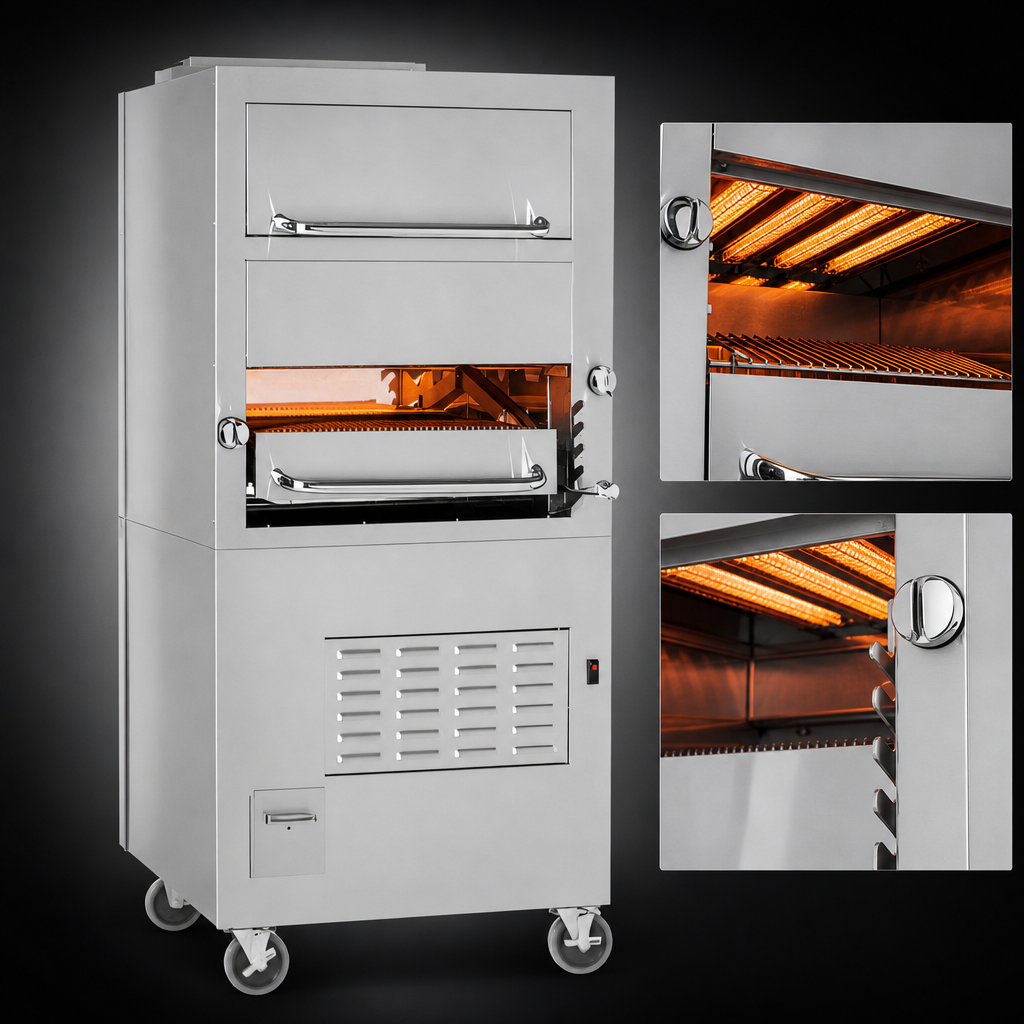

Broiler Power & Precision

  • 104,000 BTU infrared burners reach searing temperature in just 90 seconds.
  • 24 ½" × 28" roll-out grid (extends 17 ¼") with four adjustable height positions.
  • Fully insulated lining and burner boxes hold the heat, keep the kitchen cooler.
  • Stainless steel front, sides and back for long-lasting durability.

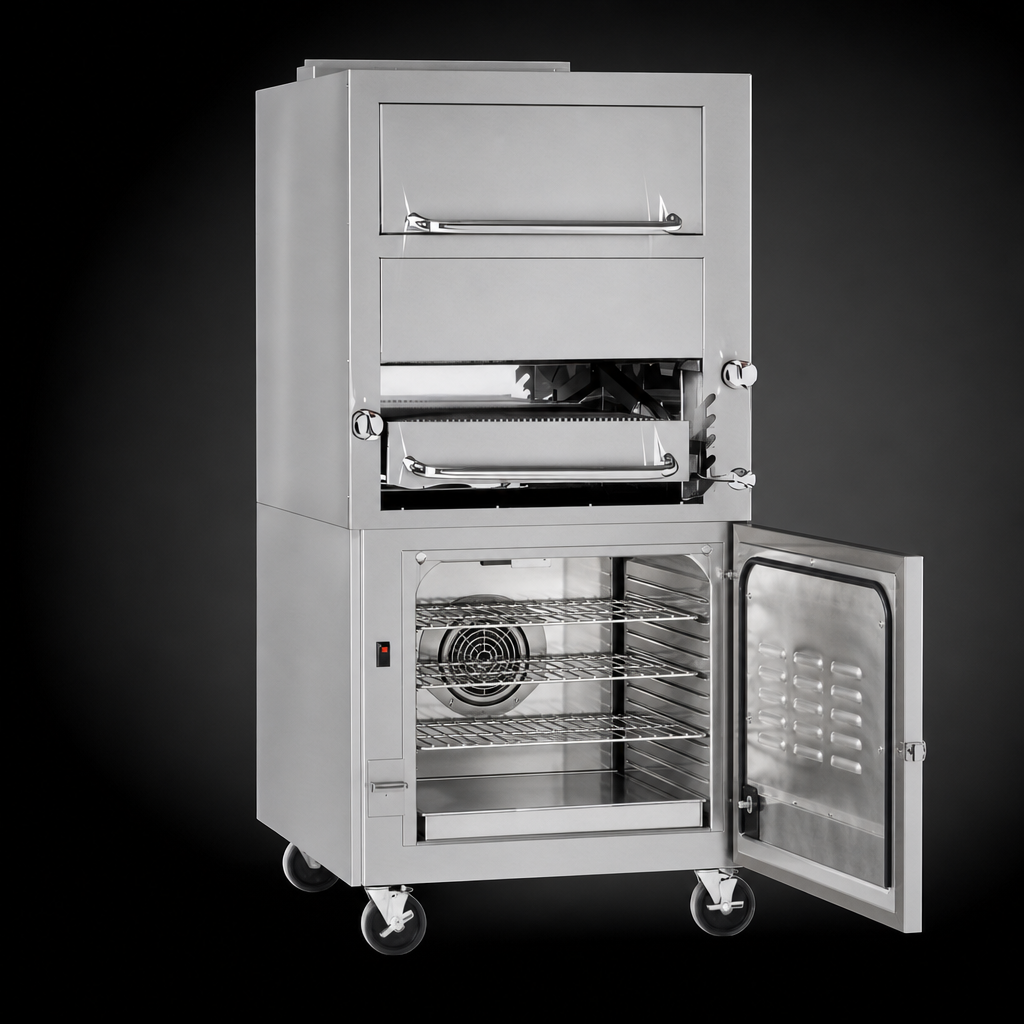

Convection Oven Advantages

  • 45,000 BTU convection deck with electronic ignition.
  • “Insta-On” thermostat adjustable from 175 °F – 550 °F.
  • 1/2 hp two-speed blower delivers rapid, even baking and roasting.
  • Porcelain enamel cavity (14" H × 26" W × 24" D) holds full 26" × 26" sheet pans either way.
  • Includes three heavy-duty racks on 5-position side rails.

Overhead Warming Oven

  • 25" × 25" compartment heated by broiler flue gases—no extra utility cost.
  • Optional 3,000 W electric element available for independent temperature control.

Designed for the Line

  • 32" width mates perfectly with Southbend Platinum ranges.
  • 1 ¼" front gas manifold & 1" rear NPT connection for flexible installations.
  • 6" adjustable stainless legs simplify cleaning and leveling.
  • CSA & NSF certified for gas safety and sanitation.

Key Specifications

Item Details
Model P32A-171
Total BTU 149,000 BTU/hr (104,000 BTU broiler + 45,000 BTU convection oven)
Fuel Natural or Propane Gas
Exterior Dimensions* 32" W × 37 ¼" D × ≈71" H (with 6" legs)
Broiler Grid 24 ½" W × 28" D, roll-out design
Oven Interior 14" H × 26" W × 24" D, porcelain enamel
Racks Supplied 3 convection racks (5 positions)
Gas Connection 1 ¼" front manifold, 1" rear male NPT
Electrical 120 V, 1 ph, 1 A (controls)
208/236 V, 3 kW only when optional warming element is fitted
Certifications CSA, NSF
Warranty 1-year limited parts & labor (Heavy-Duty Sectional)

*For detailed drawings and clearance requirements, see the official Southbend specification sheet.

Popular Options (sold separately)

  • Additional oven racks
  • Open-frame base with locking casters
  • Cable restraint kit (for caster installations)
  • 3,000 W electric heating element for the warming oven
Installation Note: A regulated gas supply and vented hood are required. Maintain 6" clearance from combustible surfaces. Always follow local codes and the manufacturer’s installation instructions.

Need flexible payments? Ask about Middleby Equipment Financing for fast approvals and fixed monthly terms.

Features & Specs

Manufacturer

Southbend (Middleby)

Brand_name

Platinum

Certifications

NSF, CSA

Height

81.0in

Width

32.0in

Depth

41.0in

Shipping Weight

995.0lbs

Exterior Finish

stainless steel front & sides

Heat

infrared

Decks

single

Design

range match

Base

convection oven

Warming Oven

with

Specifications

Platinum Single Deck Broiler Heavy Duty Range Match, gas, 32", infrared burners, convection oven base, warming oven, stainless steel front & sides, 6" adjustable legs, 149,000 BTU, CSA, NSF
