Southbend (Middleby) P32-RAD Platinum Salamander Broilers
Description

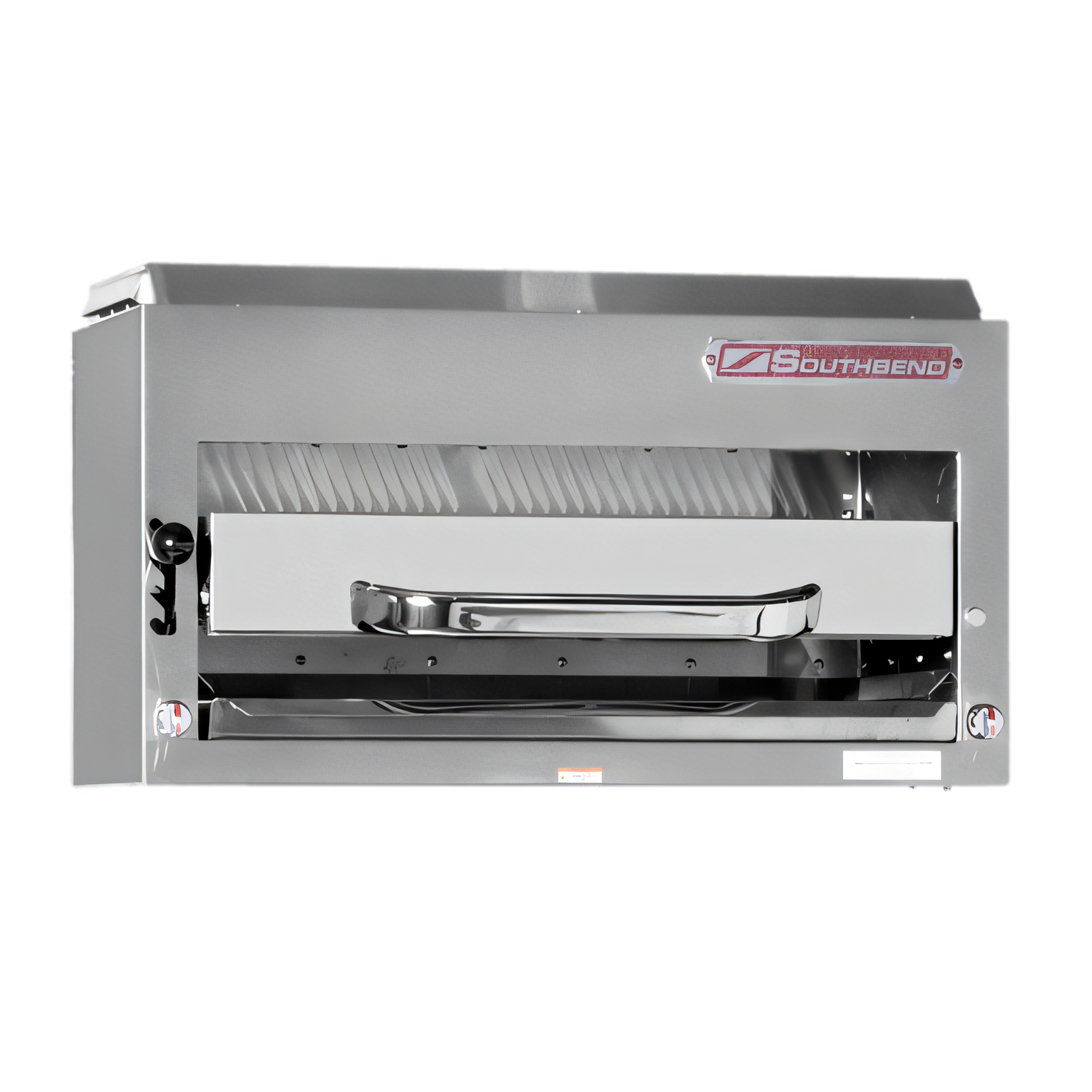

Southbend Platinum 32" Compact Radiant Broiler – Model P32-RAD
Riser-Mounted | Gas | 40,000 BTU | CSA & NSF ListedBring steak-house quality results to any heavy-duty cooking line without sacrificing valuable range space. The Southbend Platinum 32" Compact Radiant Broiler drops directly onto your flue riser, delivers a powerful 40,000 BTU punch, and gives chefs the precision, speed, and durability they demand in a true high-volume kitchen.
Top Features & Benefits

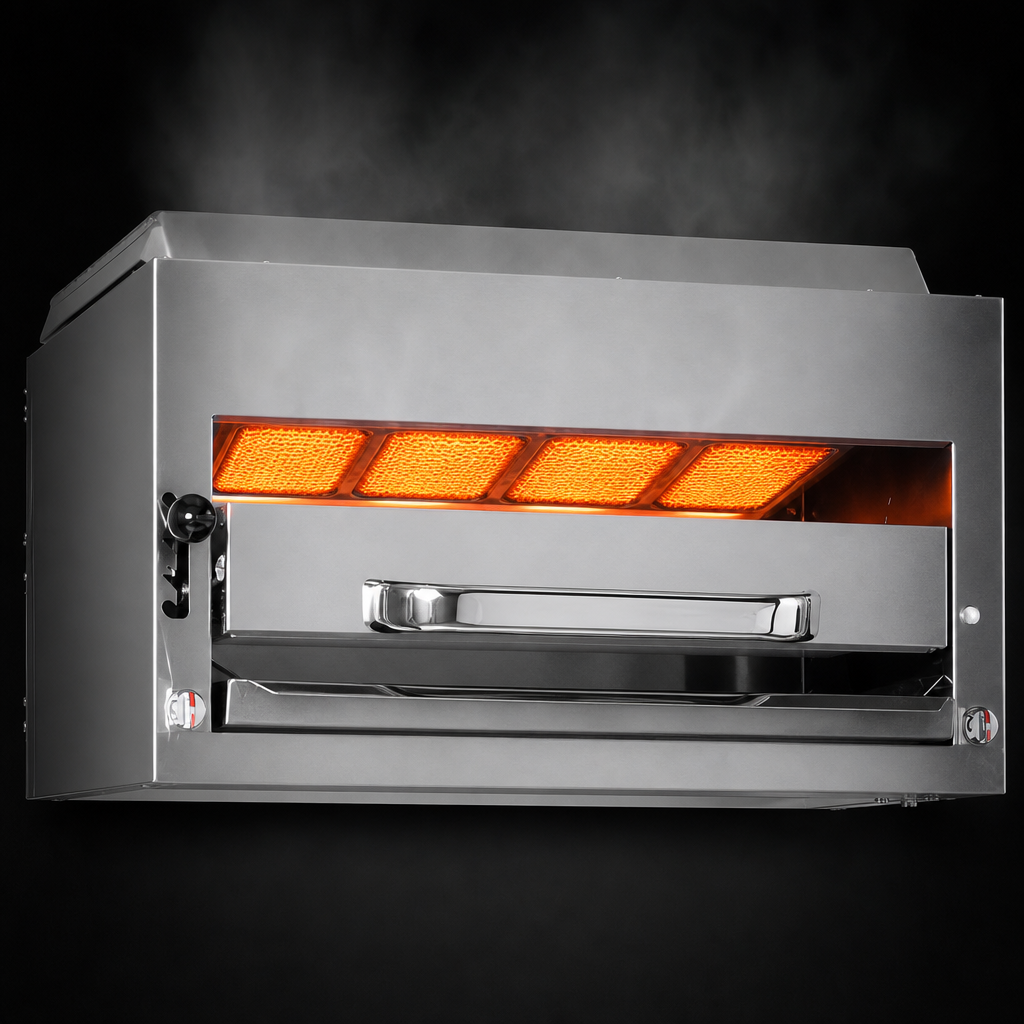

- Four 10,000 BTU stainless-steel radiant burners (natural or LP) for even, high-heat coverage.
- Dual valve control lets you fire left or right sides independently to save energy during slower periods.
- Counter-balanced “Easy-Track” 5-position rack system glides out smoothly for quick loading and unloading.
- Includes (1) chrome-plated cooking rack – 26" W × 14" D – providing 364 sq in of usable broiling surface.
- All 430 series stainless-steel front, sides, interior & carriage for maximum durability and easy cleanup.
- Bright-annealed face plate and a removable grease drawer keep the station looking sharp and sanitary.
- Cool-touch handle protects staff during peak service rushes.

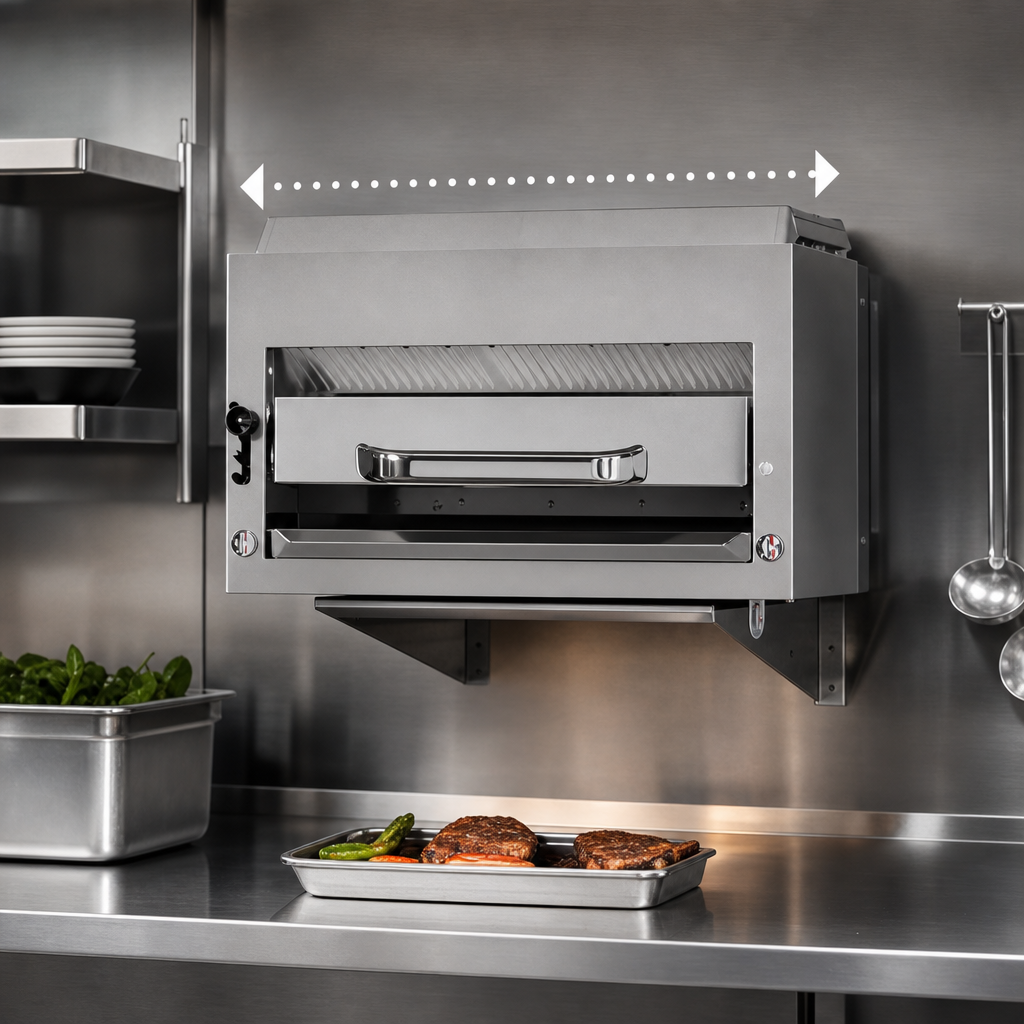

- Zero rear & 1" side clearance to combustibles—ideal for tight cooklines.
- Shipped ready for flue-riser mounting; optional wall or countertop kits available.
- Backed by Southbend’s 1-year parts & labor warranty plus nationwide service network.
Technical Specifications
| Model | P32-RAD (Platinum Series) |
|---|---|
| Overall Width | 32 in (813 mm) |
| Overall Depth | 15.5 in (394 mm) |
| Overall Height | 21.5 in (546 mm) |
| Cooking Surface | 26 in W × 14 in D | 364 sq in (2,349 cm²) |
| Burners | 4 × 10,000 BTU Radiant (Stainless Steel) |
| Total Input | 40,000 BTU/hr |
| Rack Positions | 5 (counter-balanced) |
| Gas Connection | 3/8" NPT (rear); Regulator included – 4" WC Nat / 10" WC LP |
| Unit Weight | 155 lb (70 kg) shipping |
| Clearances | 0" rear, 1" sides to combustibles |
| Certifications | CSA, NSF |
| Warranty | 1-Year Parts & Labor (commercial use) |
Factory Options & Accessories (Extra Cost)
- 4" Stainless-steel counter legs for countertop installation
- Wall-mount bracket kit
- Custom flue-riser sizes for non-standard range installations
- Sloped enclosure for flush wall installations
Installation & Operation Notes
- Intended for commercial kitchens only; not for household use.
- Supply line must be sized to maintain required operating pressure.
- Observe local codes for gas, fire, and sanitation during installation.
- Do not block the cooking grates with sheet pans while burners are on—this can cause heat damage and void warranty.
Specifications subject to change without notice. Always refer to the factory-supplied manual for the most current information.
