Southbend (Middleby)  |  Platinum  |  SKU: P32-CM

Southbend (Middleby) P32-CM Platinum Cheese Melters

$4,424.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Middleby financial flyer Owner's manual Warranty sheet
Related Searches
Broilers Charbroilers & Grills Cheese Melters Cheesemelters Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

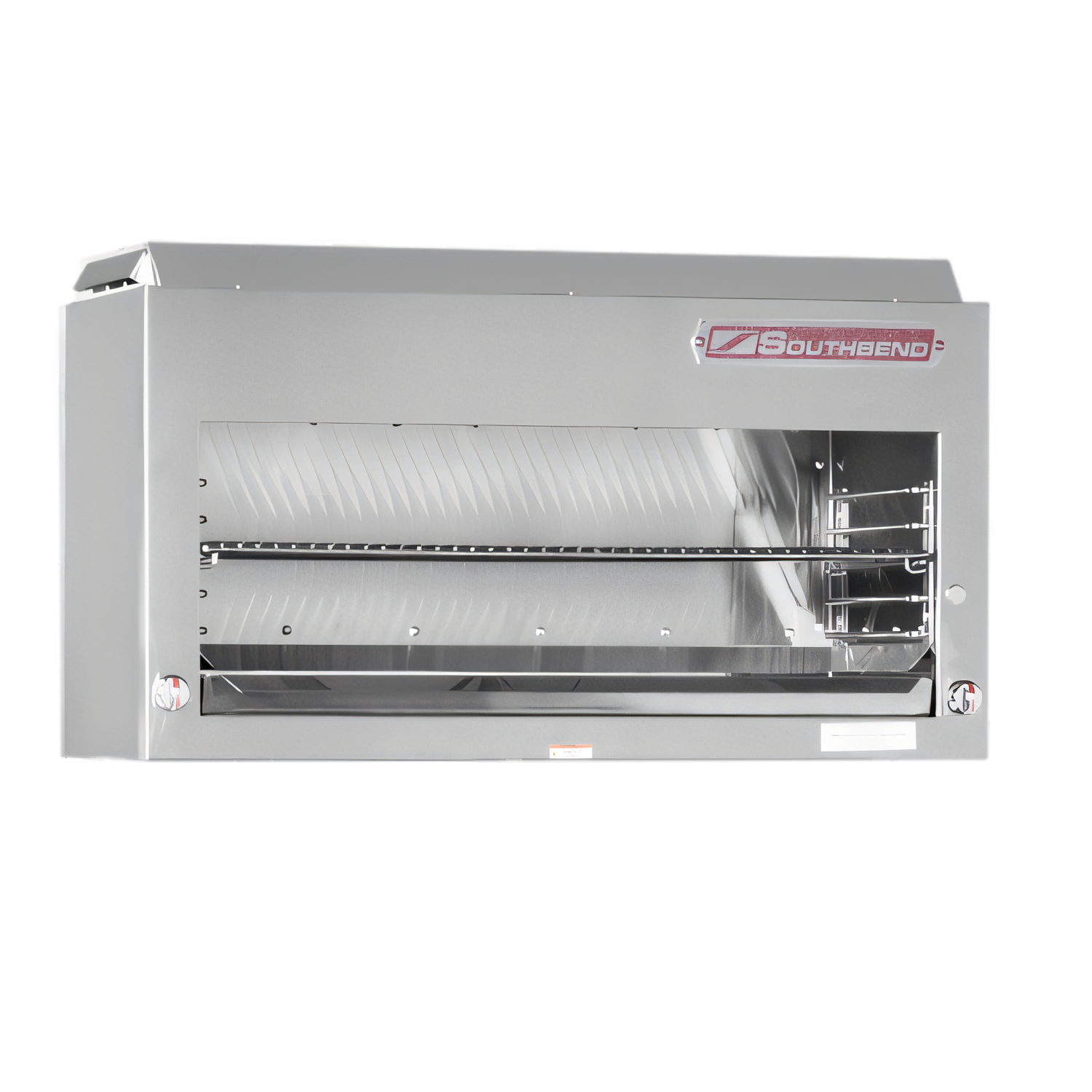

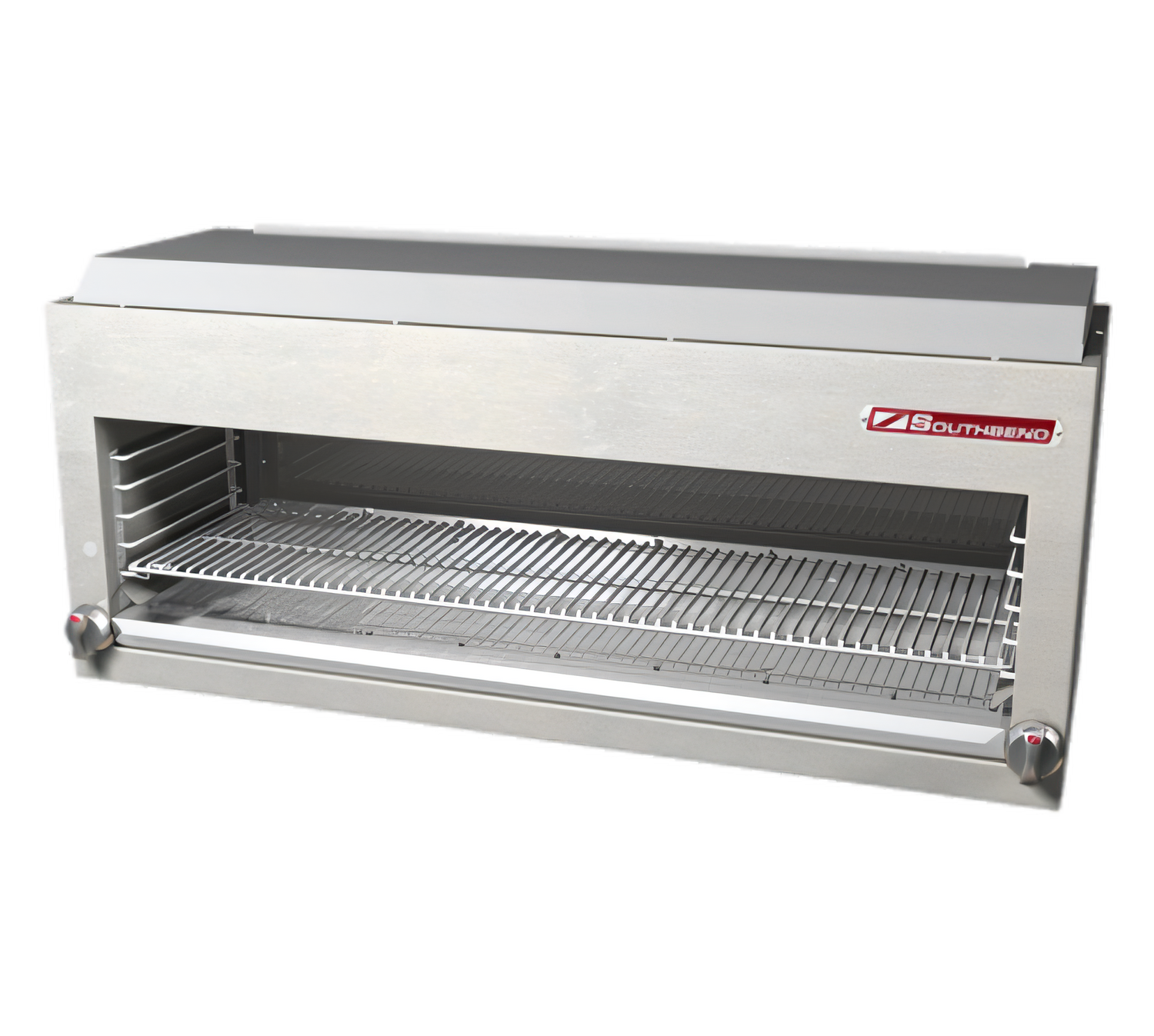

Southbend Platinum 32" Heavy-Duty Gas Cheesemelter

Model P32-CM | 40,000 BTU Infrared Burners

Finish plate after plate with perfect, bubbly cheese and golden-brown toppings in just 90 seconds. Built for the punishing pace of high-volume kitchens, the Southbend Platinum Cheesemelter mounts directly to your Platinum range riser and delivers precision-controlled infrared heat exactly where you need it.

Key Performance Benefits

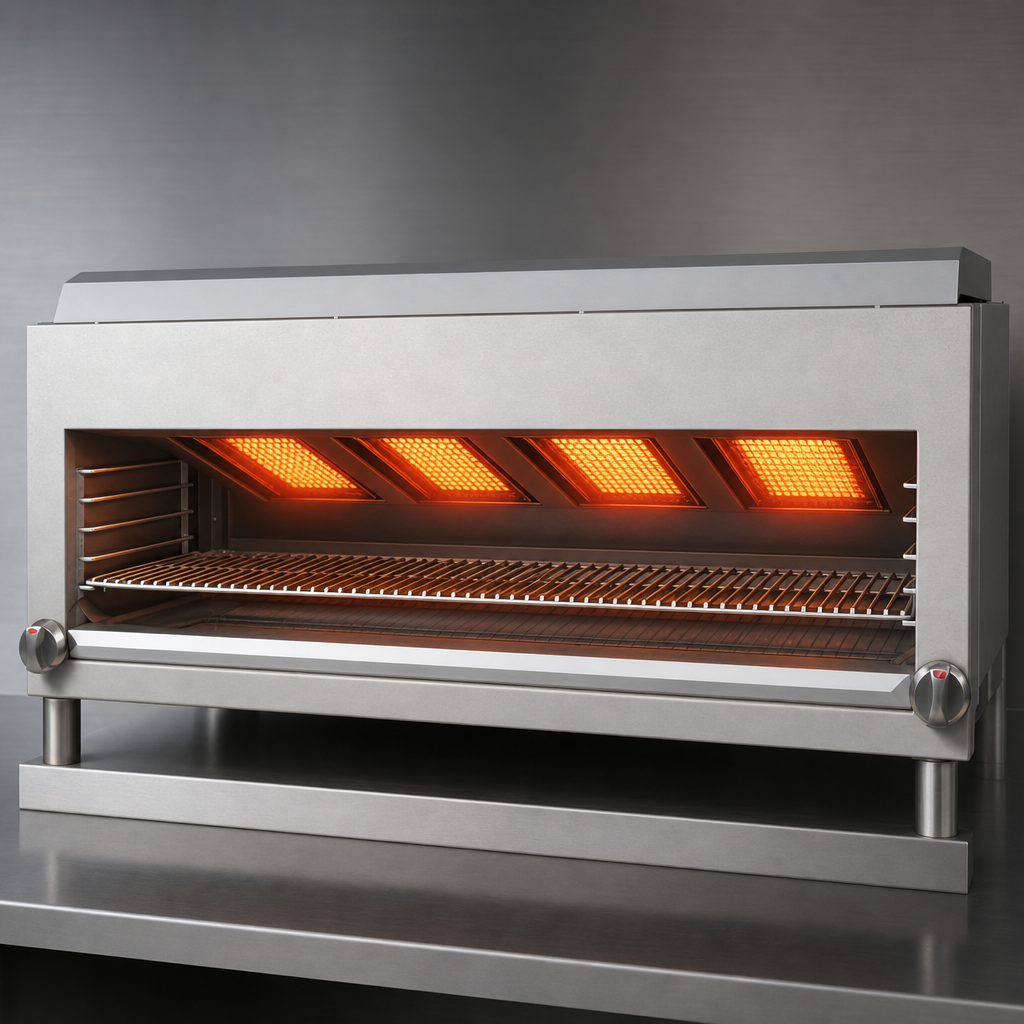

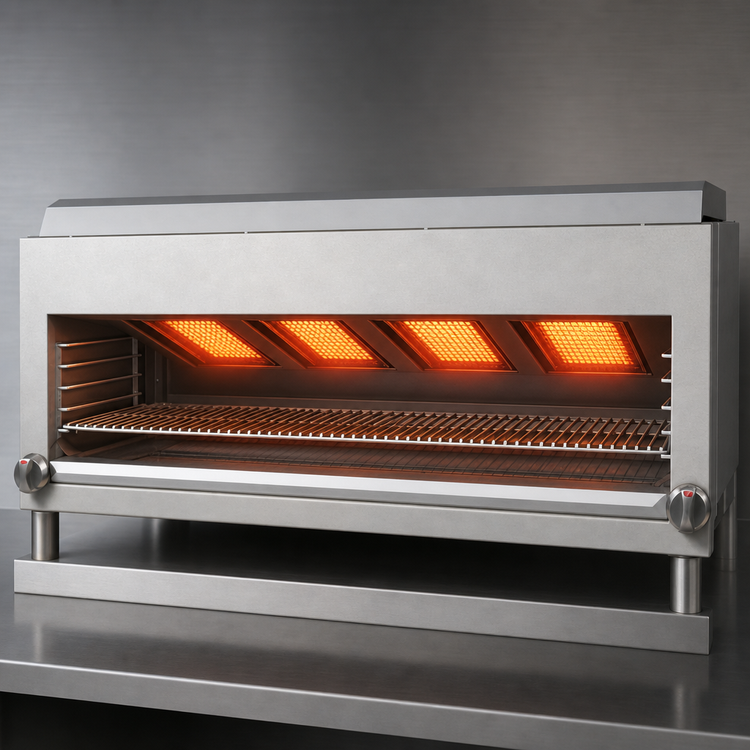

  • Four 10,000 BTU infrared burners (left & right individually controlled) for fast, even caramelization.
  • Ultra-fast 90 second preheat—no downtime between loads.
  • Extra-large 32" cavity provides 351 in² of usable cooking surface.

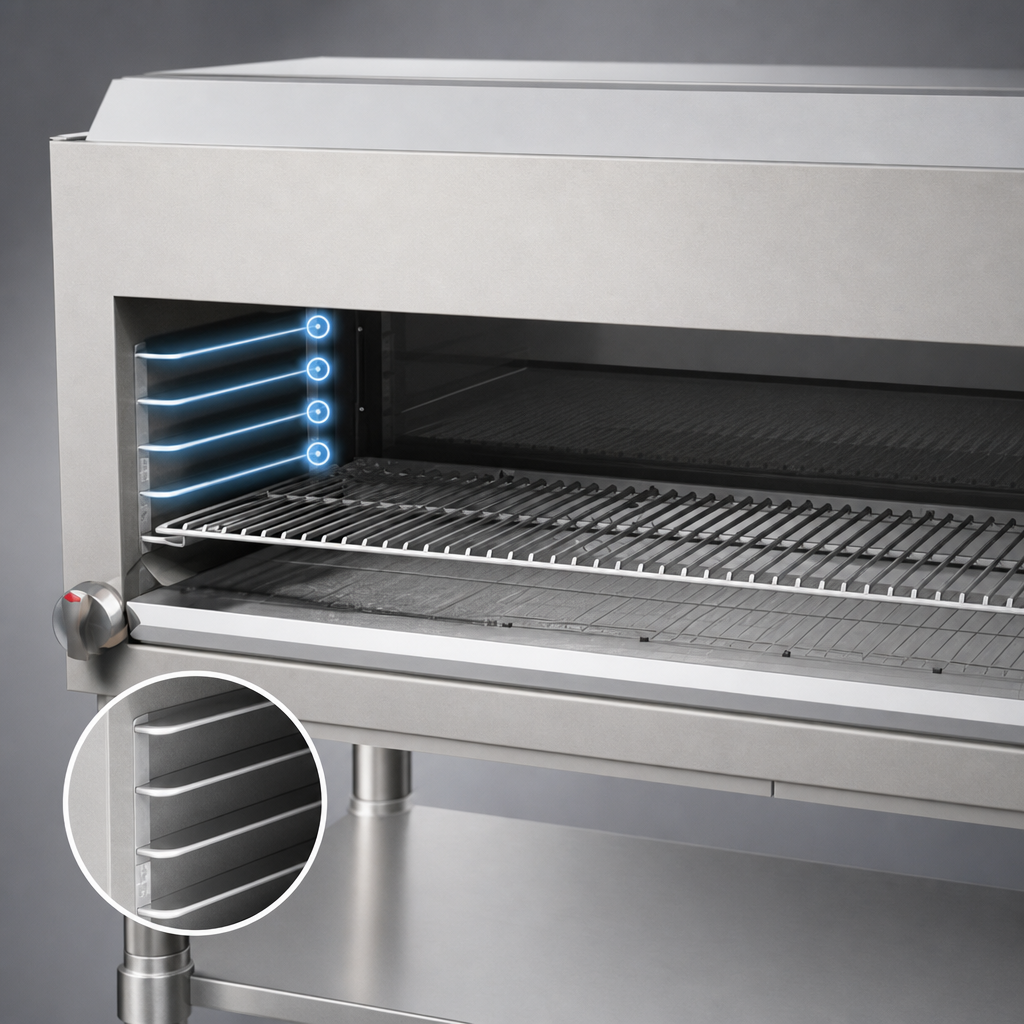

  • Five rack positions adapt to nachos, gratins, steaks, sheet pans and more.
  • Chrome-plated rack glides out for safe, easy loading.
  • Bright-annealed stainless crumb tray removes for quick cleanup.
  • All-stainless 430 exterior/interior stands up to daily commercial abuse and wipes clean.
  • Certified by CSA & NSF for gas safety and sanitation.

Included with the Unit

  • (1) Chrome-plated cooking rack
  • Range-riser mounting kit (factory installed)
  • Removable stainless crumb tray
  • 3/4" NPT gas pressure regulator

Specification Sheet

Cooking surface 351 in² (27" W × 13" D)
Overall width 32" / 813 mm
Overall depth 15.5" / 394 mm
Overall height 21.5" / 546 mm
Total BTU input 40,000 BTU/hr (Natural or LP)
Gas connection 3/8" NPT rear; regulator included
Manifold pressure 4" W.C. Natural | 10" W.C. Propane
Unit weight 120 lb / 54 kg (shipping)
Clearances (combustible) 1" sides, 0" rear
Certifications CSA, NSF
Warranty 1-year parts & labor

Popular Accessories (sold separately)

  • Wall-mount bracket kit
  • 4" stainless steel countertop legs
  • Additional chrome racks
  • Sloped front enclosure for a flush, finished look
Installation Note: This appliance is intended for commercial use only. Follow local codes for gas hookup and ventilation. Oversized cookware should not extend over the front rail of the range.

Need easy monthly payments? Ask us about Middleby Equipment Financing and get cooking faster.

Features & Specs

Manufacturer

Southbend (Middleby)

Brand_name

Platinum

Certifications

NSF, CSA

Height

21.5in

Width

32.0in

Depth

15.5in

Shipping Weight

120.0lbs

Heat type

infrared

Rack Positions

5

Mounting

range mount

Width (side - side)

25" - 36"

Exterior Finish

all stainless steel exterior

Specifications

Platinum Heavy Duty Cheesemelter, gas, 32", riser mount, (4) infrared burners, (5) position rack guides, (1) chrome plated rack, dual valve control, 90 second preheat time, removable crumb tray, stainless steel construction, 40,000 BTU, CSA, NSF
