Southbend (Middleby) P24N-TT Platinum Gas Ranges
Description

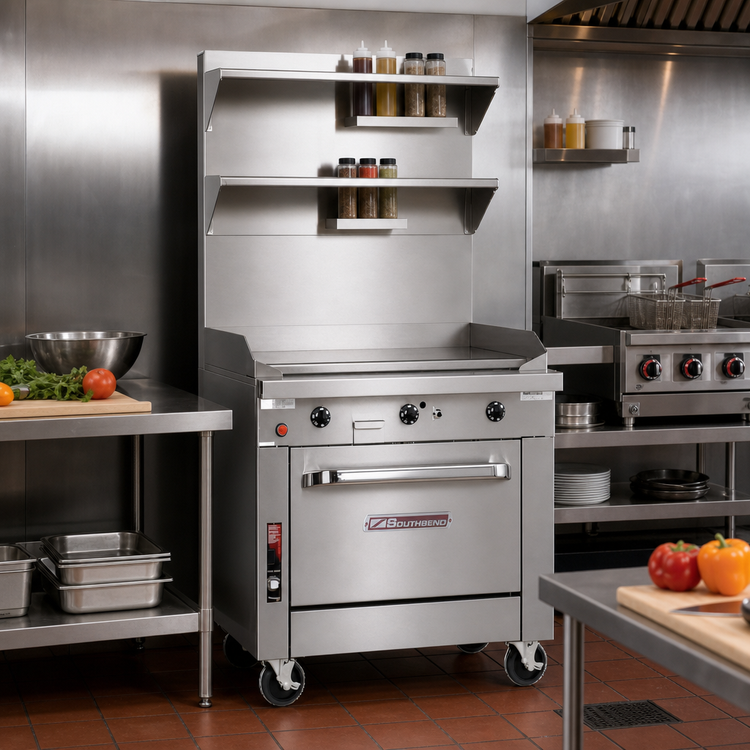

Platinum Series 24" Modular Thermostatic Griddle Range
Southbend Model P24N-TT • Natural Gas • 64,000 BTUEngineered for continuous, high-volume production, the Southbend Platinum Series 24" modular griddle delivers rock-solid performance in a compact footprint. A full-width 1" thick steel plate, Insta-On thermostatic controls, and rugged stainless construction make it the first choice for demanding commercial kitchens that refuse to compromise on speed, accuracy, or durability.
Why Chefs Choose This Range
- Insta-On thermostatic control keeps the plate between 180 °F – 400 °F for repeatable, even results—no manual guessing.

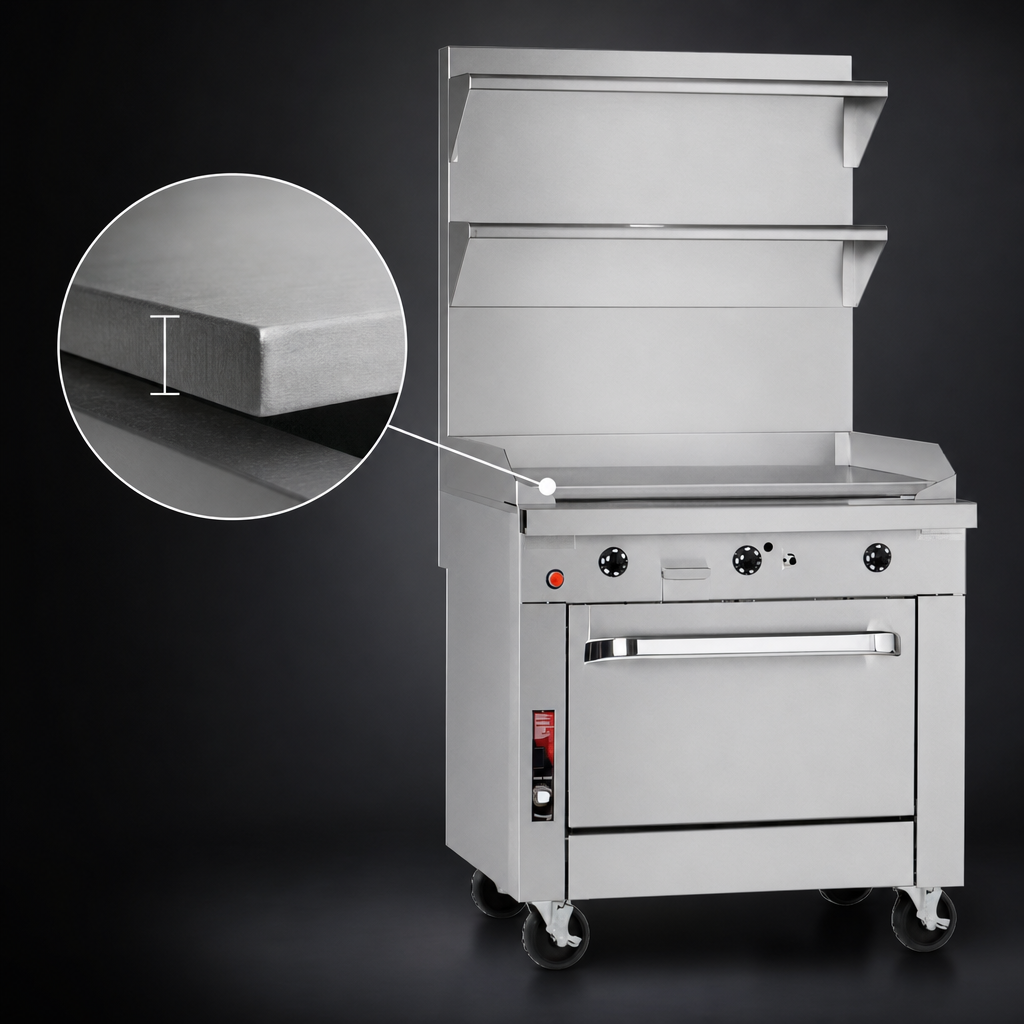

- 1" thick, full-width griddle plate retains heat and recovers fast during breakfast rushes and all-day service.
- Battery spark (piezo) ignition for reliable lighting without external power.
- 64,000 BTU burner system delivers powerful, edge-to-edge heat while remaining NSF and CSA certified for safety.
- Modular design drops on a counter, refrigeration, or freezer base for the ultimate line-up flexibility.

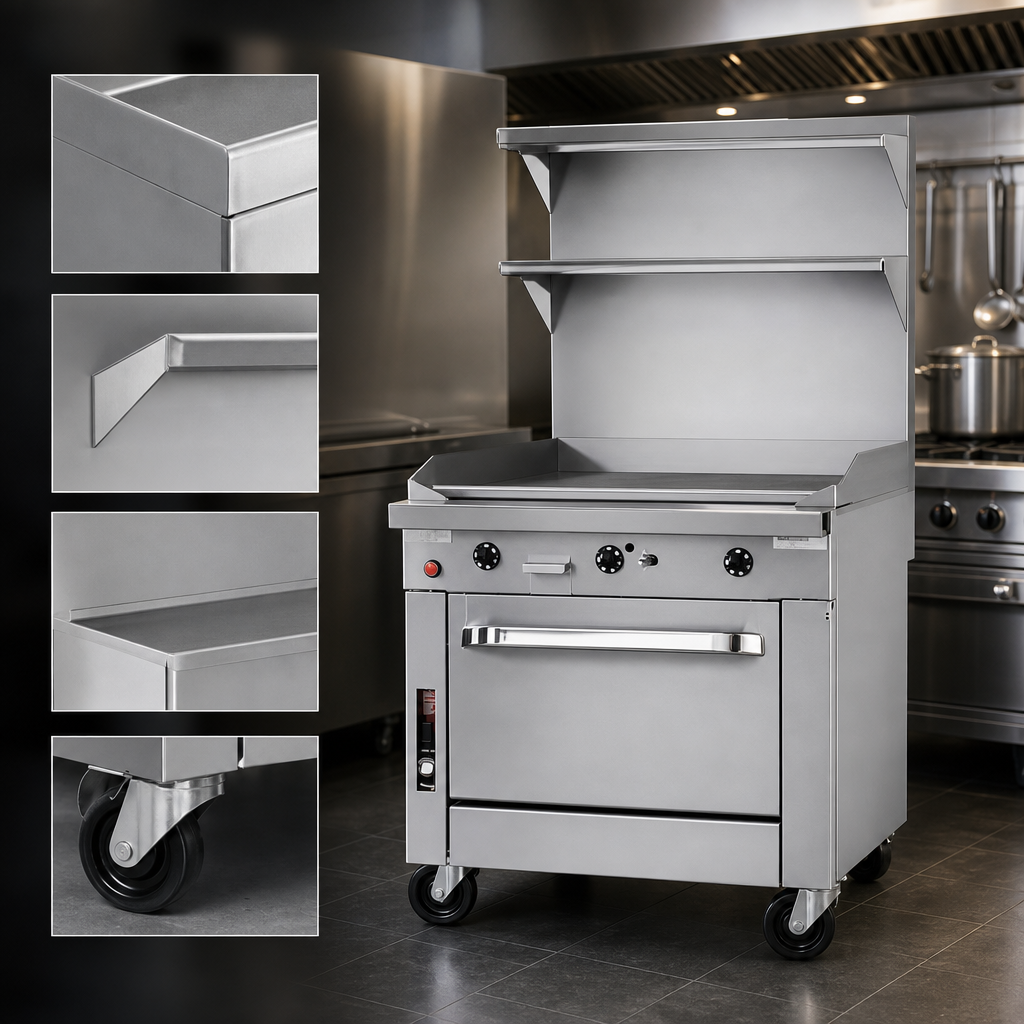

- All-stainless exterior (front, sides, rear, bottom) stands up to daily scrubbing and harsh commercial environments.
- 9-1/4" deep front rail stays cool and offers plenty of plating real estate.
- Oversize, removable stainless grease drawer speeds end-of-shift clean-up.
- Fully insulated burner box maximizes efficiency and keeps surrounding equipment cooler.
At-a-Glance Specs
| Model | P24N-TT (Platinum Series) |
|---|---|
| Configuration | 24" modular, full-width griddle |
| Plate Thickness | 1 inch (25 mm) polished steel |
| Heat Control | Insta-On thermostatic, 180 °F – 400 °F (82 °C – 204 °C) |
| Total BTU | 64,000 BTU/hr (Natural) • 56,000 BTU/hr (LP) |
| Ignition | Battery spark (piezo) electronic pilot |
| Gas Connections | 1-1/4" front manifold coupling • 1" rear male NPT |
| Exterior Material | #3 polish 430 / 304 stainless steel |
| Standard Flue Riser | 5" stainless steel |
| Shipping Weight | ≈ 250 lb / 113 kg (crated) |
| Certifications | NSF • cCSAus • CSA Flame • CSA Star |
| Warranty | 1 year parts & labor (commercial use) |
Popular Factory Options
- Chrome-finished or grooved griddle surface
- 24", 36", or extra-deep flue risers with optional shelves
- Open-frame or cabinet bases, with or without locking casters
- External gas pressure regulator, cable restraint kit, and tray/tubular shelving
Need a full Platinum battery? Contact our team for layout assistance or browse the complete line-up on the Southbend website.
